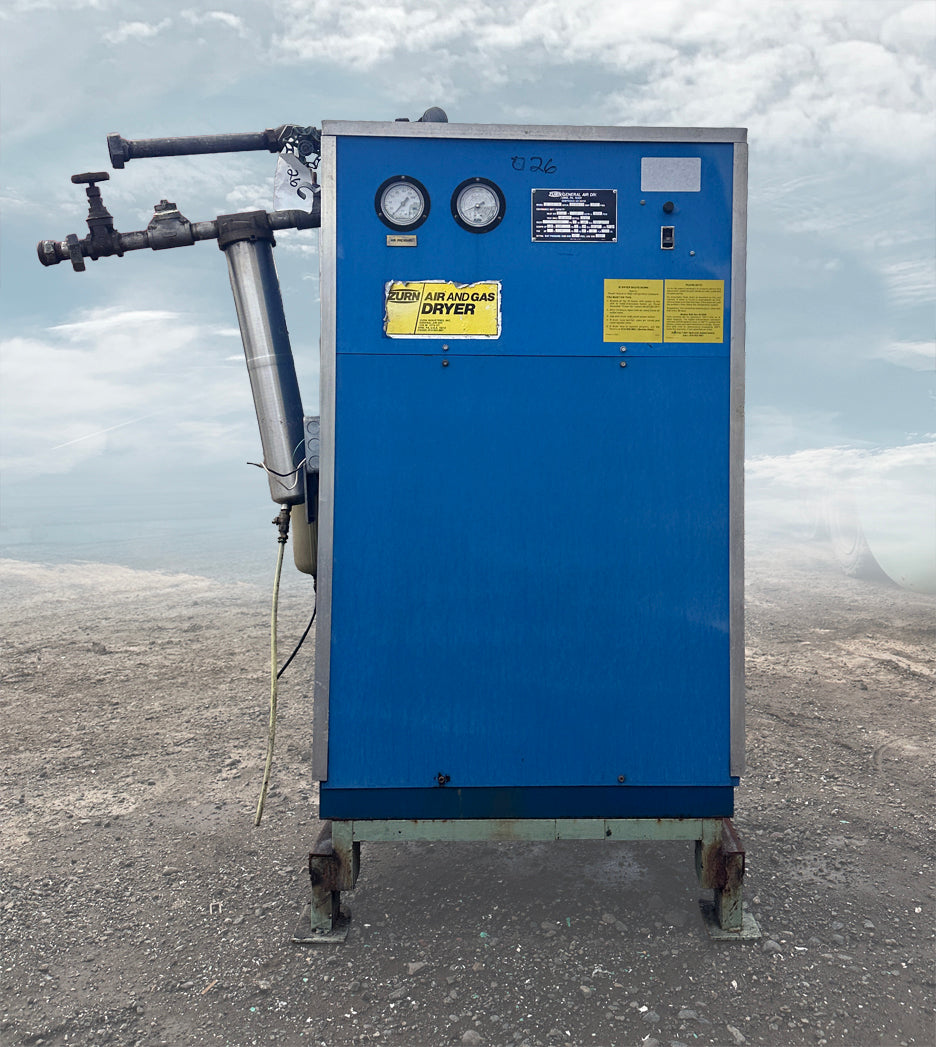

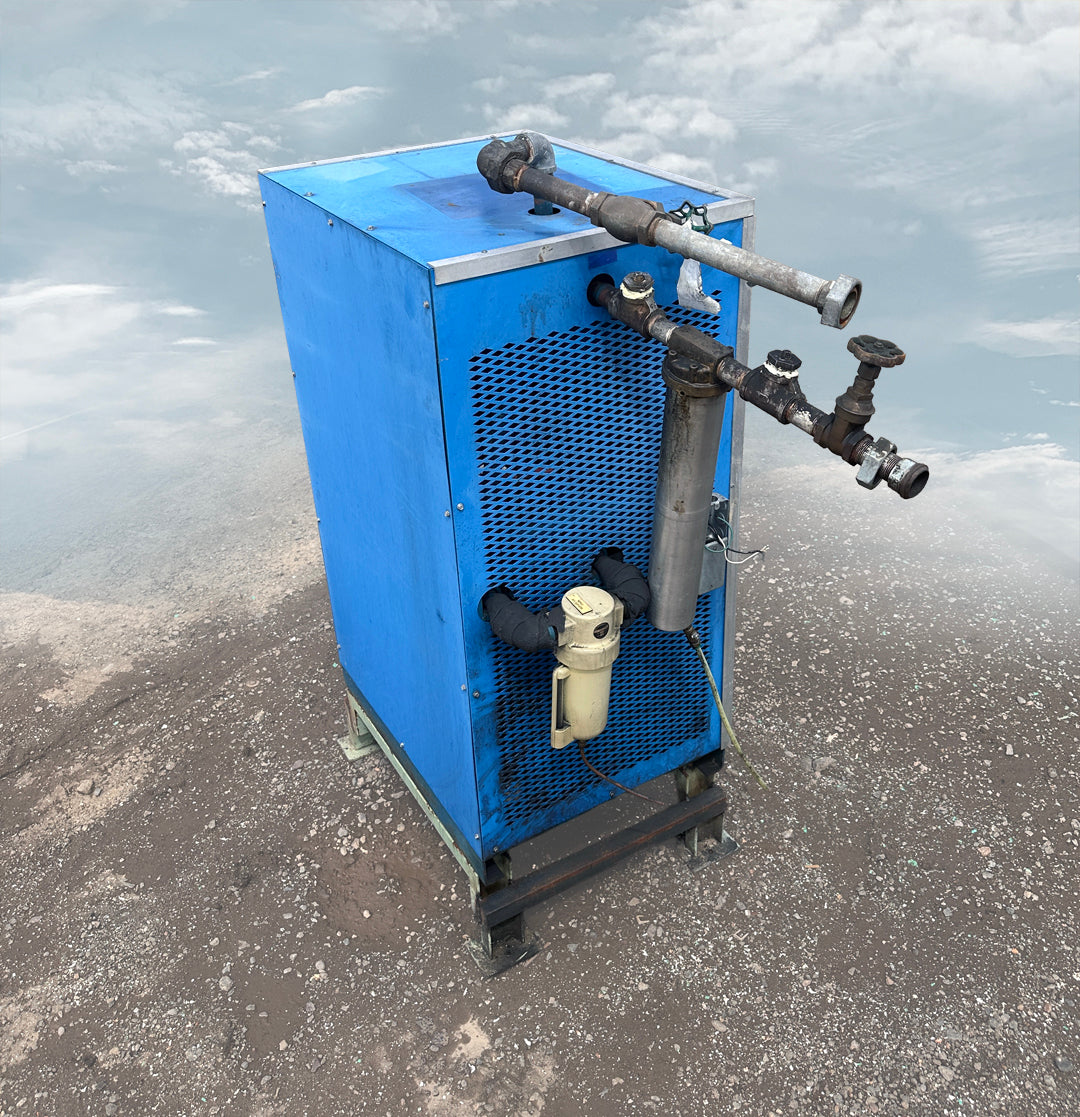

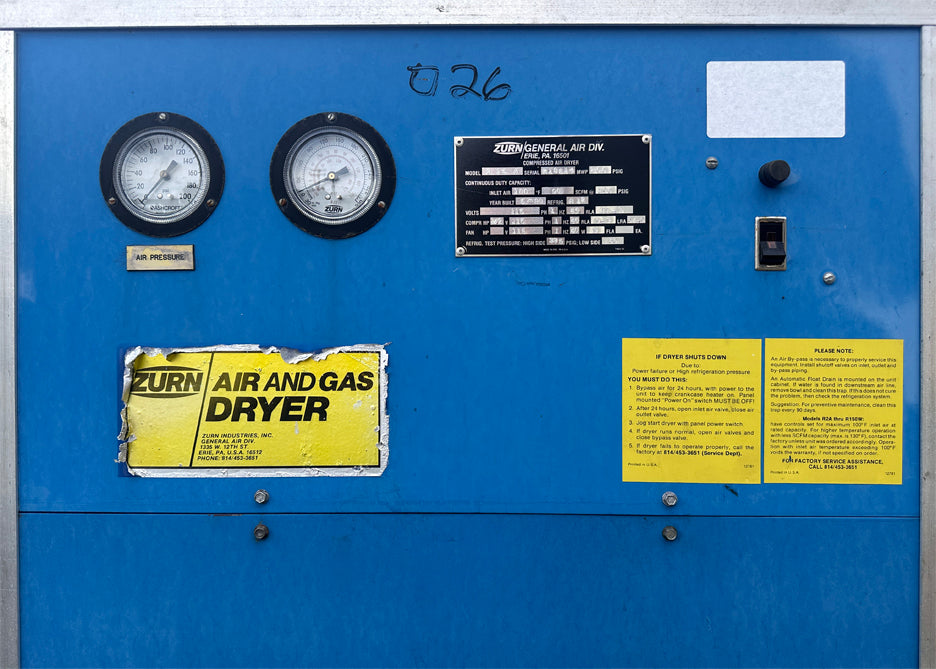

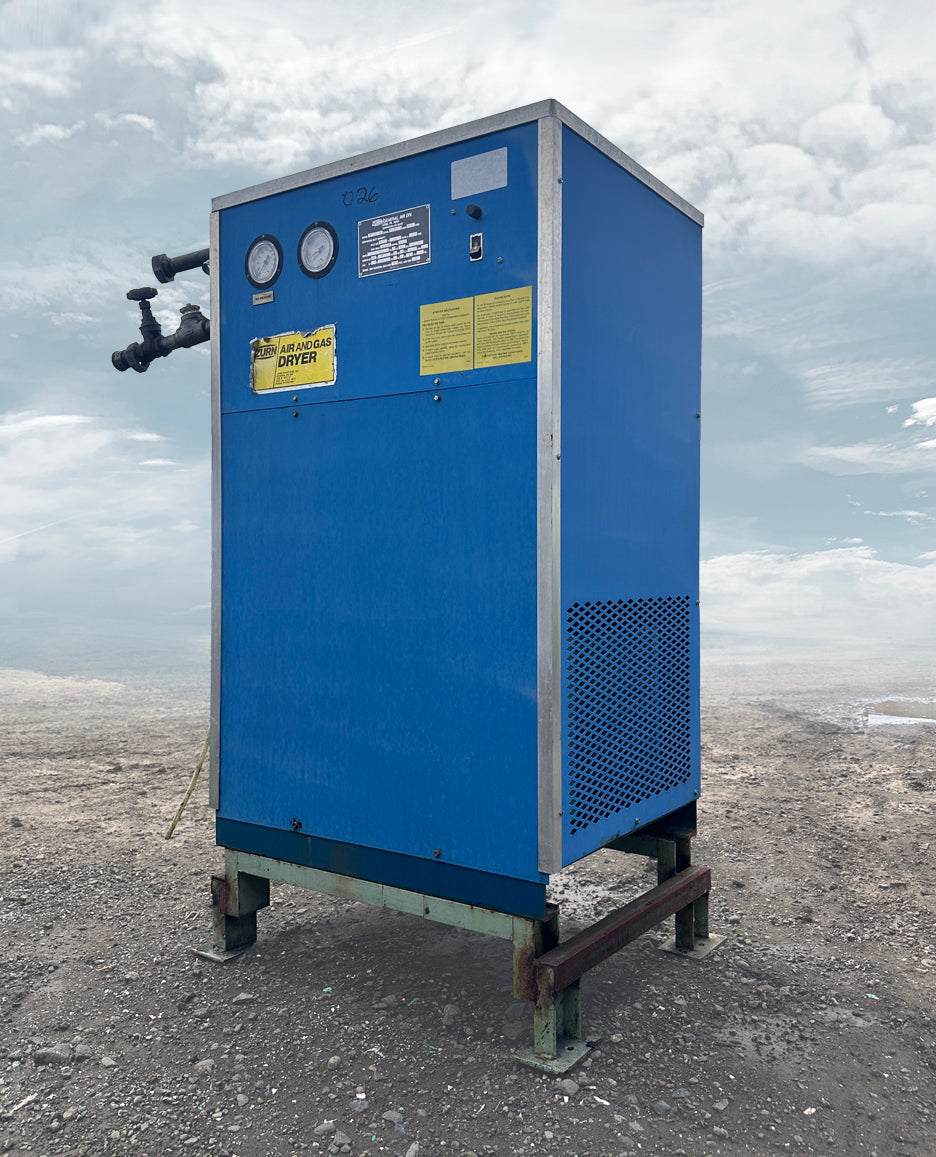

Zurn R15A Compressed Air Dryer

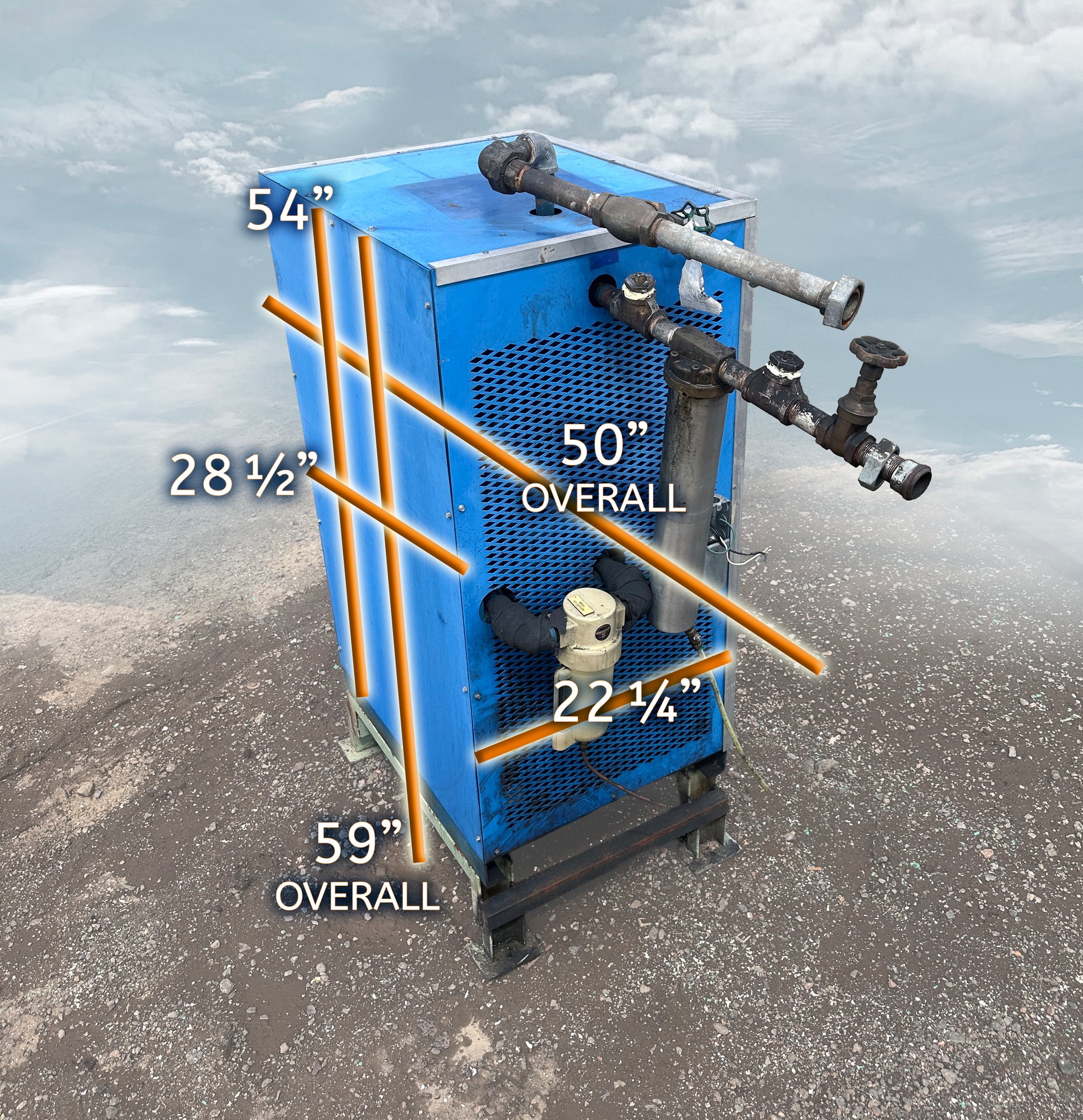

See photos for measurements

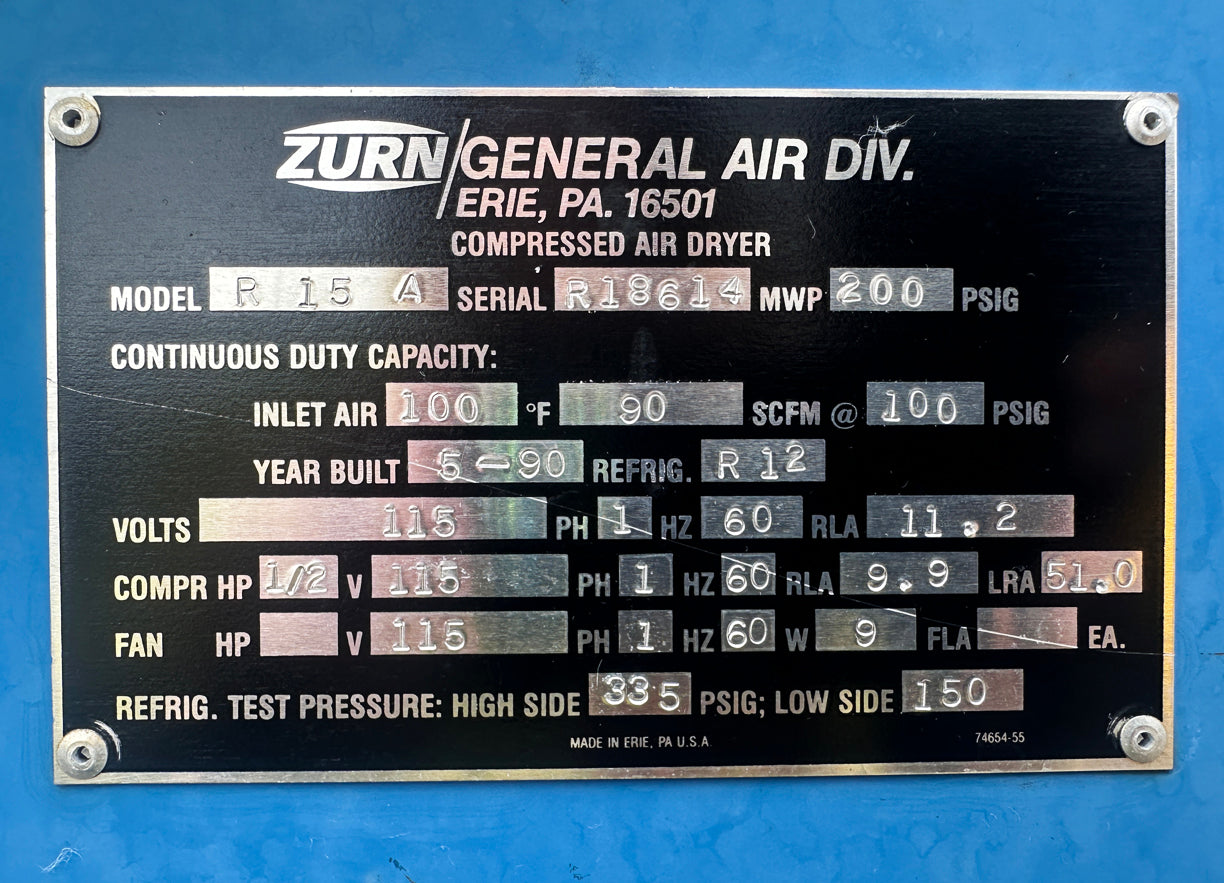

• Manufacturer: Zurn / General Air Division, Erie, PA 16501
• Model: R15A
• Serial Number: R18614
• Maximum Working Pressure (MWP): 200 PSIG
• Continuous Duty Capacity:
  • Inlet Air Temperature: 100°F
  • Flow Rate: 90 SCFM @ 100 PSIG
• Year Built: 5-90 (May 1990)
• Refrigerant: R12
• Electrical Specifications:
  • Voltage: 115 V
  • Phase: 1
  • Frequency: 60 Hz
• Compressor Motor:
  • Horsepower: 1/2 HP
  • Voltage: 115 V
  • Phase: 1
  • Frequency: 60 Hz
  • Rated Load Amps (RLA): 9.9
  • Locked Rotor Amps (LRA): 51.0
• Fan Motor:
  • Horsepower: Not specified
  • Voltage: 115 V
  • Phase: 1
  • Frequency: 60 Hz
  • Watts: 9
  • Full Load Amps (FLA): Not specified
• Refrigerant Test Pressure:
  • High Side: 335 PSIG
  • Low Side: 150 PSIG
• Made in Erie, PA, U.S.A.

*~ Local Pick-Up or Freight Shipping Only ~*
