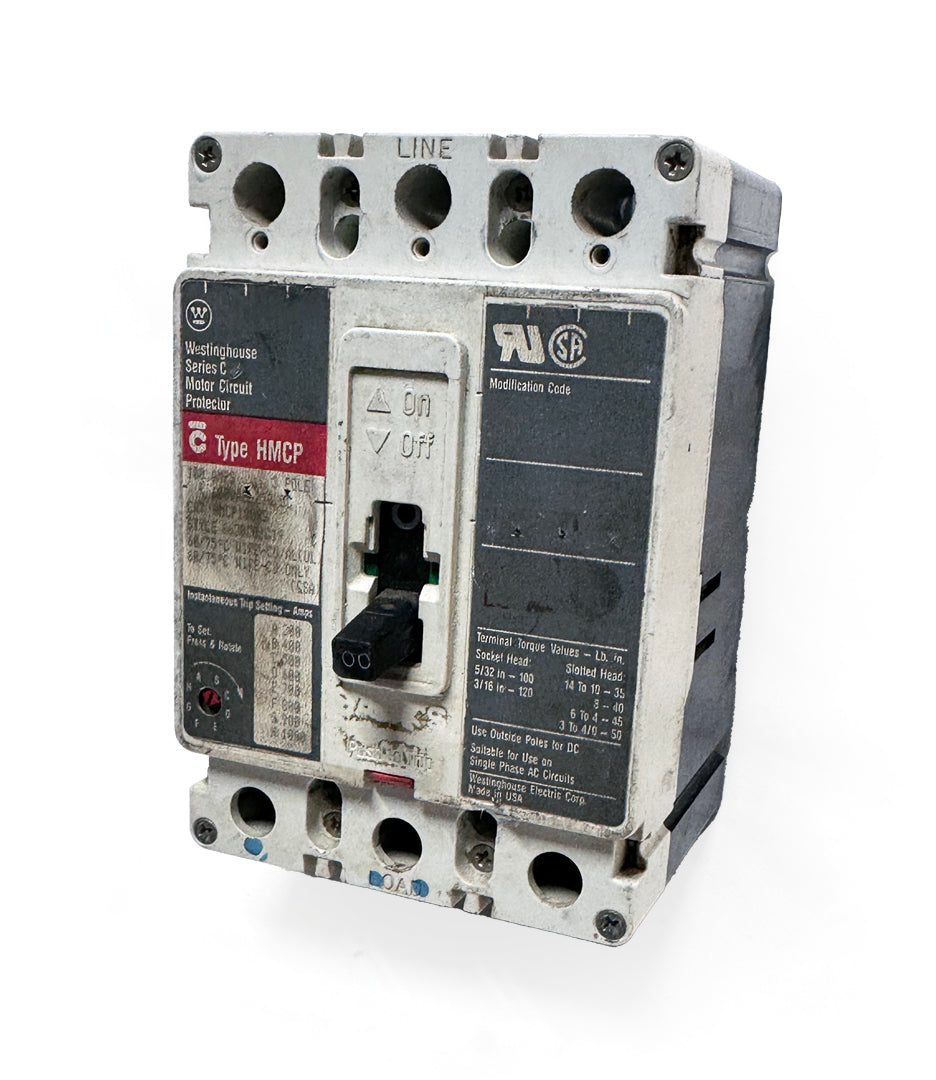

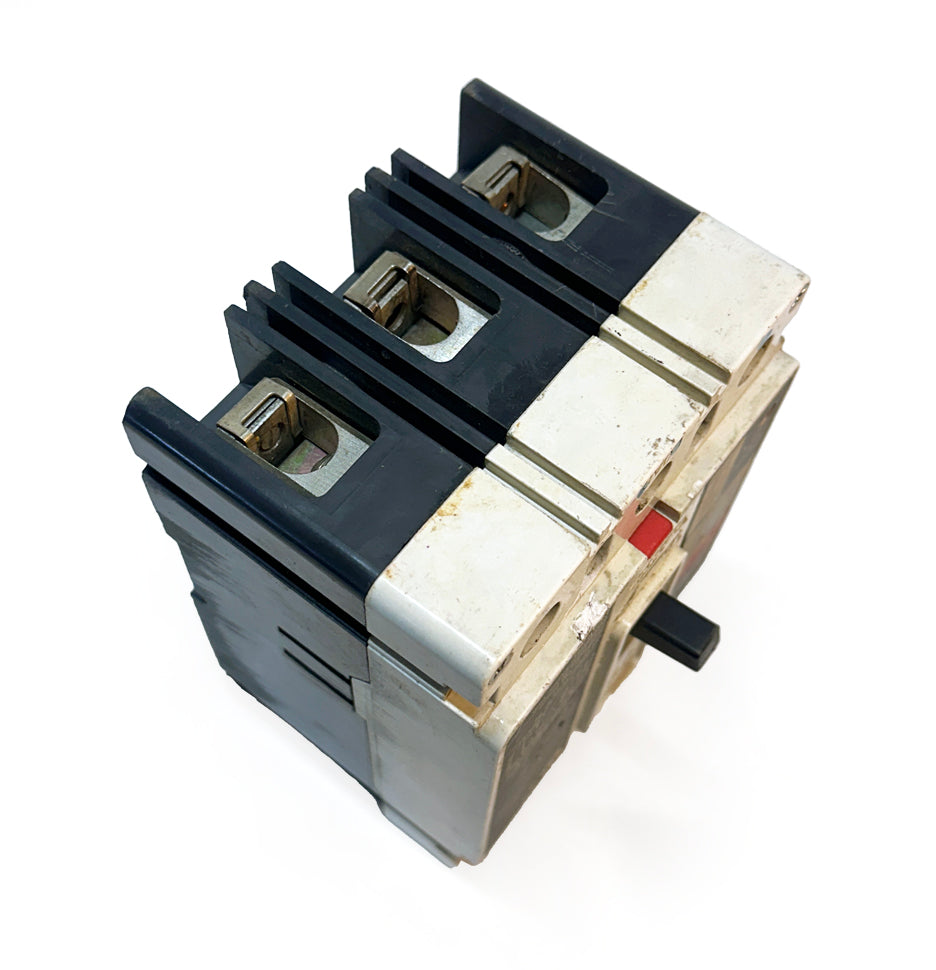

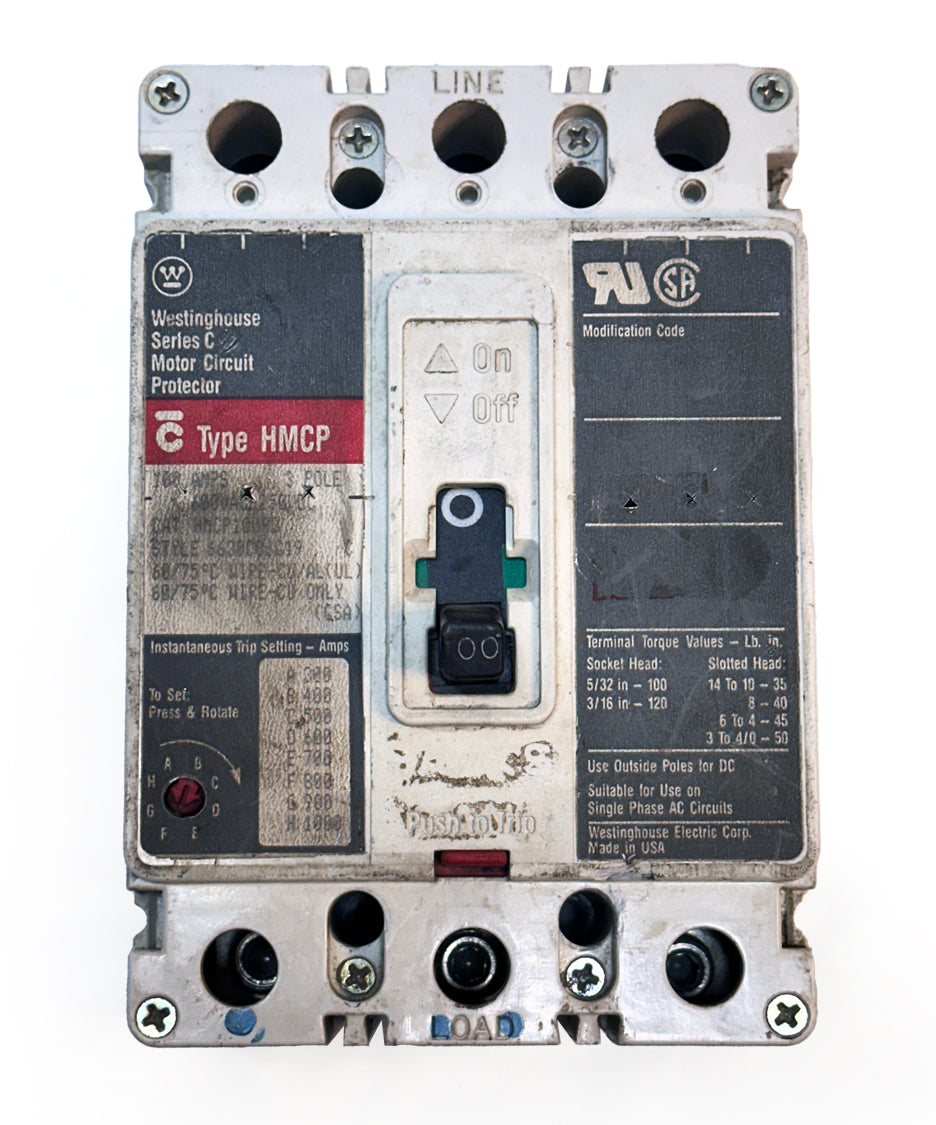

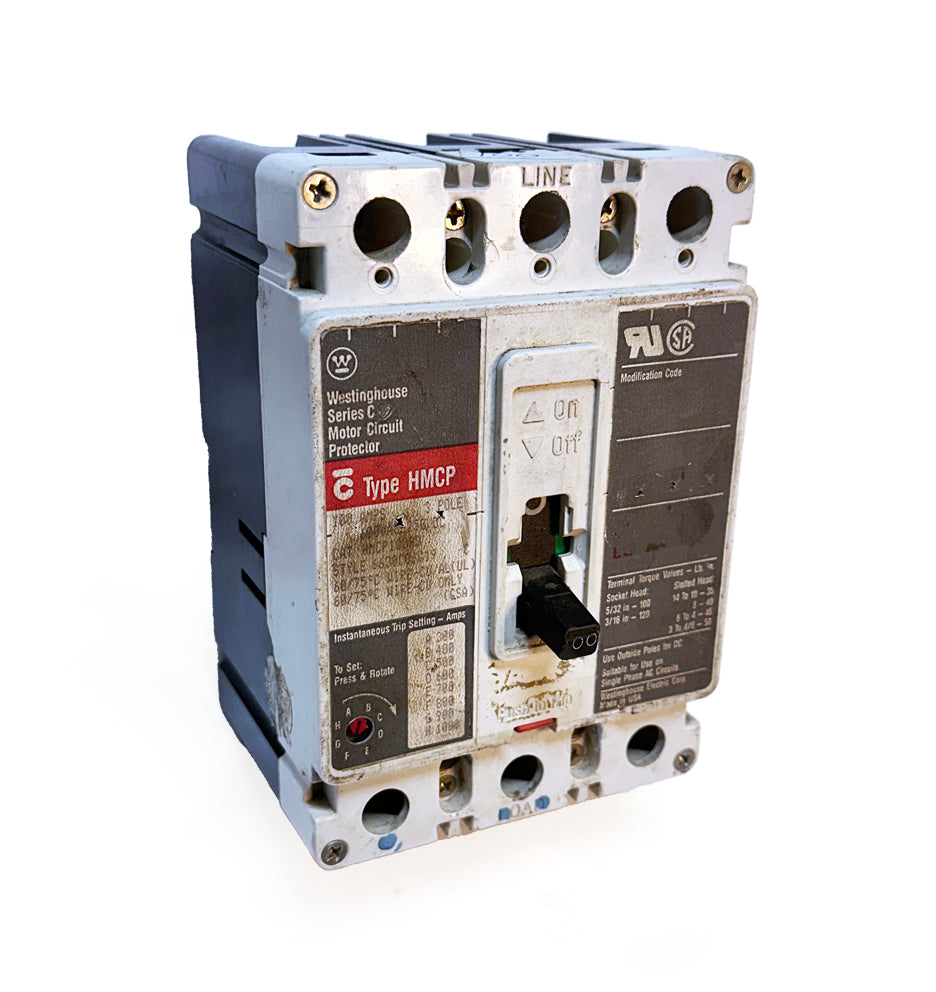

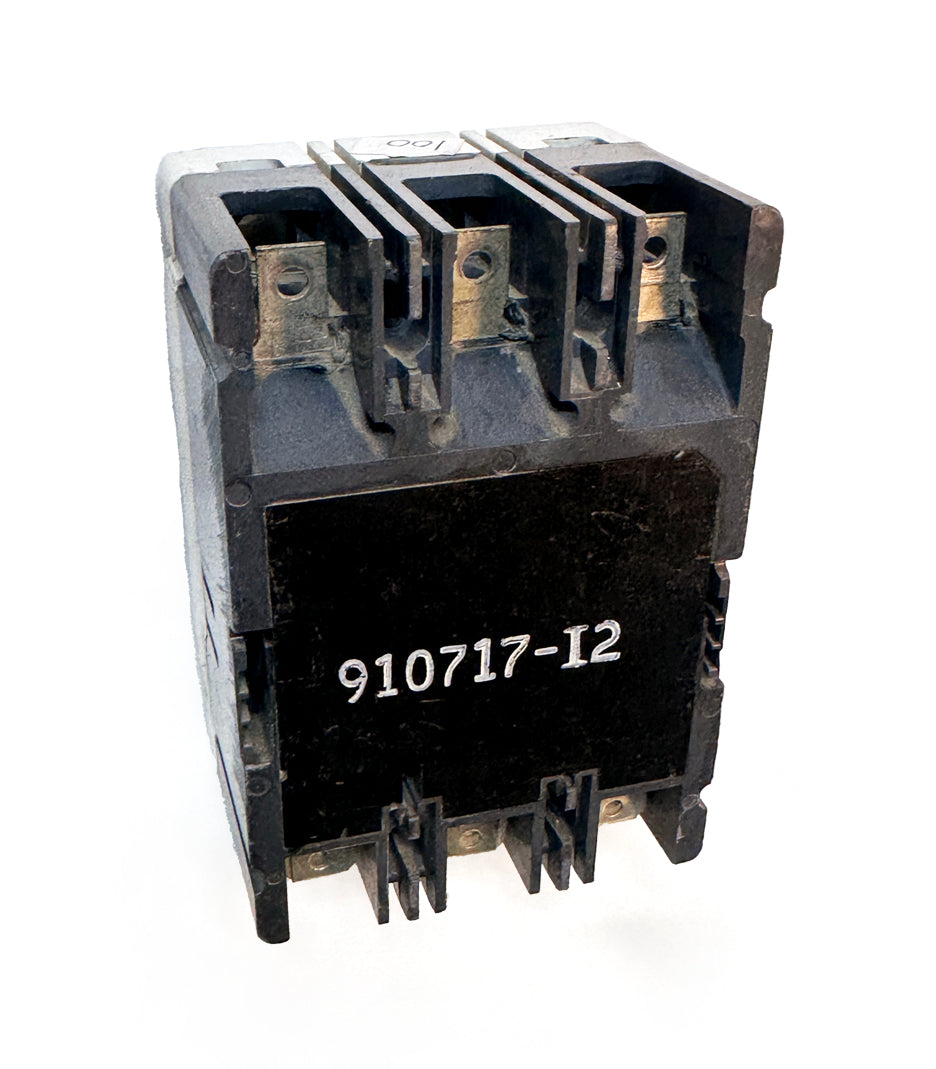

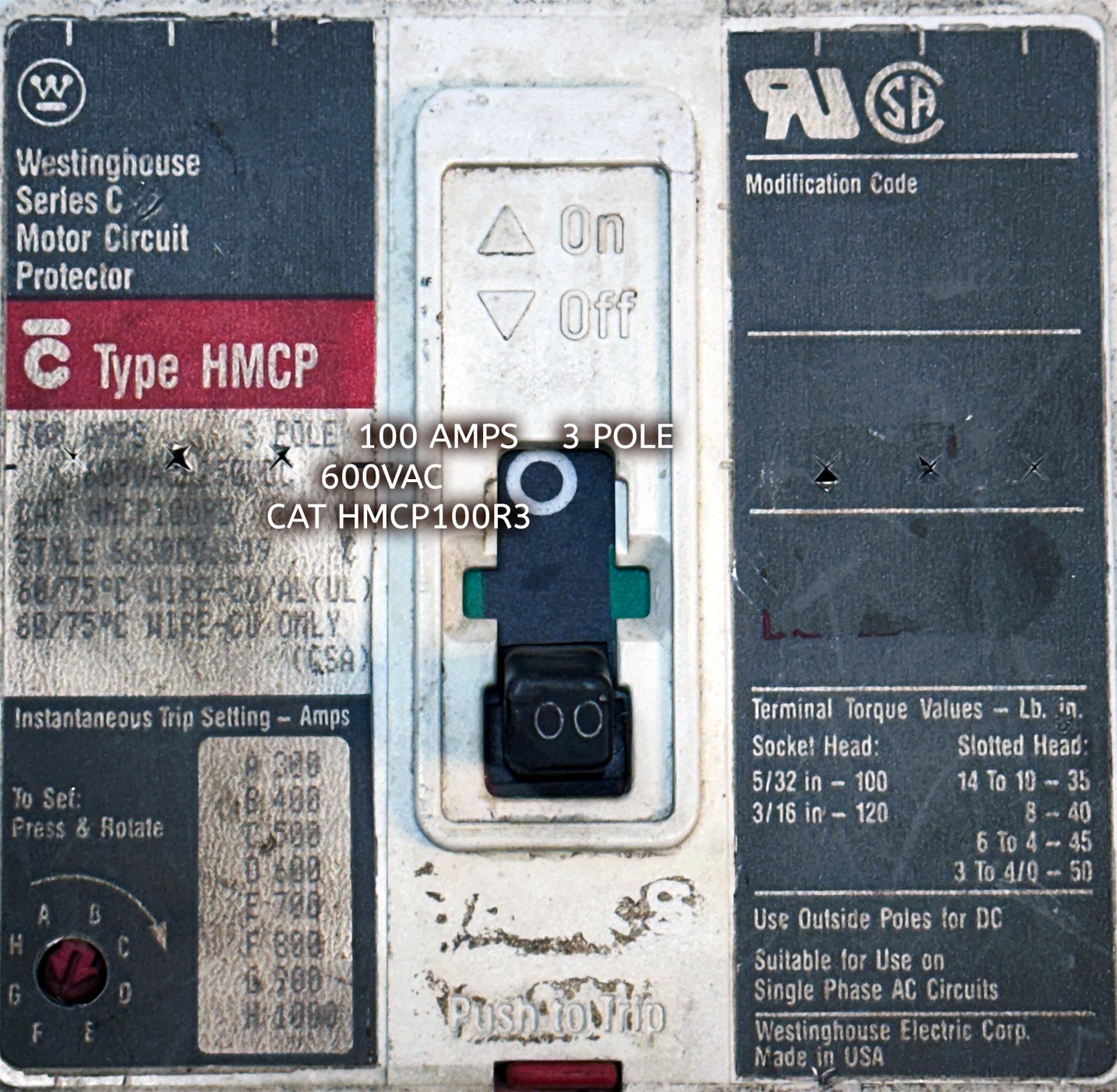

Westinghouse HMCP100R3 100A, 600V Motor Circuit Breaker

Removed in good working condition

Specs:

• Type: HMCP (Motor Circuit Protector)
• Frame Size: F Frame
• Poles: 3
• Rated Current: 100 Amps
• Voltage Ratings:
• 600 VAC
• 250 VDC
• Trip Type: Magnetic-only (instantaneous trip)
• Adjustable Trip Range: 300–1000 Amps
• Interrupting Rating: 65 kA at 480V
• Motor Full Load Amp (FLA) Range: 23.0–84.5 Amps
• Mounting Style: Bolt-on
• Dimensions (approx.): 3.38" L × 4.13" W × 6" H
• Terminals: Non-aluminum line and load side lugs
• Enclosure Rating: NEMA 3
• Auxiliary Contacts (optional): 2NO/2NC (e.g., model HMCP100R3CA13)
