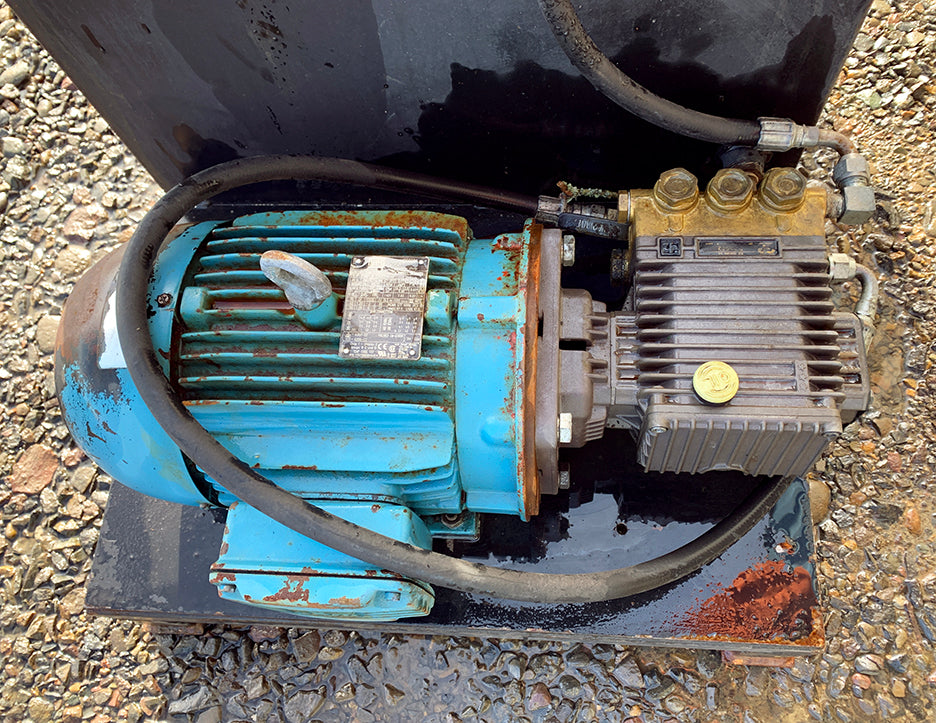

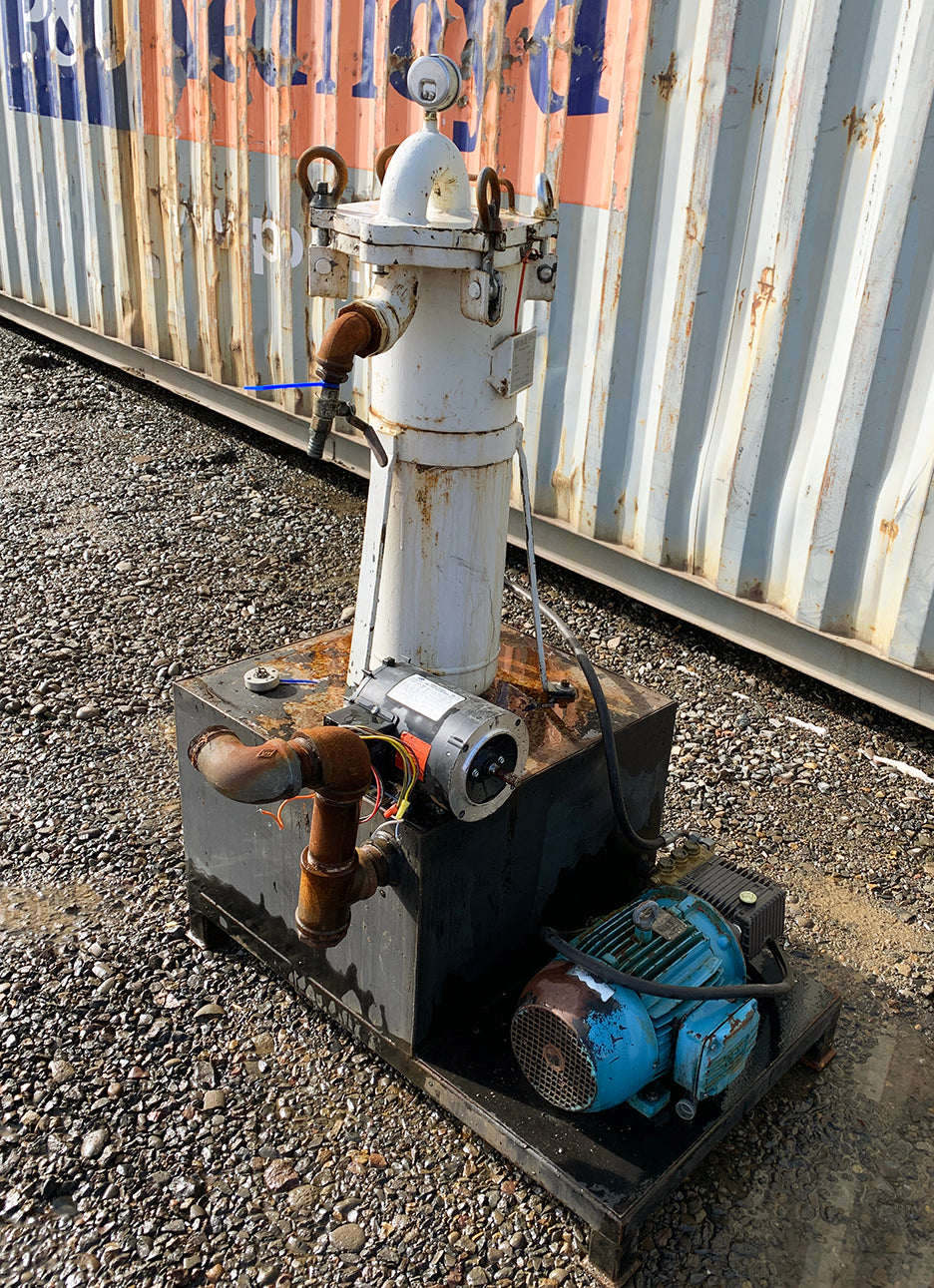

Pressurized injection lubricator with high-pressure pump for milling, machine tooling, etc.

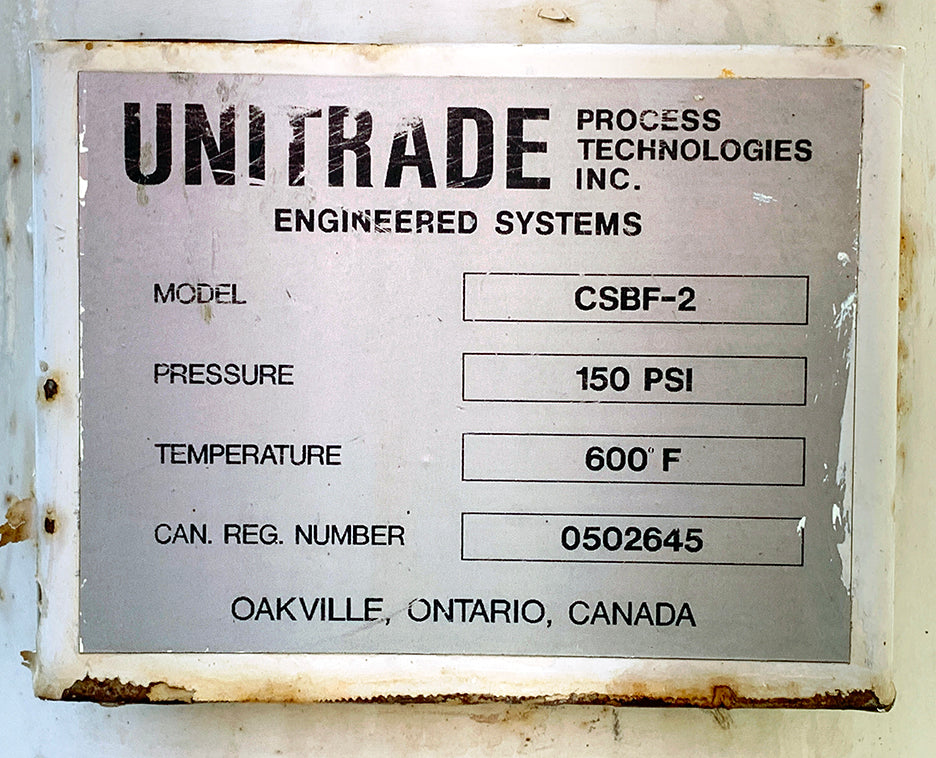

Unitrade Process Technologies Inc. Engineered Systems Tag:
- Model: CSBF-2
- Pressure: 150 PSI
- Temperature: 600 F
- Reg. Number: 0502645

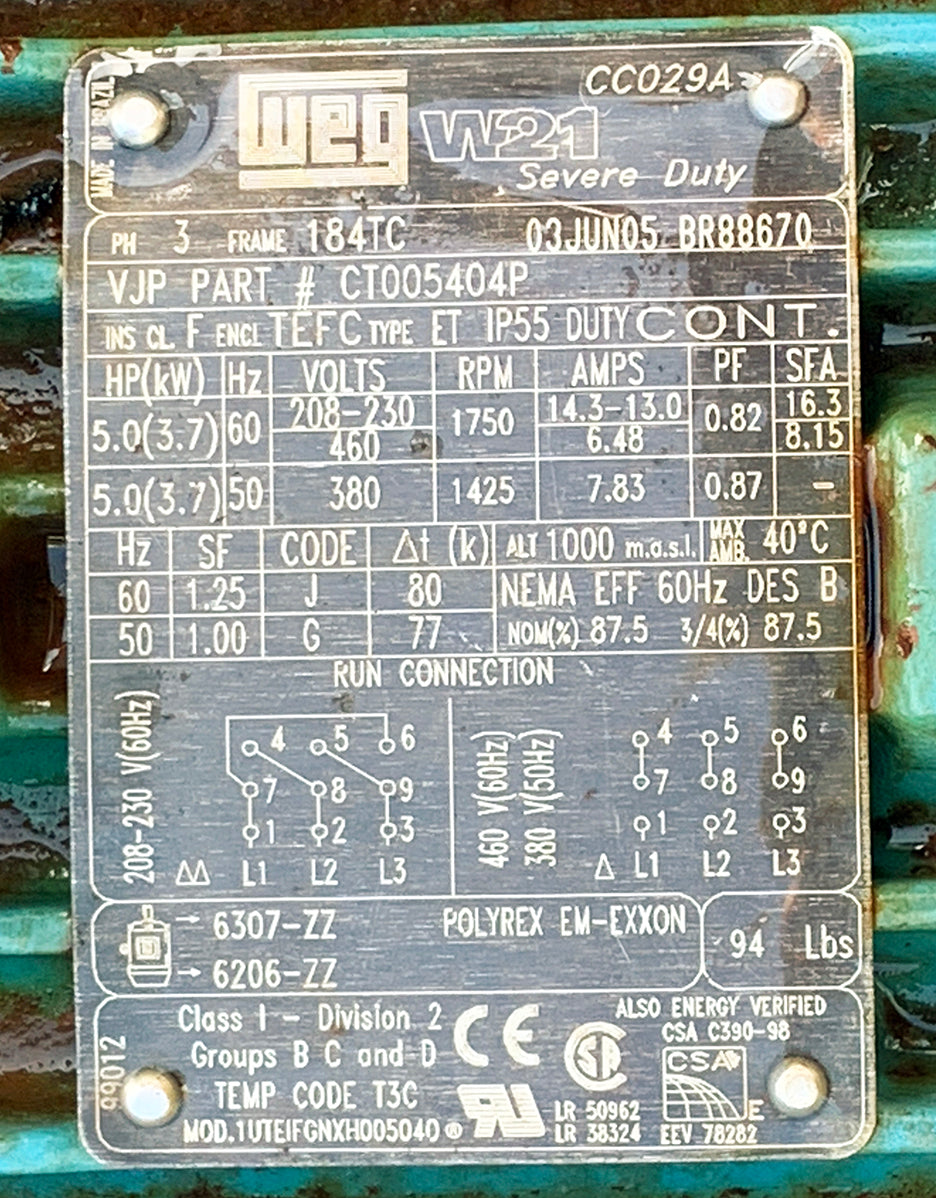

Weg Motor Tag:
- Phase: 3
- Frame: 184TC
- VJP Part # CT005404P
- Cl.: F
- : TEFC
- Type: ET IP55
- Duty: CONT
- HP: 5
- Hz: 60 / 50
- Volts: 208-230/460 / 380
- RPM: 1750 / 1425
- Amps: 14.3 – 13.0/6.48 / 83
- PF: 0.82 / 0.87
- SFA: 16.3 / 8.15
- Please see images for additional specs

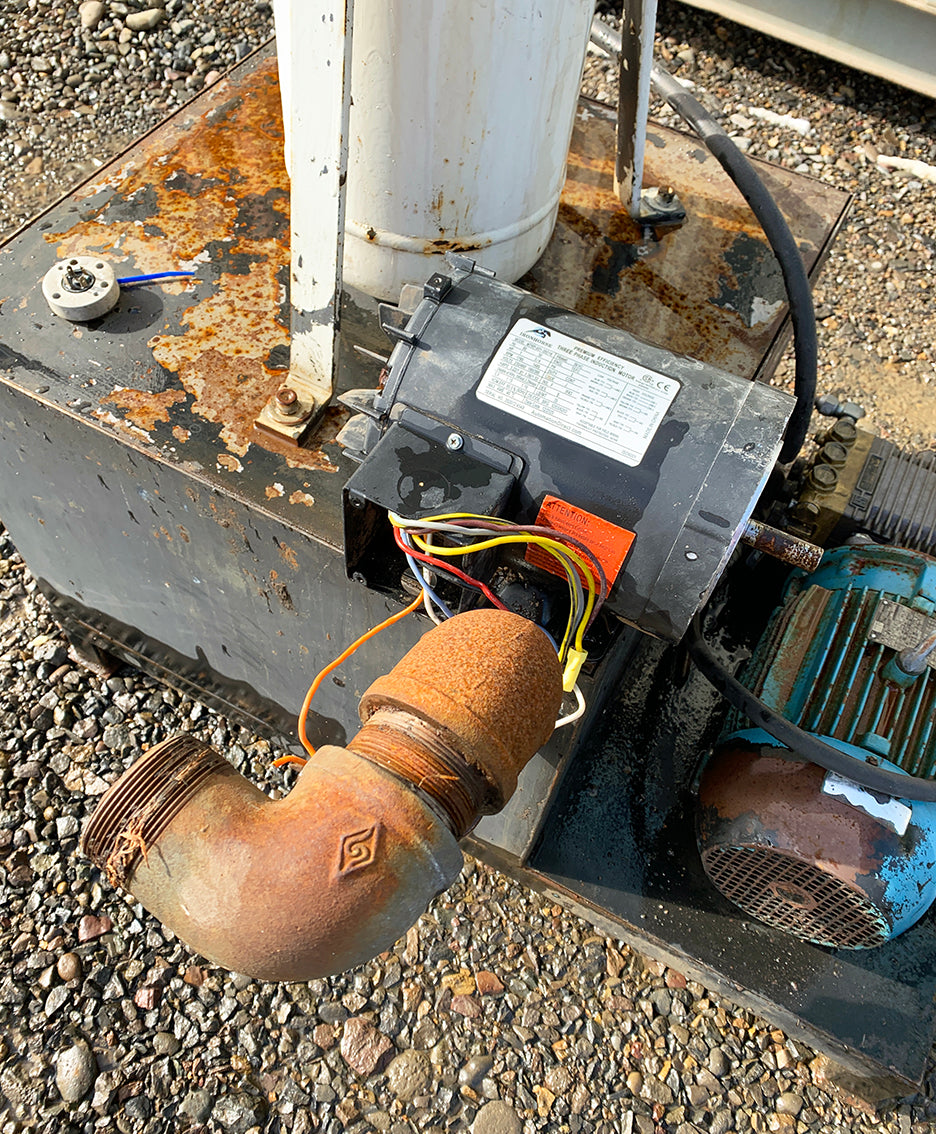

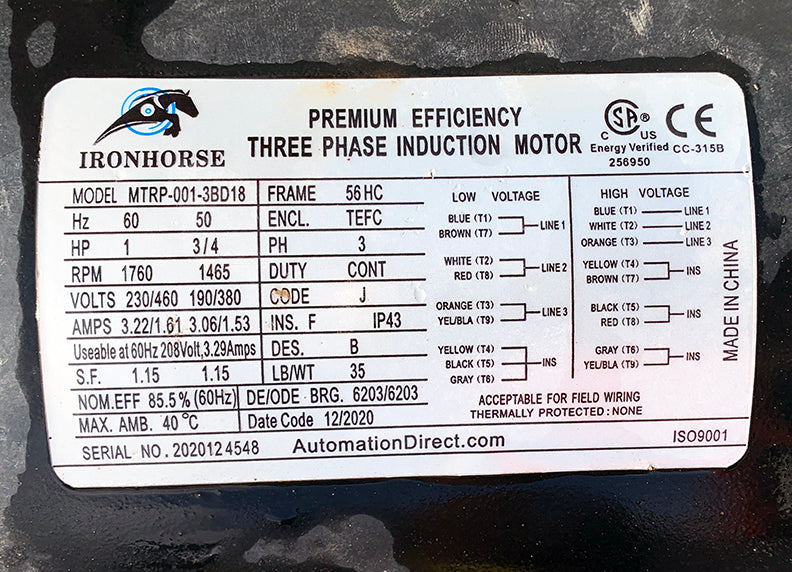

Ironhorse Motor Tag:
- Model: MTRP-001-3BD18
- Hz: 60 / 50
- RPM: 1760 / 1465
- Volts: 230/460 / 190/380
- Amps: 3.22/1.61 / 06/1.53
- Usable @ 60Hz, 208V, 3.29A
- See photos for additional tag info
*~ Local Pick-Up or Freight Shipping Only ~*
