The Stoelting CSW-123 is a conveyor-style parts washer typically used in industrial applications for cleaning parts during production processes. This model is designed to clean items as they move along a conveyor belt. It uses water-based detergents and can clean a wide variety of parts, including:
• Automotive parts: Engine blocks, cylinder heads, gears, brake components, etc.
• Metal parts: Machined components, stamped metal parts, and castings.
• Industrial machinery components: Bearings, housings, and other large, heavy-duty parts.
• Aerospace components: Precision parts that need careful cleaning.
The CSW-123 is especially effective for parts that require continuous washing as part of a manufacturing process, offering features such as high-pressure spray nozzles, rinse and drying stages, and customizable conveyor speed. It's ideal for parts that are heavily soiled with grease, oil, or debris from machining or assembly processes.

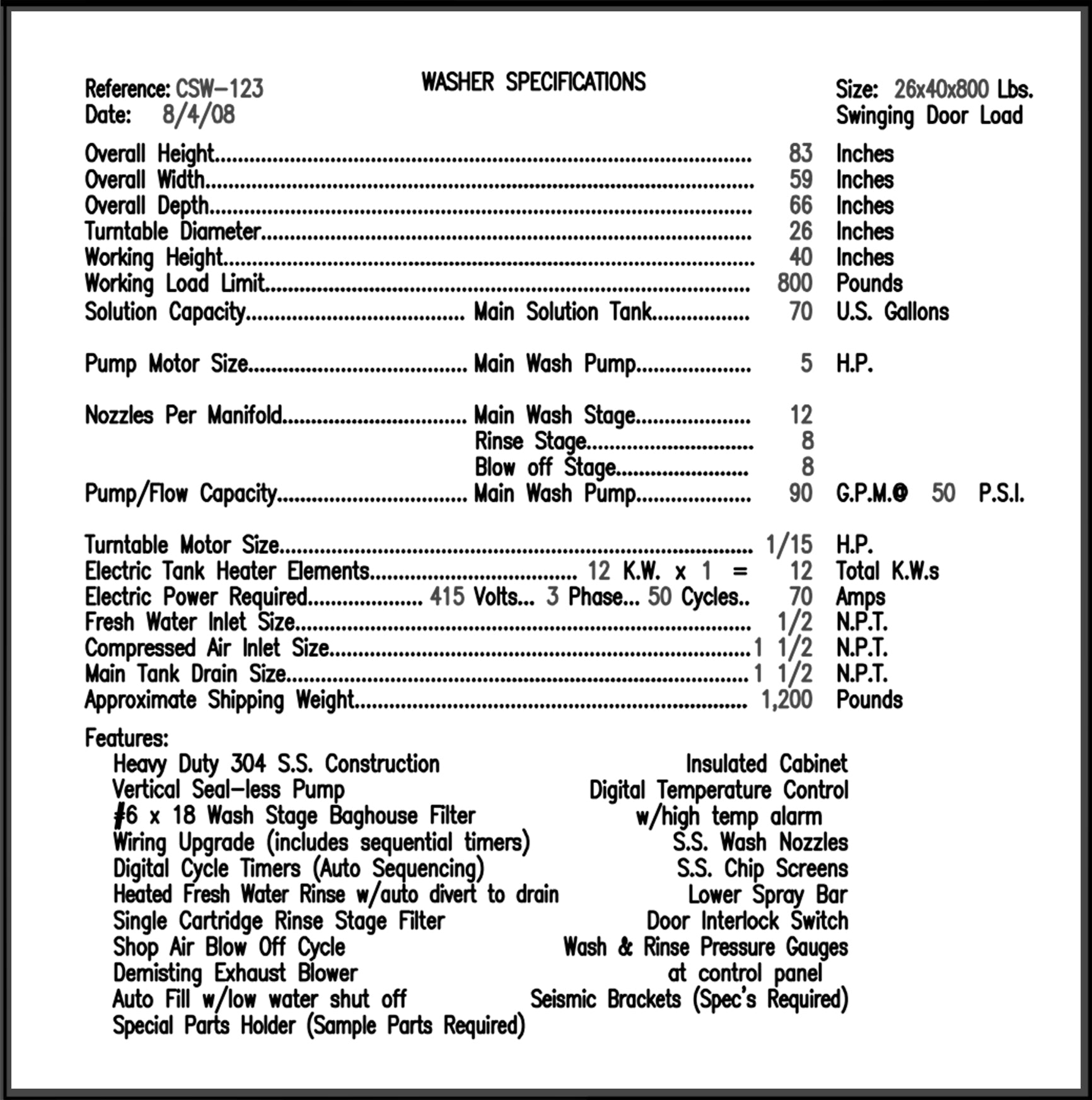

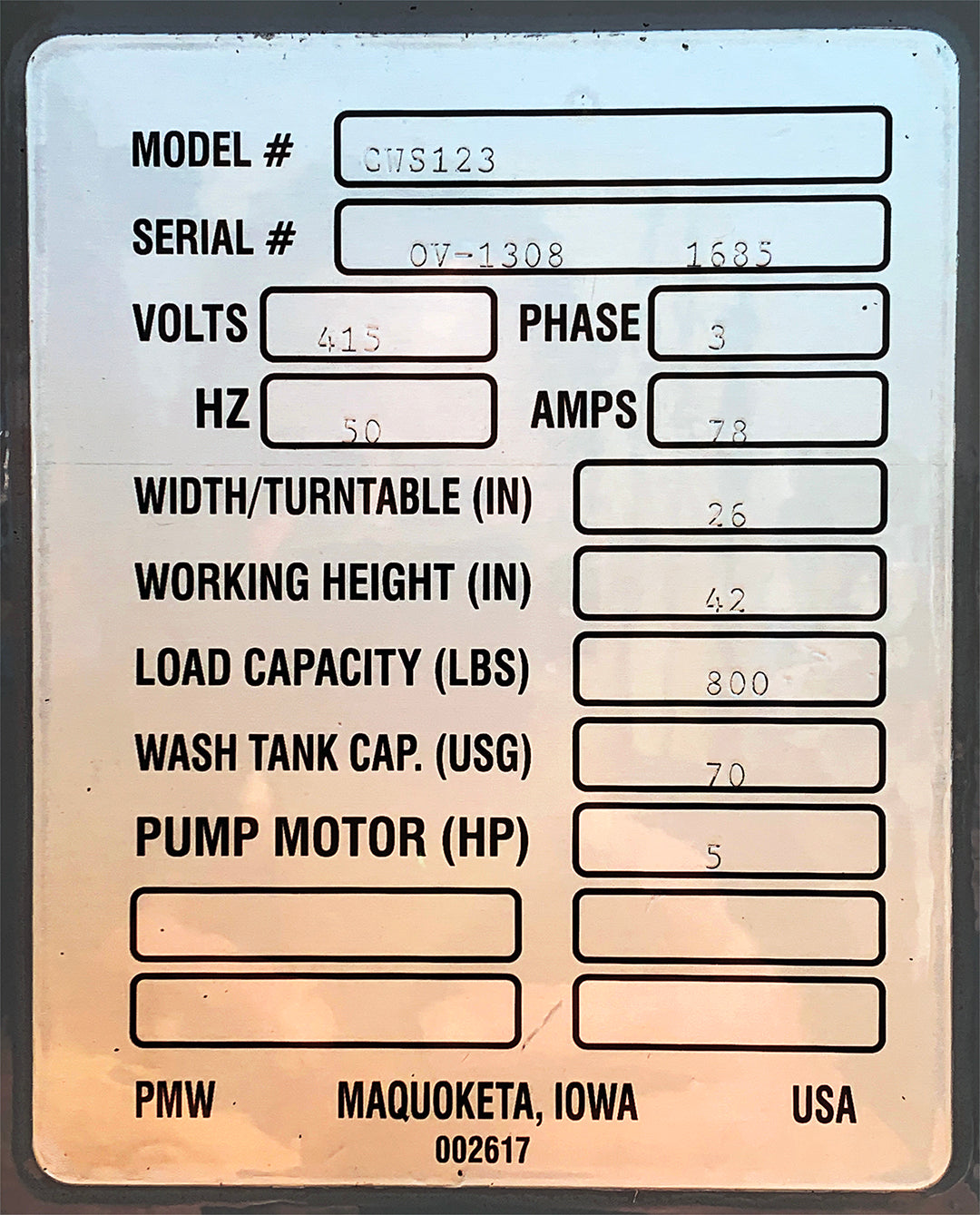

Specifications:
• Make: Stoelting
• Model: CWS123
• Serial: OV-1308 1685
• Volts: 415
• Phase: 3
• Hz: 50
• Amps: 78
• Width/Turntable (in): 26
• Turntable Motor: 1/15 HP
• Working Height (in): 42
• Load Capacity (lbs): 800
• Wash Tank Cap. (USG): 70
• Wash Pump Capacity: 90 GPM @ 50 PSI
• Wash Nozzle Quantity: 12
• Rinse & RP Nozzle Quantity: 8
• Blowoff Nozzle Quantity: 8
• Wash Pump Motor: 5 HP
• Electric Wash Tank Heater: 12 Kw
• Drain Size: 1 1/2'' NPT
• Vent Size: 6" ILL

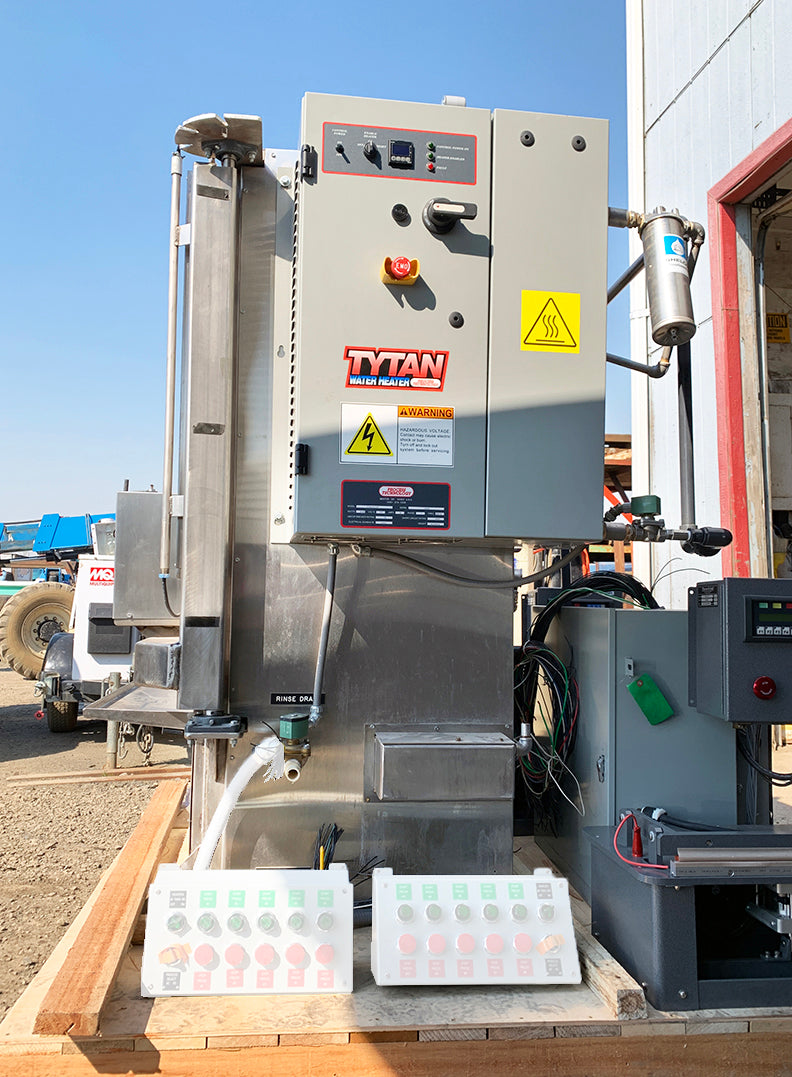

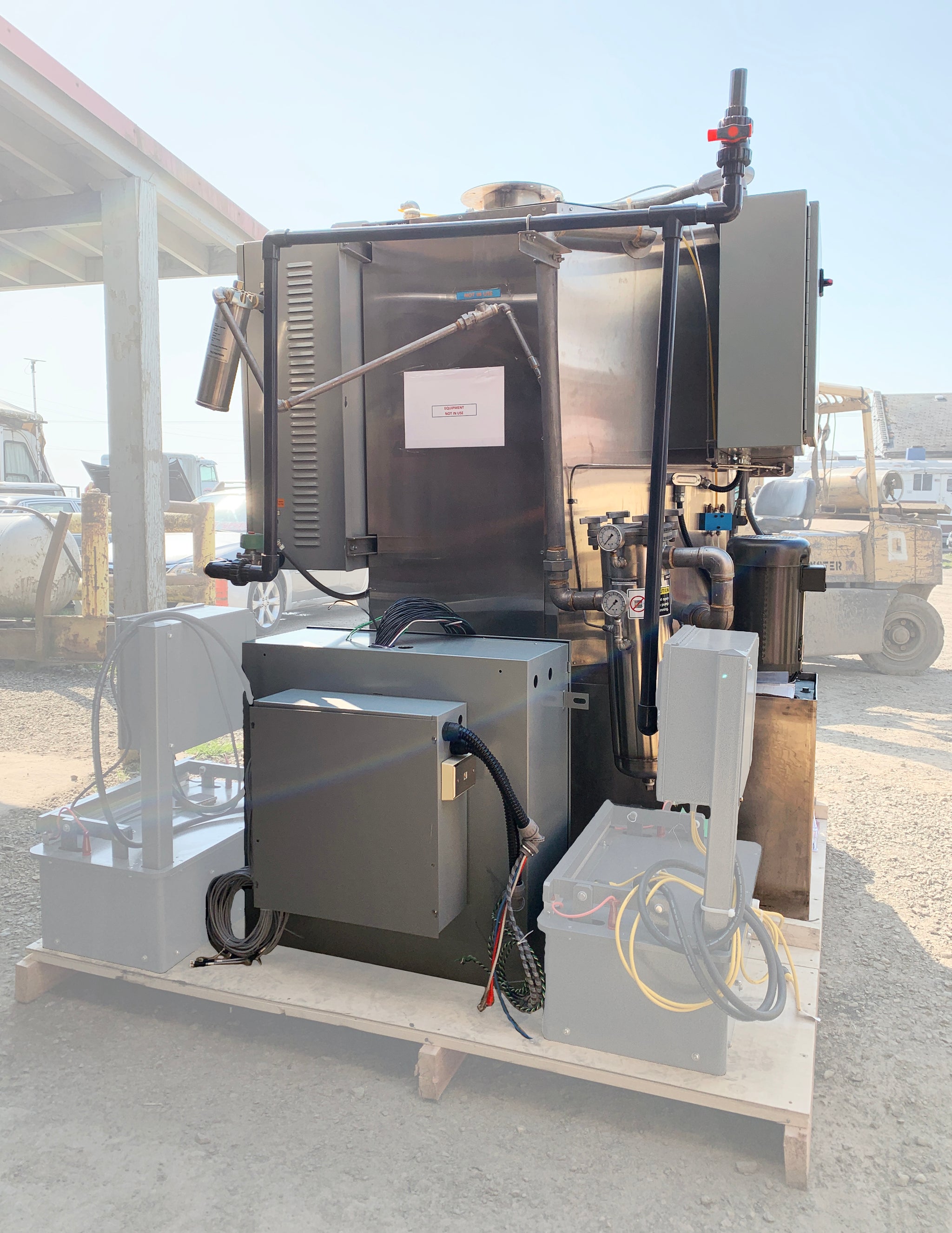

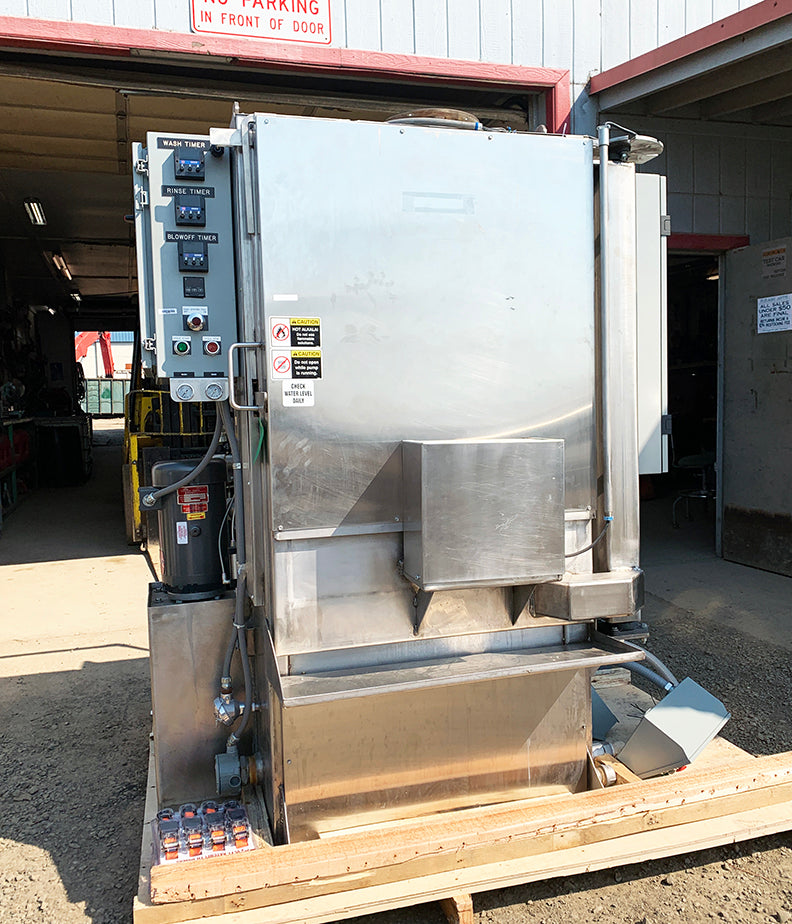

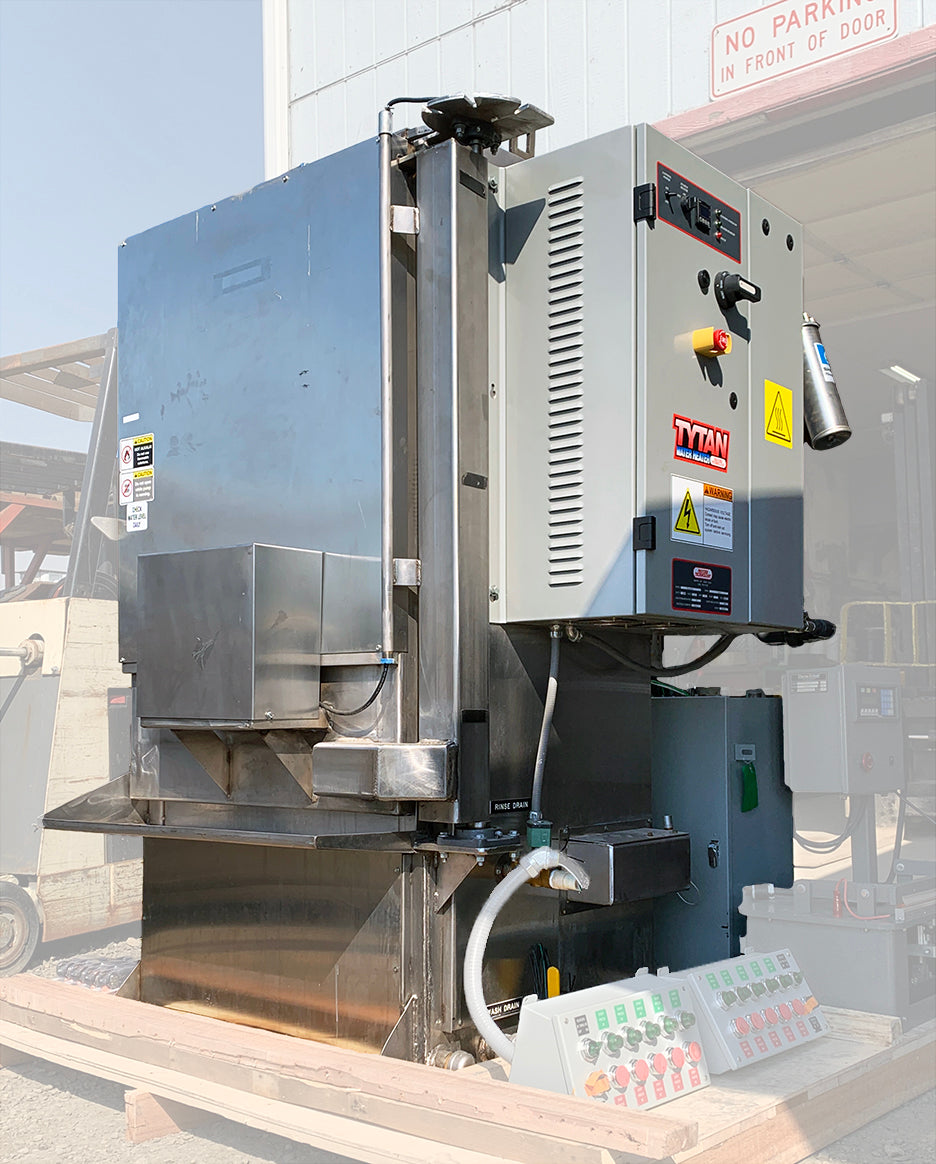

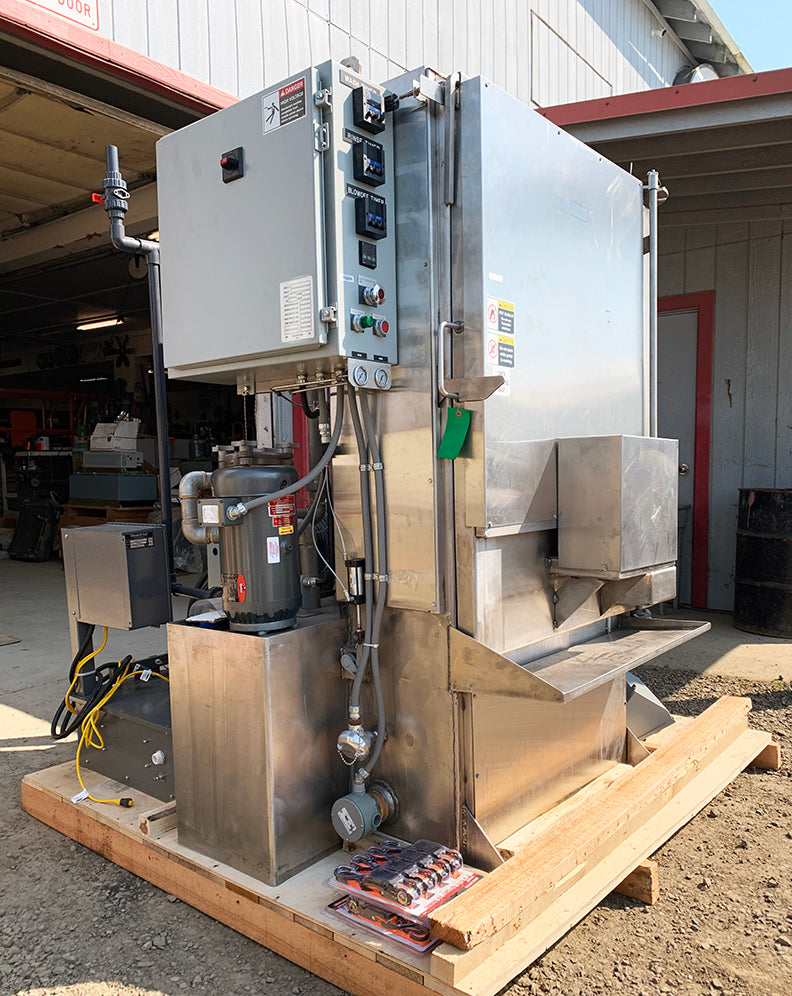

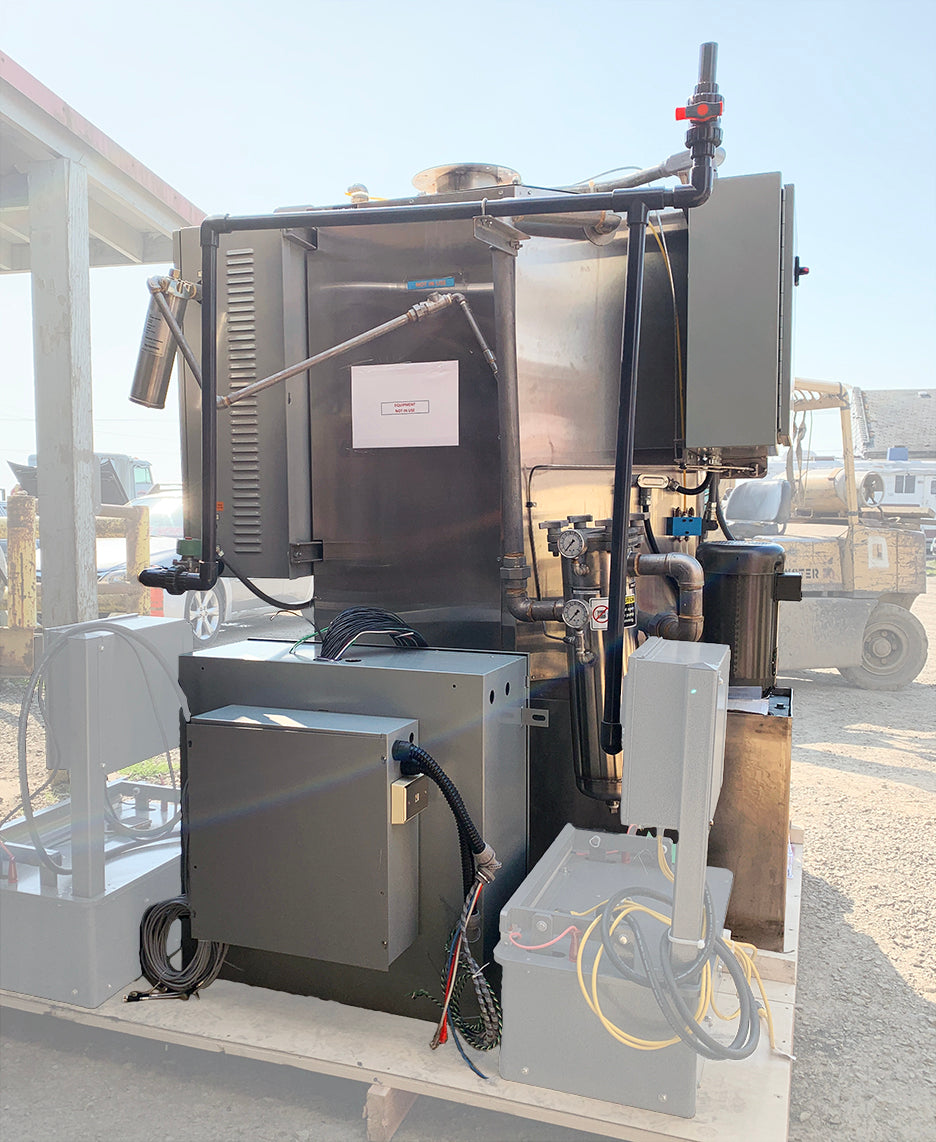

• Measurements: See Photos
• Approximate Shipping Weight: 1200 lbs
~ * Local Pick-Up or Freight Shipping Only * ~
