Berkeley Pump & Dana / Chelsea PTO

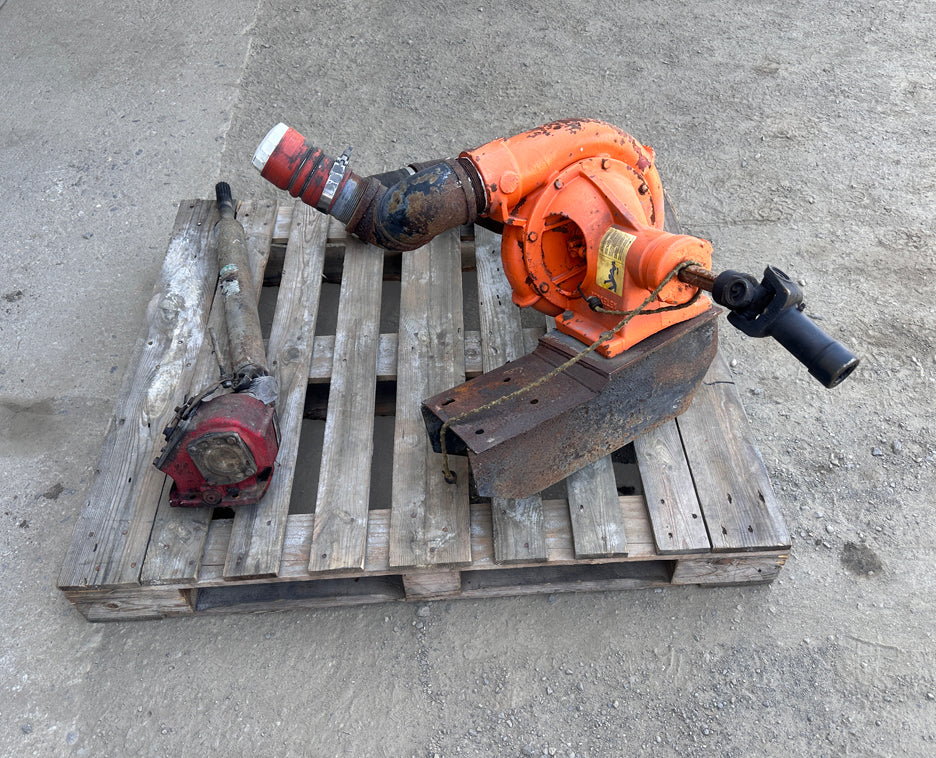

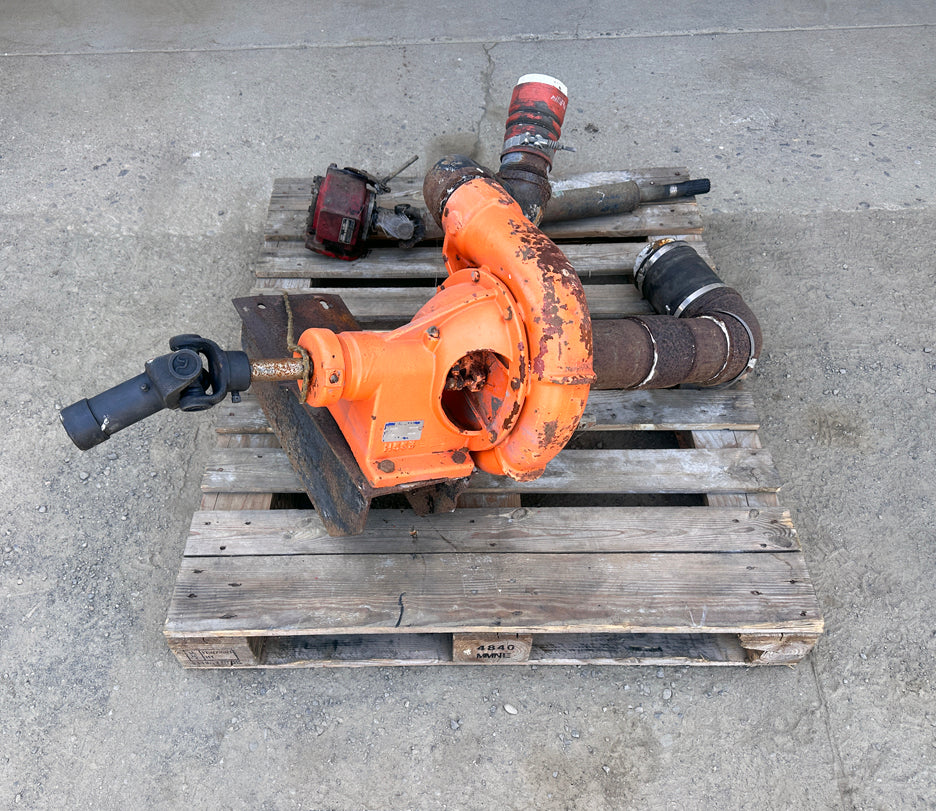

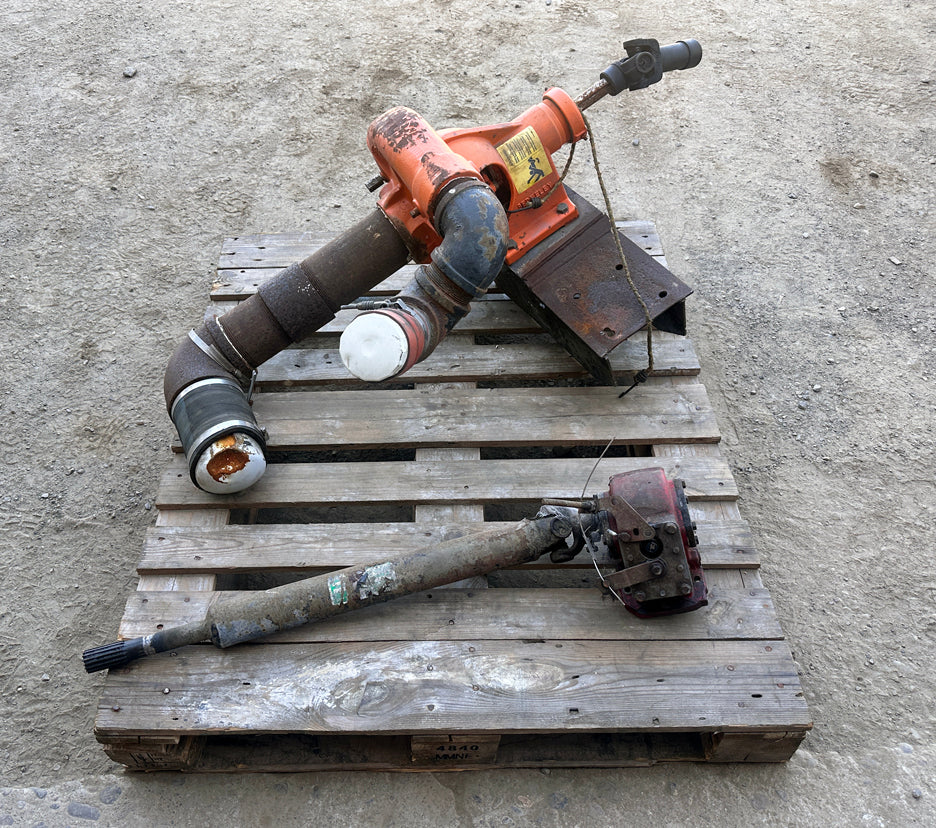

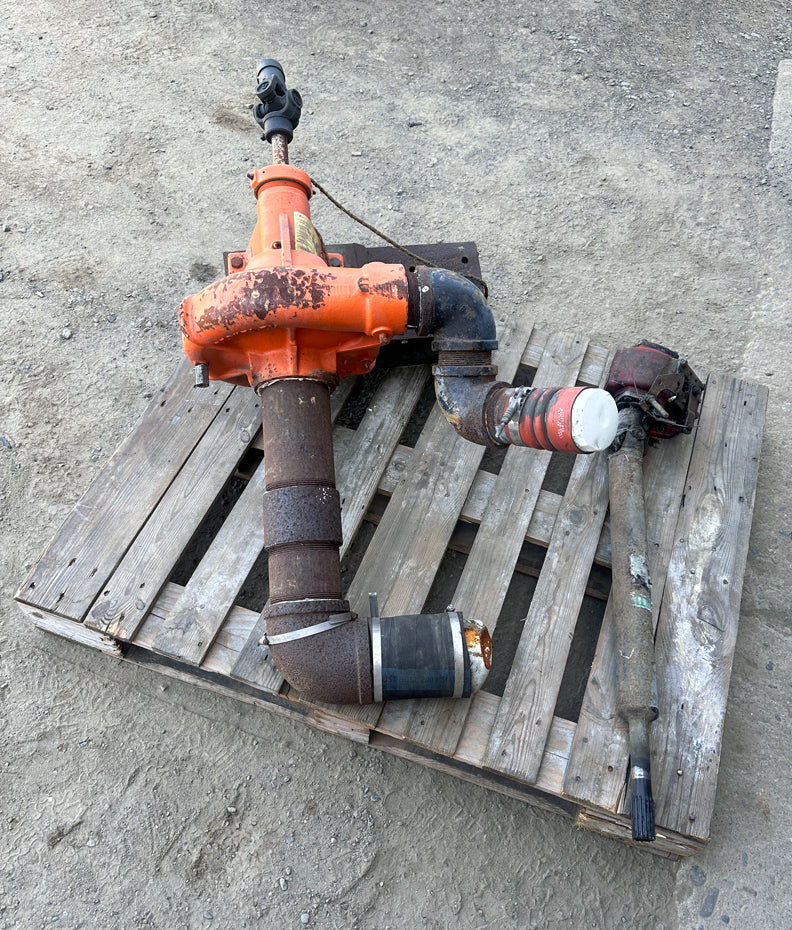

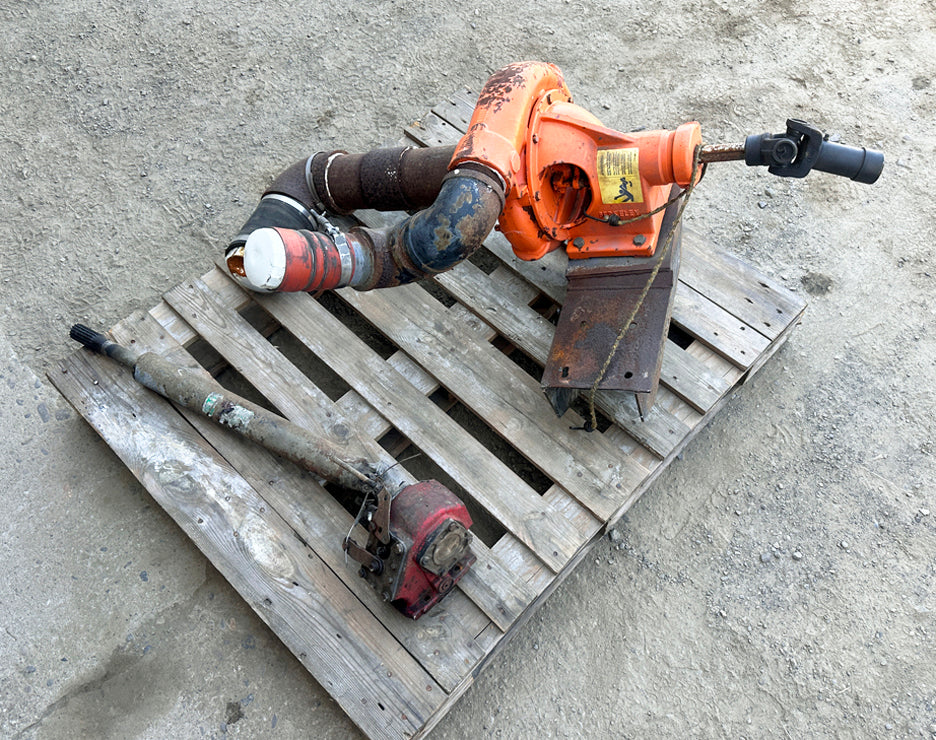

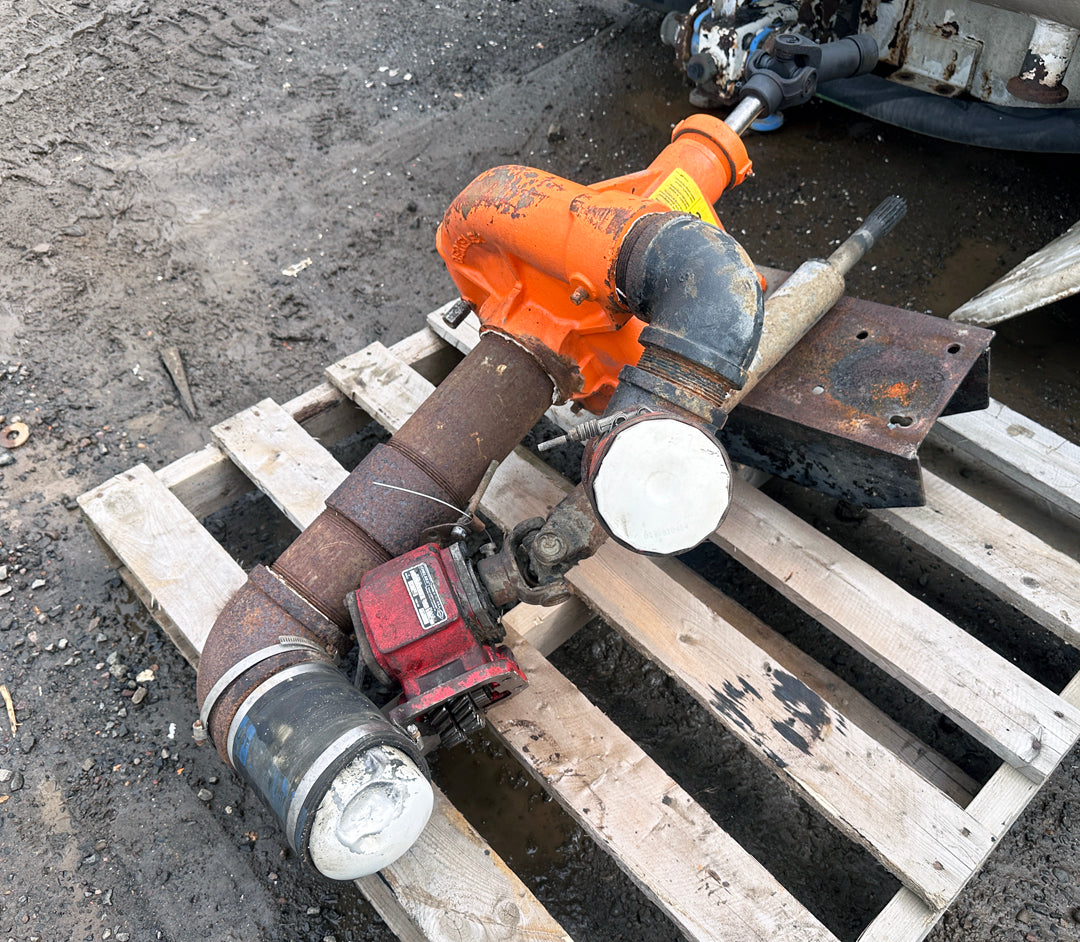

Berkeley B-series centrifugal water truck pump with Dana/Chelsea PTO drive

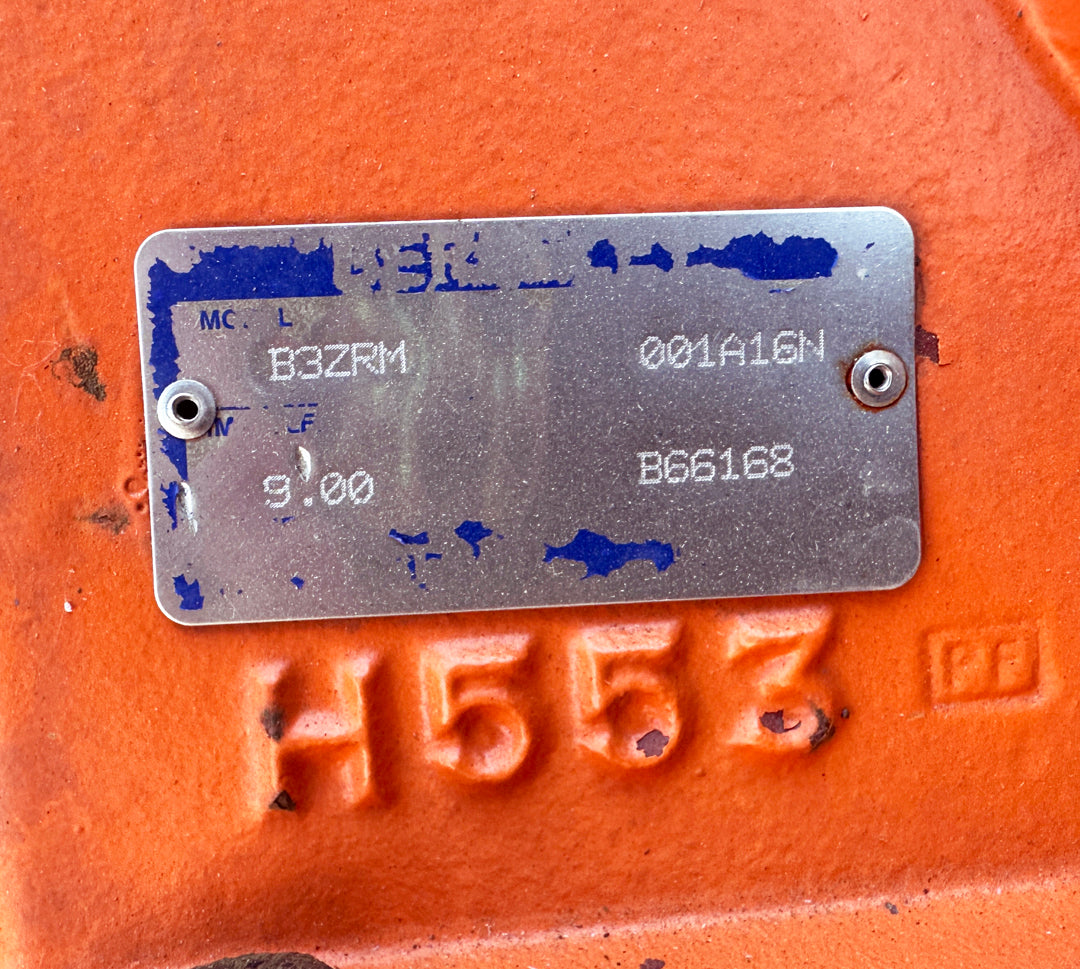

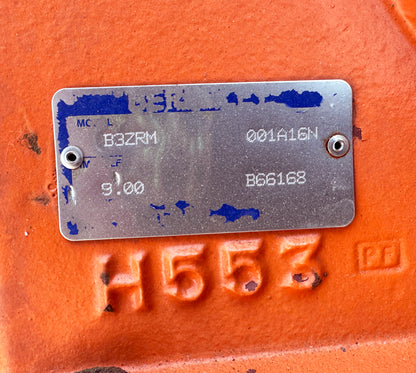

• Pump model: B3ZRM / B32RM family (e.g., B66168, B88574)

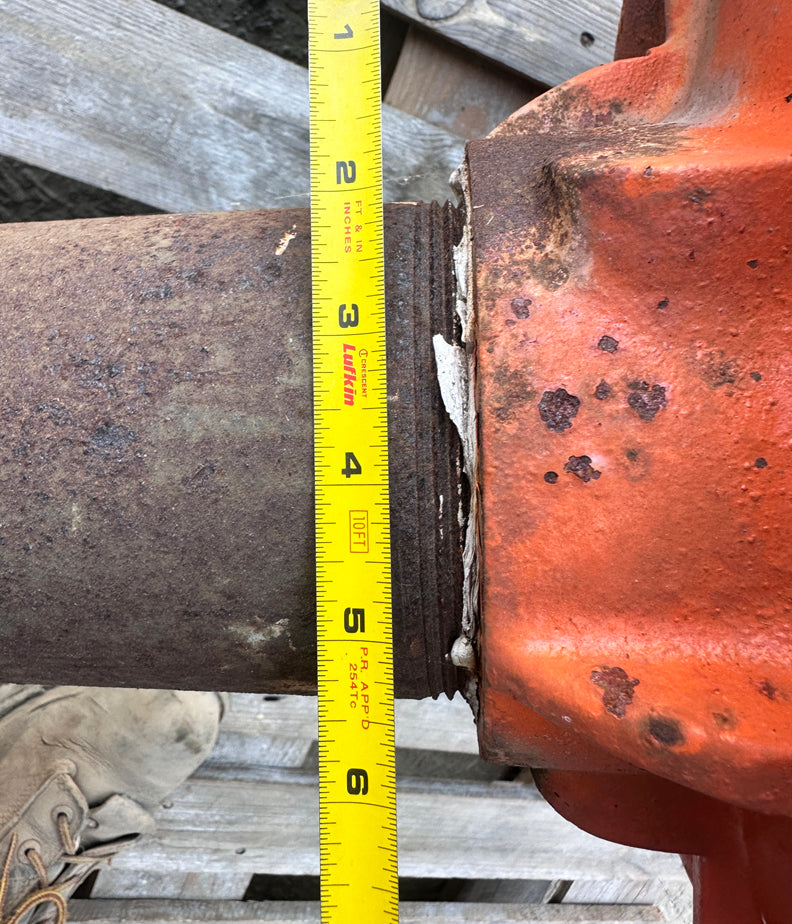

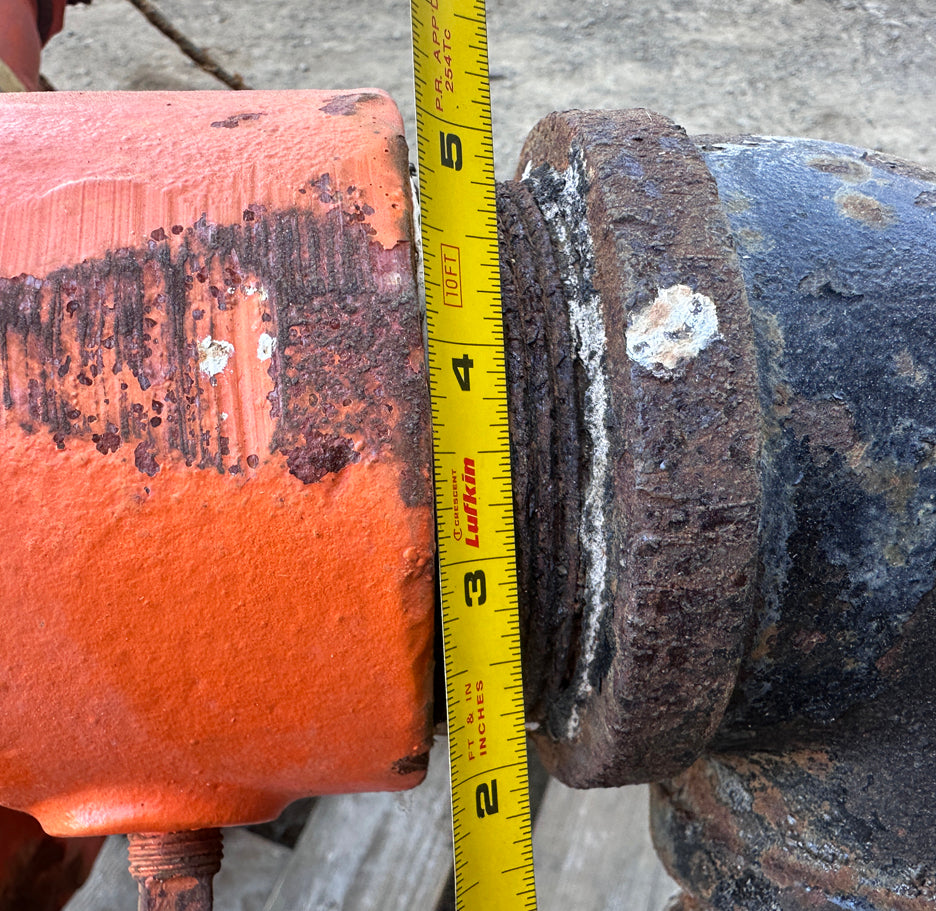

• Pump size: 3" discharge x 4" suction x 9" impeller
• Flow rate: up to 800 GPM (48,000 GPH)
• Maximum head: 175 ft
• Maximum pressure: 76 PSI
• Impeller: 9" cast iron, enclosed design
• Housing / volute: thick-walled cast iron
• Shaft diameter: 1.125"
• Rotation: counter-clockwise (CCW) viewed from drive end (common B3ZRM spec)
• Seal type: packing / rope packing (typical B3ZRM configuration)

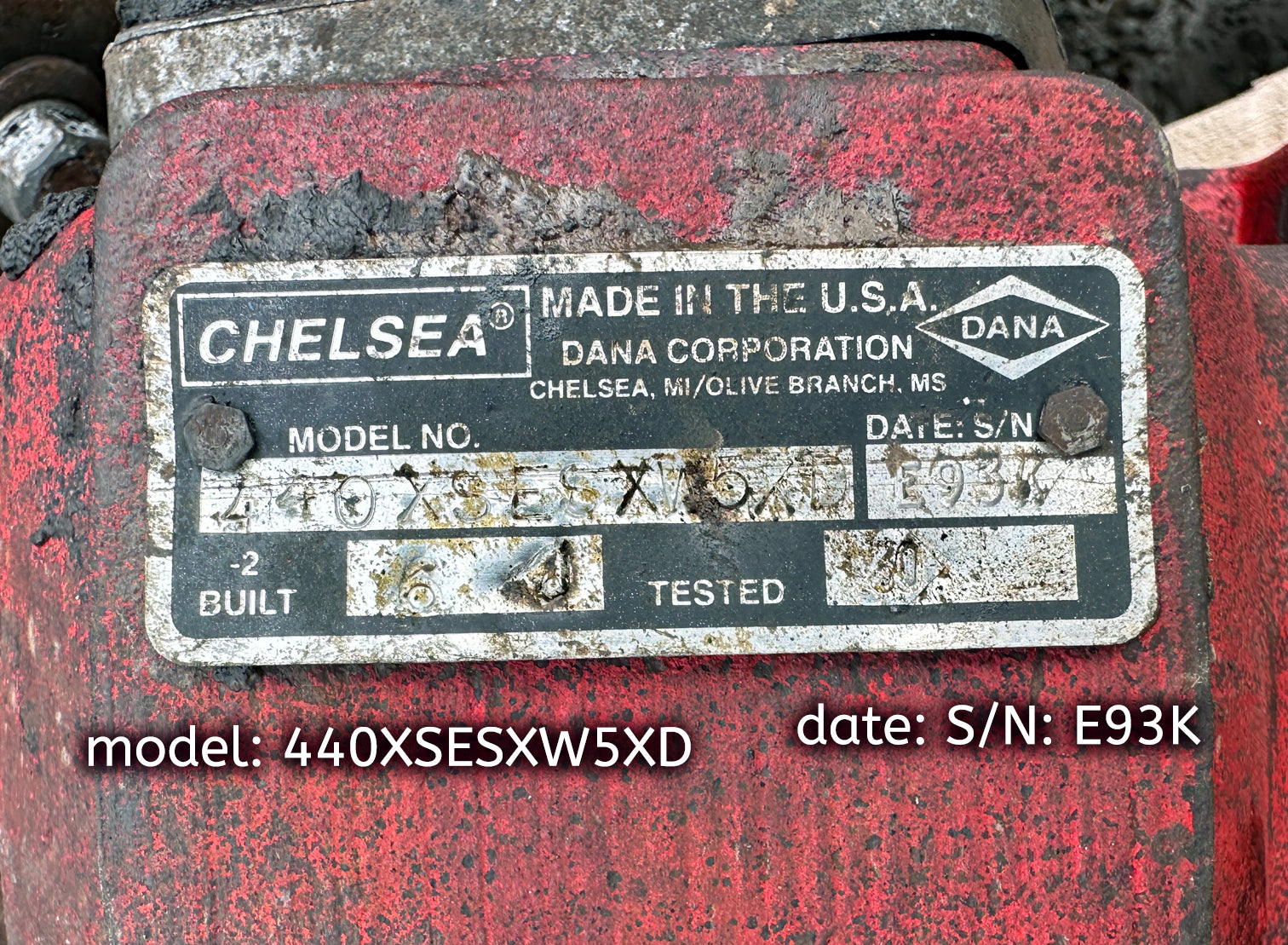

• Dana / Chelsea PTO model: 440XSE5XWX5D (440 series)
• PTO mount: 6-bolt pattern, mechanical shift
• PTO housing: cast iron with tapered cone bearings for higher torque capacity and long life

*~ Local Pick-Up or Freight Shipping Only ~*
