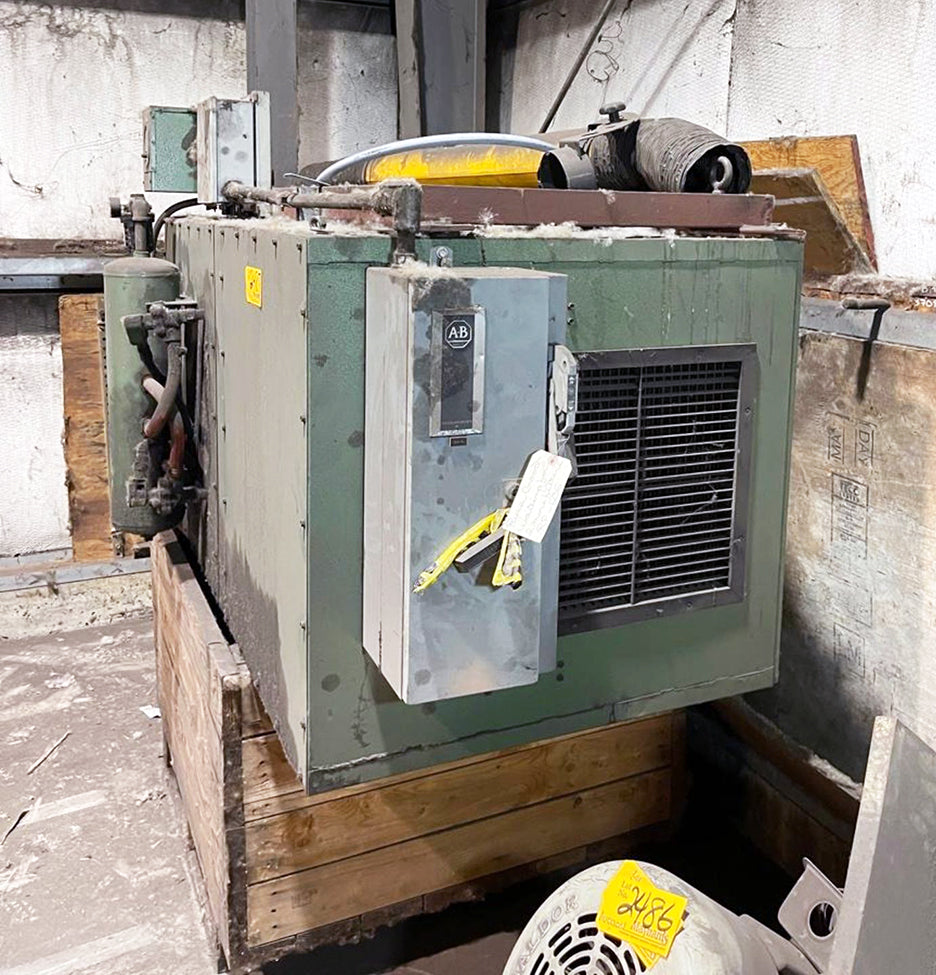

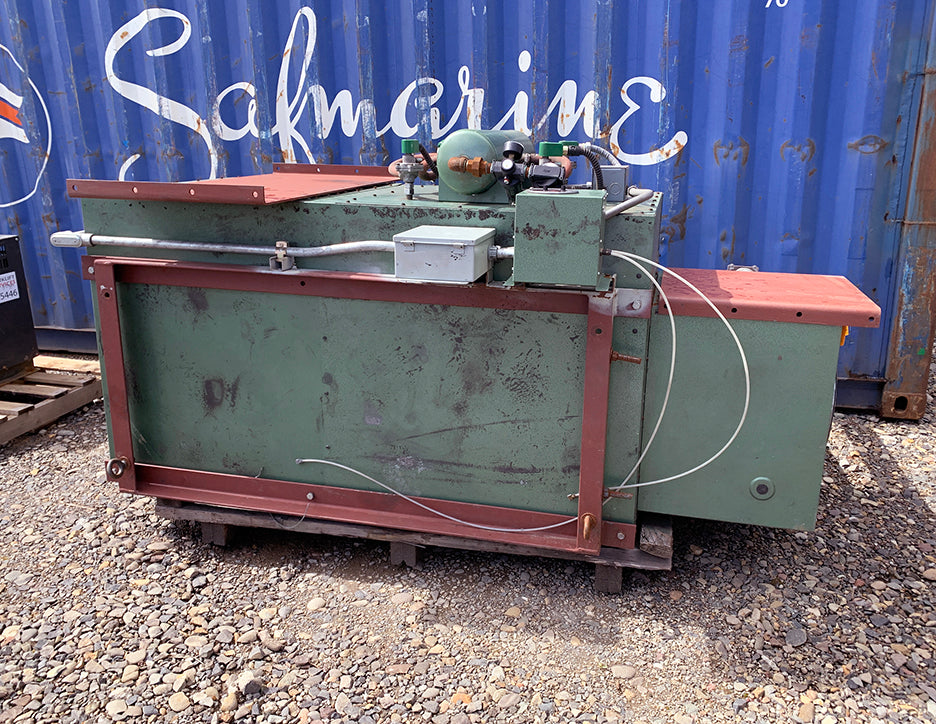

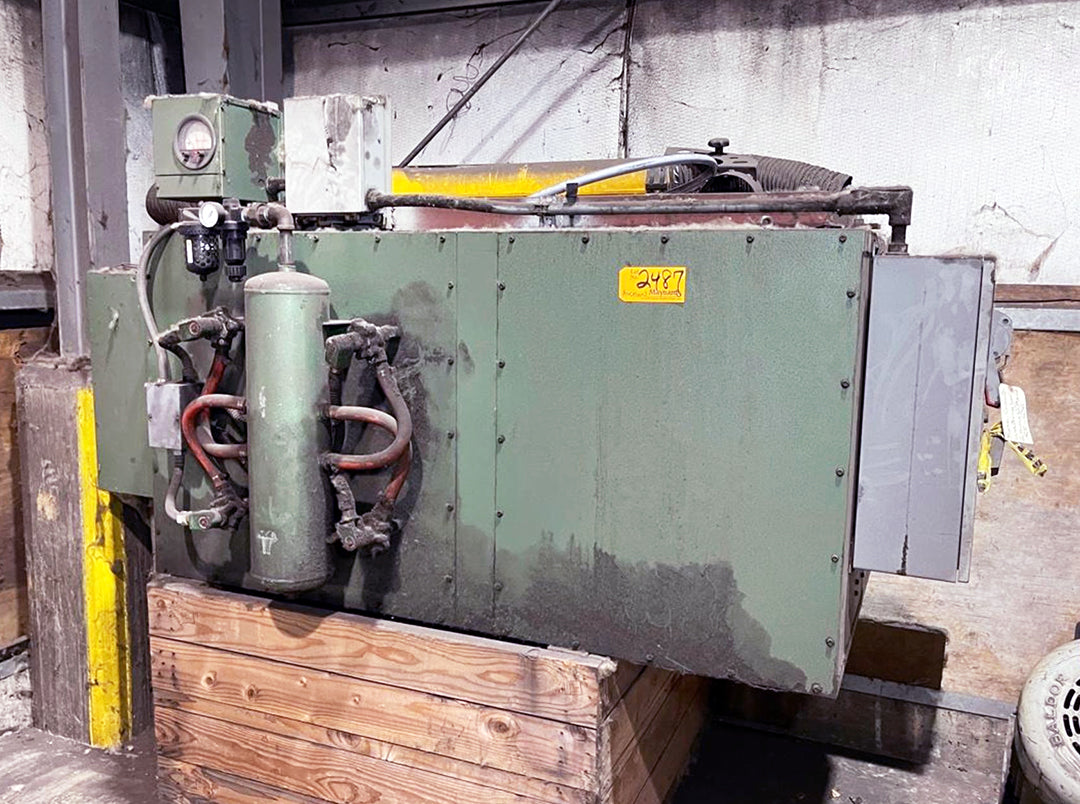

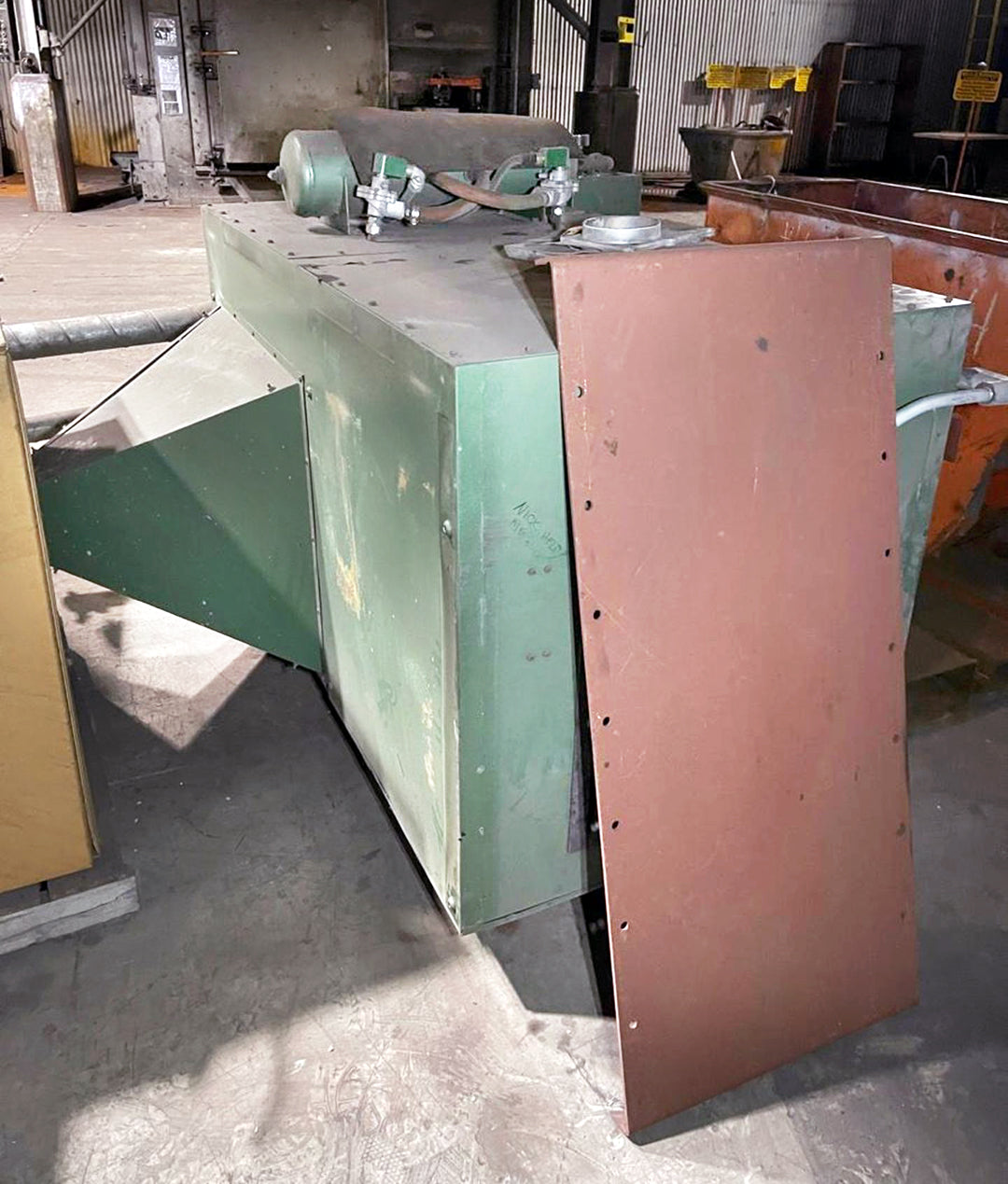

Trion CA3000C Cartridge Air Cleaner

  • Sale
  • Regular price $3,200.00

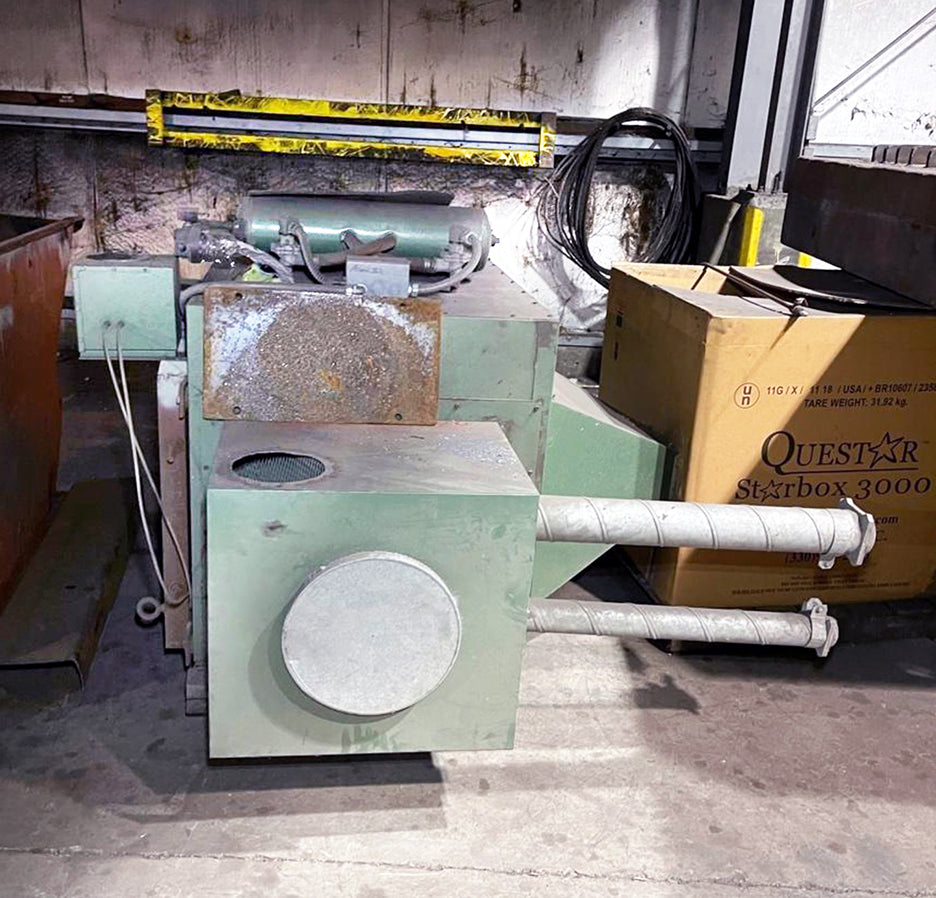

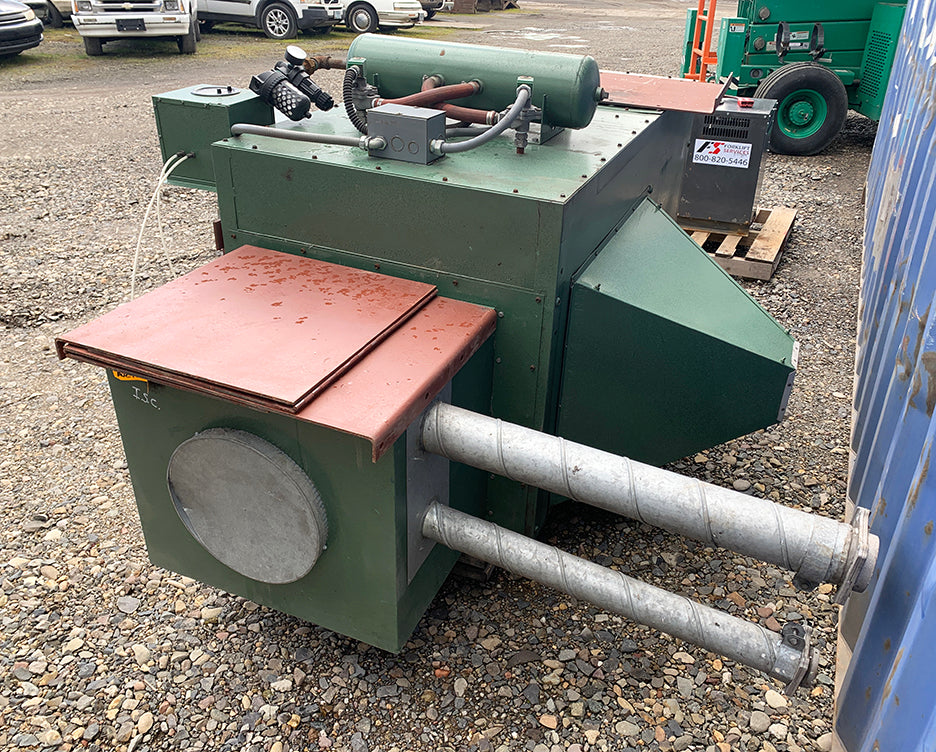

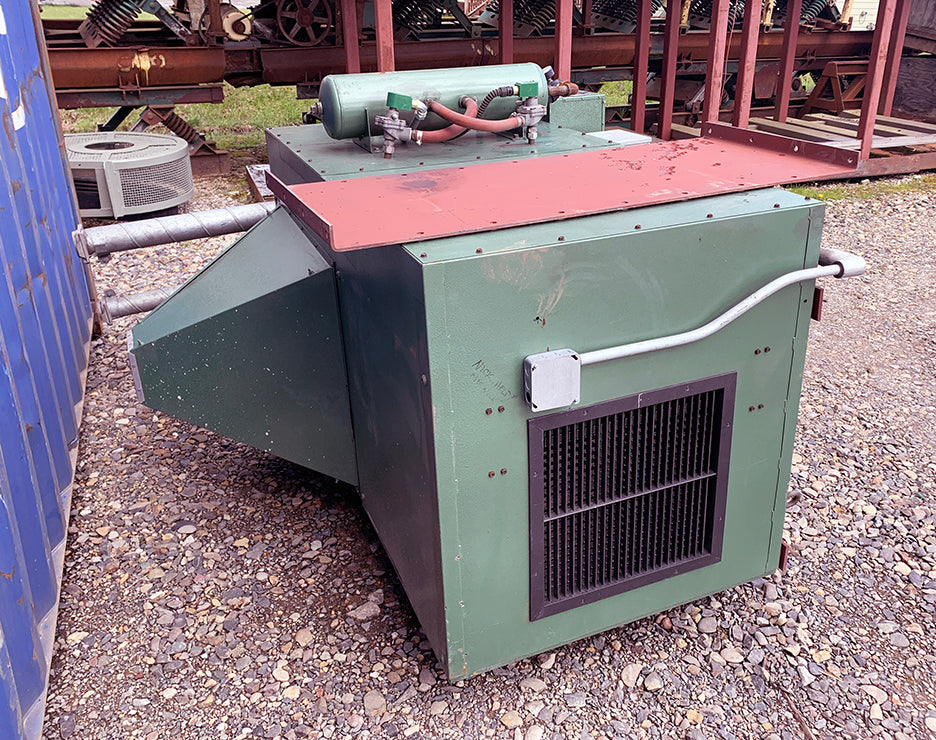

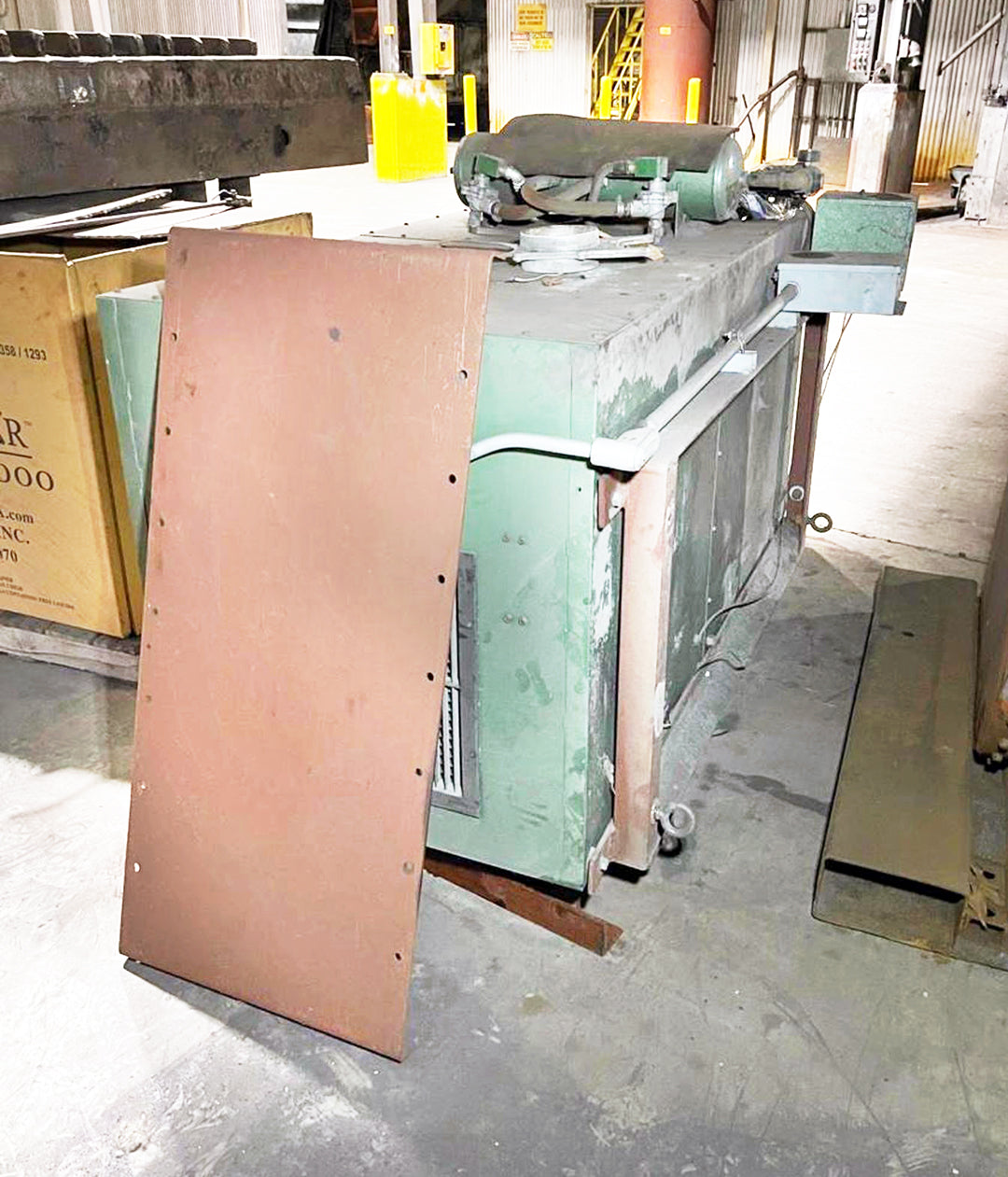

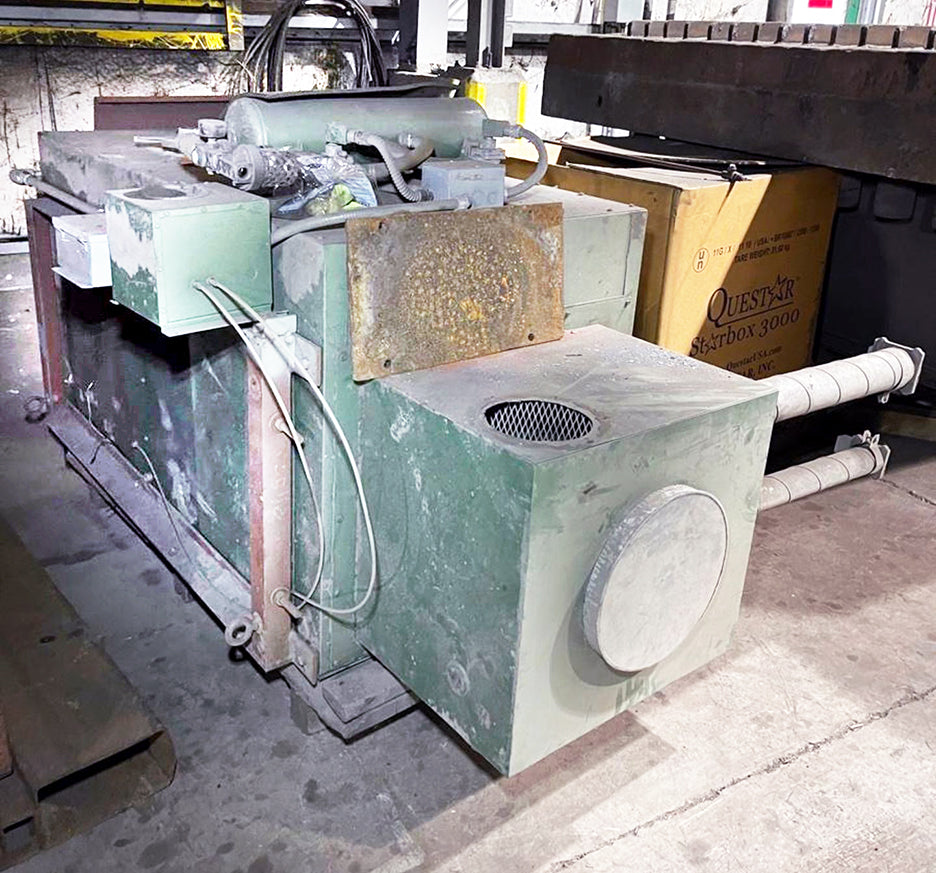

Recently in production; removed in good working condition.

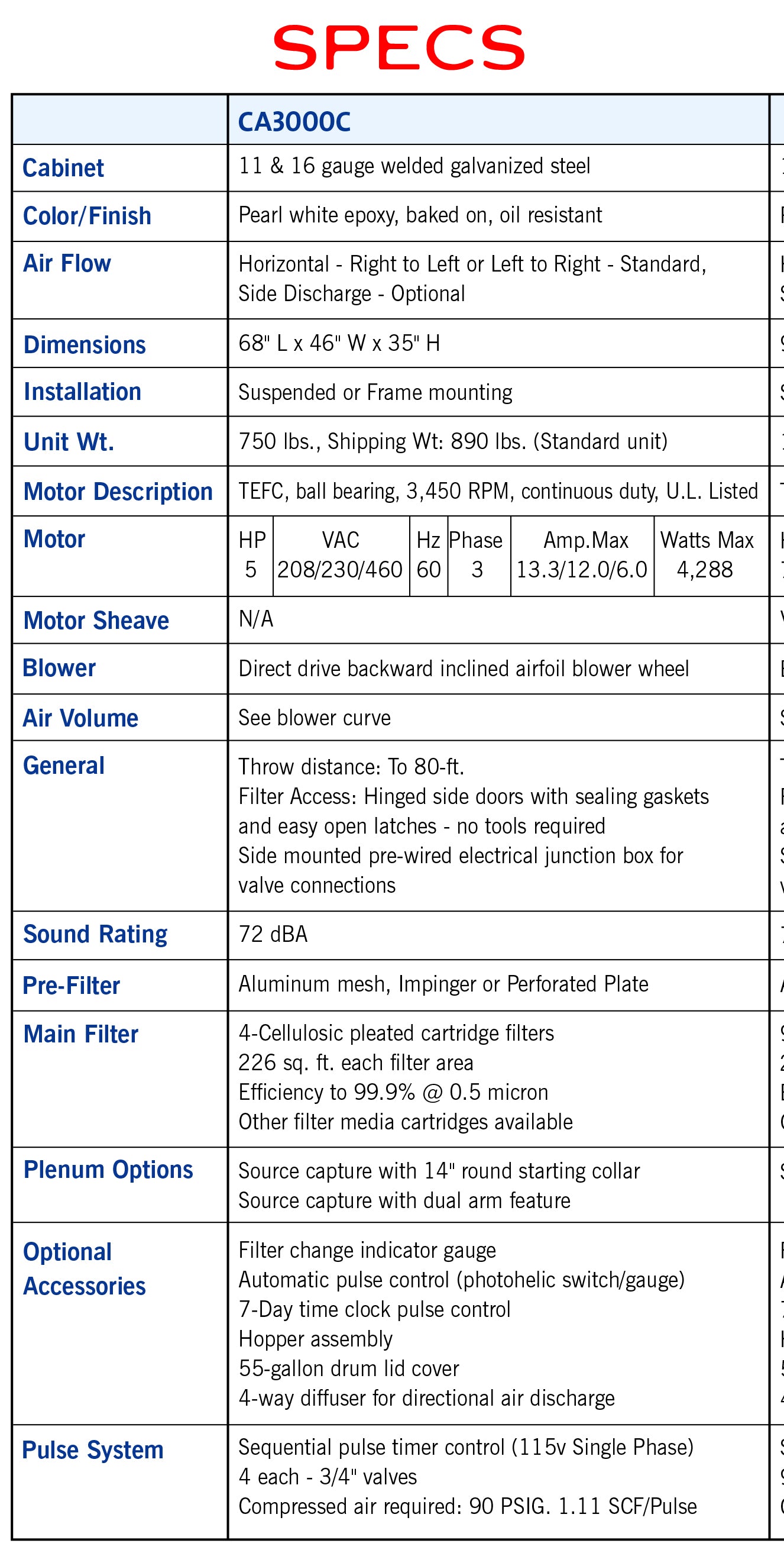

Specs - found online (specs may not be exact; the below is for a newer version of the same model):
  • Cabinet: 11 & 16 gauge welded galvanized steel
  • Air Flow: Horizontal - Right to Left or Left to Right - Standard, Side Discharge - Optional

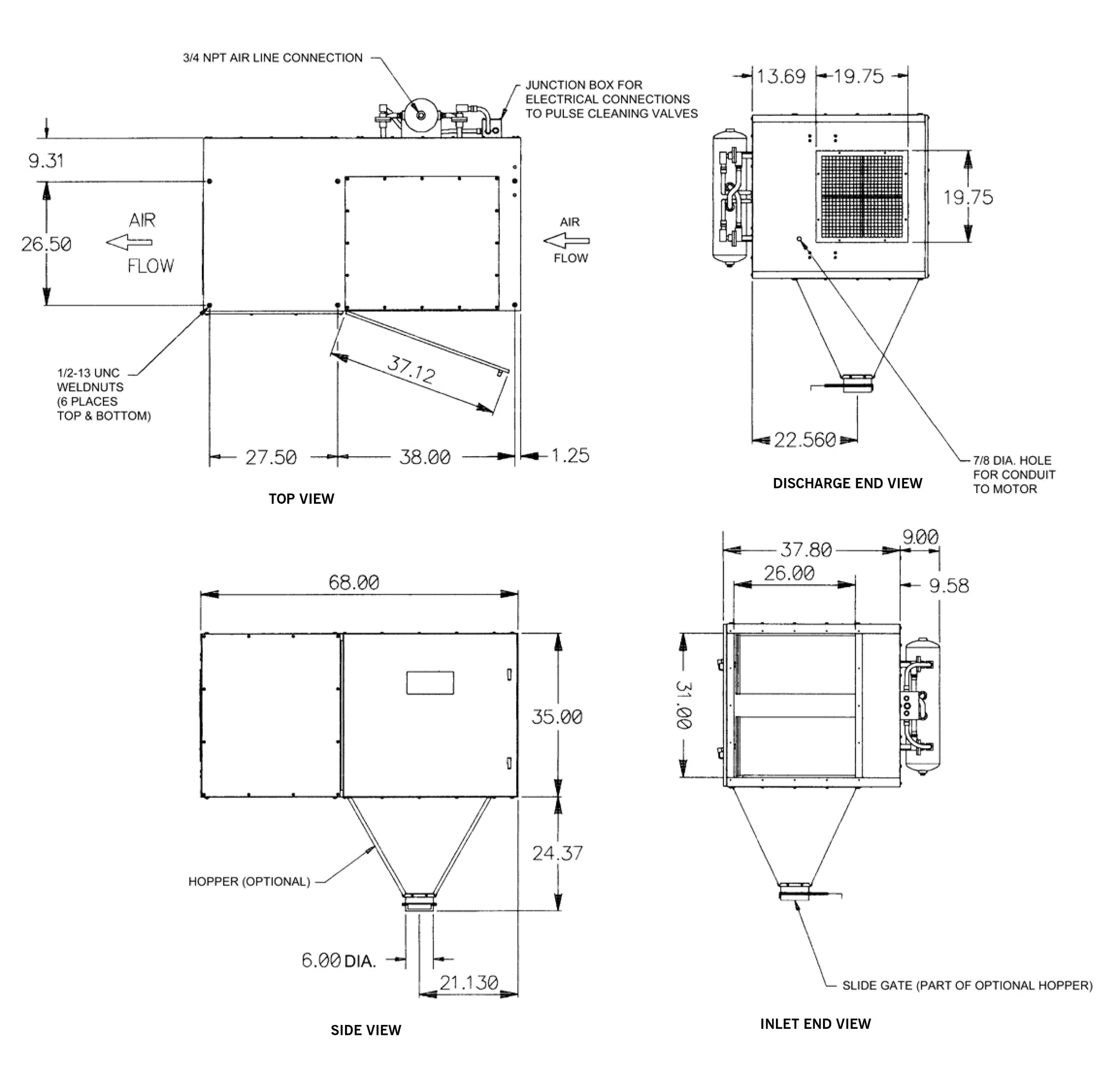

  • Dimensions: 68" L x 46" W x 35" H
  • Installation: Suspended or Frame mounting
  • Unit Wt.: 750 lbs., Shipping Wt: 890 lbs. (Standard unit)
  • Motor Description: TEFC, ball bearing, 3,450 RPM, continuous duty, U.L. Listed
  • Motor: HP 5 VAC 208/230/460 Hz 60 Phase 3 Amp. Max 13.3/12.0/6.0 Watts Max 4,288
  • Blower: Direct drive backward inclined airfoil blower wheel
  • General:
    • Throw distance: To 80-ft.
    • Filter Access: Hinged side doors with sealing gaskets and easy open latches - no tools required
    • Side mounted pre-wired electrical junction box for valve connections
  • Sound Rating: 72 dBA
  • Pre-Filter: Aluminum mesh, Impinger or Perforated Plate
  • Main Filter: 4-Cellulosic pleated cartridge filters 226 sq. ft. each filter area
    • Efficiency to 99.9% @ 0.5 micron
    • Other filter media cartridges available

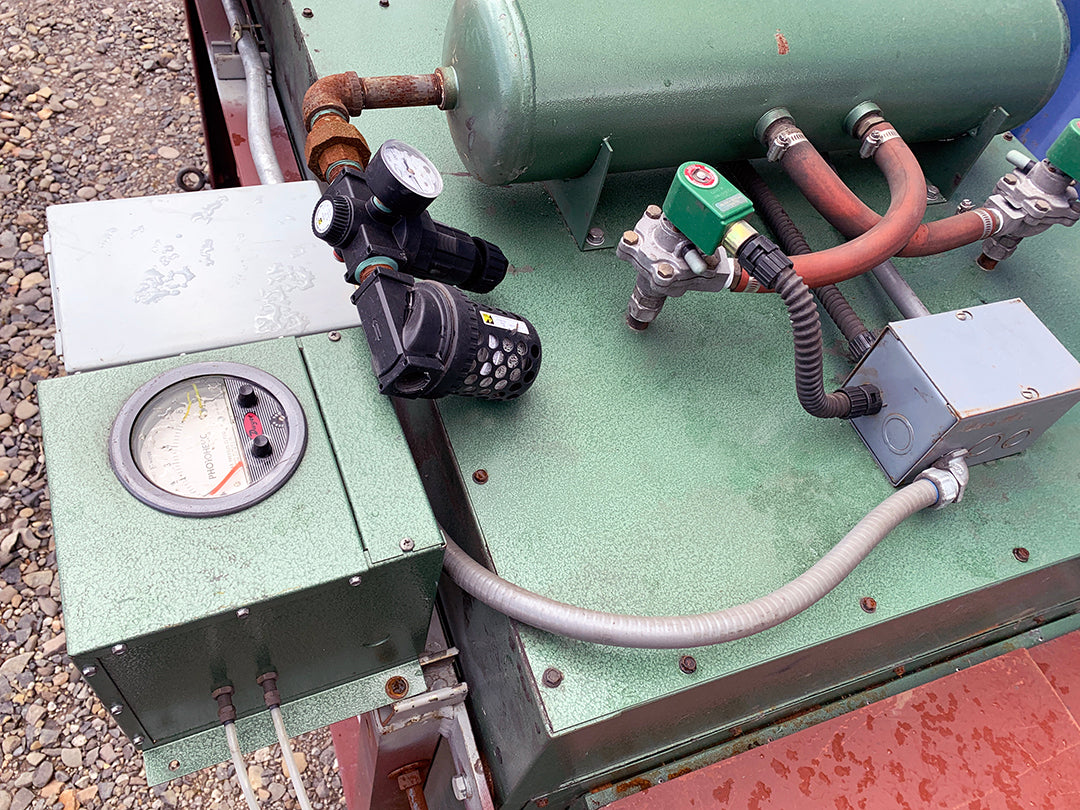

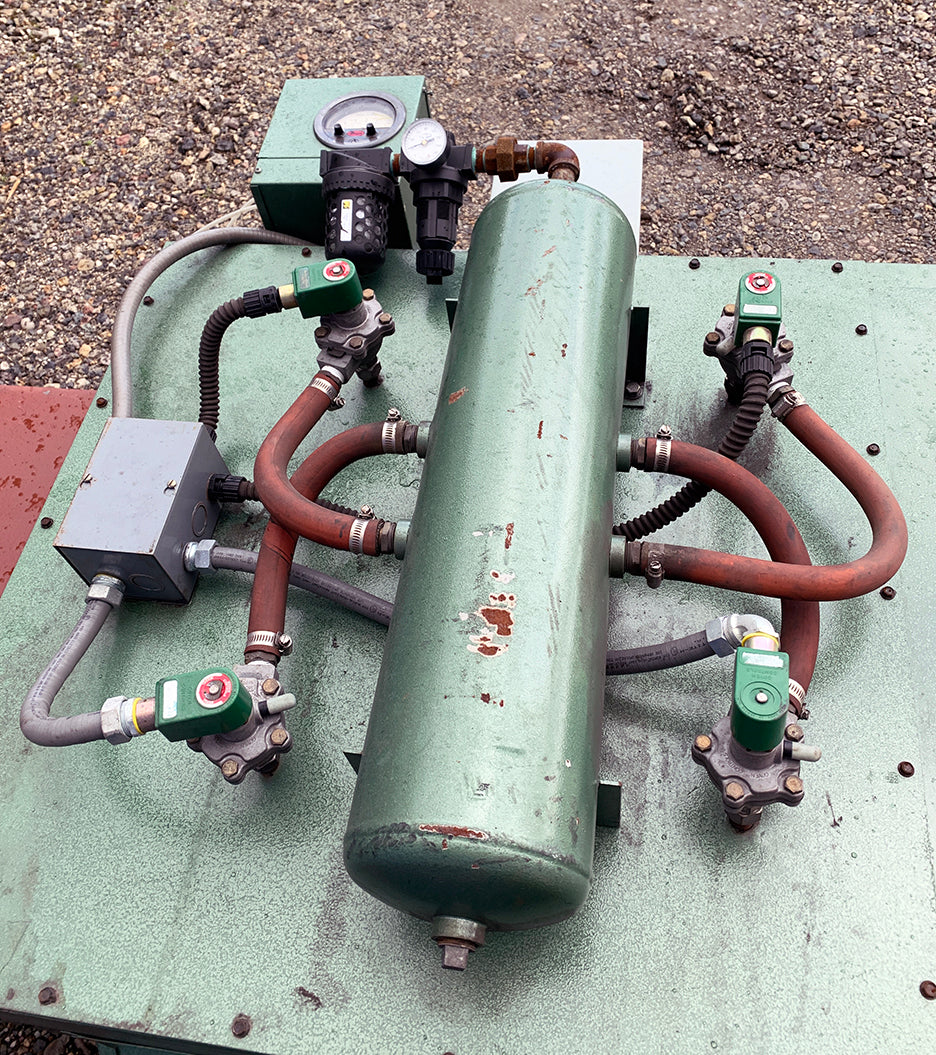

  • Pulse System Sequential pulse timer control (115v Single Phase) 4 each - 3/4" valves
  • Compressed air required: 90 PSIG. 1.11 SCF/Pulse

*~ Local Pick-Up or Freight Shipping Only ~*
