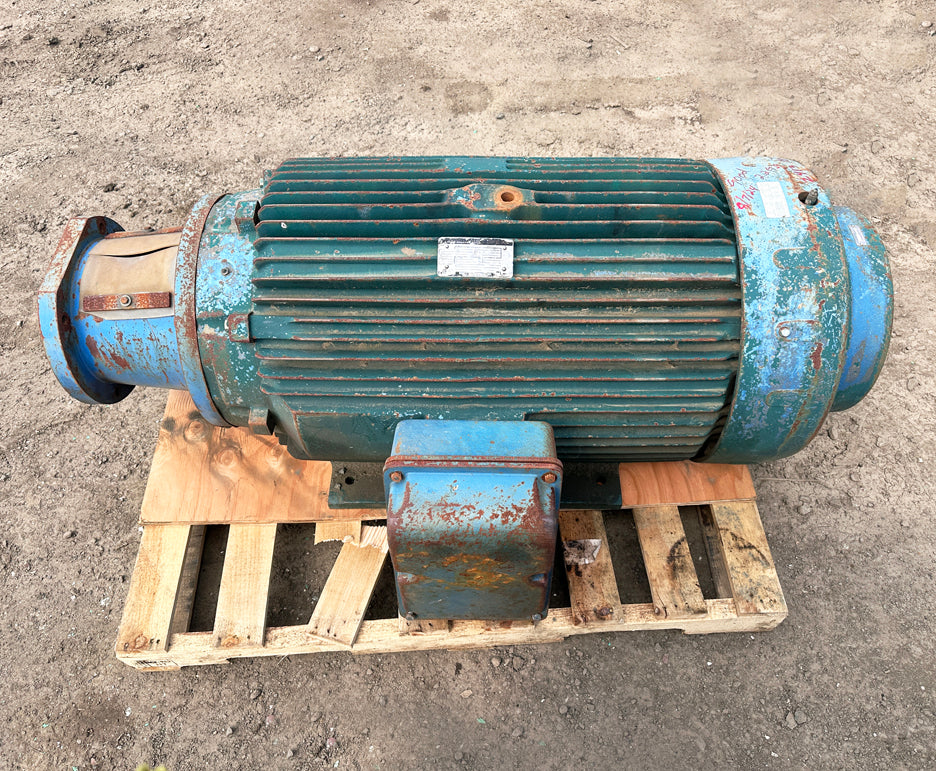

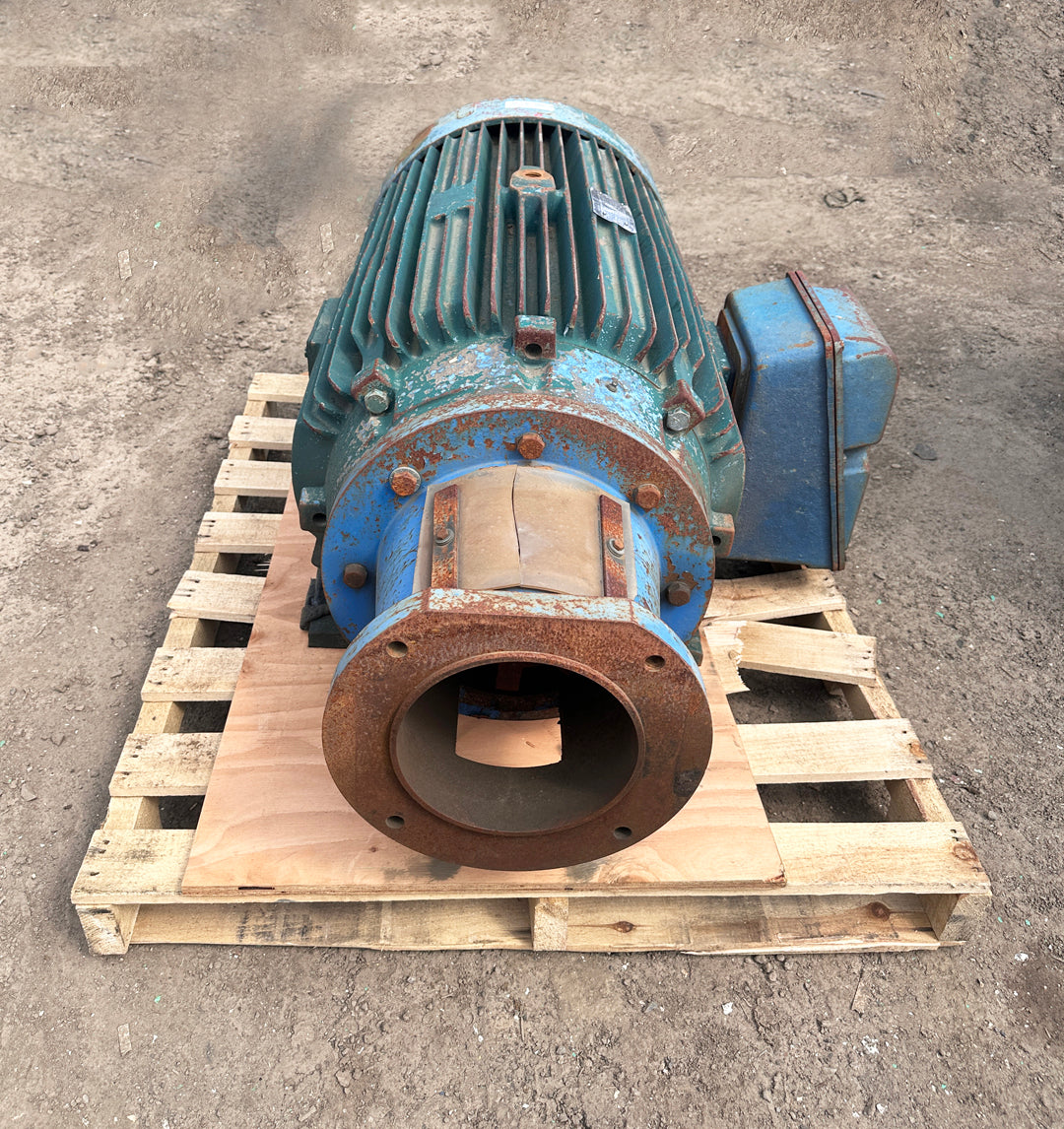

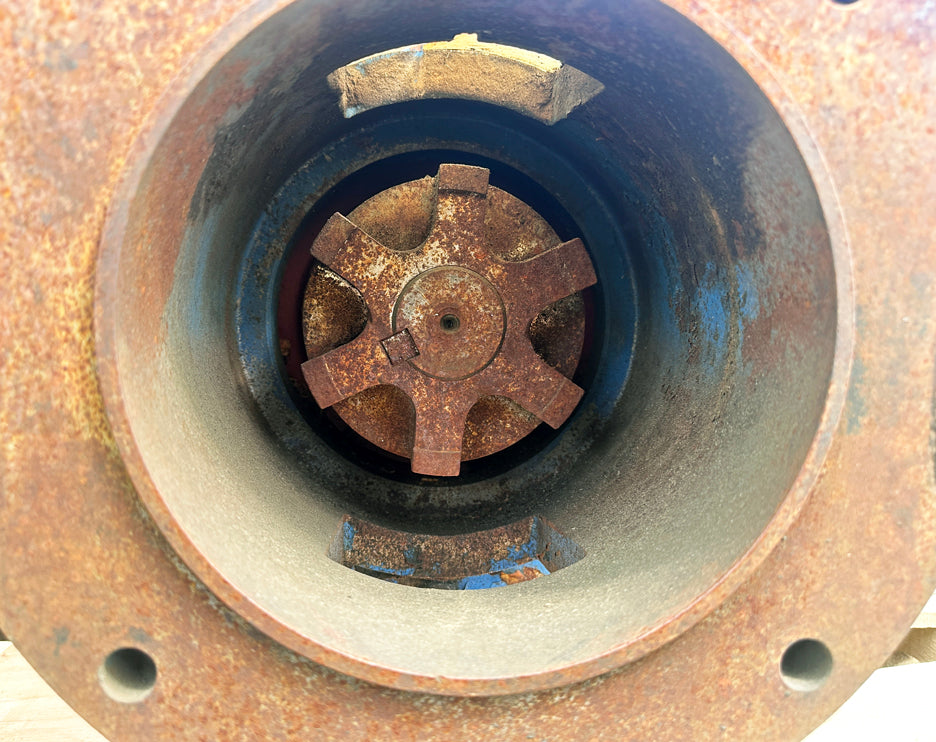

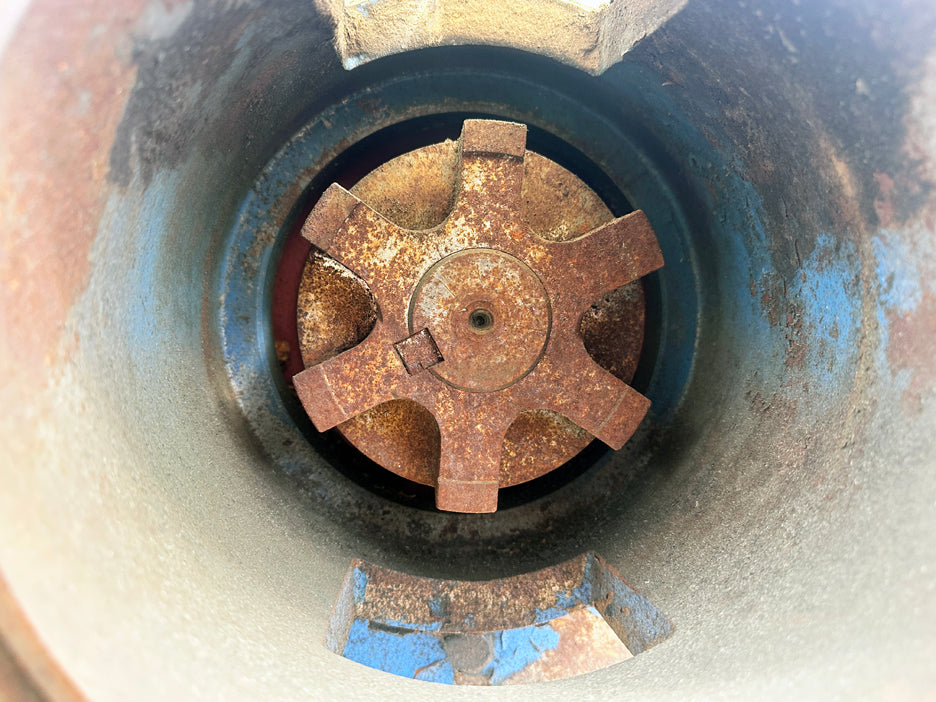

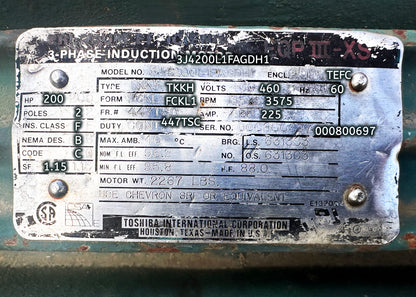

Toshiba 3J4200L1FAGDH1 3-Phase Induction Motor w/ Flanged Housing & Coupling Element

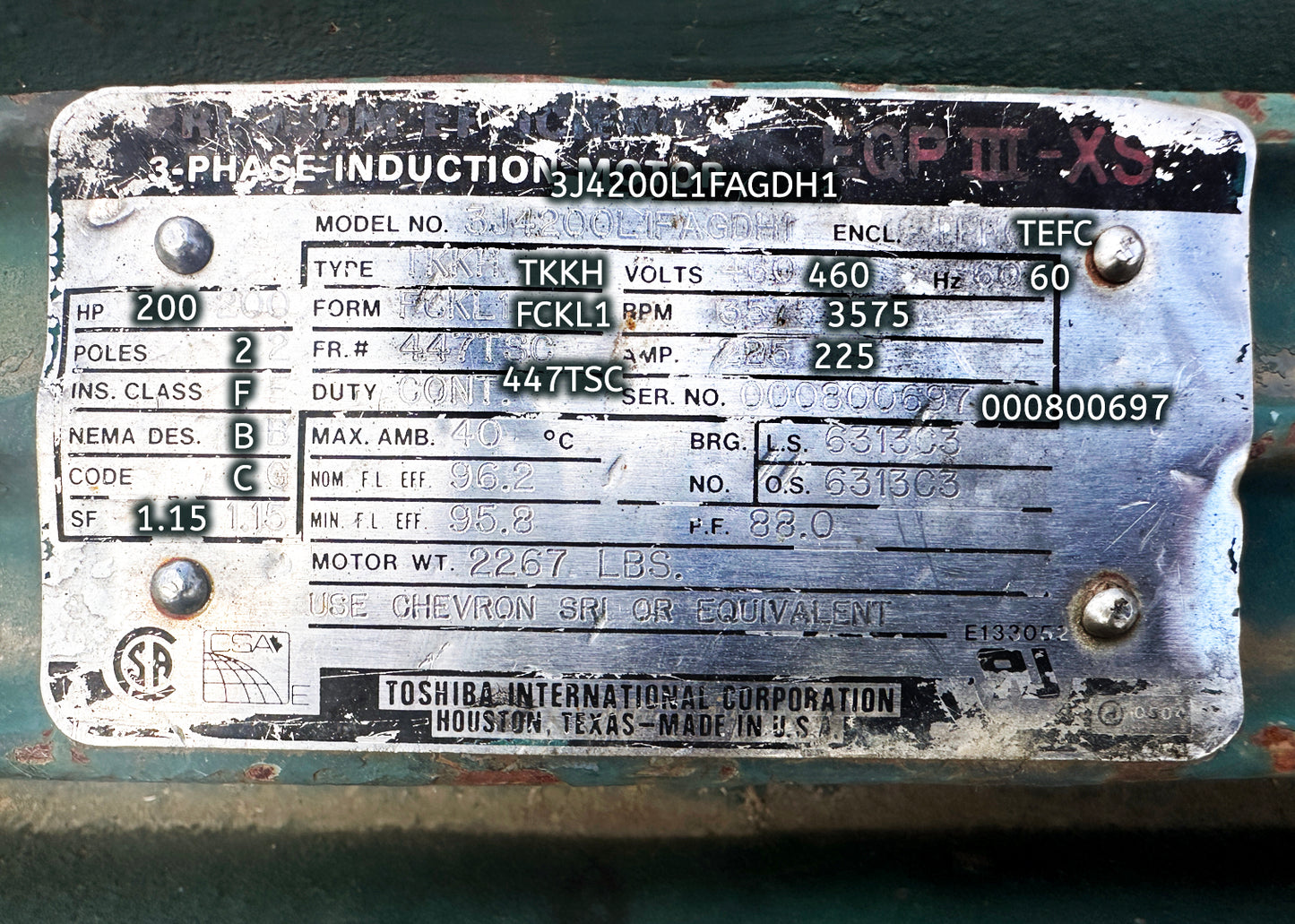

• Manufacturer: Toshiba International Corporation
• Model No.: 3J4200L1FAGDH1
• Type: TKKH
• HP: 200
• Voltage: 460V
• Frequency: 60Hz
• Amps: 225
• Poles: 2
• RPM: 3575
• Frame: 447TSC
• Duty: Continuous
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Insulation Class: F
• NEMA Design: B
• Code: C
• Service Factor: 1.15
• Full Load Efficiency (Nom/Min): 96.2% / 95.8%
• Power Factor: 88.0%
• Motor Weight: 2,267 lbs

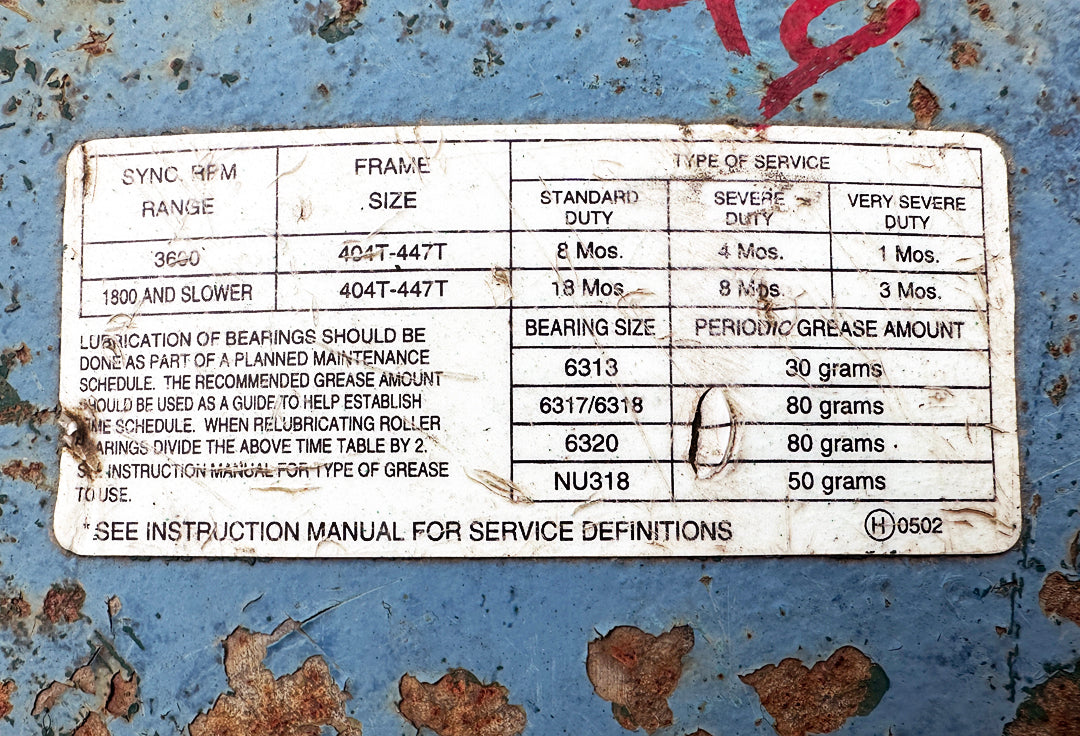

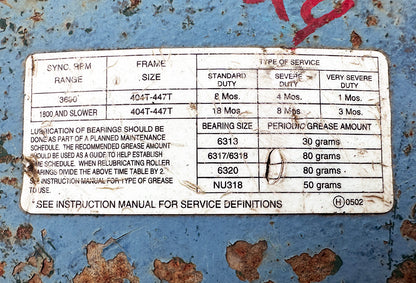

• Bearings: 6313C3 (both ends)
• Serial No.: 000800697
• Made in U.S.A.

Note:

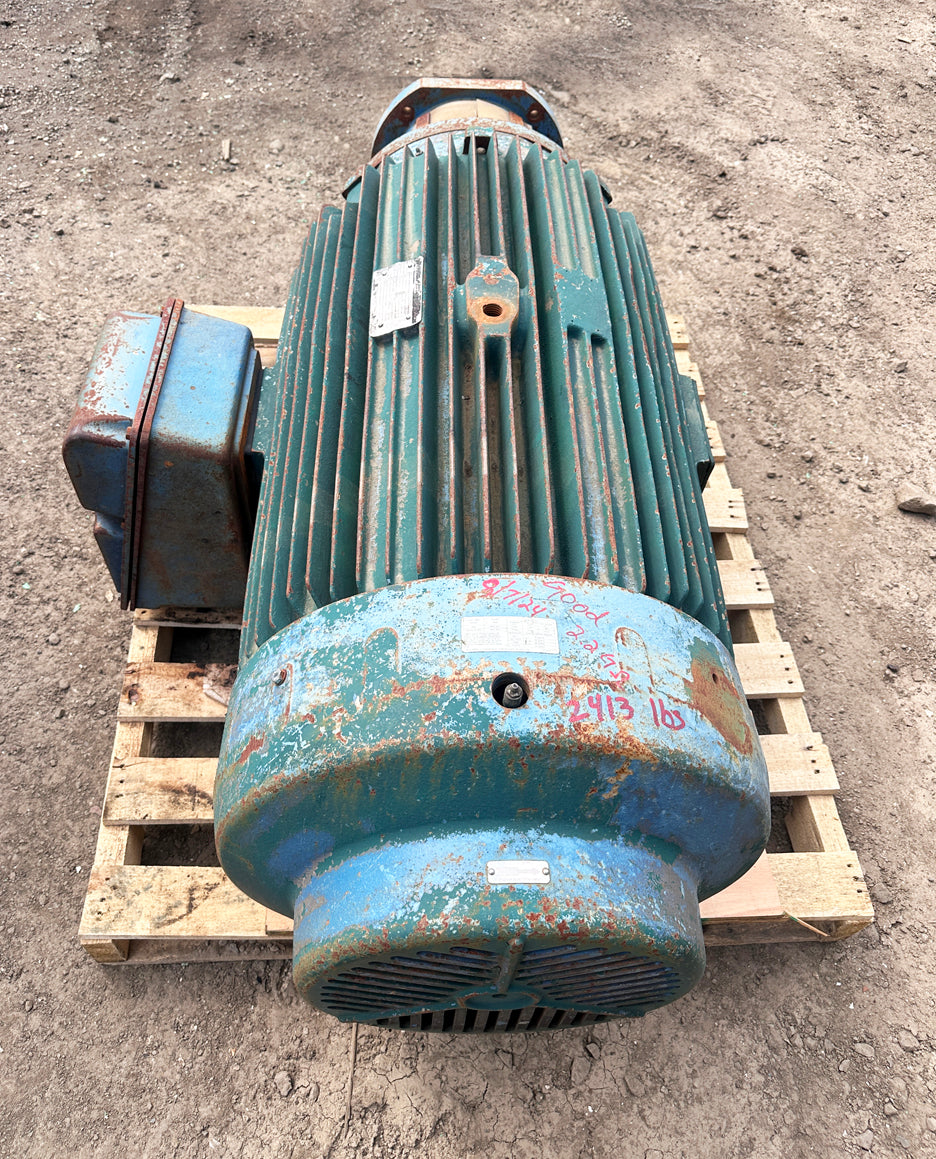

Unit is sold as-is with visible exterior rust and wear. It was tested in good working condition.

Local Pick-Up or Freight Shipping Only
