Toshiba High Efficiency 3-Phase Induction Motor

  • Sale
  • Regular price $3,500.00


~ TOSHIBA HIGH EFFICIENCY 3-PHASE INDUCTION MOTOR ~

Model #: A1506FLF4BM

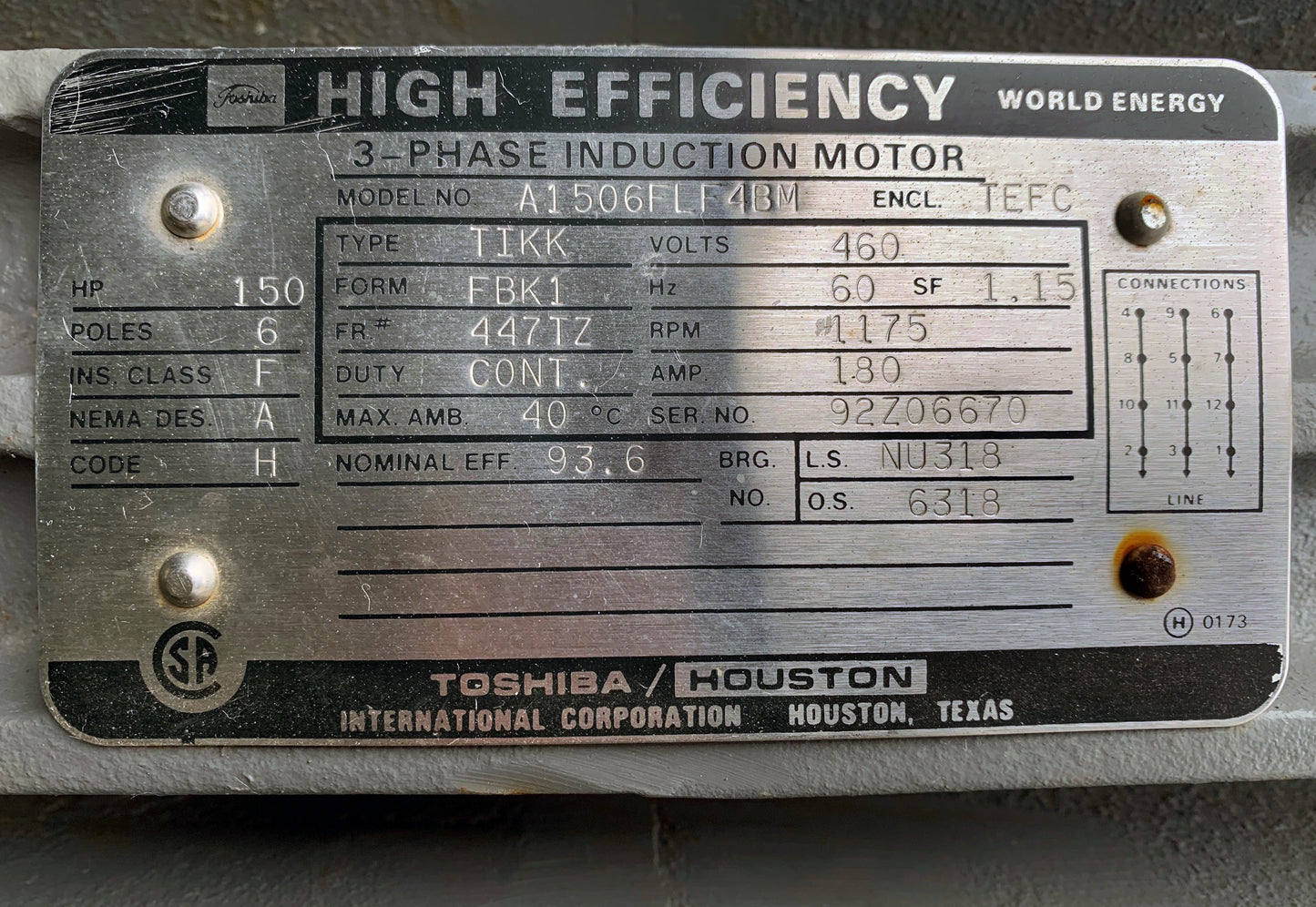

Taken from the tag on the motor:

  • HP 150
  • POLES 6
  • INS CLASS F
  • NEMA DES. A
  • CODE H
  • TYPE TIK
  • FORM FBK1
  • FR# 447TZ
  • DUTY CONT.
  • MAX AMB 40 C
  • VOLTS 460
  • HZ 60 SF 1.15
  • RPM 1175
  • AMP 180
  • SER. NO. 92Z06670
  • L.S. NU318
  • O.S. 6318
  • NOMINAL EFF 93.6
Weighs 1275 lbs
24.5" at tallest point (includes eye)
Approx 55" long & 32" across at widest point
