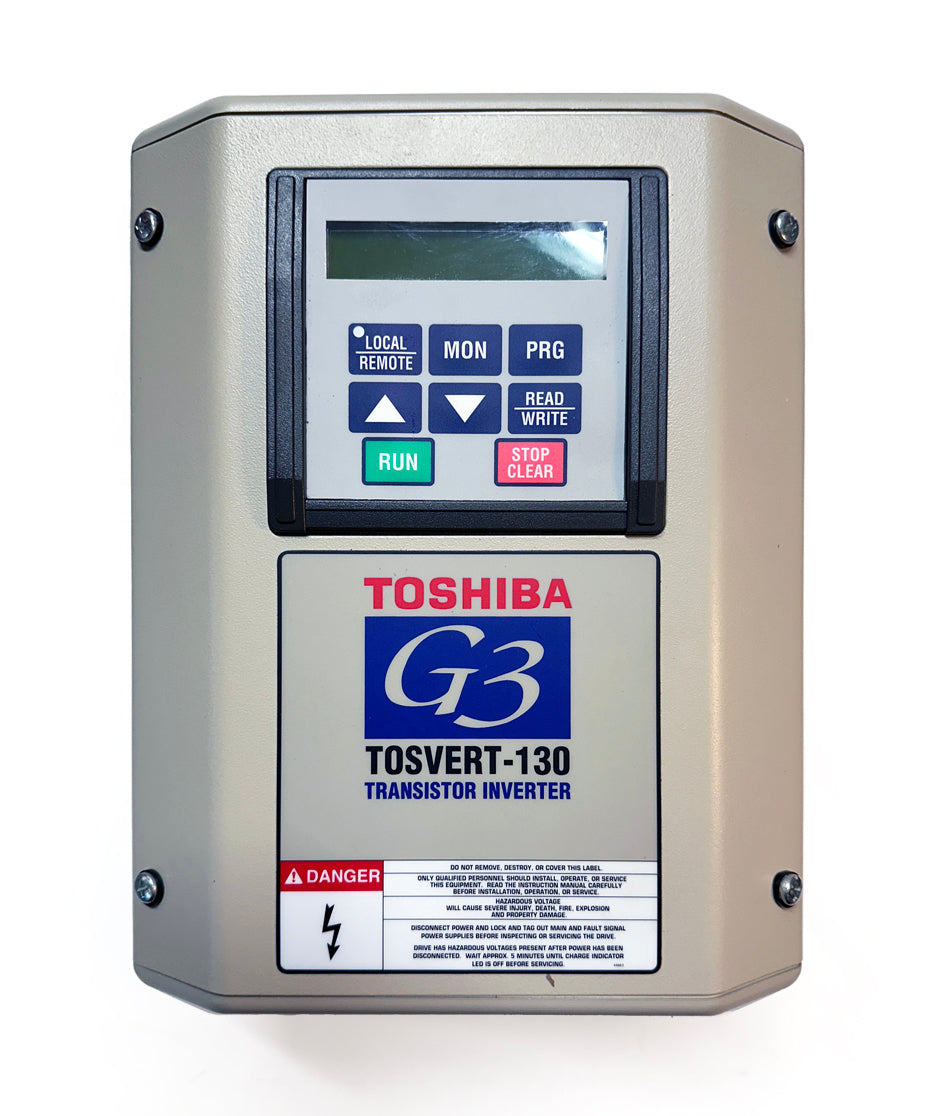

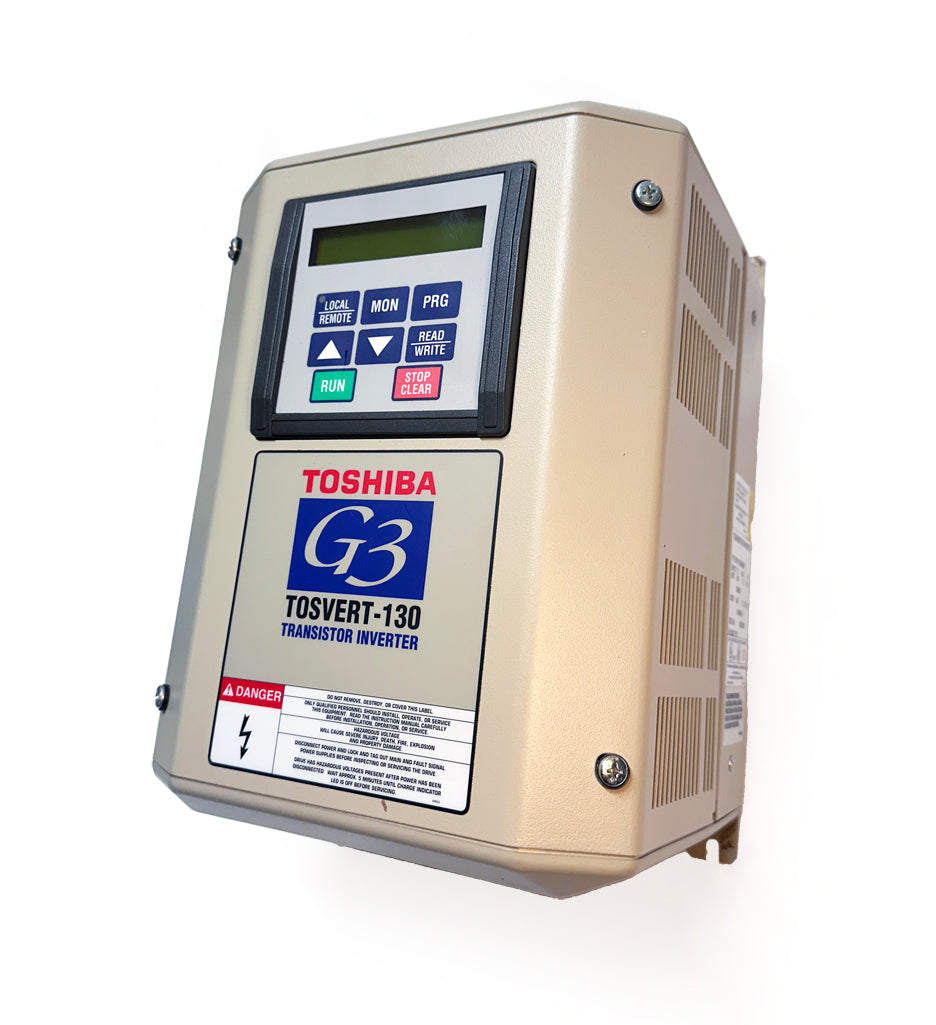

The Toshiba VT130G3U4015 is part of the TOSVERT-130 G3 series of transistor inverters, designed for precise motor control in industrial applications.
Key Specifications:

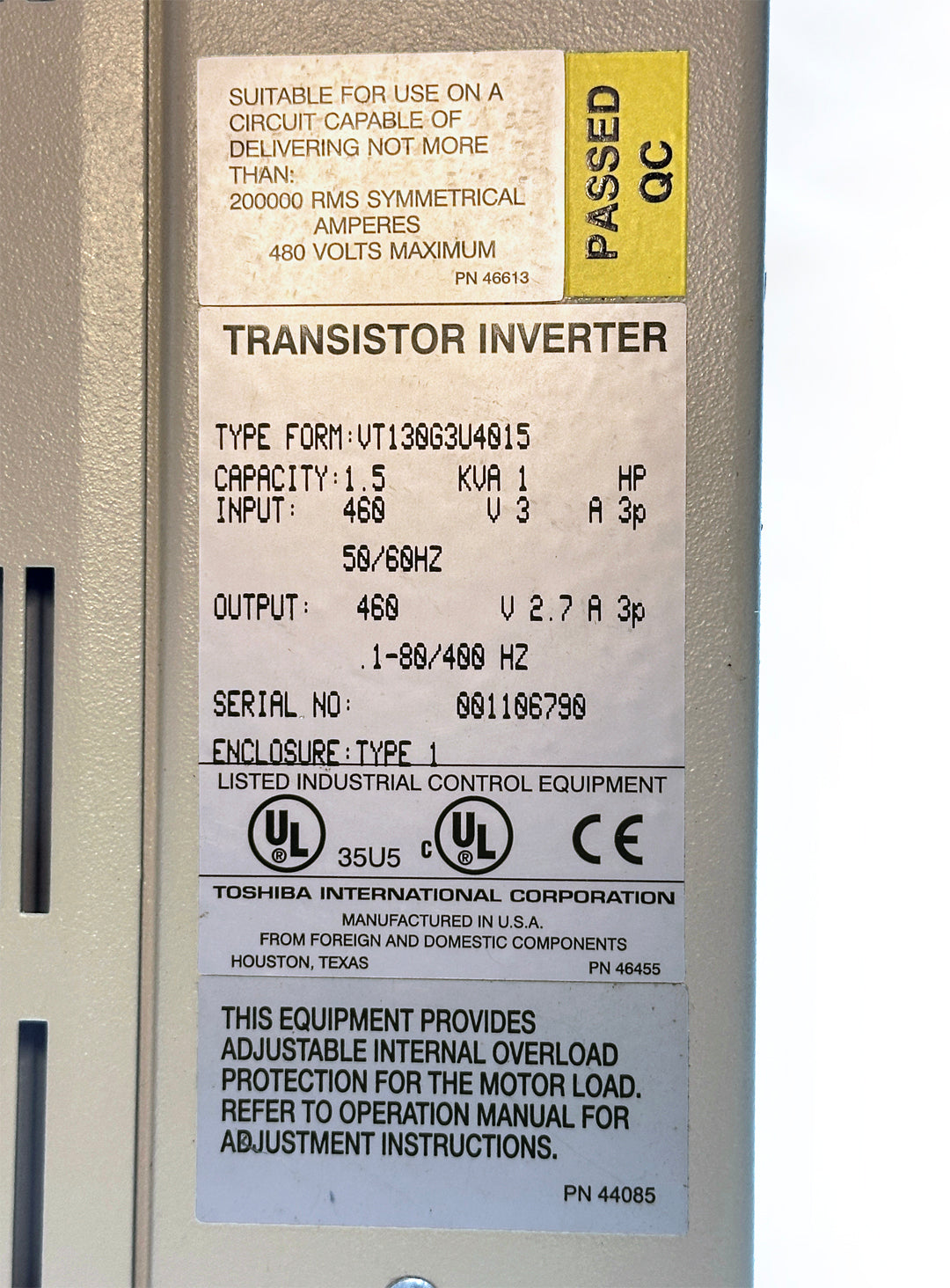

Model Number: VT130G3U4015
Type: Transistor Inverter Drive
Power Rating: 1 HP (Horsepower)
Input Voltage: 460V AC, 3-phase, 50/60 Hz
Input Current: 3 A
Output Voltage: 460V AC, 3-phase
Output Current: 2.7 A
Output Frequency Range: 1 to 80/400 Hz
Apparent Power: 1.5 kVA
These inverters are known for features such as "True Torque Control," Toshiba's vector algorithm that enables motors to develop high starting torque and compensates for motor slip. They also include a multi-lingual forty-character LCD display, RS232 port, dynamic braking transistor, and protection mechanisms against ground faults, overloads, and overcurrent situations.
