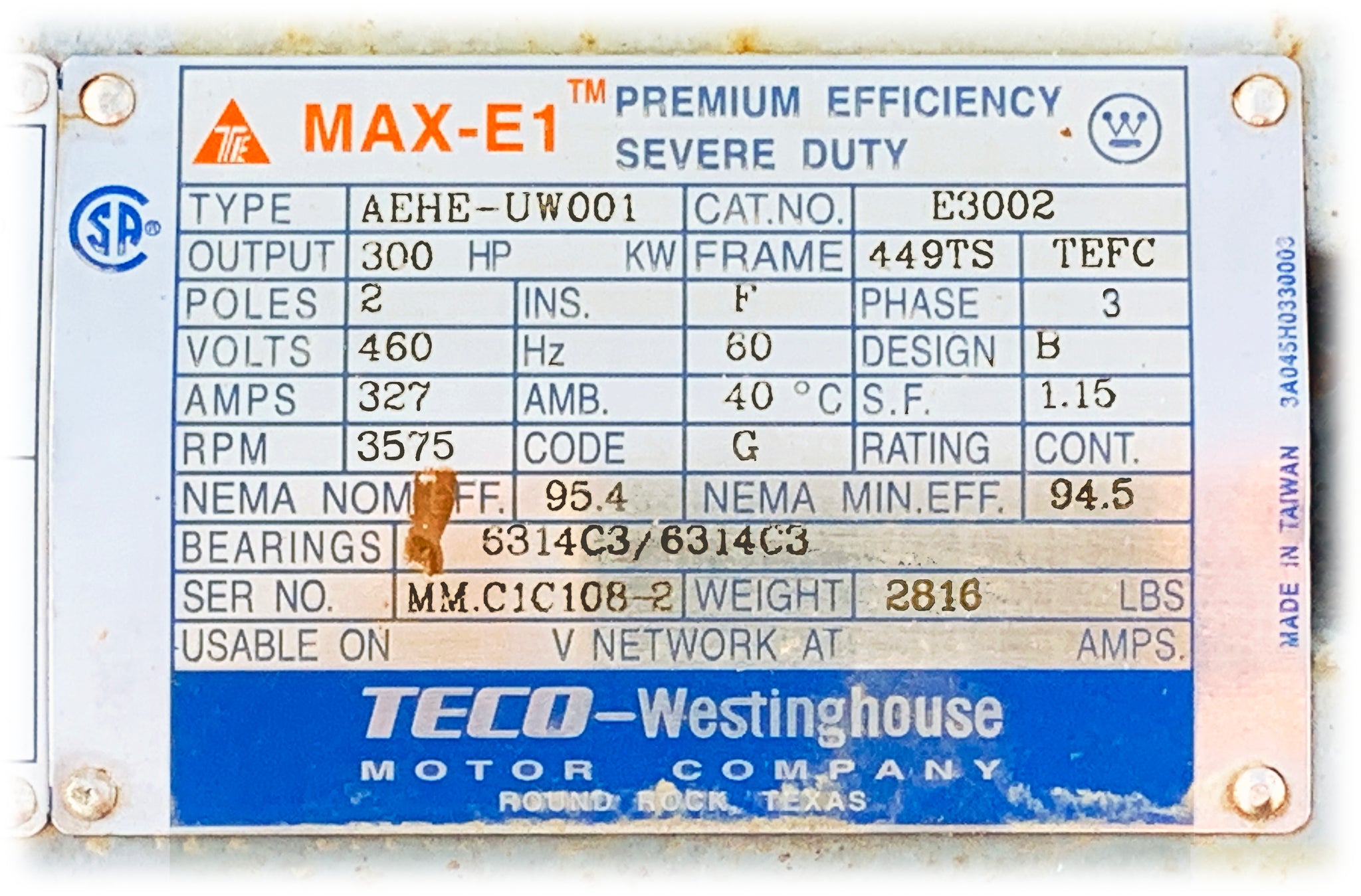

Teco-Westinghouse MAX-E1 300 HP Premium Efficiency Severe Duty Motor
- Serial #: MM.C1C108-2
- Type: AEHE-UW001
- CAT No.: E3002
- Output: 300 HP
- RPM: 3575
- Frame: 449TS / TEFC
- Poles: 2
- INS.: F
- 3 Phase
- 460 Volts
- 60 Hz
- Design: B
- Amps: 327
- Amb: 40˚ C
- S.F.: 1.15
- Code: G
- Rating: Continuous
- NEMA Nom. Eff.: 95.4
- NEMA Min. Eff.: 94.5
- Bearings: 6314C3/6314C3
- Weight: 2816 lbs
