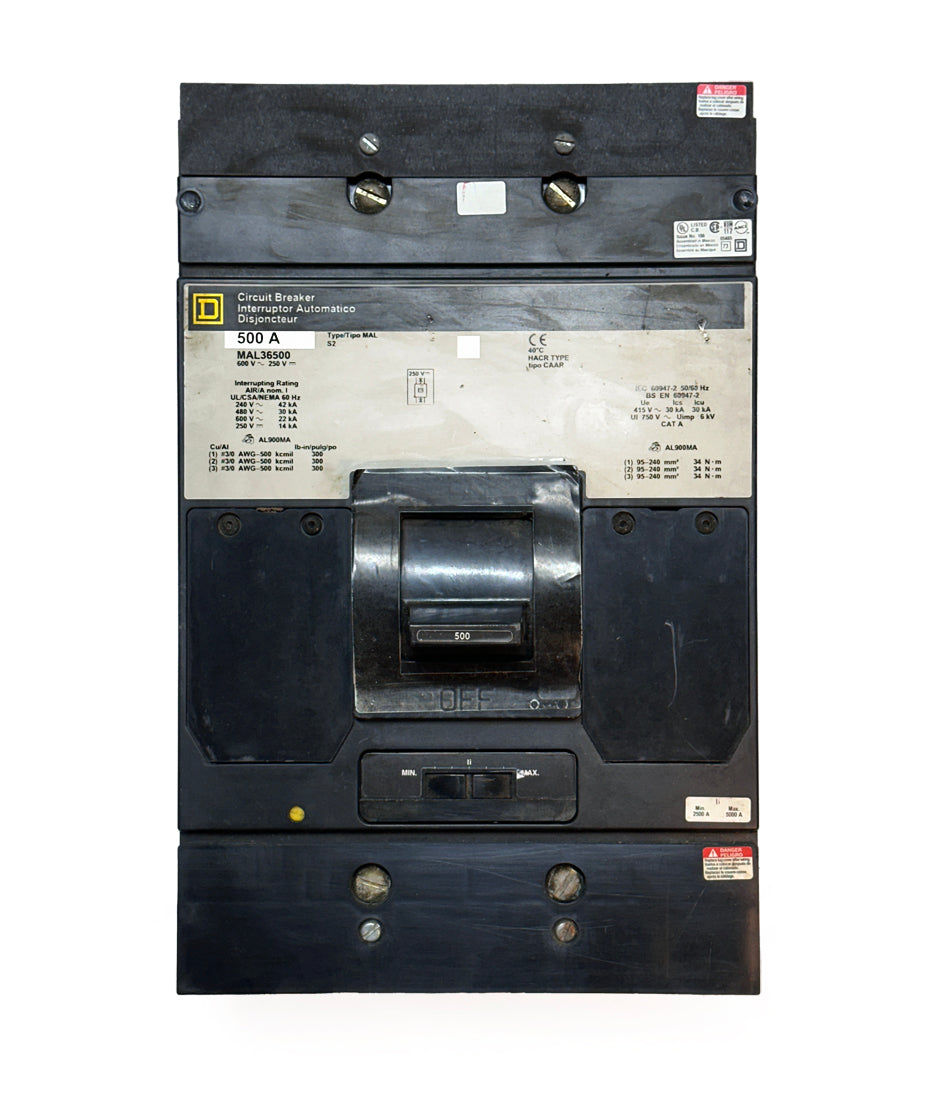

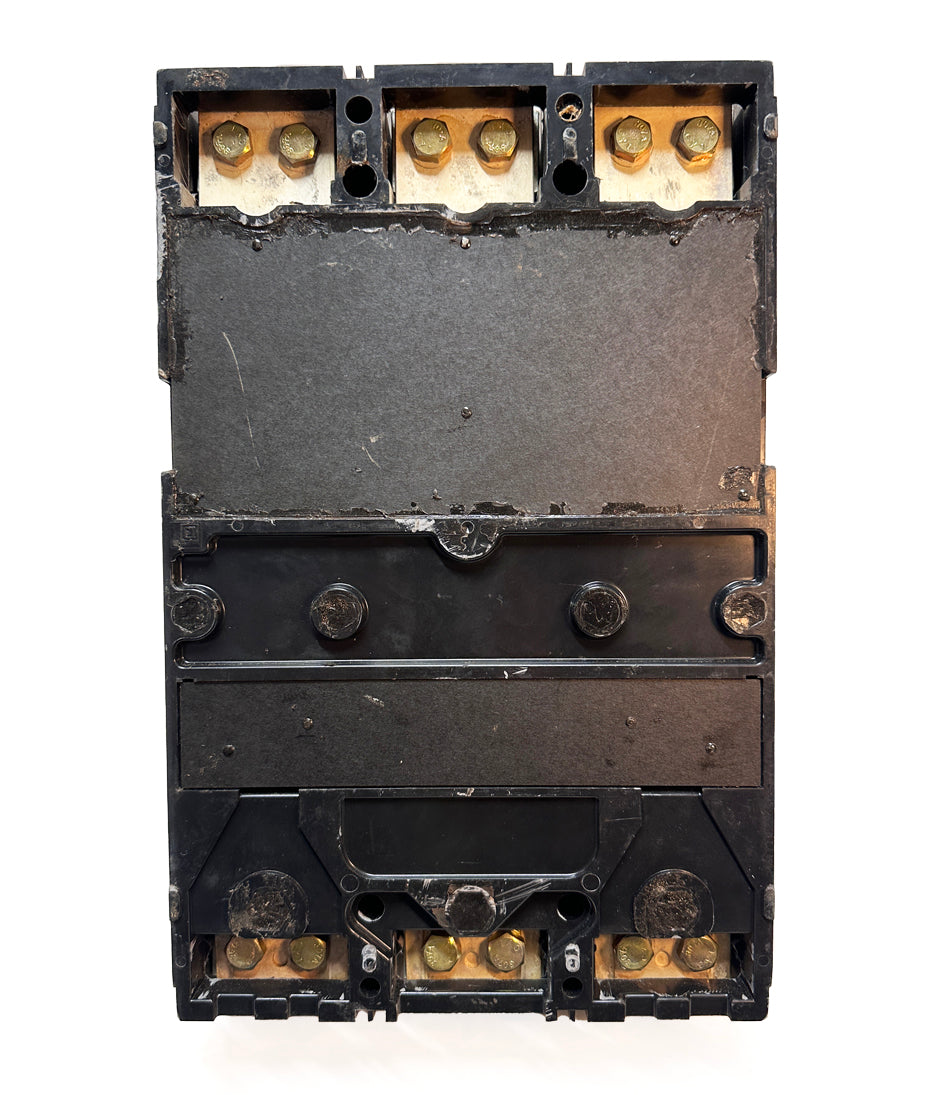

Square D MAL36500 500A Circuit Breaker

Removed in good working condition

Square D MAL36500 Circuit Breaker Specifications

General Information:

• Manufacturer: Schneider Electric (Square D)
• Model Number: MAL36500
• Type: Molded Case Circuit Breaker
• Frame Type: M Frame
• Mounting: Panel mount

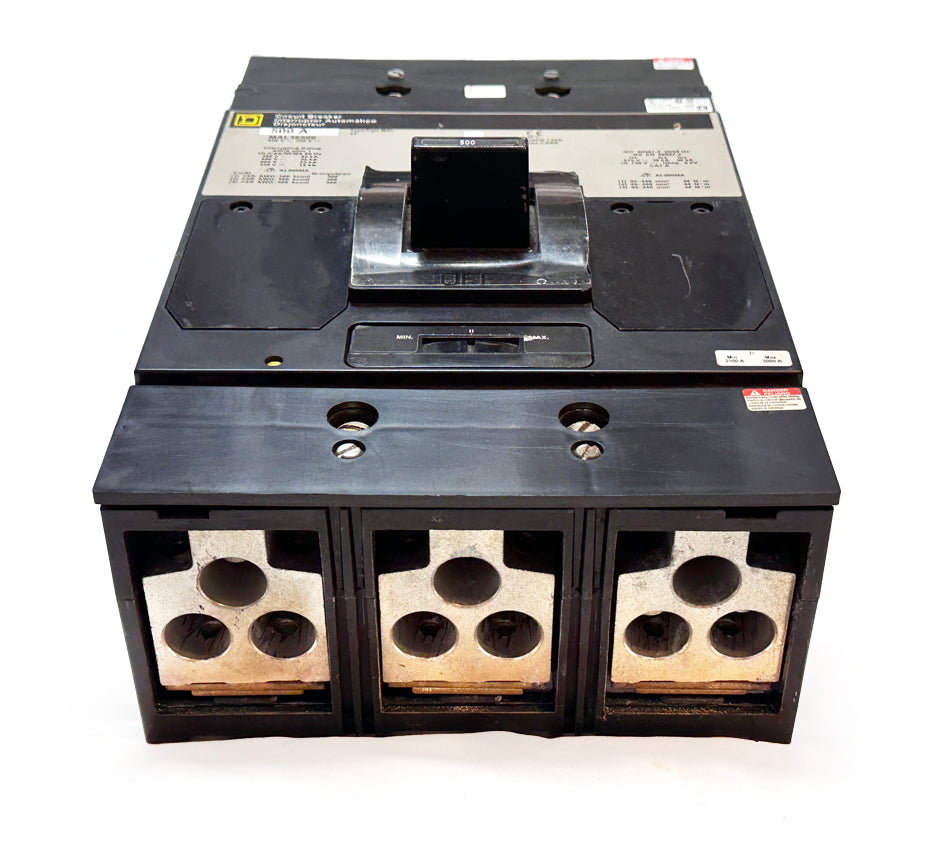

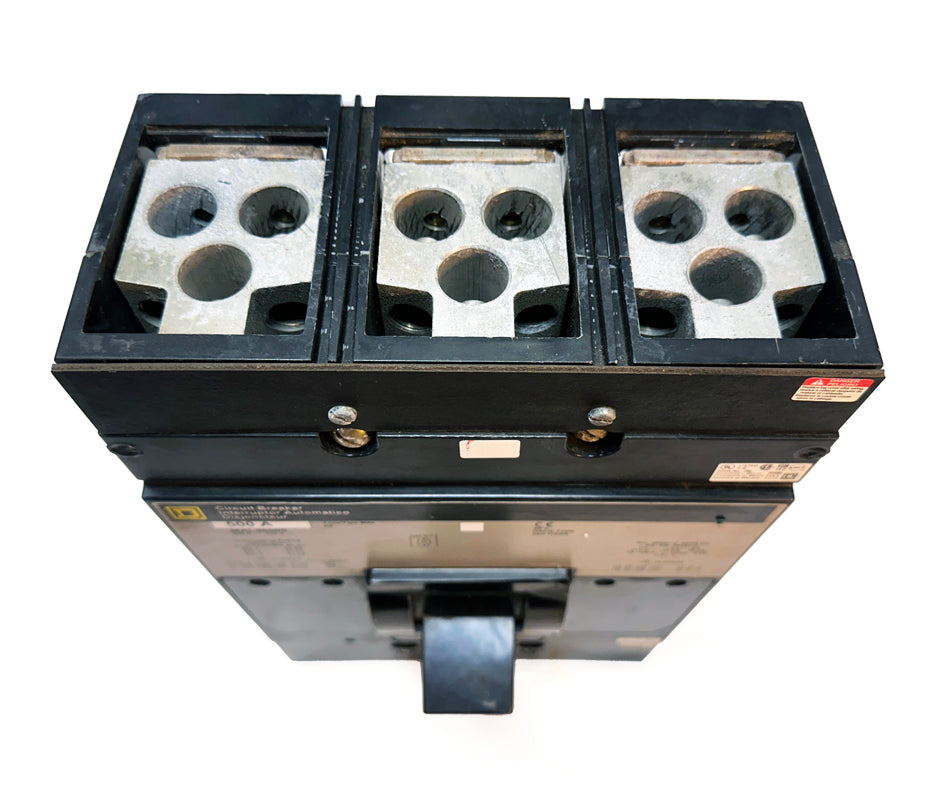

• Connection: Feed-through lugs (line and load side)
• Poles: 3
• Voltage Rating: 600 VAC / 250 VDC
• Frequency: 50/60 Hz

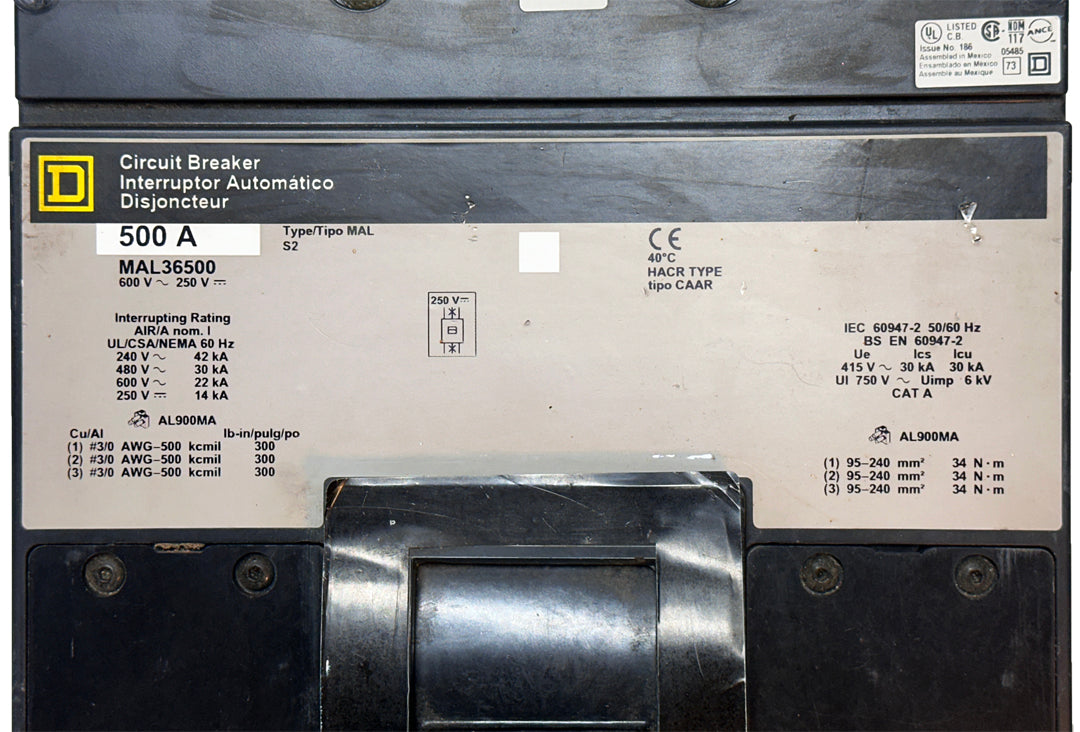

Electrical Ratings:

• Amperage: 500 A
• Interrupting Capacity:
• 42 kA at 240 VAC
• 30 kA at 480 VAC
• 22 kA at 600 VAC
• 14 kA at 250 VDC

Trip Unit:

• Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Range: 2500–5000 A

Physical Characteristics:

• Dimensions: Approximately 9 inches (W) x 6.5 inches (D) x 14 inches (H)
• Weight: Approximately 40 lbs

Certifications:

• UL Listed
• CSA Certified
• CE Marked
