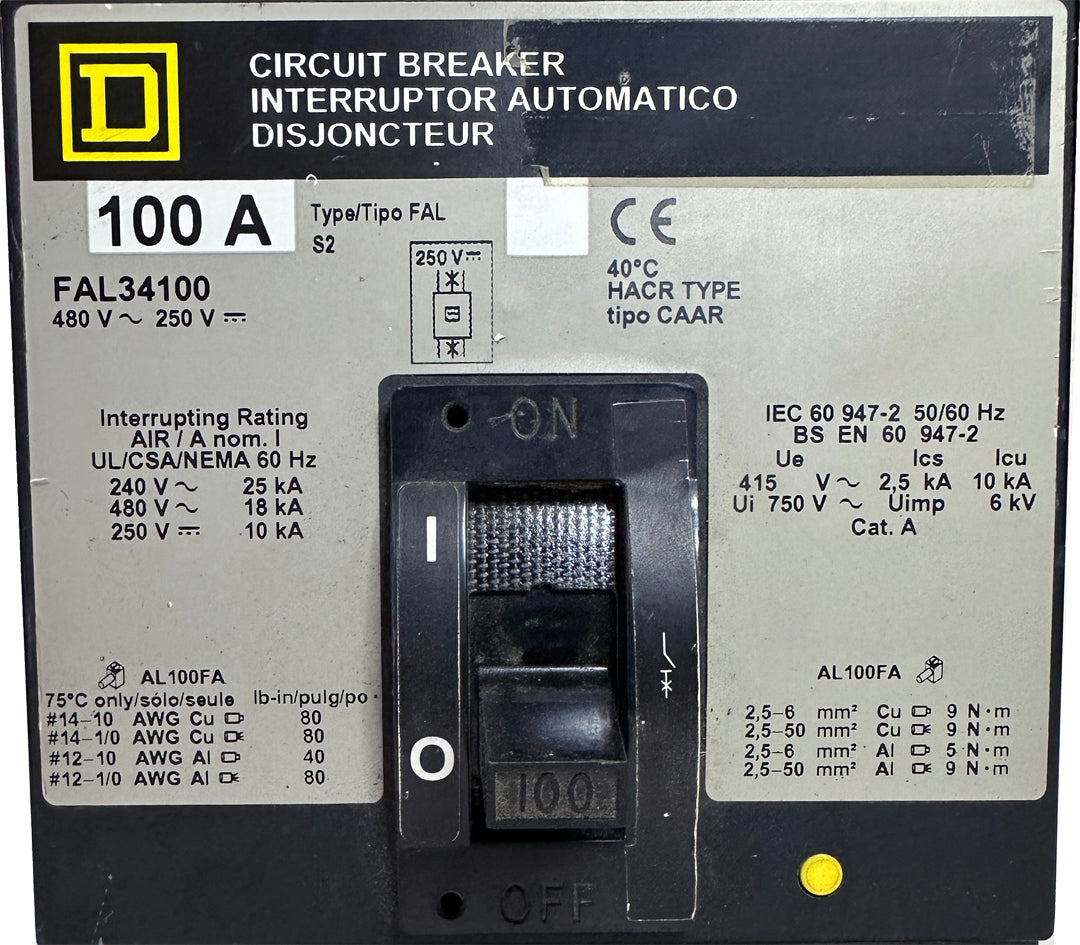

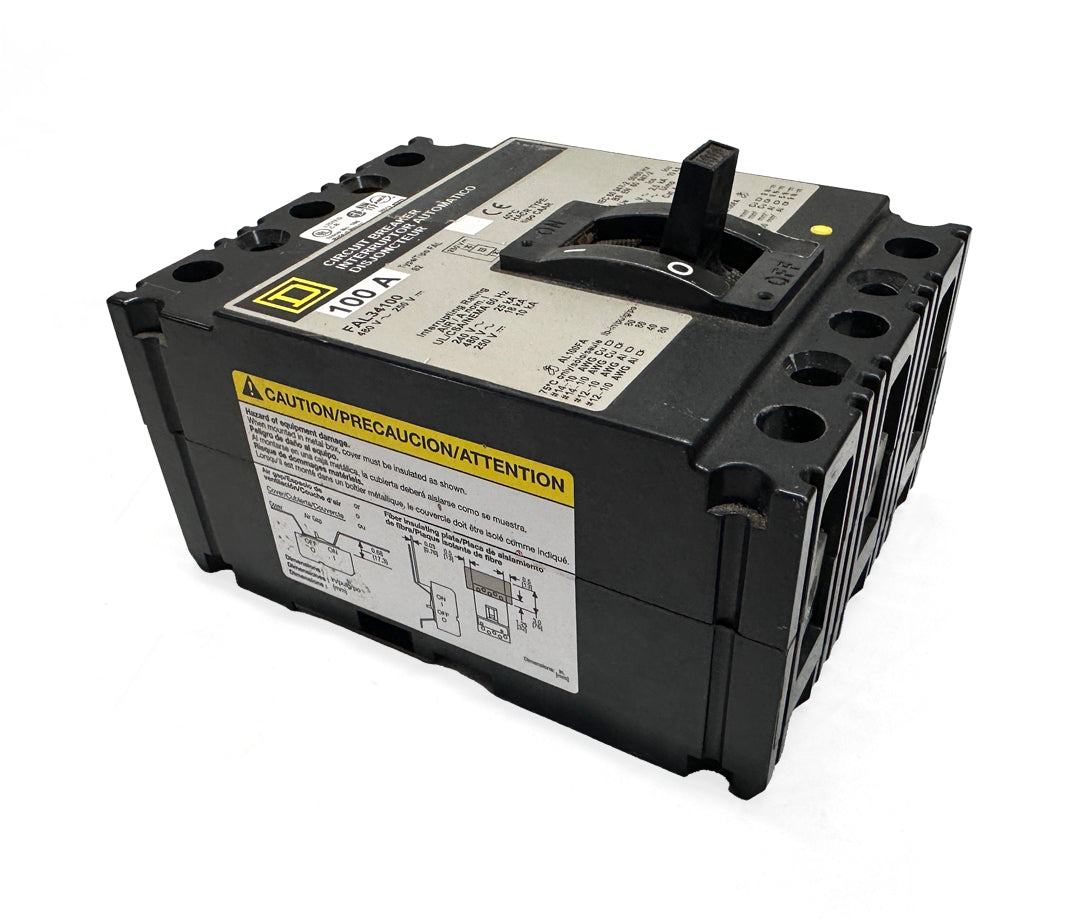

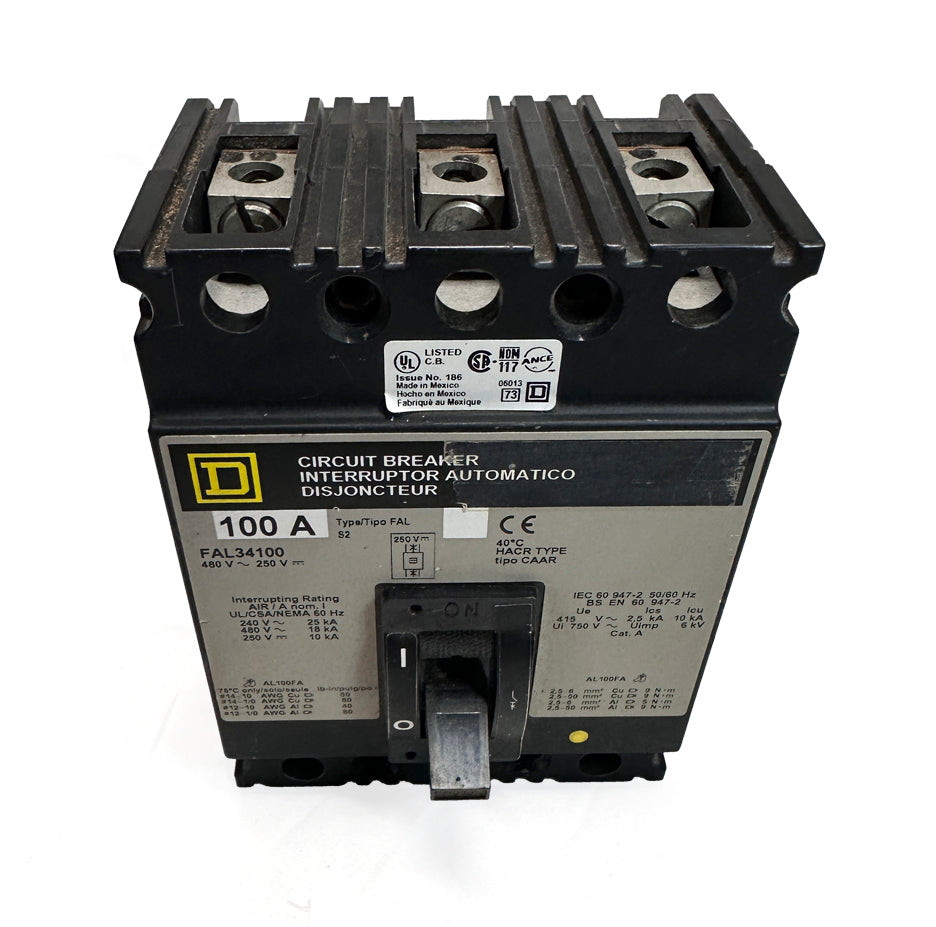

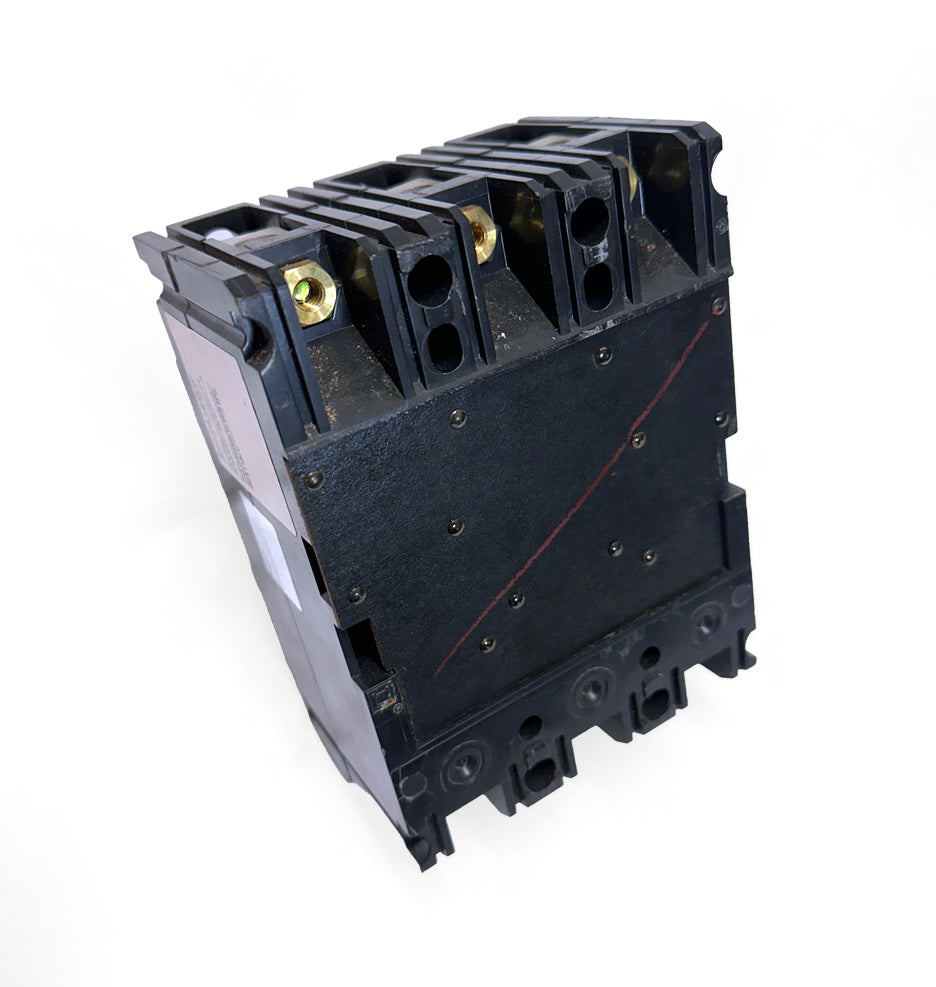

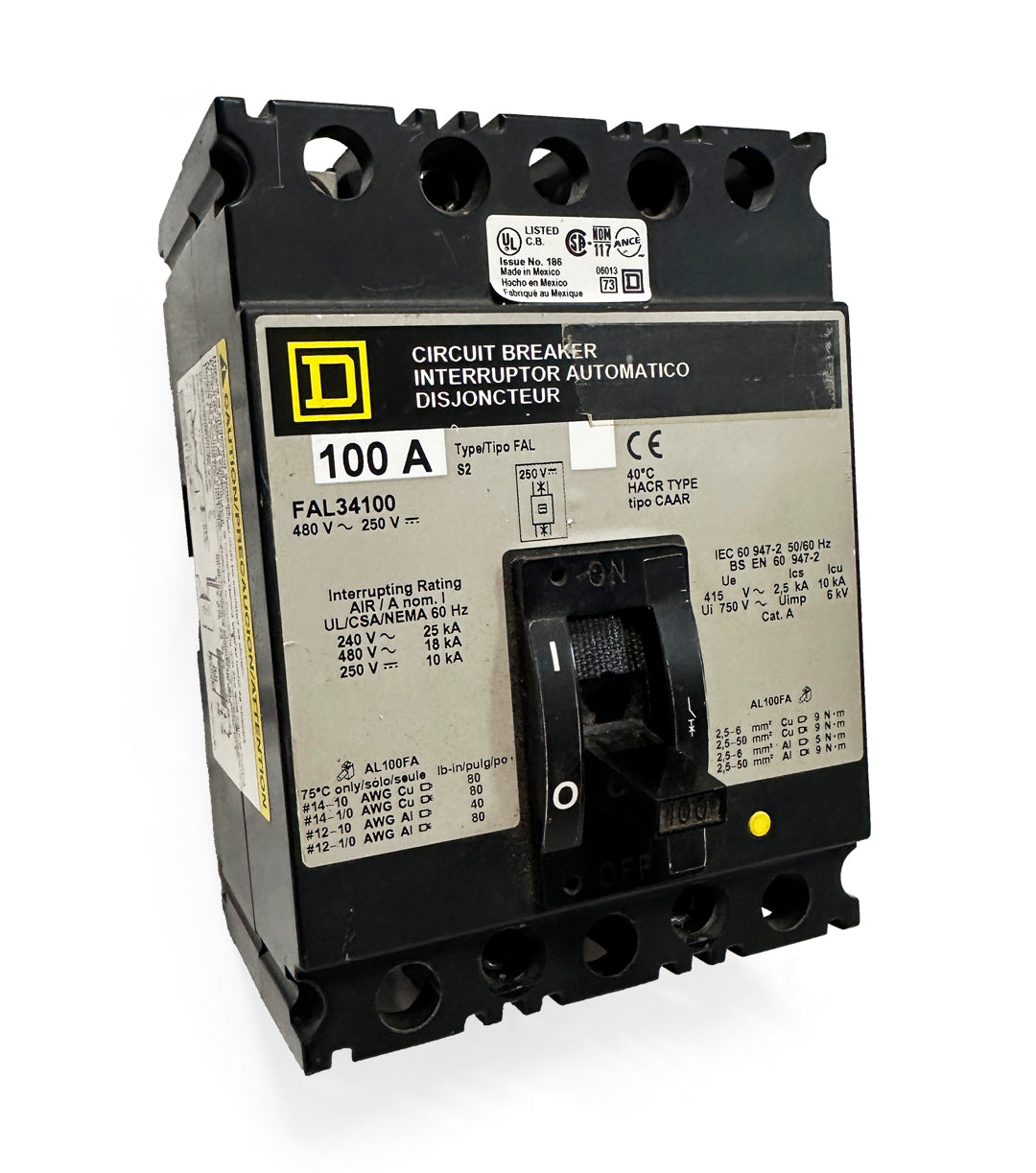

Square D FAL34100 Circuit Breaker

Used; removed in good working condition

• Brand: Square D
• Model/Part Number: FAL34100
• Series: FAL
• Amperage: 100 Amps
• Voltage: 480 VAC
• Number of Poles: 3
• Phase: 3
• Mounting Type: Unit Mount (Feed-Thru)
• Protection Type: Thermal Magnetic
• Functions: Long-Time and Instantaneous Trip (LI)
• Interrupting Rating: 18kAIC at 480V
• Frame Type: FAL
• Terminal Connection: Line and Load Side Lug
• Dimensions (LxWxH): 4.13 in x 4.5 in x 6.4 in
• Standards: HACR
• Approvals: UL, CSA
