Hankison SPXFLOW HPRN100 Compressed Air Dryer w/ Tank {CDA}

Hankison SPXFLOW HPRN100 Compressed Air Dryer w/ Tank {CDA}

Regular price $4,025.00 USD
Regular price Sale price $4,025.00 USD
Sale Sold out

Tank included

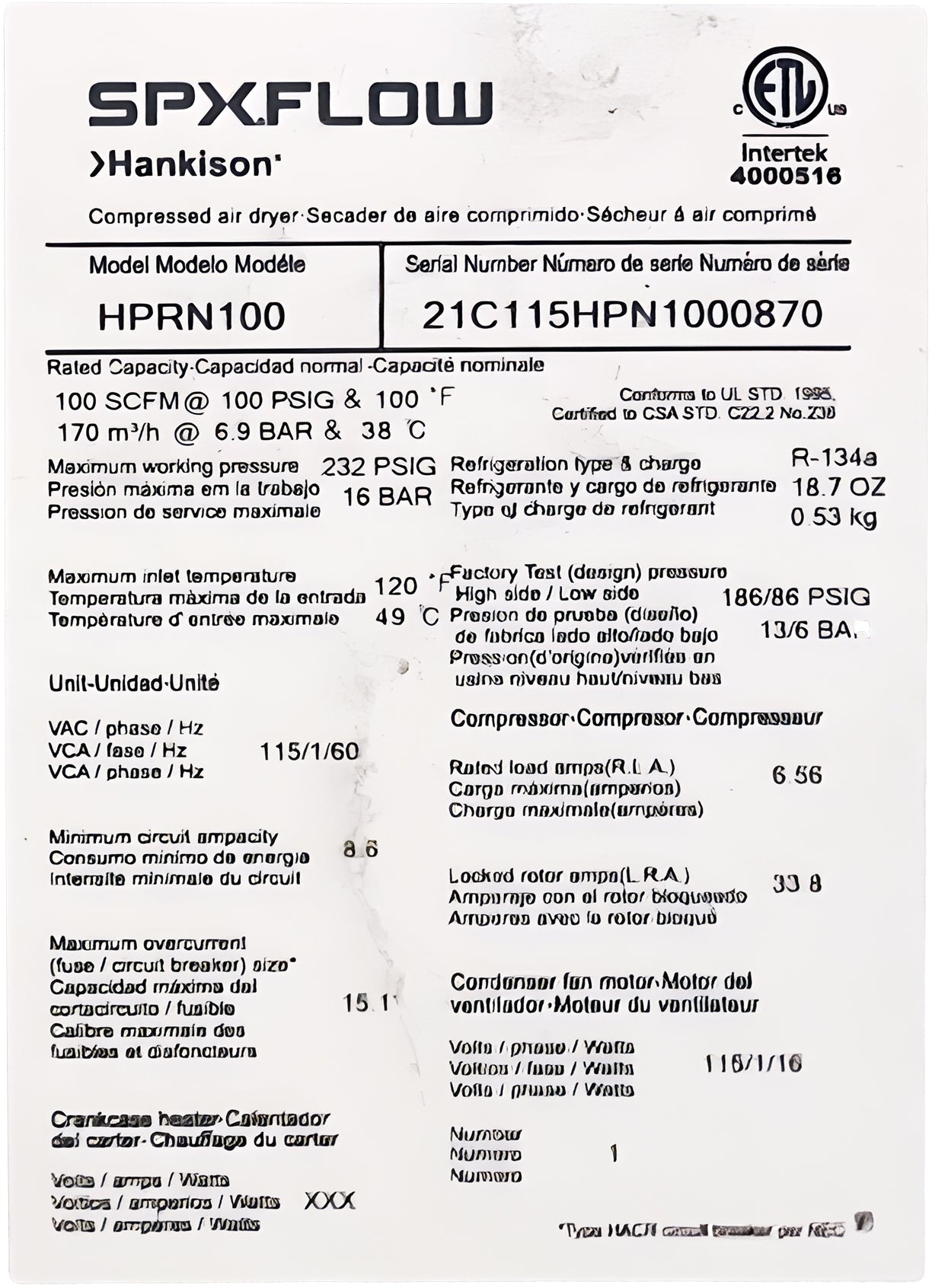

SPXFLOW:

  • Model: HPRN100
  • Serial Number: 21C115HPN1000870
  • Rated Capacity:
  • 100 SCFM @ 100 PSIG & 100°F
  • 170 m³/h @ 6.9 BAR & 38°C
  • Maximum Working Pressure: 232 PSIG (16 BAR)
  • Refrigerant Type and Charge: R-134a, 18.7 oz (0.53 kg)
  • Maximum Inlet Temperature: 120°F (49°C)
  • Power Requirements:
  • Voltage/Phase/Frequency: 115V / Single Phase / 60 Hz
  • Minimum Circuit Ampacity: 8.6 A
  • Maximum Overcurrent Protection (Fuse/Breaker): 15.1 A
  • Compressor Specifications:
  • Rated Load Amps (R.L.A.): 6.56 A
  • Locked Rotor Amps (L.R.A.): 33.8 A
  • Condenser Fan Motor:
  • Voltage/Phase/Frequency: 115V / Single Phase / 60 Hz

This unit is designed for efficient air drying in industrial applications and operates with a maximum pressure of up to 232 PSIG, making it suitable for various compressed air systems.

~ Local Pick-Up or Freight Shipping Only ~
