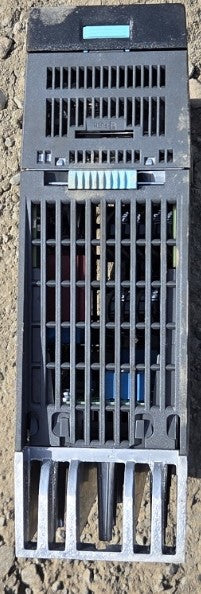

Siemens PM240-2 0.75kW 1HP Variable Frequency Drive

Used; removed in good working condition

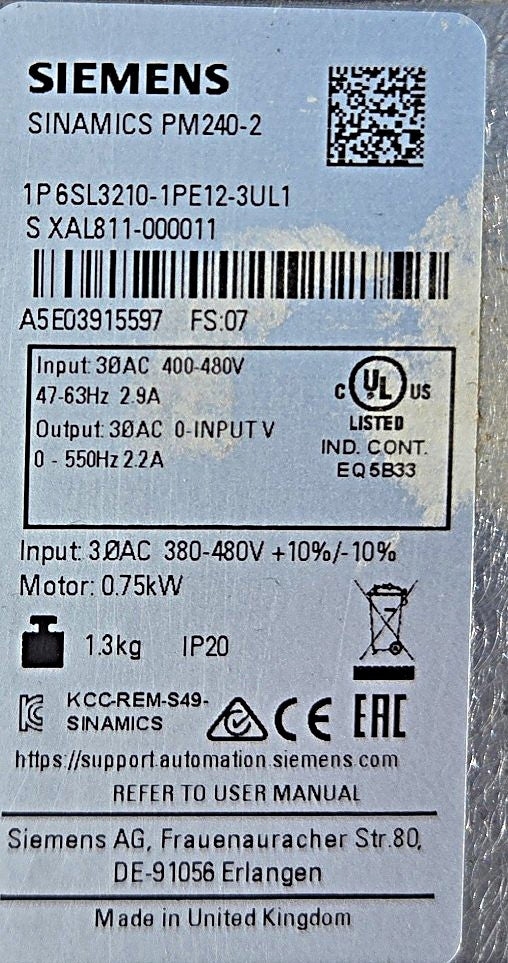

• Brand: Siemens

• Product Line: SINAMICS PM240-2

• Model / Part Number: 1P 6SL3210-1PE12-3UL1

• Serial Number: S XAL811-000011

• Product Code: A5E03915597

• Functional State (FS): 07

• Motor Power Rating: 0.75 kW (approx. 1 HP)

• Input Voltage: 3-Phase AC 380-480V (+10% / -10%), 47-63 Hz

• Input Current: 2.9 A

• Output Voltage: 3-Phase AC 0 - Input V, 0 - 550 Hz

• Output Current: 2.2 A

• Protection Rating: IP20

• Weight Rating: 1.3 kg

• Certifications: cULus Listed (IND. CONT. EQ. 5B33), CE, EAC, KCC

• Enclosure Style: Compact modular chassis with top and side ventilation grilles

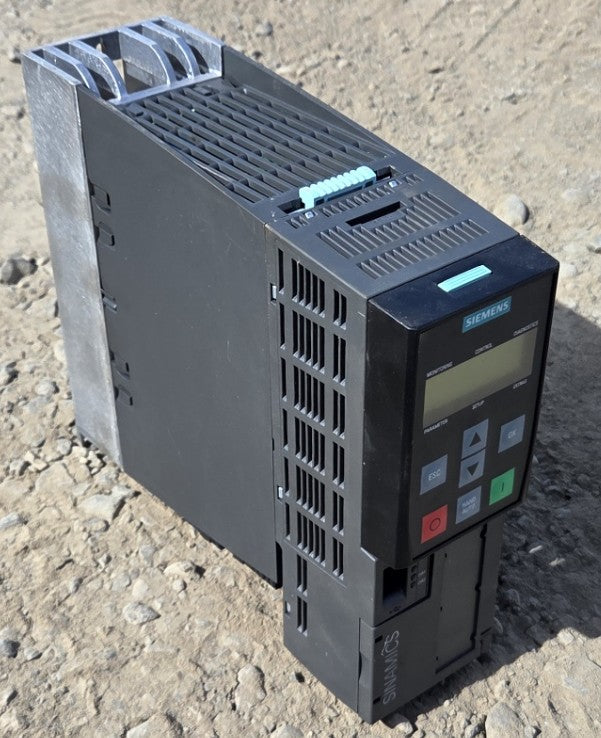

• Operator Interface: Front push-button digital keypad operator panel (BOP-2)

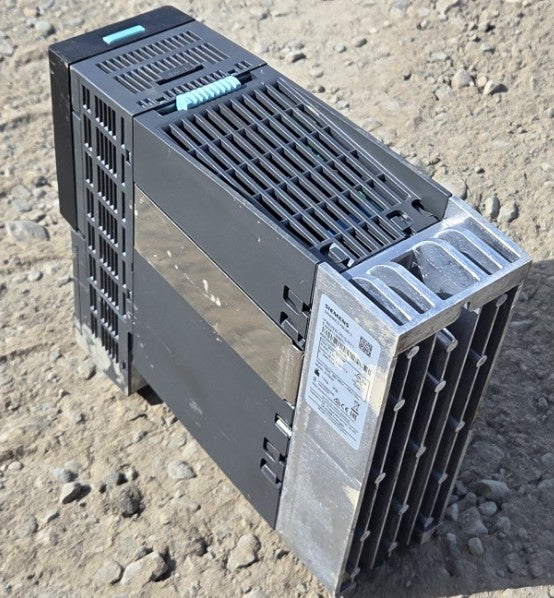

• Heatsink: Rear-mounted extruded aluminum cooling fin assembly

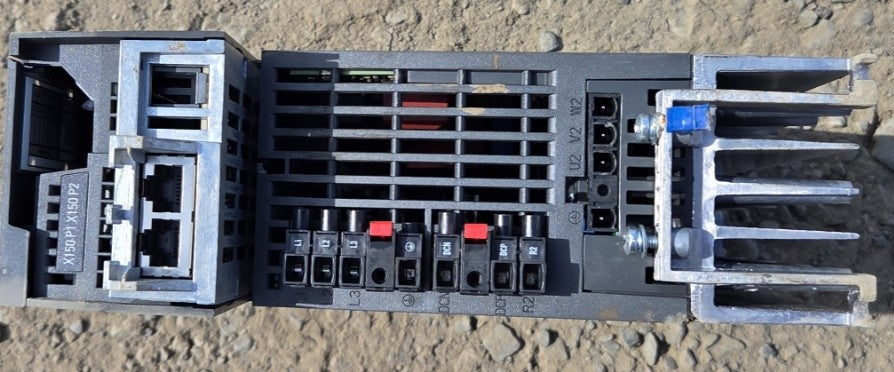

• Power Terminals: Lower screw terminal blocks for L1, L2, L3, Ground, DCN, DCP, R2,
• and motor output U2, V2, W2

• Cable Clamping: Integrated metal cable shield / grounding bracket with screws

• Communication / Control Interface: Dual RJ45 ports (X150 P1, X150 P2)
