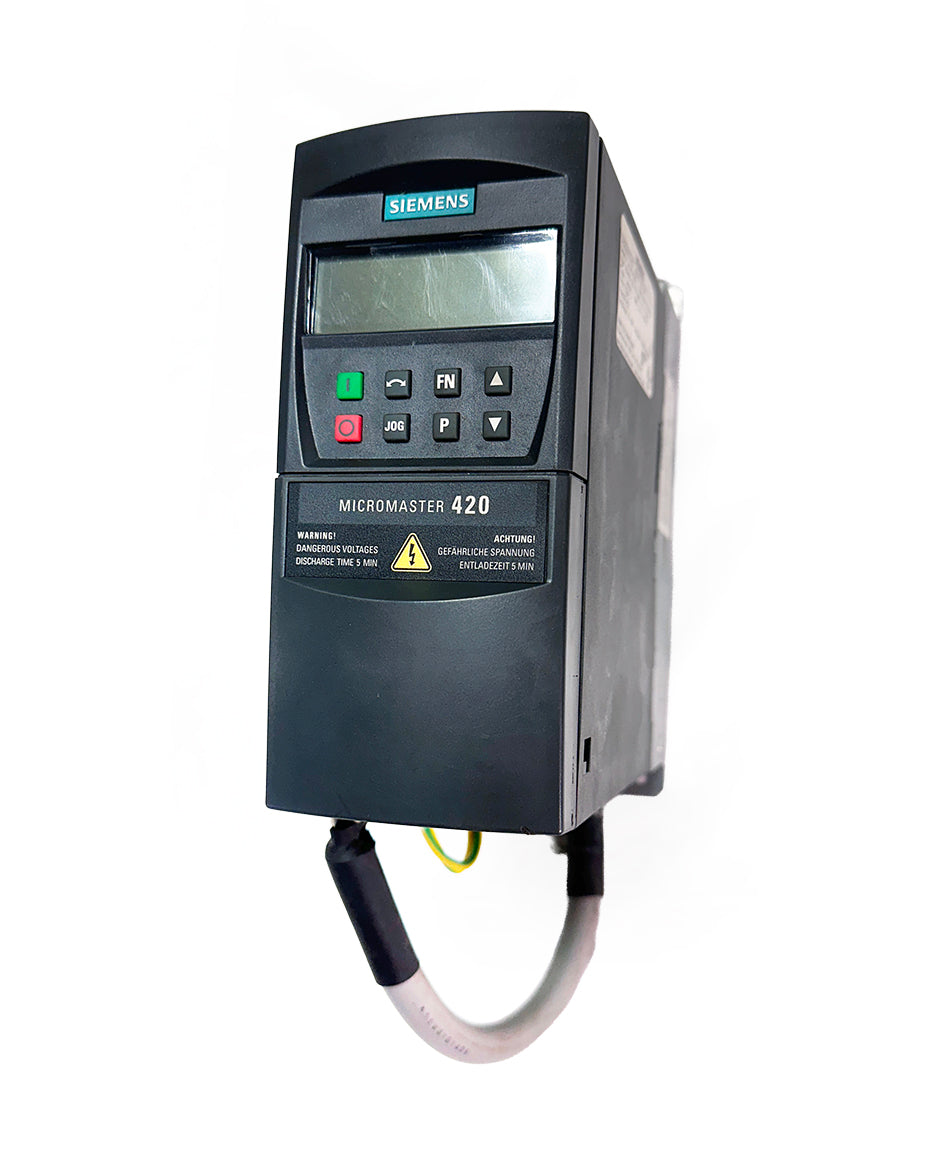

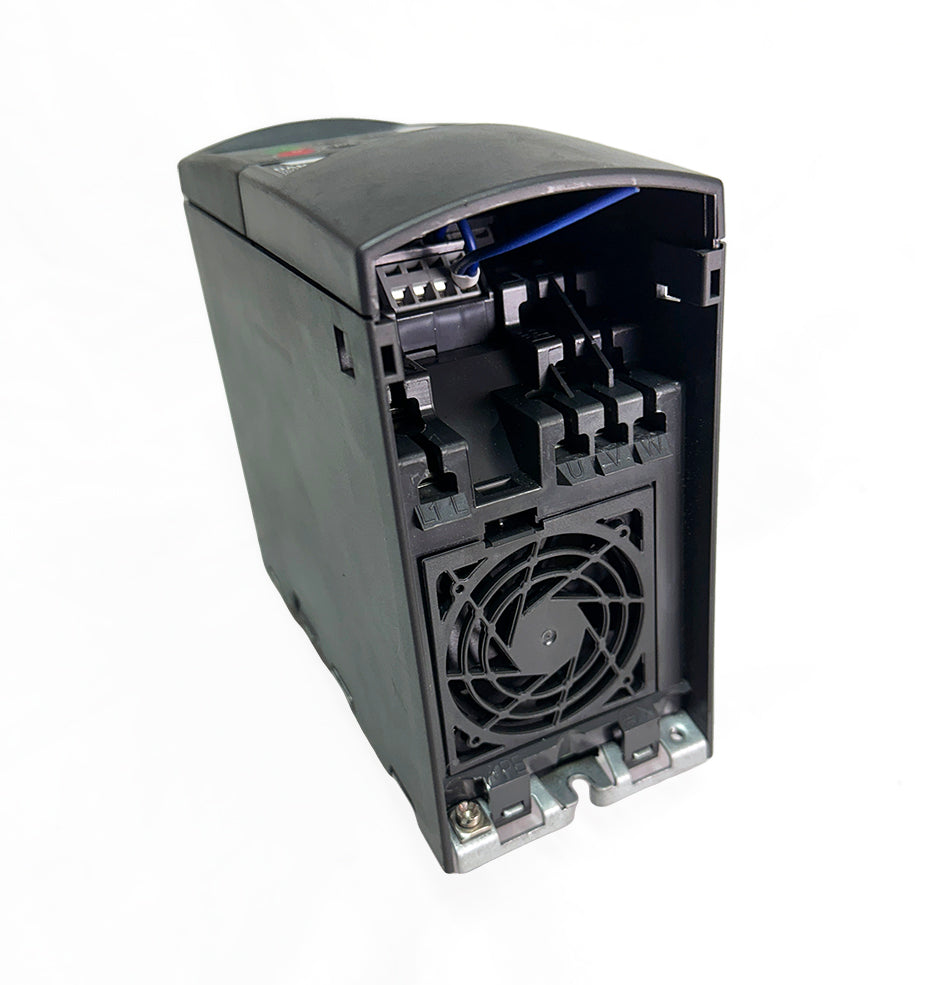

Siemens Micromaster 420 Inverter Drive w/ EMC Filter

Removed in good working condition

• Brand: Siemens Micromaster 420 AC inverter drive

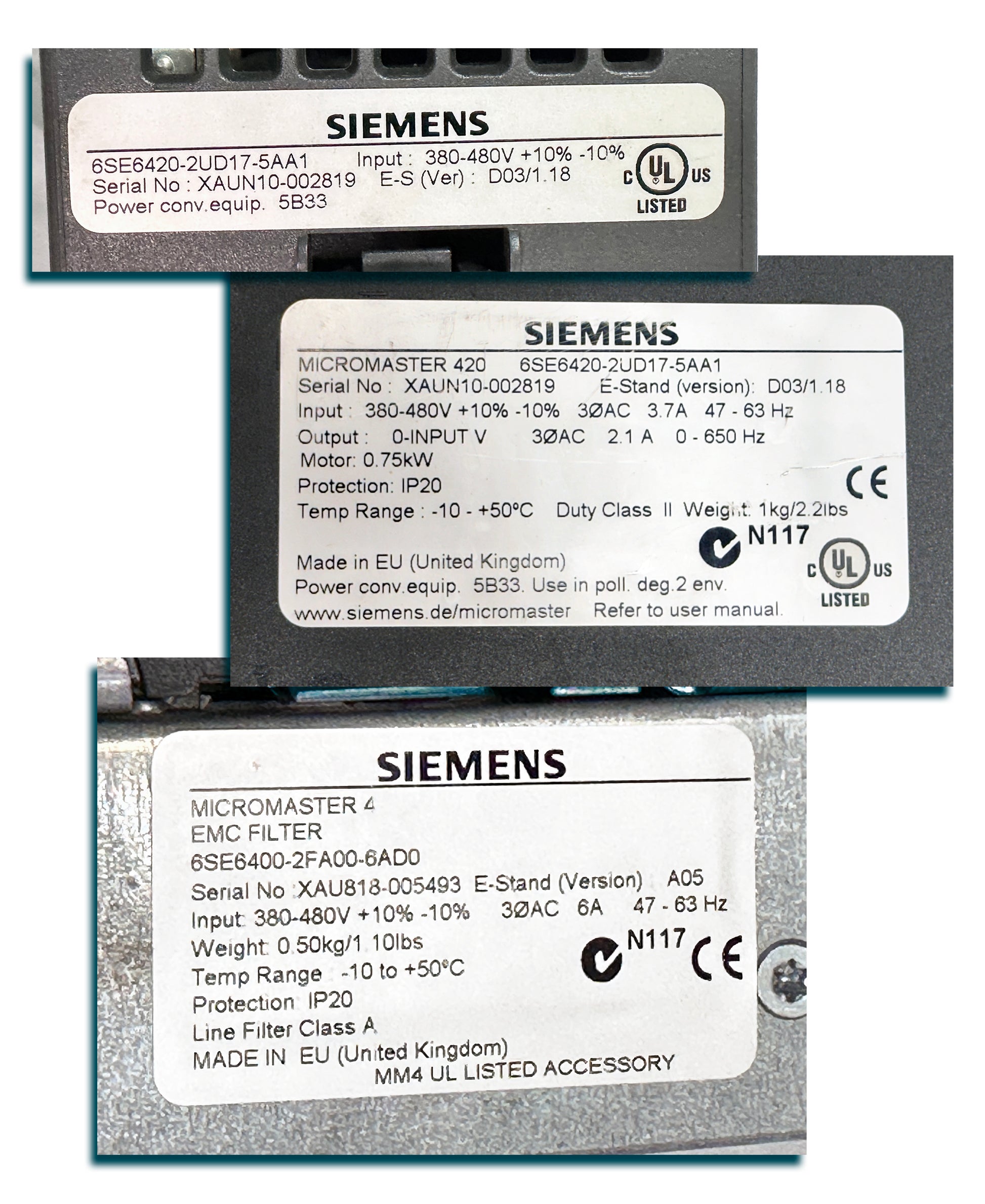

• Drive model: 6SE6420-2UD17-5AA1
• Rated motor power: 0.75 kW (1 HP)
• Input voltage: 380–480 VAC 3‑phase, +10% / −10%, 47–63 Hz
• Input current: approx. 3.7 A 3AC (frame size A)
• Output: 3‑phase 0–input VAC, 0–650 Hz, 2.1 A
• Duty class: II, overload up to 150% for 60 s (constant torque)
• Enclosure / protection: IP20
• Operating temperature range: −10 °C to +50 °C
• Approximate drive dimensions: frame size A, about 173 × 73 × 149 mm (H×W×D)
• Approximate drive weight: 1.0 kg / 2.2 lb

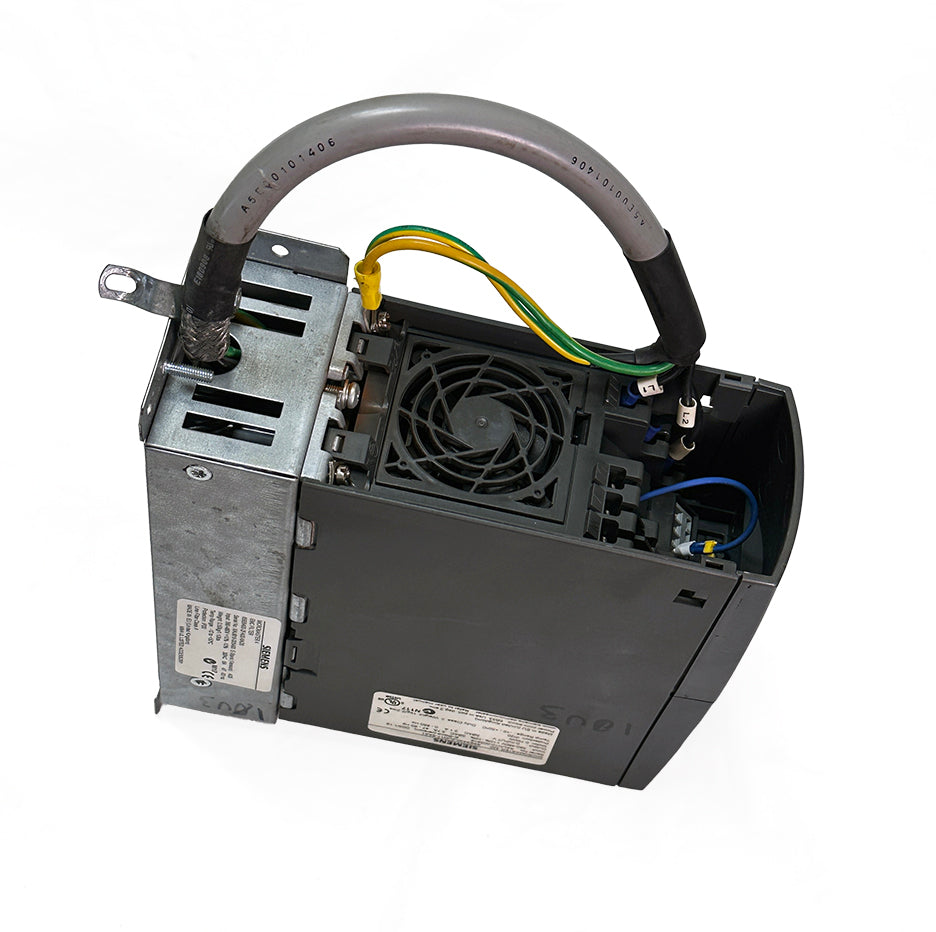

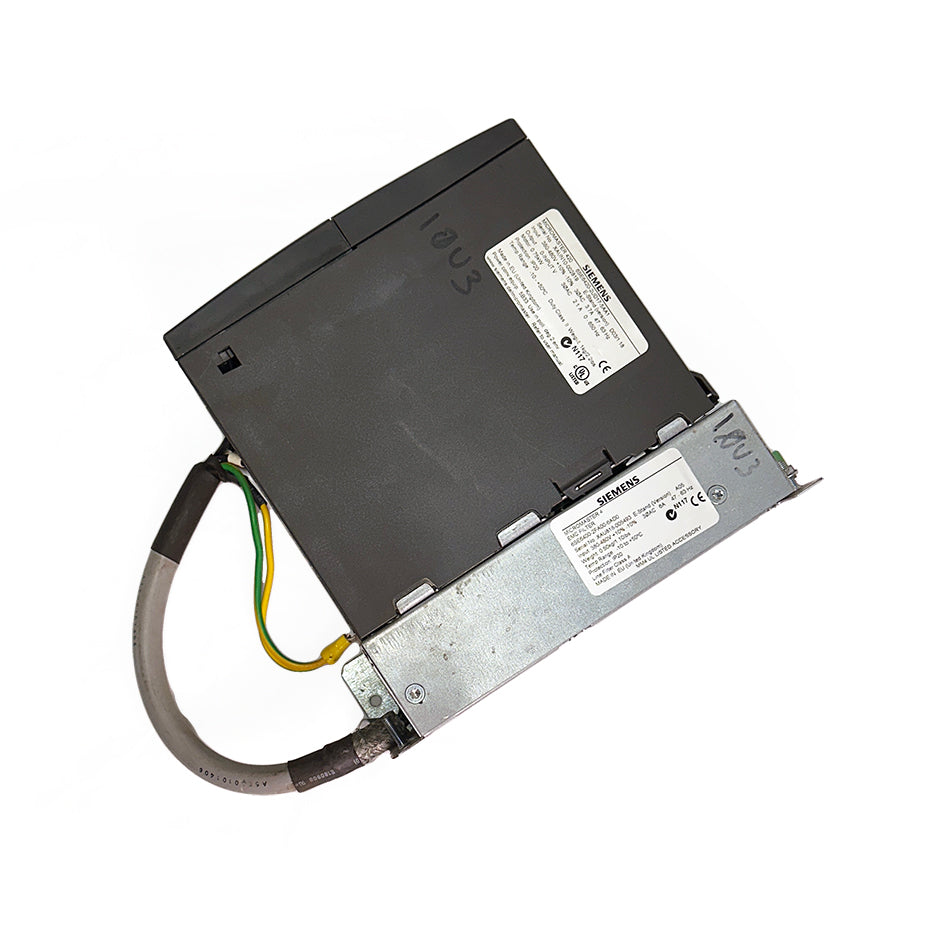

EMC filter:

• Siemens Micromaster 4 EMC filter, model 6SE6400-2FA00-6AD0
• EMC filter voltage: 200–480 VAC 3‑phase
• EMC filter current rating: 6 A, Line Filter Class A
• EMC filter protection: IP20, operating temp −10 °C to +50 °C
• EMC filter weight: about 0.5 kg / 1.1 lb
