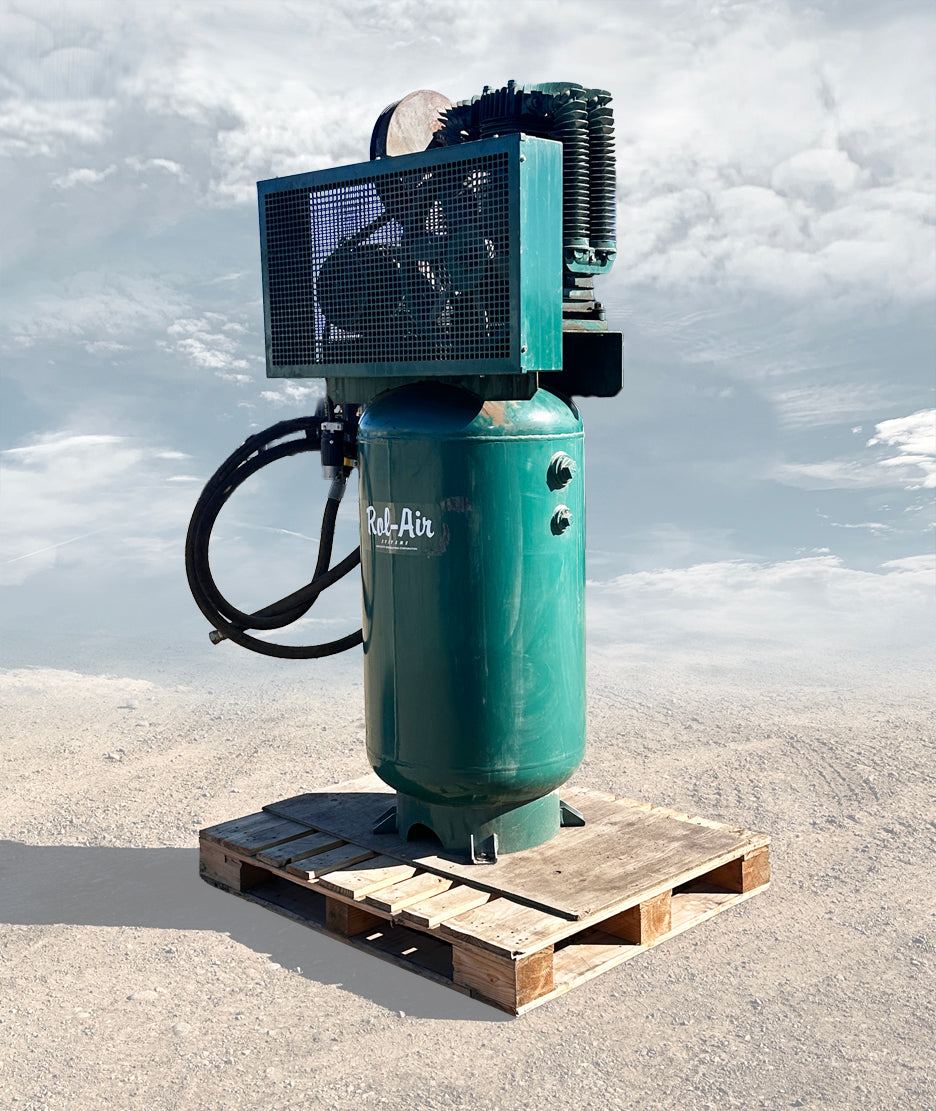

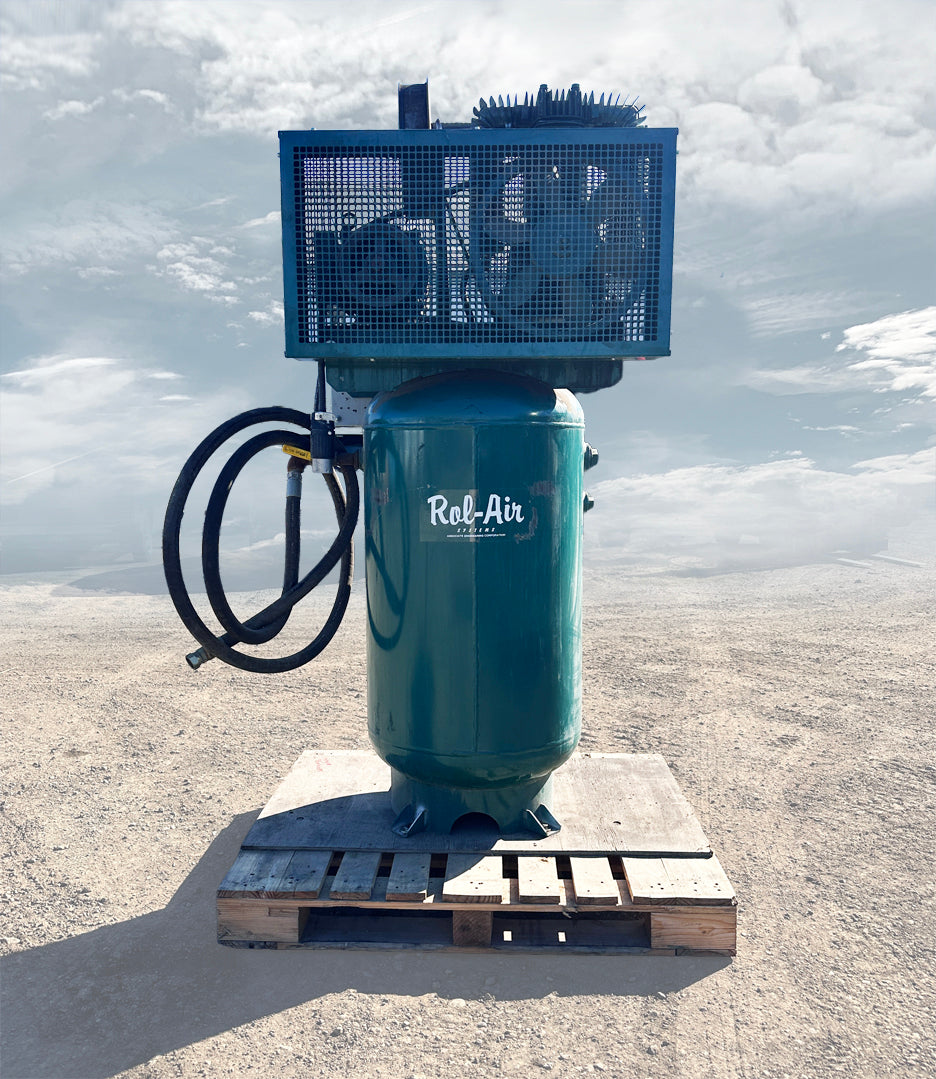

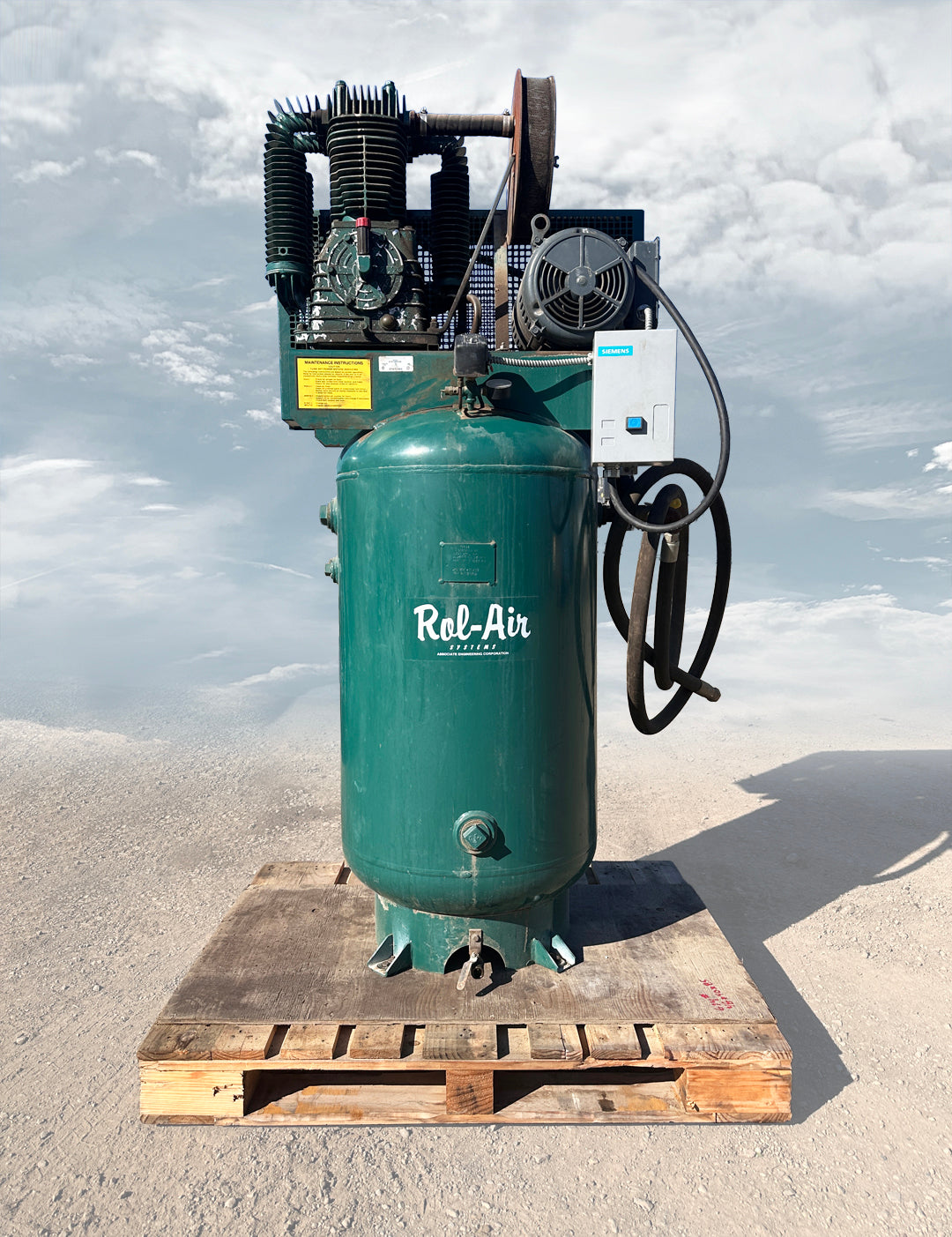

Rol-Air V75180K50 7.5 HP Air Compressor

Used; removed in good working order

General Information:

• Year Built: 2006
• Compressor Model: Rol-Air V75180K50
• Application: Suitable for shop, garage, auto, and woodworking use
• Duty Cycle: Continuous

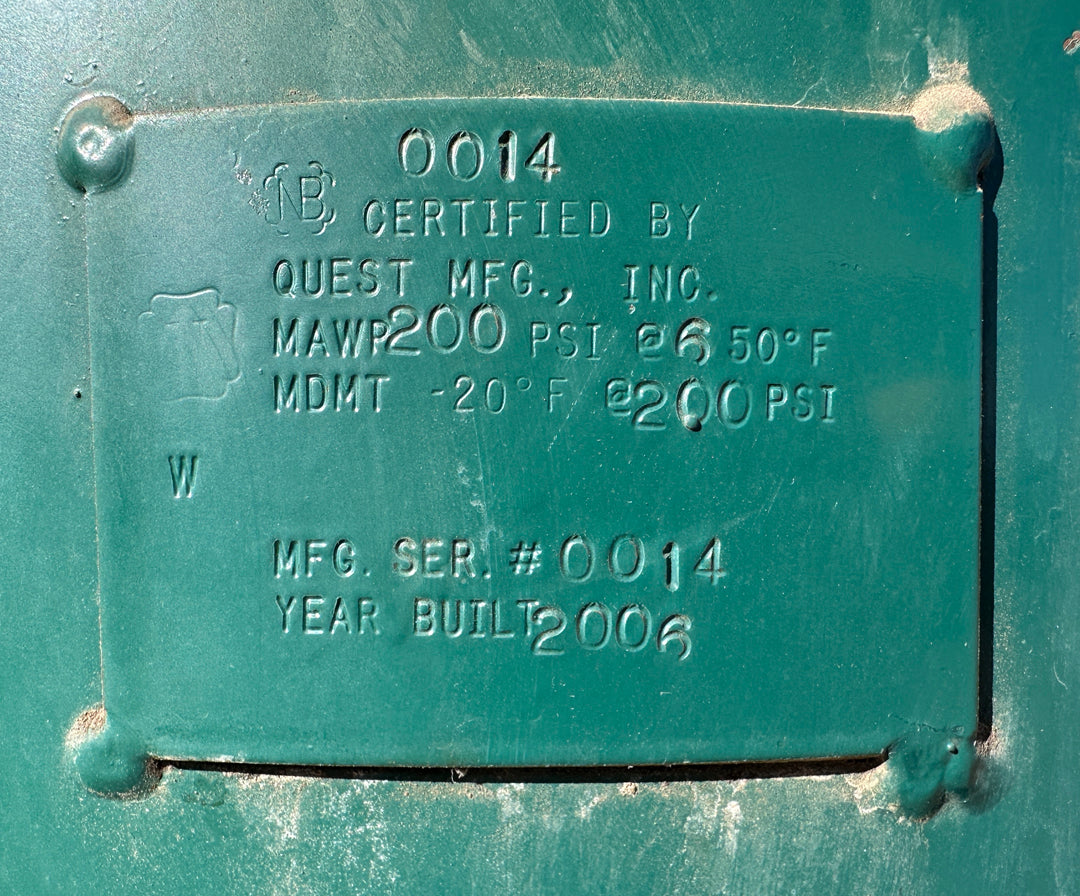

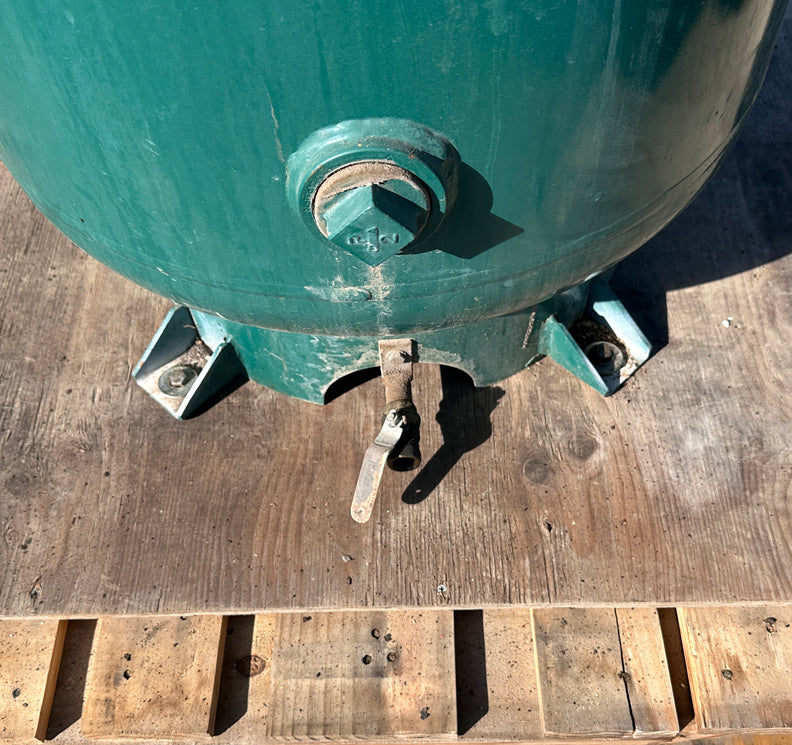

Tank Specifications:

• Tank Capacity: 80 gallons (vertical tank)
• Maximum Allowable Working Pressure (MAWP): 200 PSI at 650°F
• Minimum Design Metal Temperature (MDMT): -20°F at 200 PSI

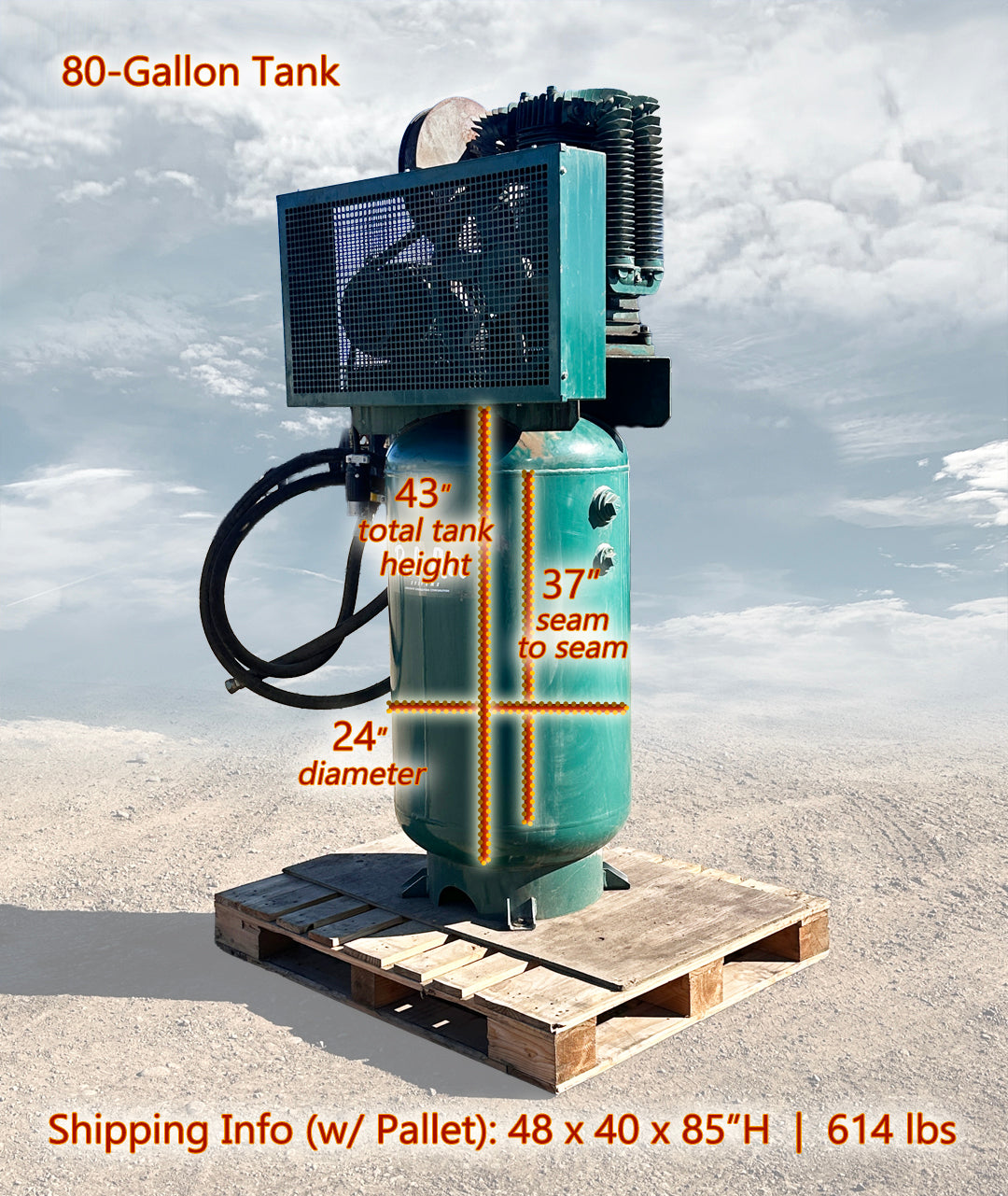

• Dimensions: approximately 30” x 26” x 80” (L x W x H)
• Approximate Weight: 630 lbs

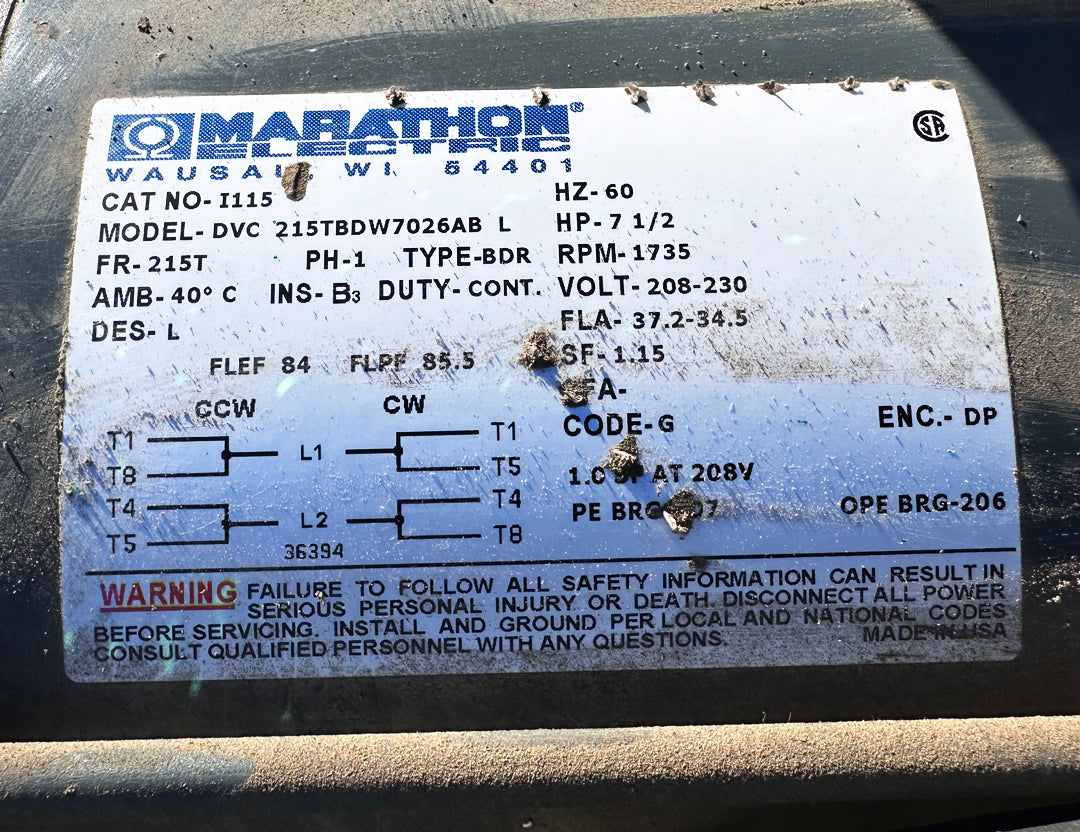

Motor Specifications:

• Motor Manufacturer: Marathon Electric
• Motor Model: DVC 215TBDW7026AB L
• Motor Horsepower: 7.5 HP (7 1/2)
• Motor Voltage: 208-230V
• Motor RPM: 1735
• Motor Phase: 1 (single phase)
• Motor FLA (Full Load Amps): 37.2-34.5
• Motor Serial #: 36394

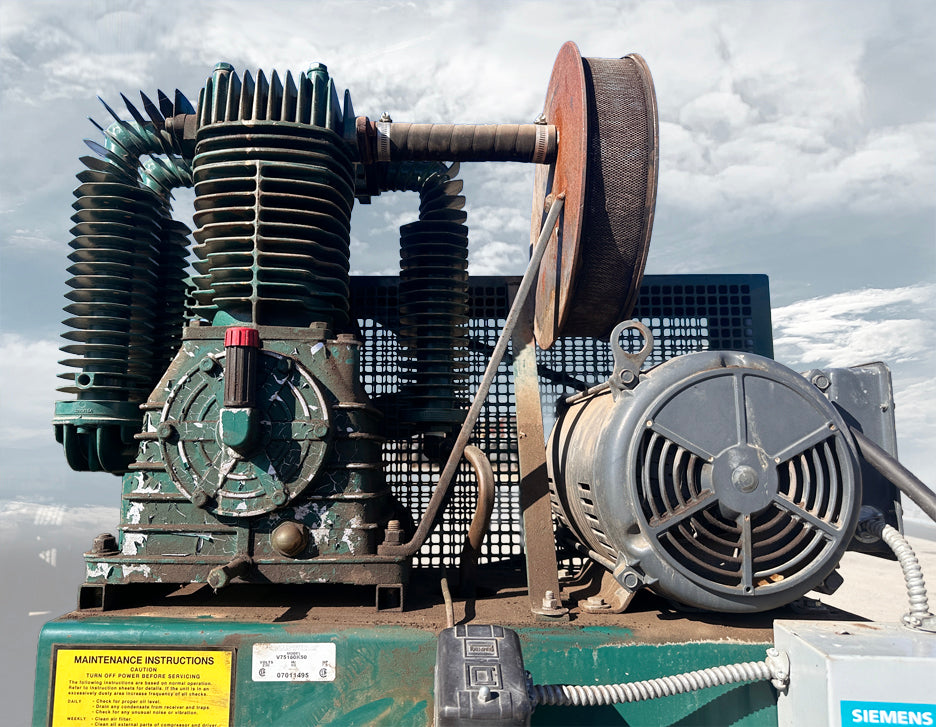

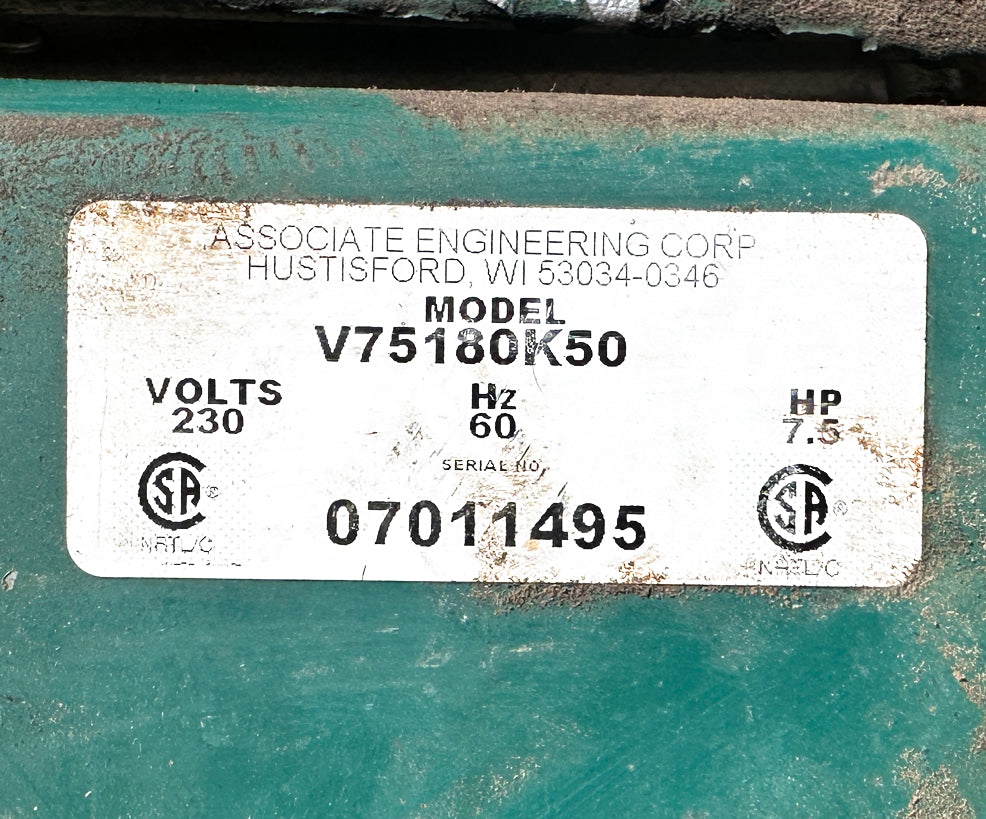

Compressor Specifications:

• Compressor Serial #: 07011495
• Compressor Volts: 230V
• Compressor Hz: 60
• Compressor HP: 7.5
• Compressor Type: Two-stage, splash lubricated
• Air Delivery: 23.7 CFM @ 175 PSI

*~ Local Pick-Up or Freight Shipping Only ~*
