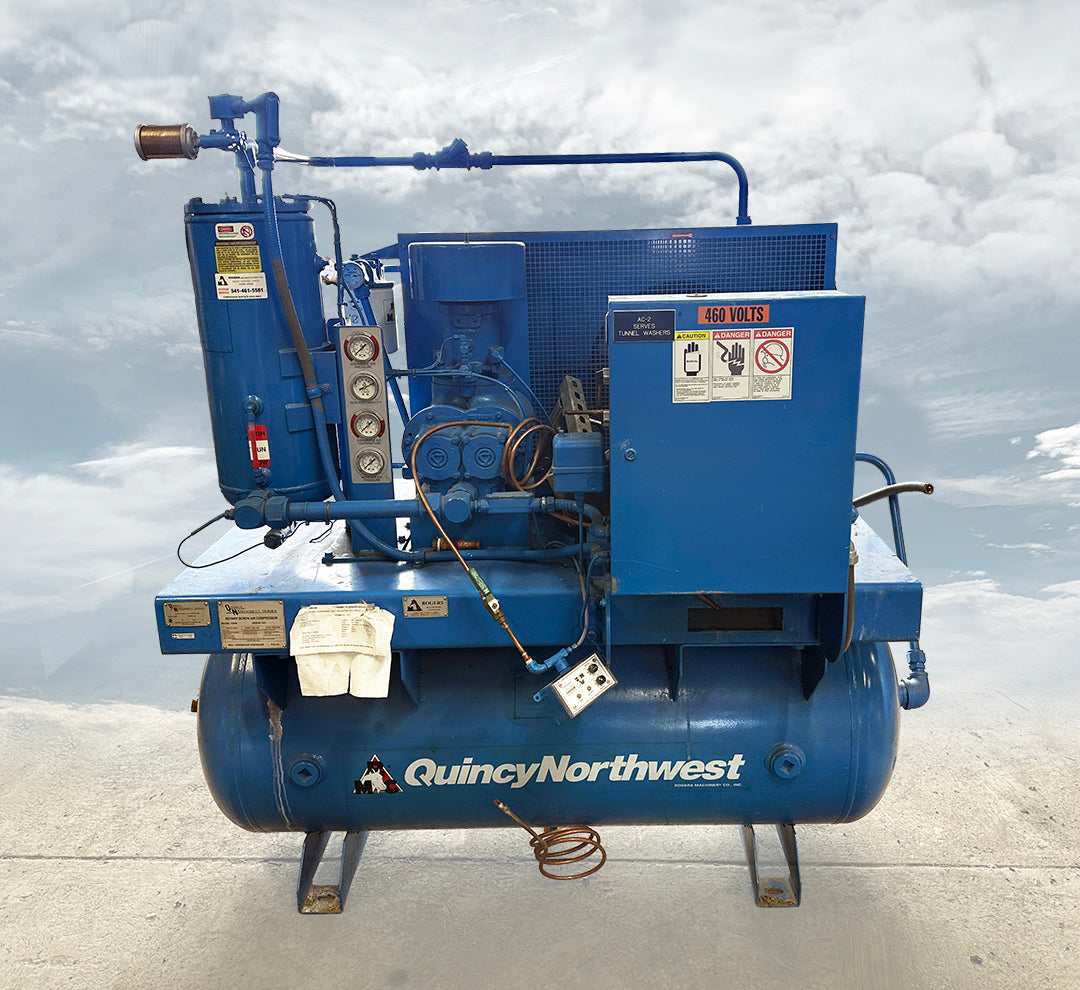

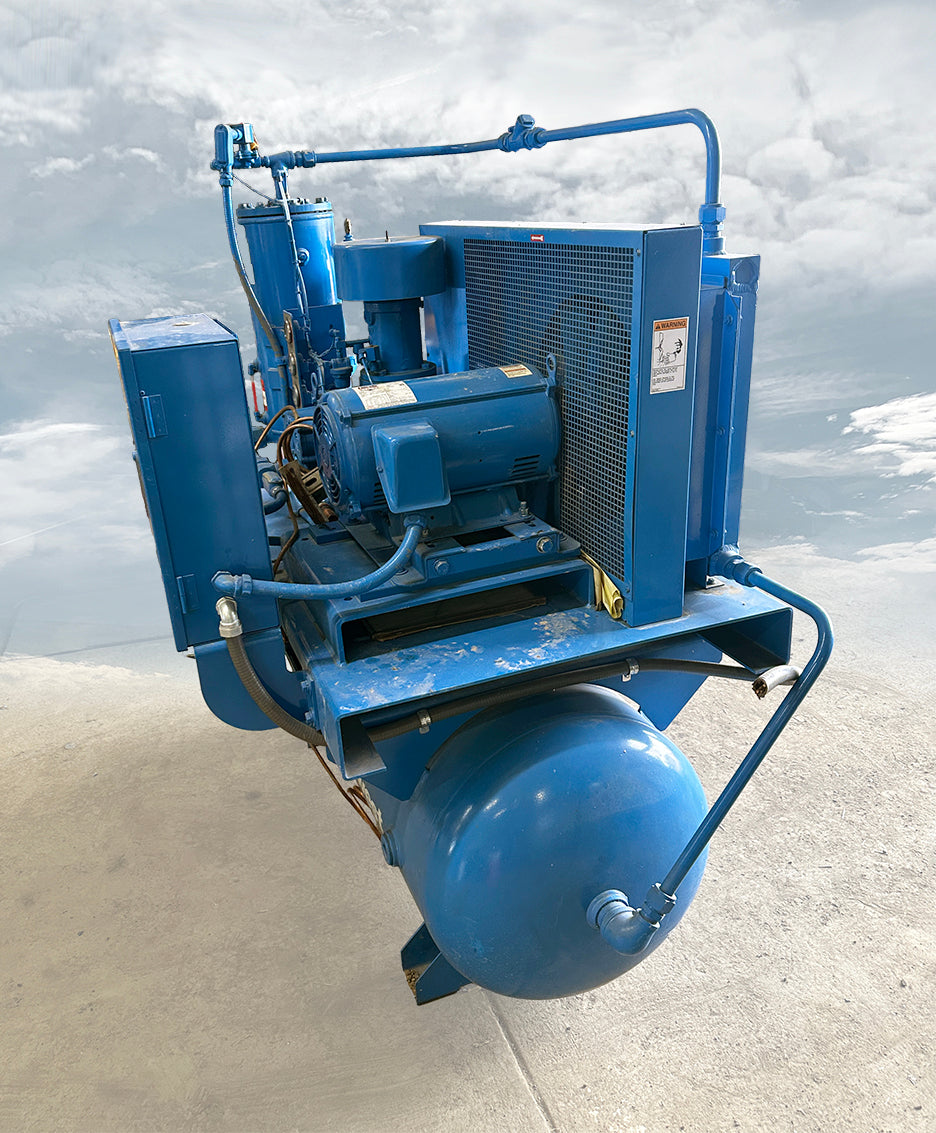

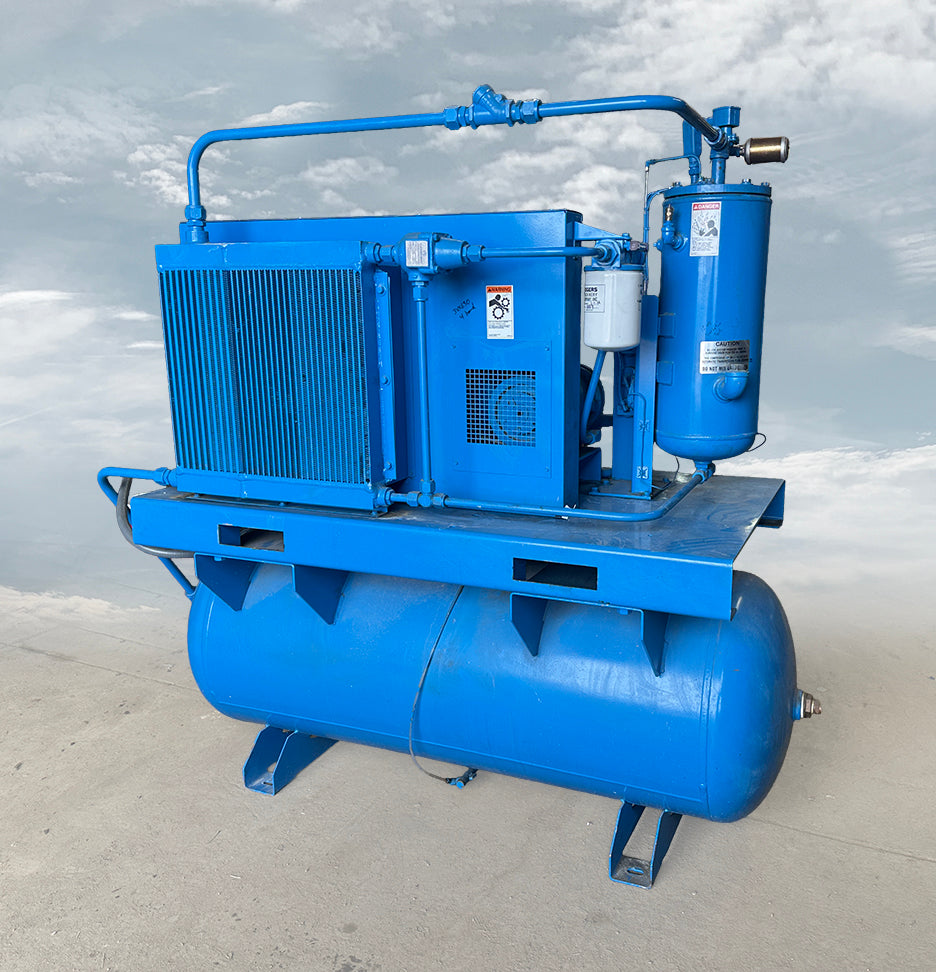

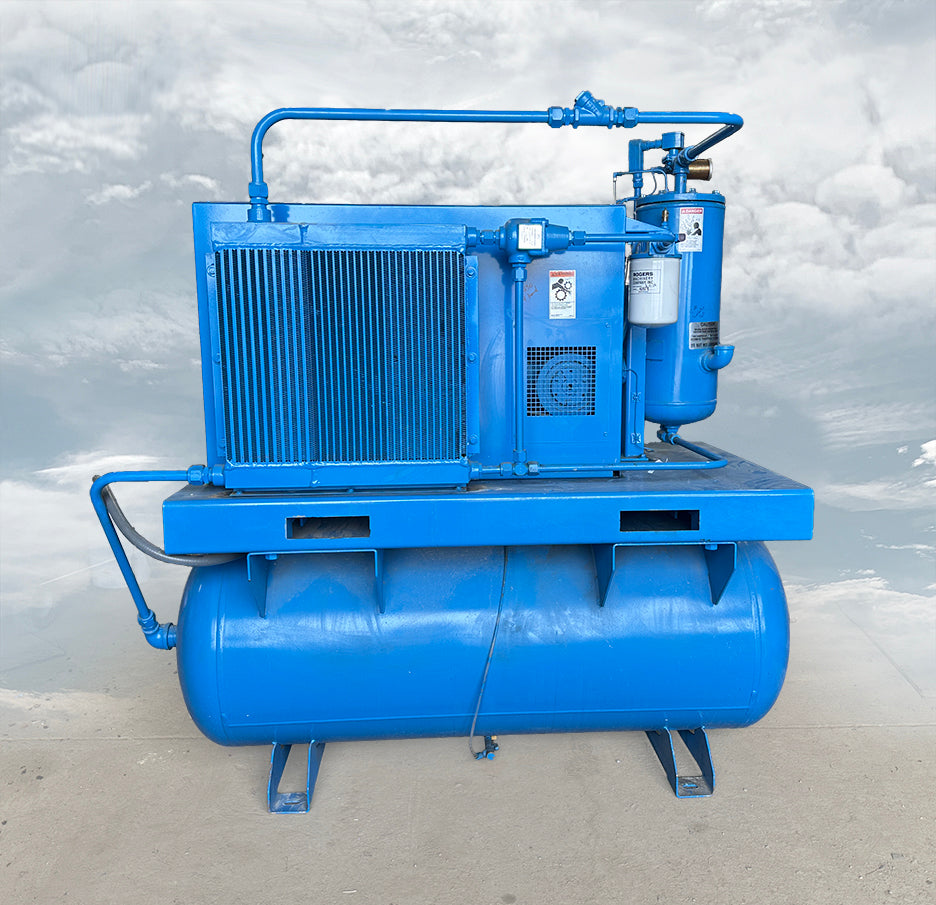

Quincy 15HP QNWF15-V Air Compressor

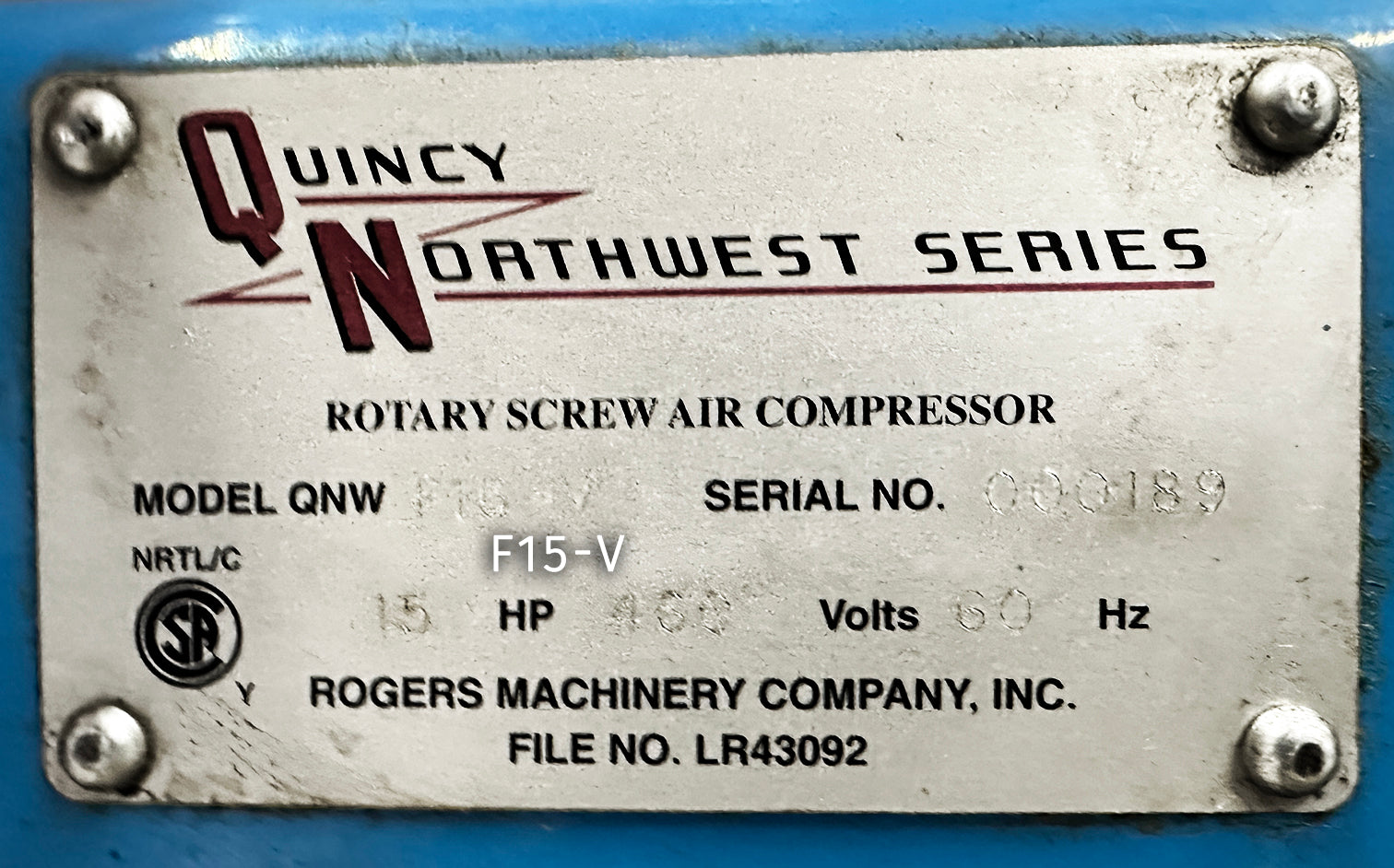

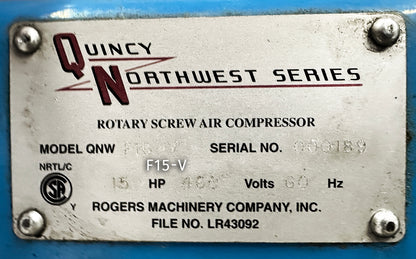

• Model: QNW F15-V
• Type: Rotary Screw Air Compressor
• Horsepower: 15 HP
• Voltage: 460 V
• Frequency: 60 Hz
• Serial Number: 000189

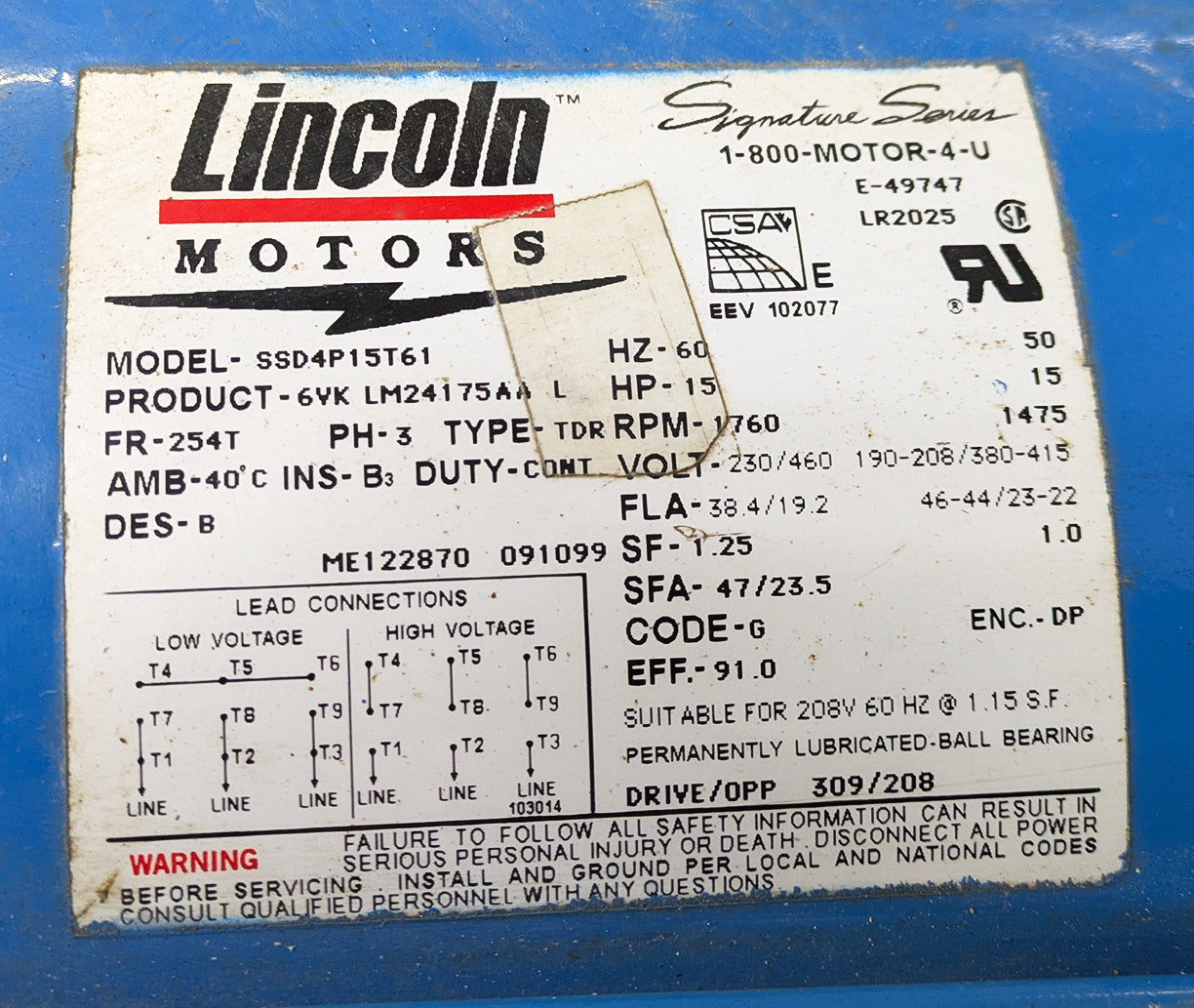

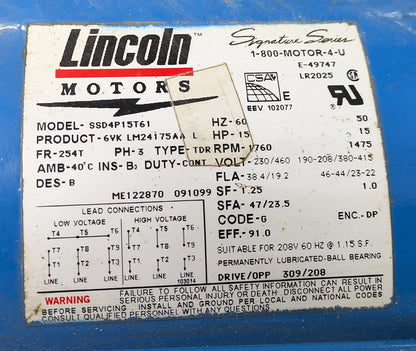

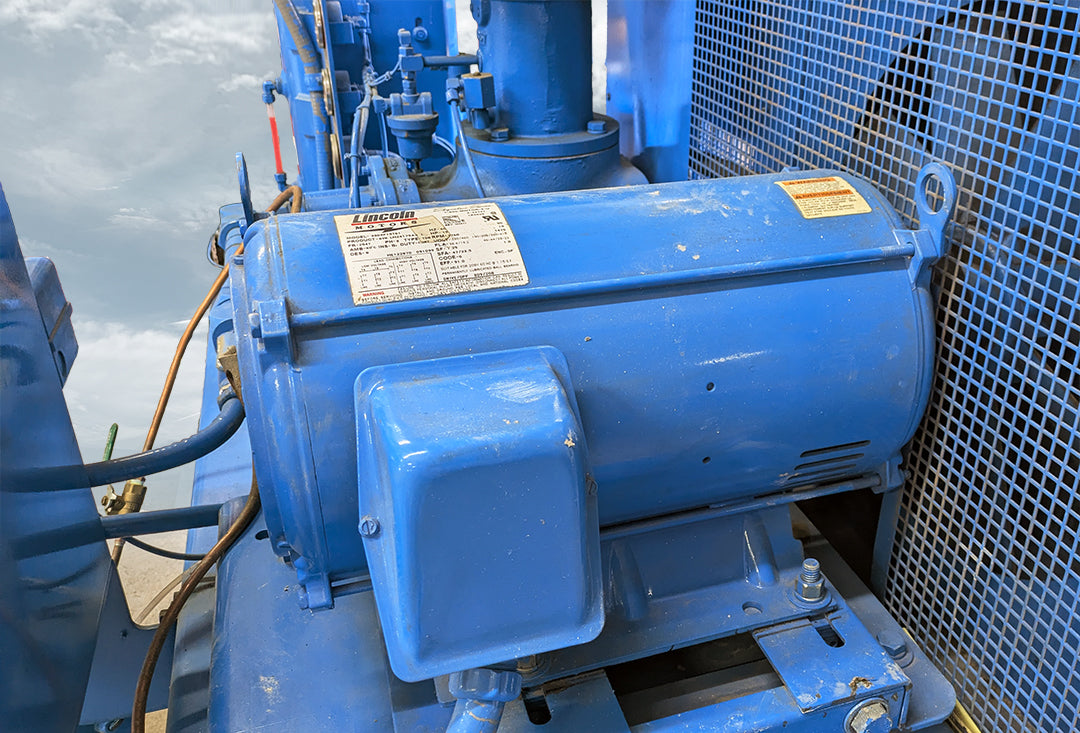

• Motor: Lincoln Signature Series SSD4P15T61, 15 HP, 1760 RPM, Frame 254T, 230/460V, 3 Phase, Continuous Duty, Drip Proof (DP)

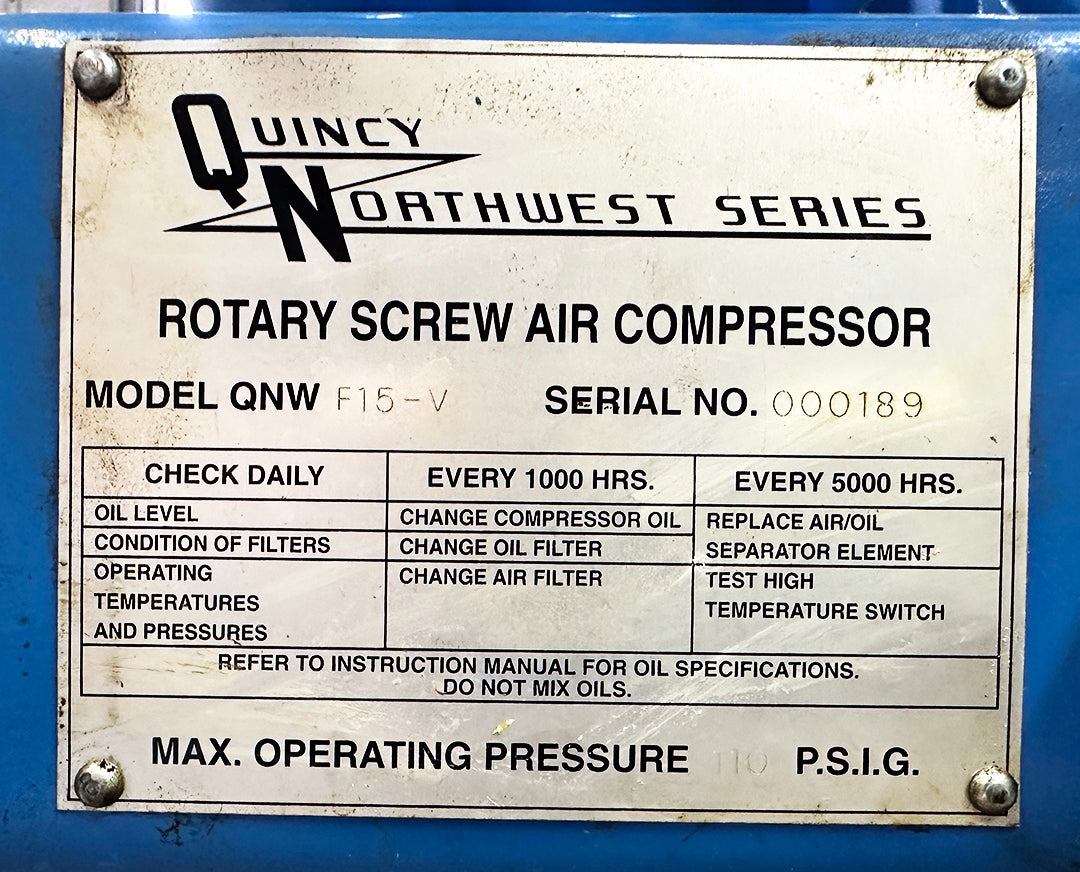

• Max Operating Pressure: 110 PSIG
• Performance: Approx. 57 SCFM @ 100 PSIG (1208 RPM) or 48 SCFM @ 125 PSIG (1042 RPM)

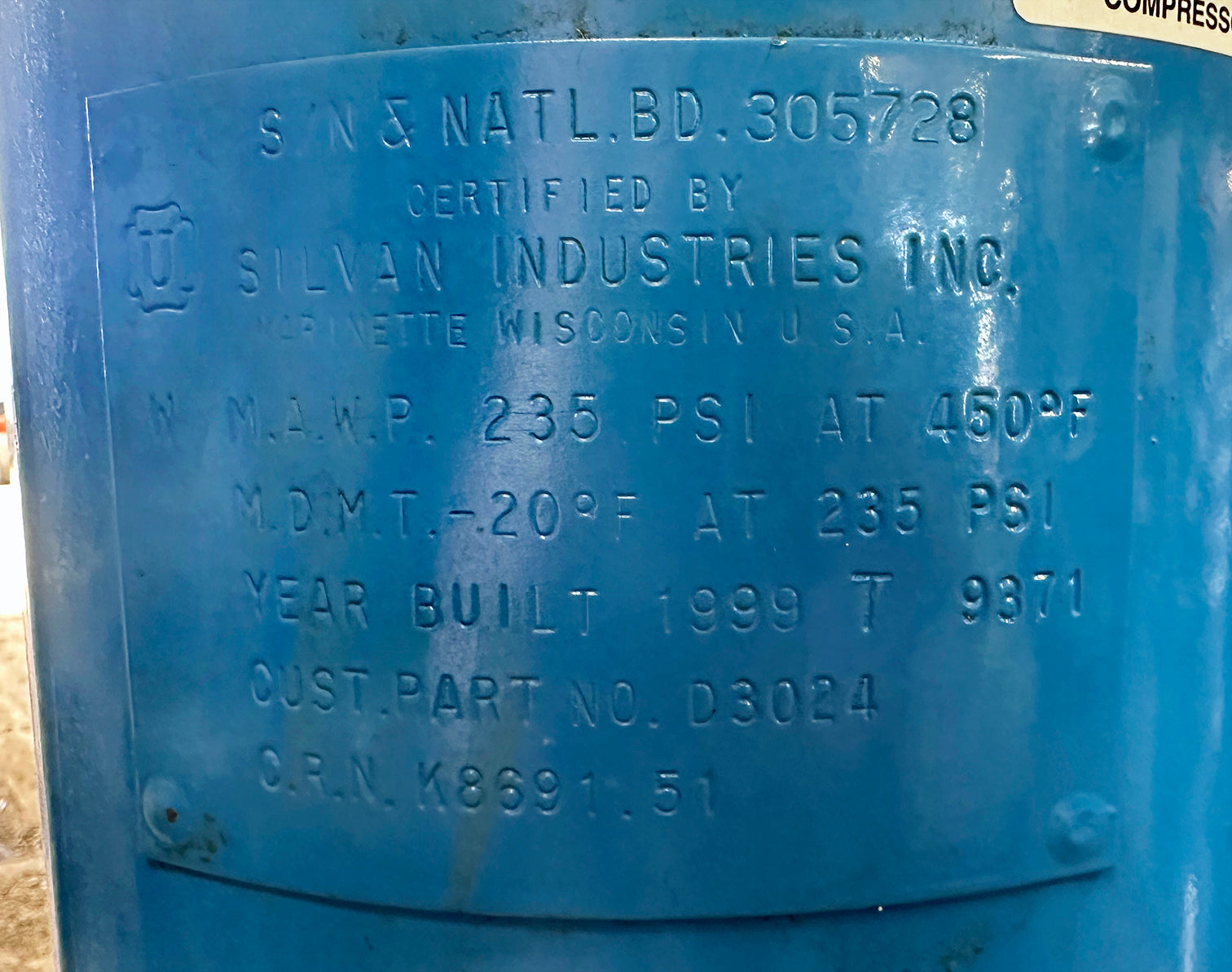

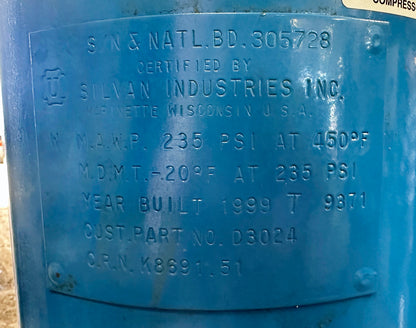

• Air Receiver Tank: Year Built 1999, MAWP 235 PSI @ 450°F, MDMT -20°F @ 235 PSI, Certified by Silvan Industries Inc., Cust. Part No. D3024

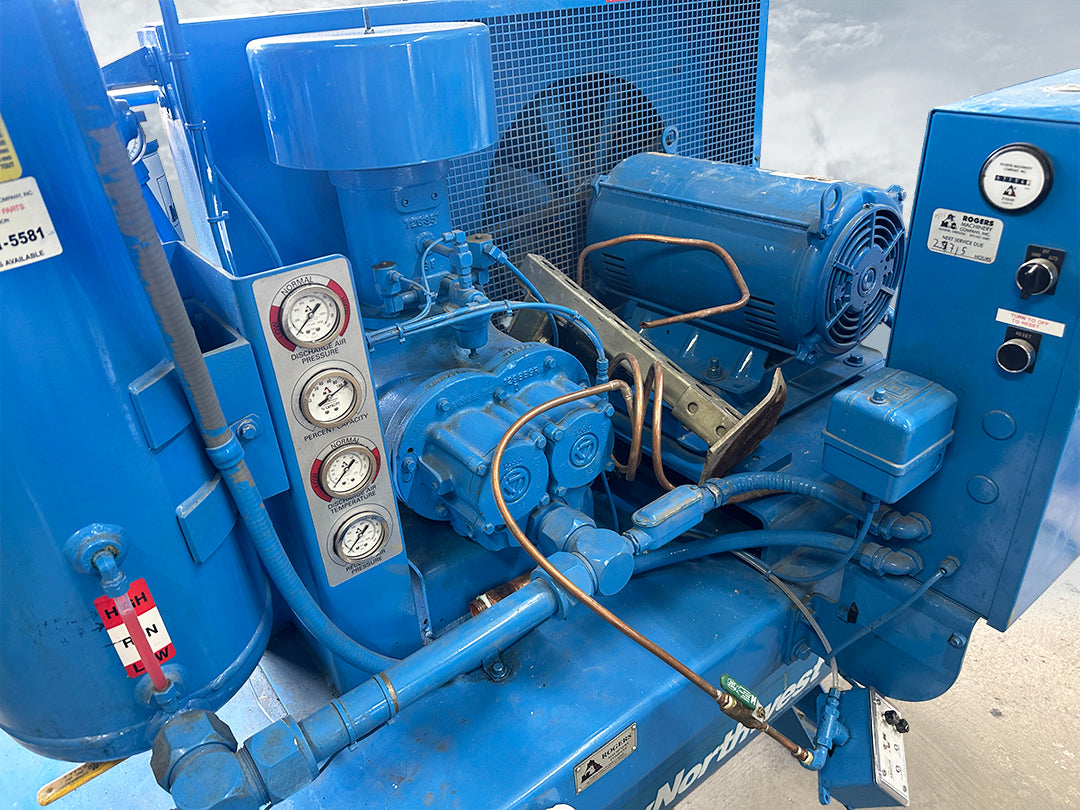

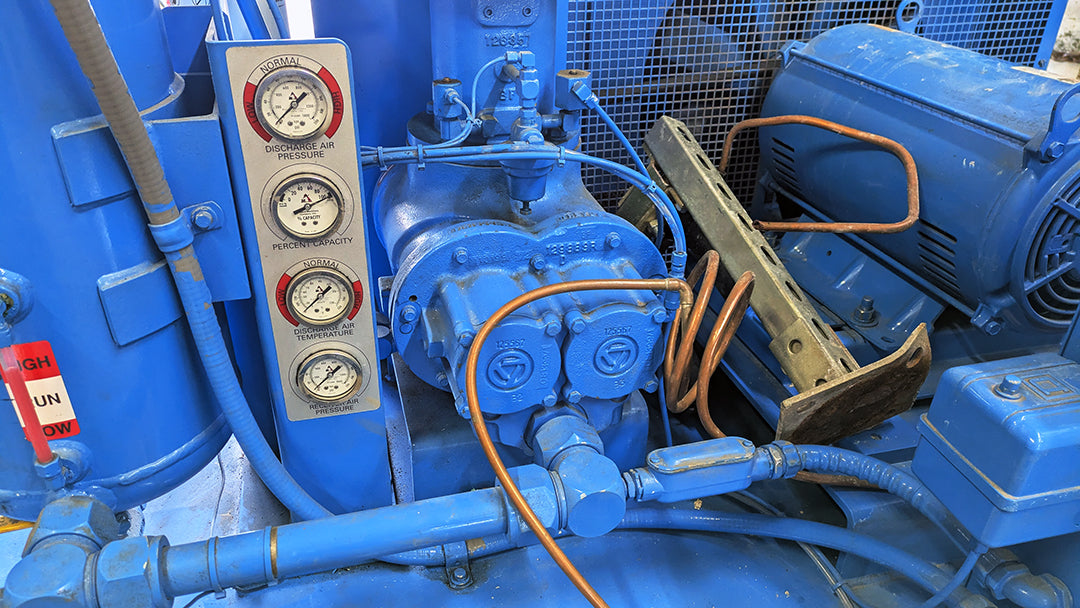

• Controls: Includes electrical panel, pressure gauges (discharge air pressure, percent capacity, discharge air temp), starter panel

*~ Local Pick-Up or Freight Shipping Only ~*
