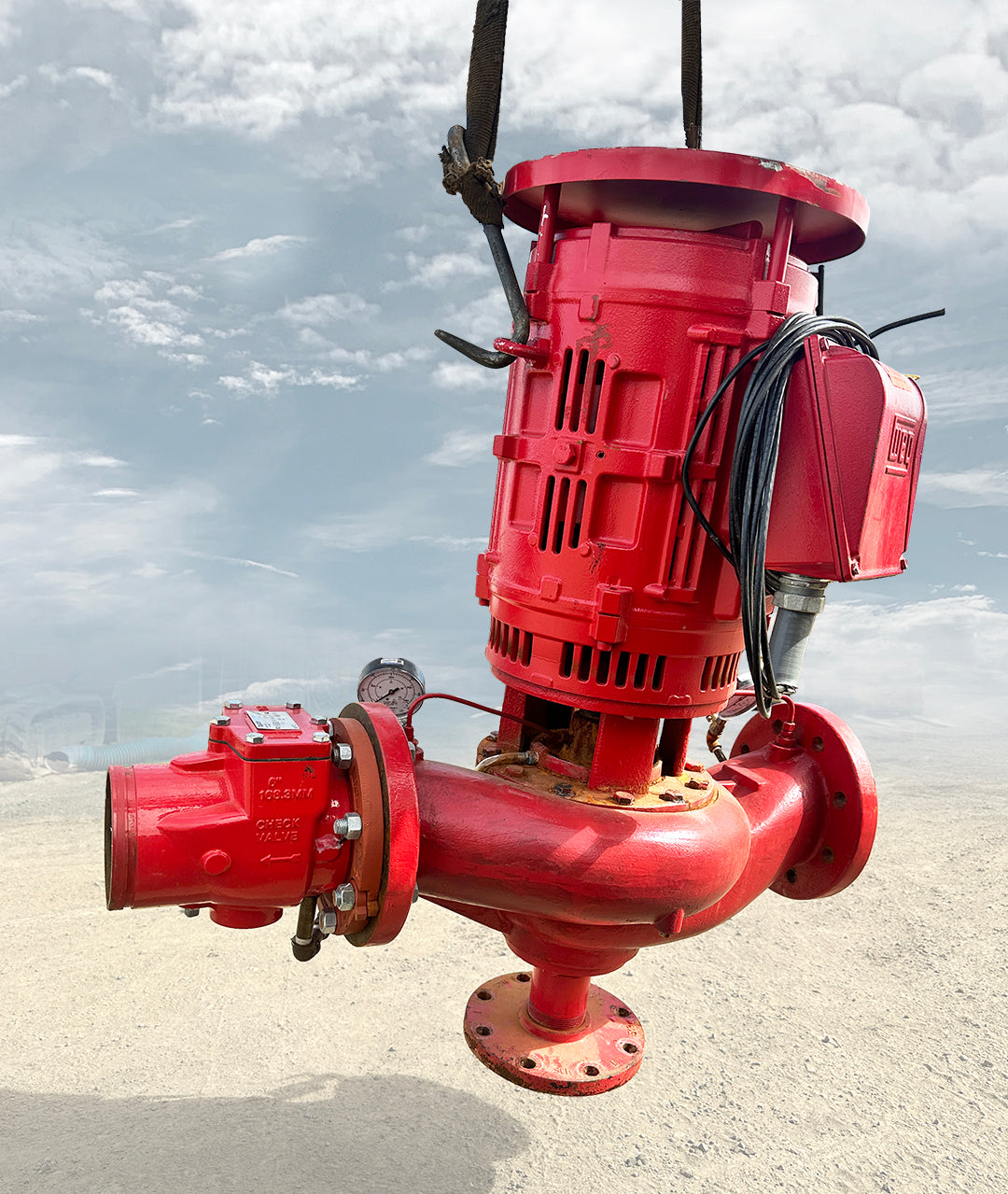

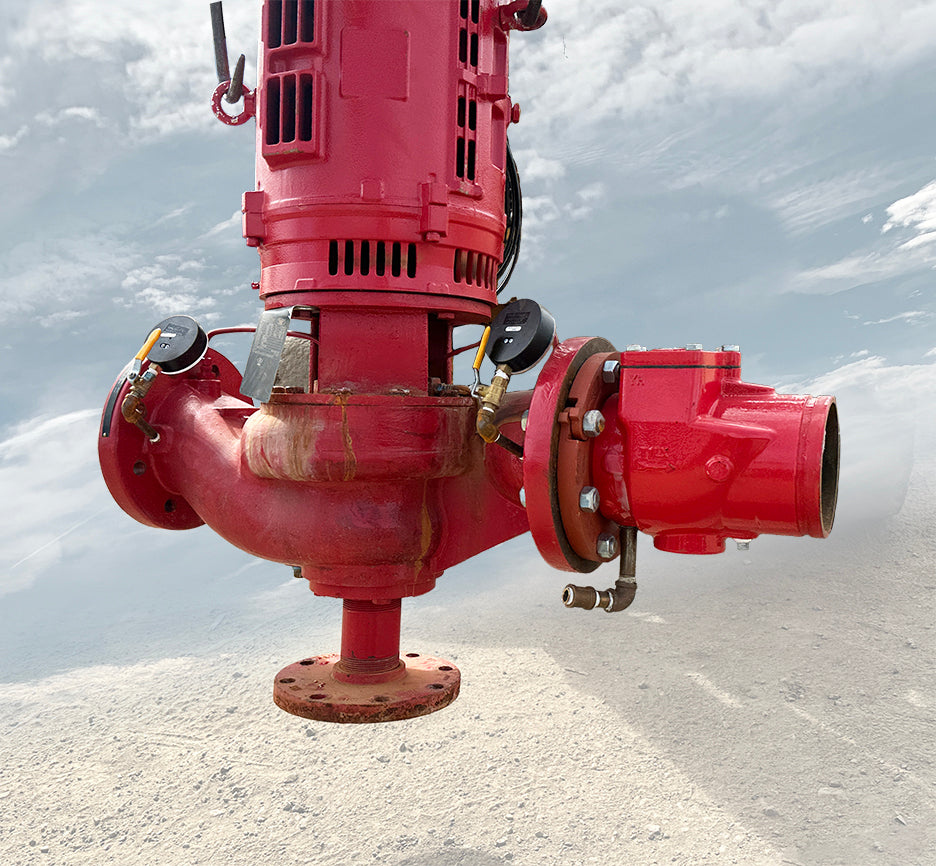

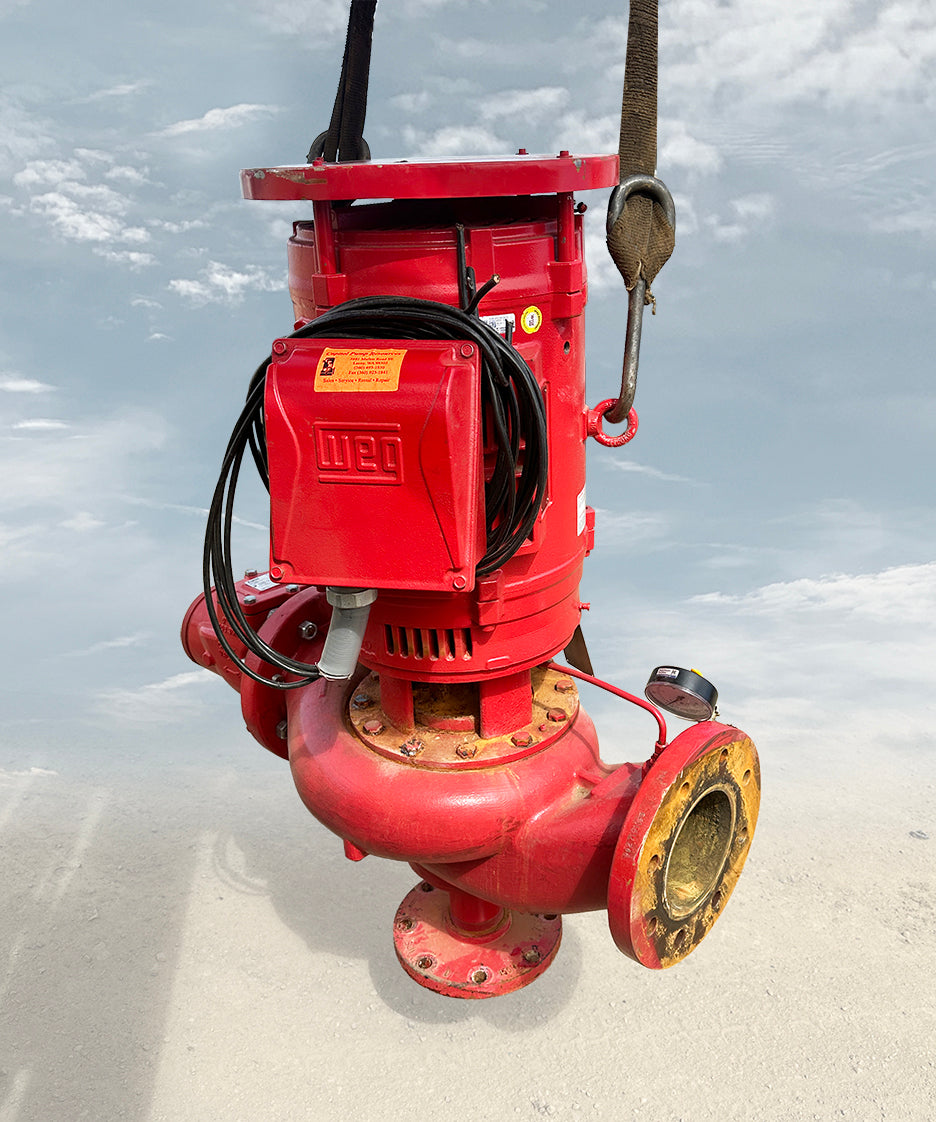

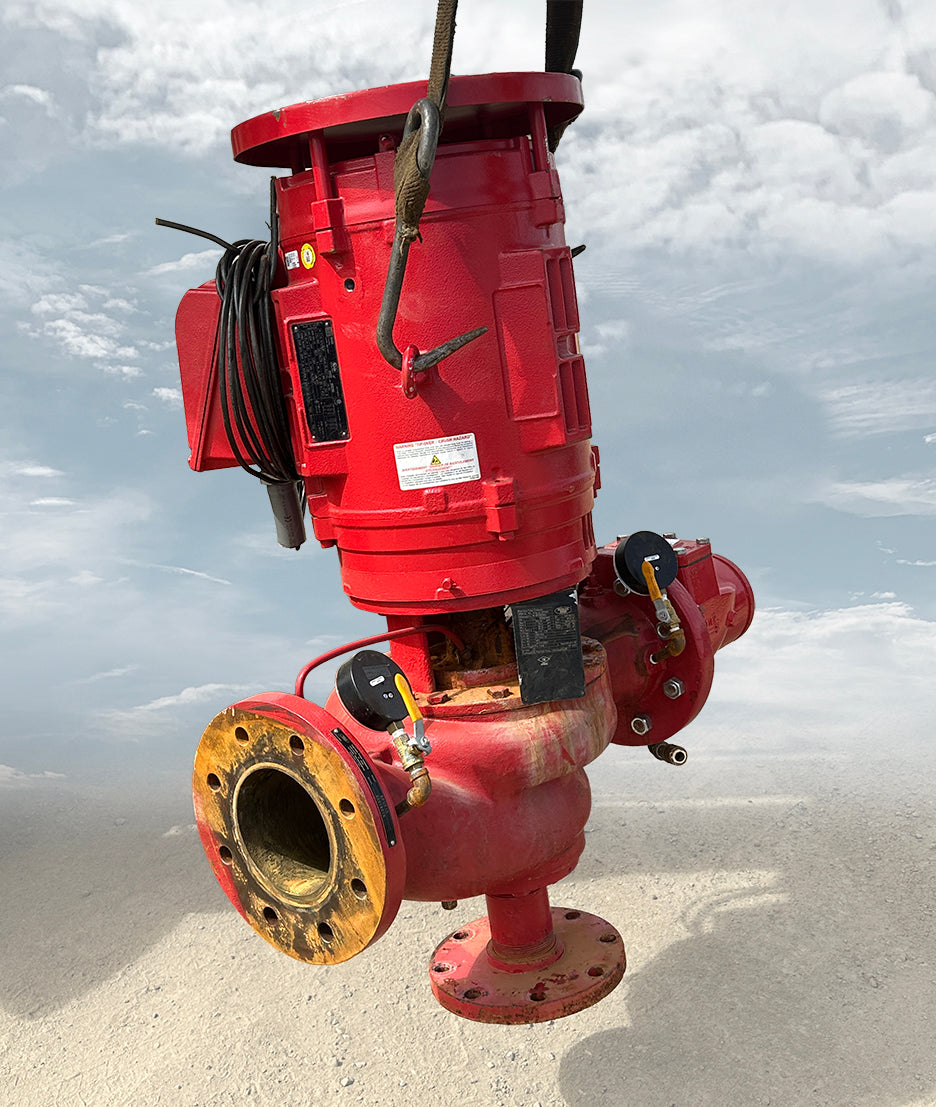

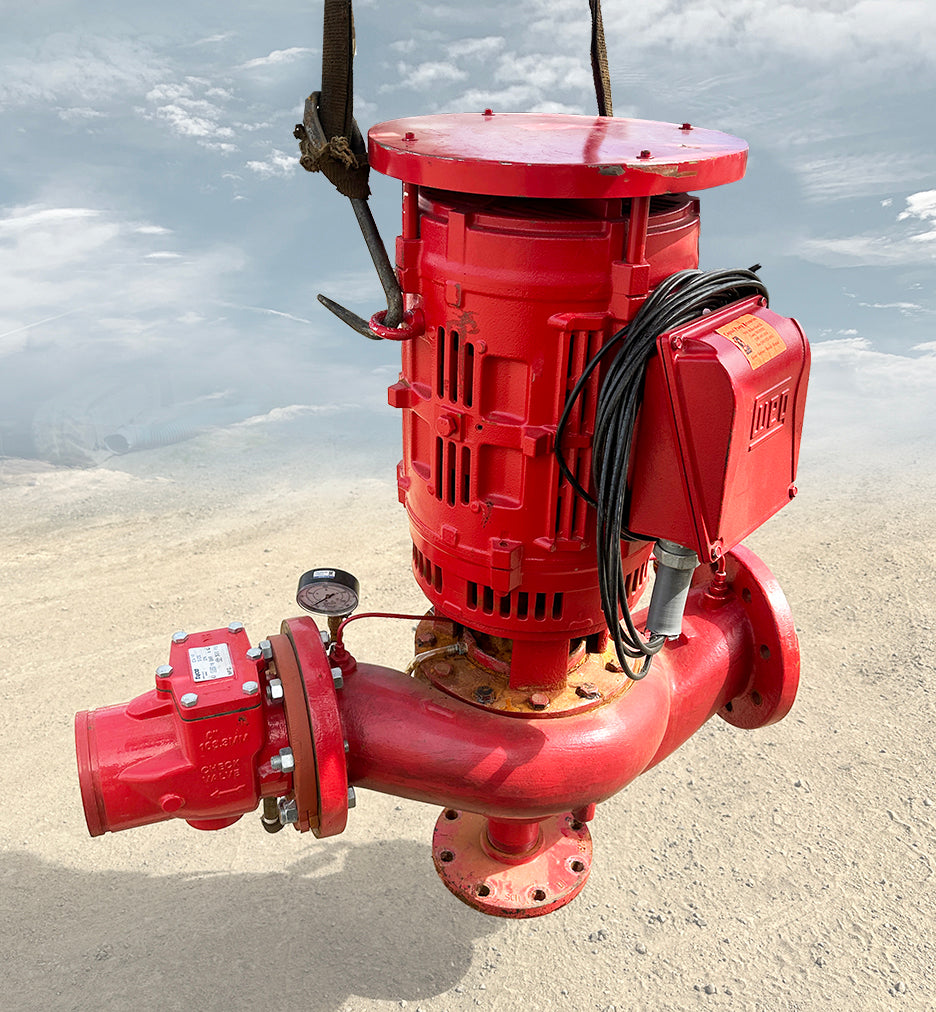

Peerless 6PVF10, 750 GPM Inline Pump w/ 50 HP Weg W40 Motor

Used; removed in good working condition

Initially used for fire protection: sprinkler and standpipe systems, NFPA/UL/FM applications

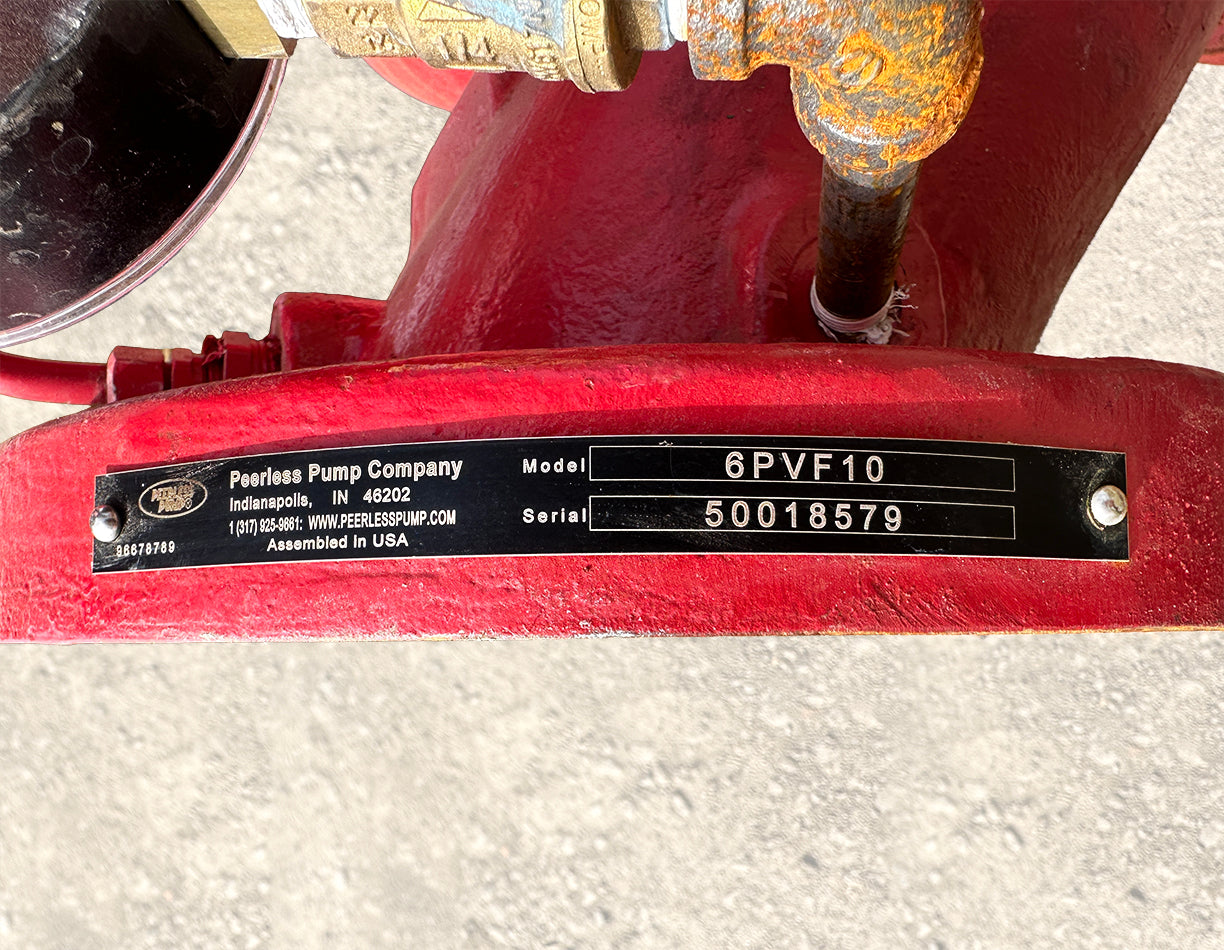

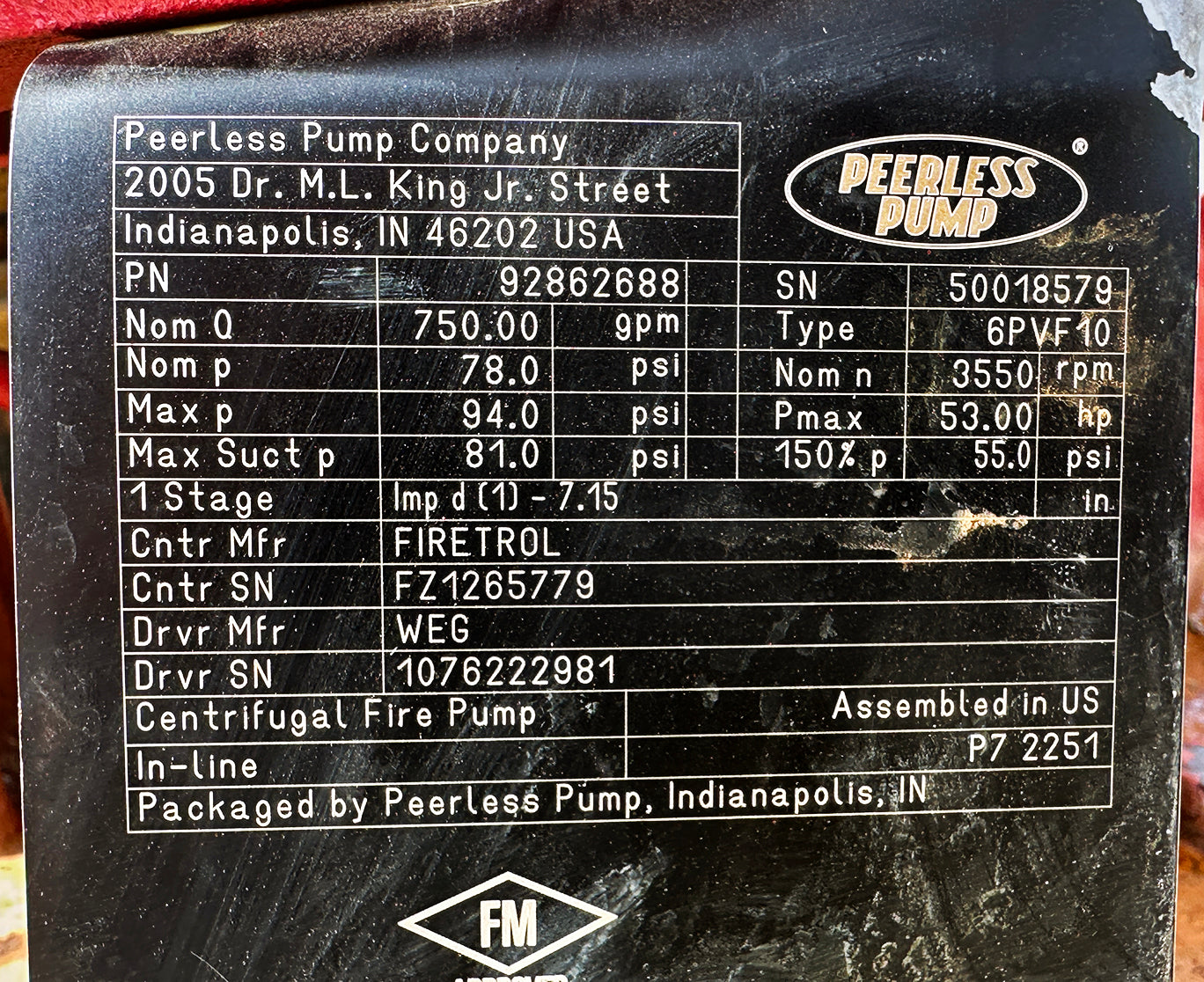

• Manufacturer: Peerless Pump Company
• Model: 6PVF10 (PVF series vertical in-line single-stage fire pump)
• GPM: 750
• Pump type: Vertical in-line centrifugal fire pump, single stage
• Suction / discharge size: 6" flanged

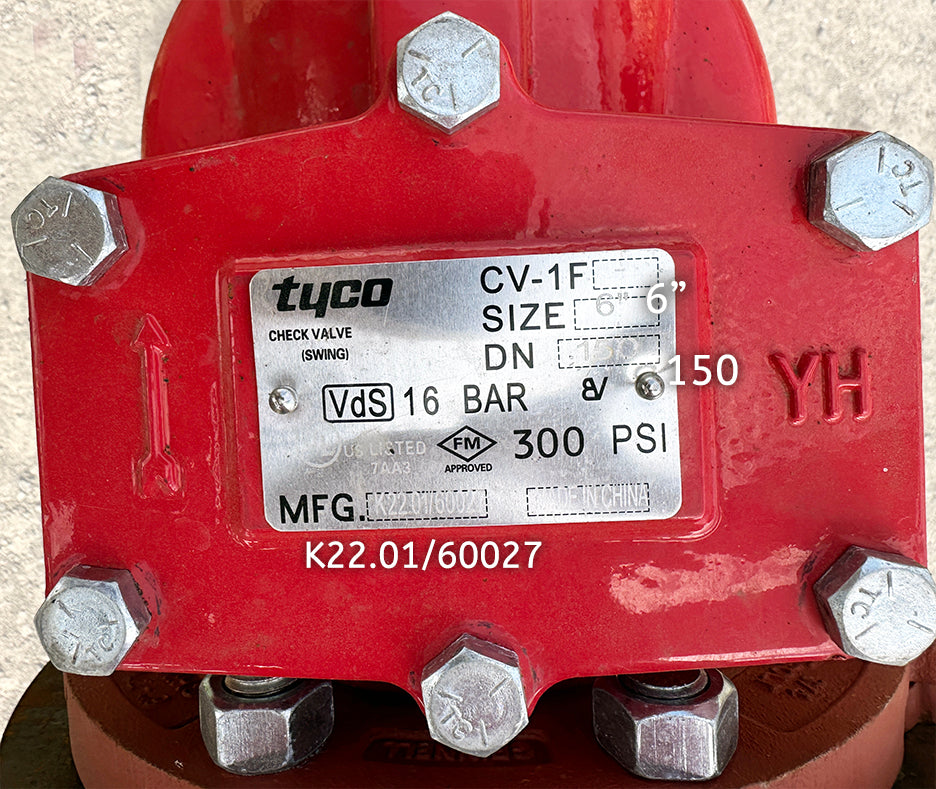

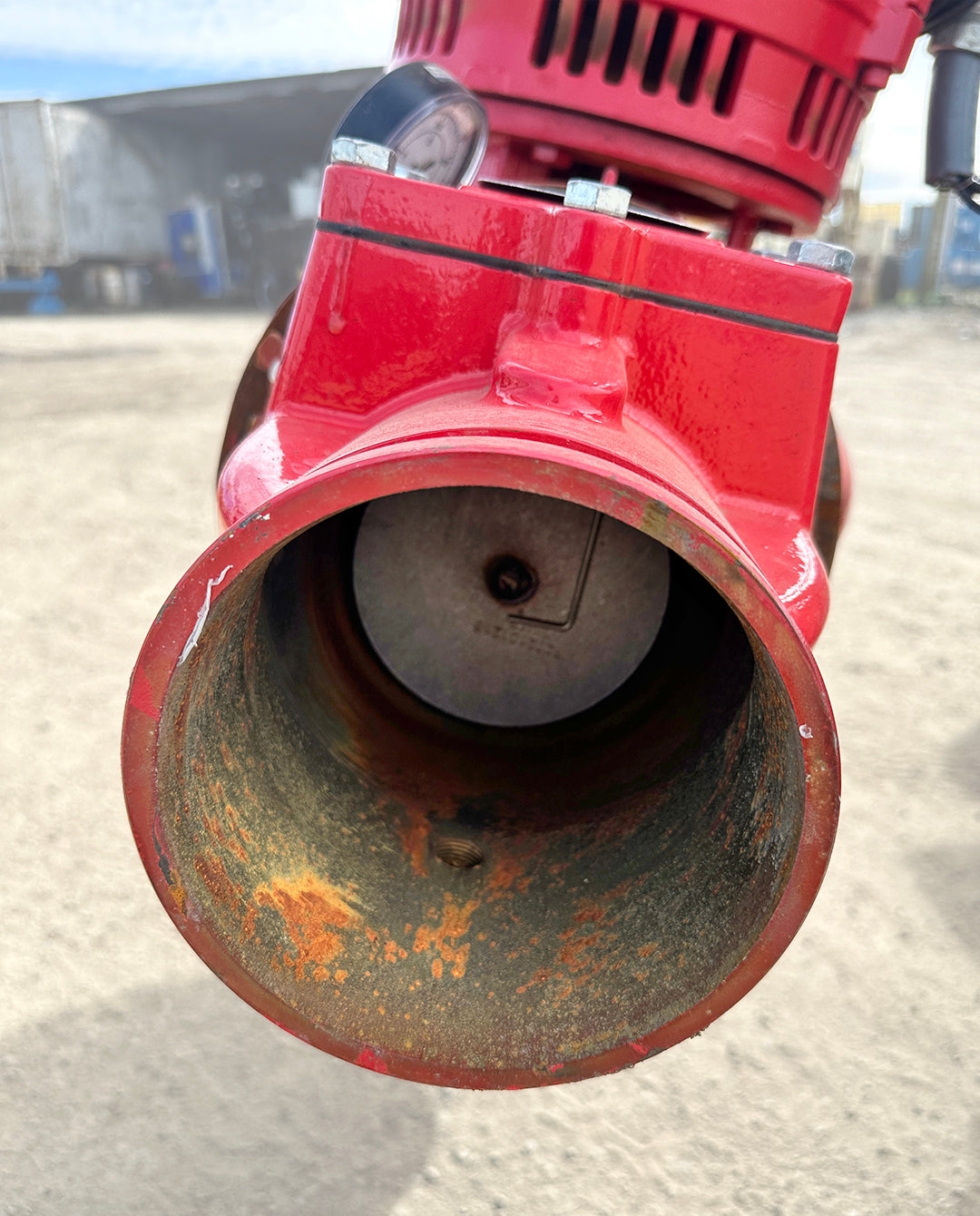

• Check valve: Tyco CV-1F 6 in ductile iron grooved swing check valve, 300 psi rating, VdS 16 BAR
• Valve body style: Swing type, one-direction flow, minimizes water hammer

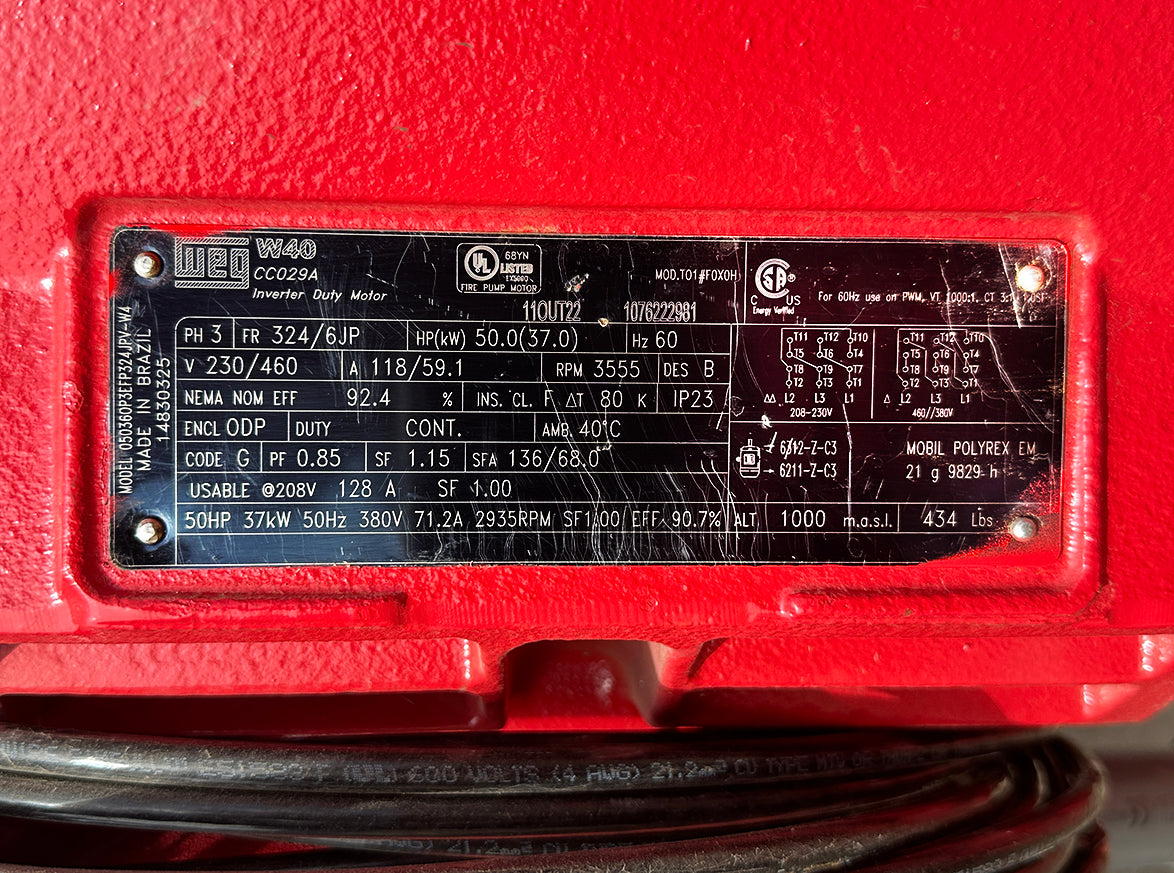

• Motor manufacturer: WEG
• Motor model series: W40, inverter duty
• Motor horsepower: 50 HP (37 kW)
• Motor voltage: 230/460 V, three phase
• Motor frequency: 60 Hz
• Motor full load current: approx. 118/59 A at 230/460 V
• Motor speed: 3555 rpm
• Enclosure: ODP
• Service factor: 1.15 SF
• Insulation class: F, 80 K rise
• NEMA nominal efficiency: around 92.4%
• Ambient temperature rating: up to 40 °C
• Altitude rating: 1000 m above sea level
• Bearings: Re-greasable ball bearings, fire-pump-duty W40 design
• Construction: Cast iron frame motor
