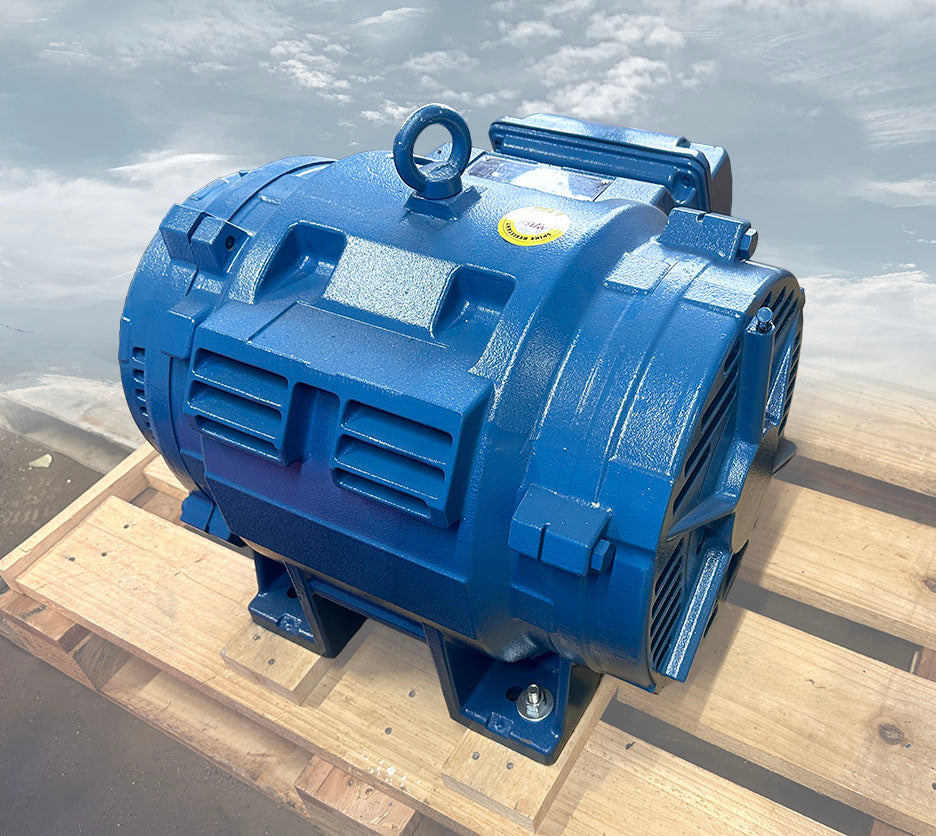

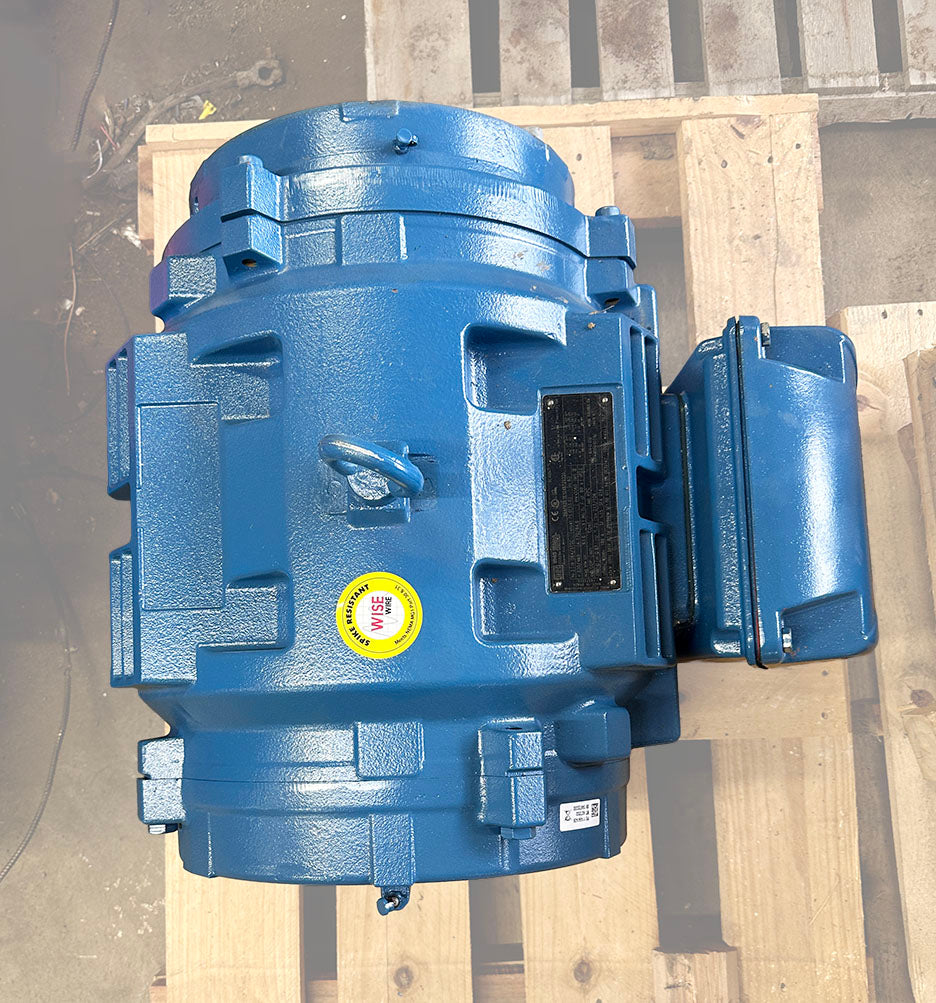

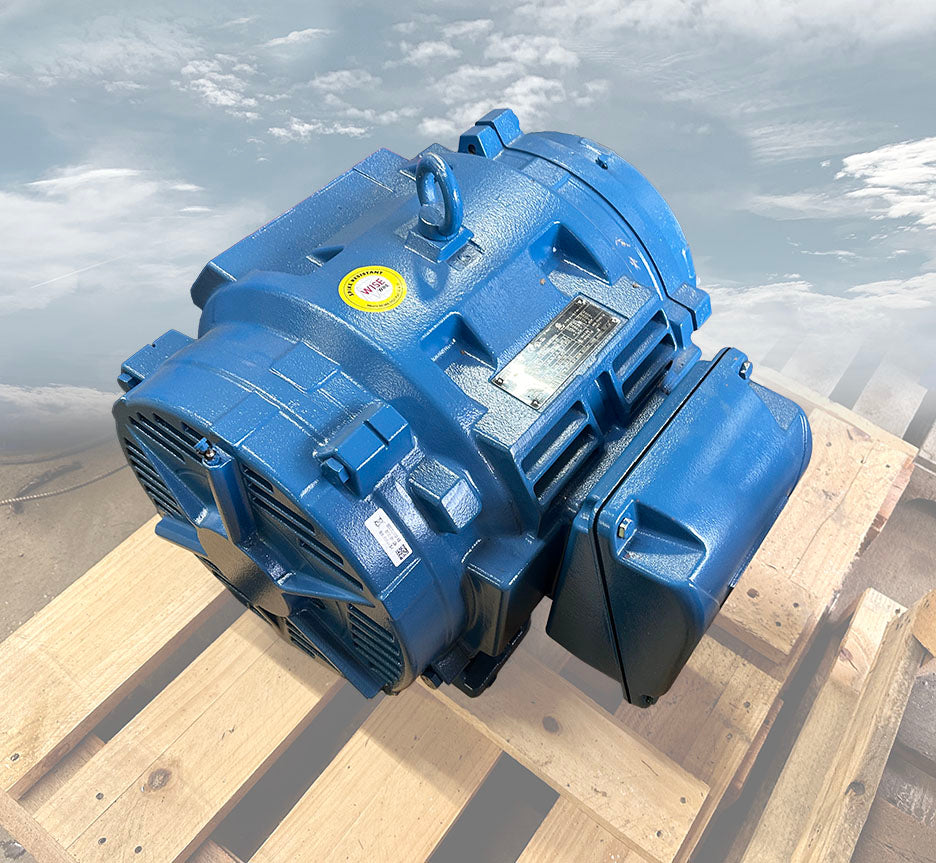

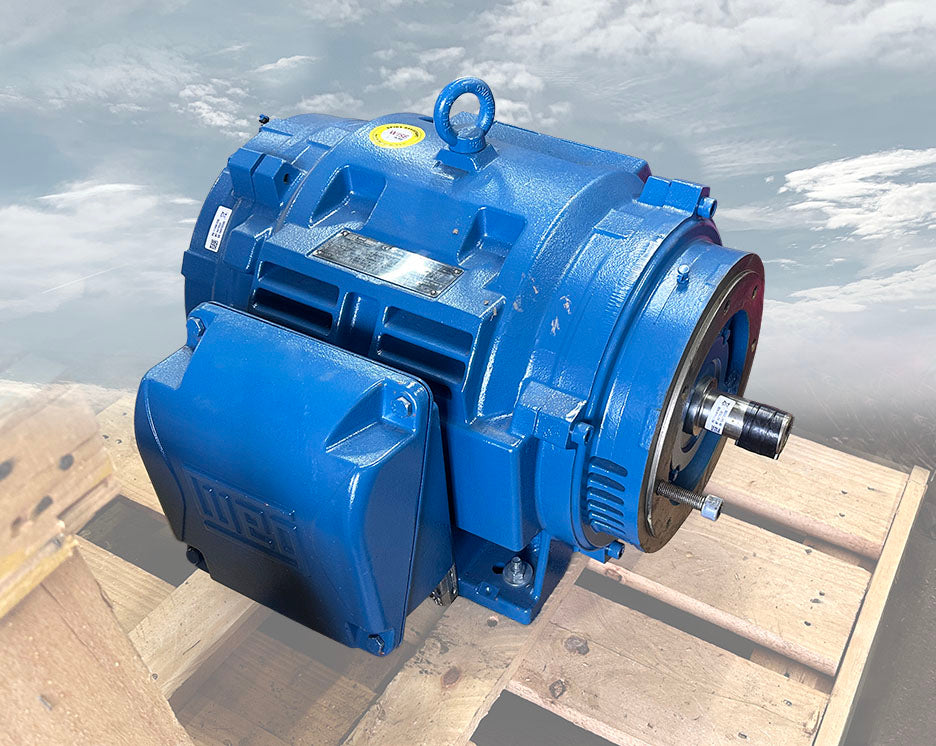

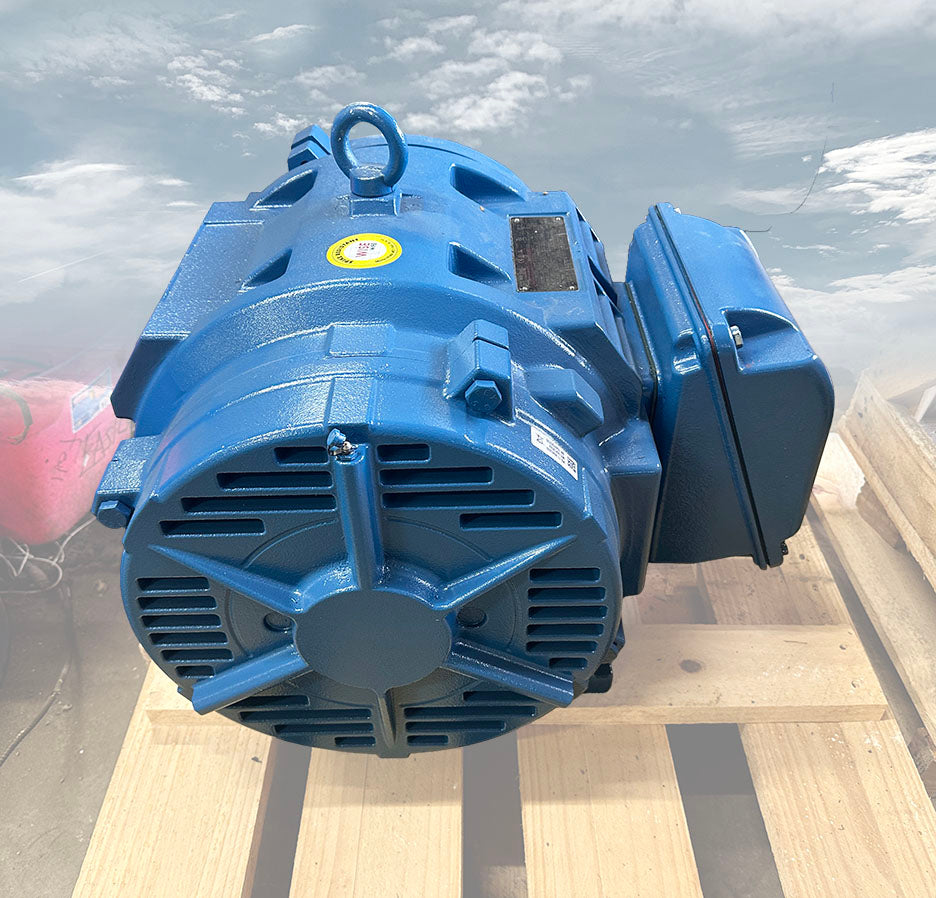

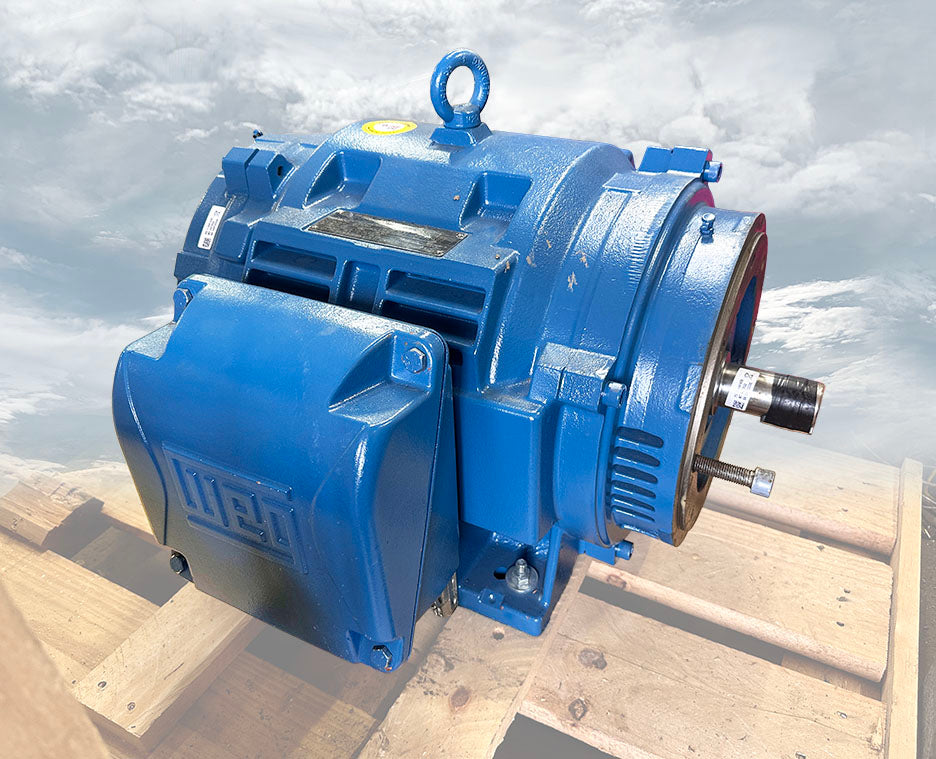

NEW / Unused ~ WEG 07536OT3E364TSC-W40 75 HP Electric Motor

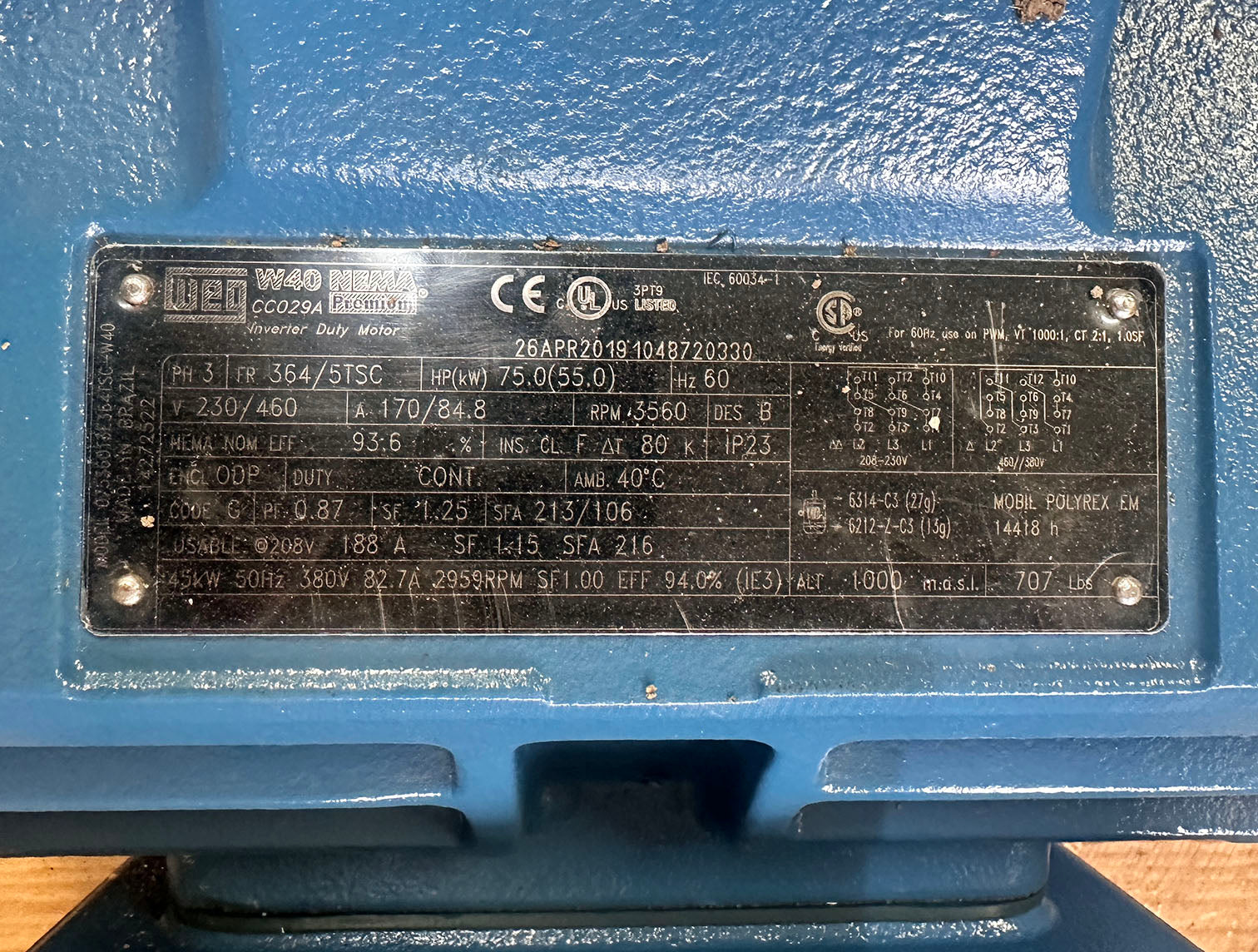

• Model: 07536OT3E364TSC-W40
• Horsepower: 75 HP
• Rated Speed: 3555 RPM (base 3600 RPM synchronous)
• Poles: 2
• Voltage: 230/460V 60Hz (dual rated 380V 50Hz)
• Phase: 3-Phase
• Frame: 364/5TSC NEMA
• Enclosure: ODP (Open Drip Proof), IP23

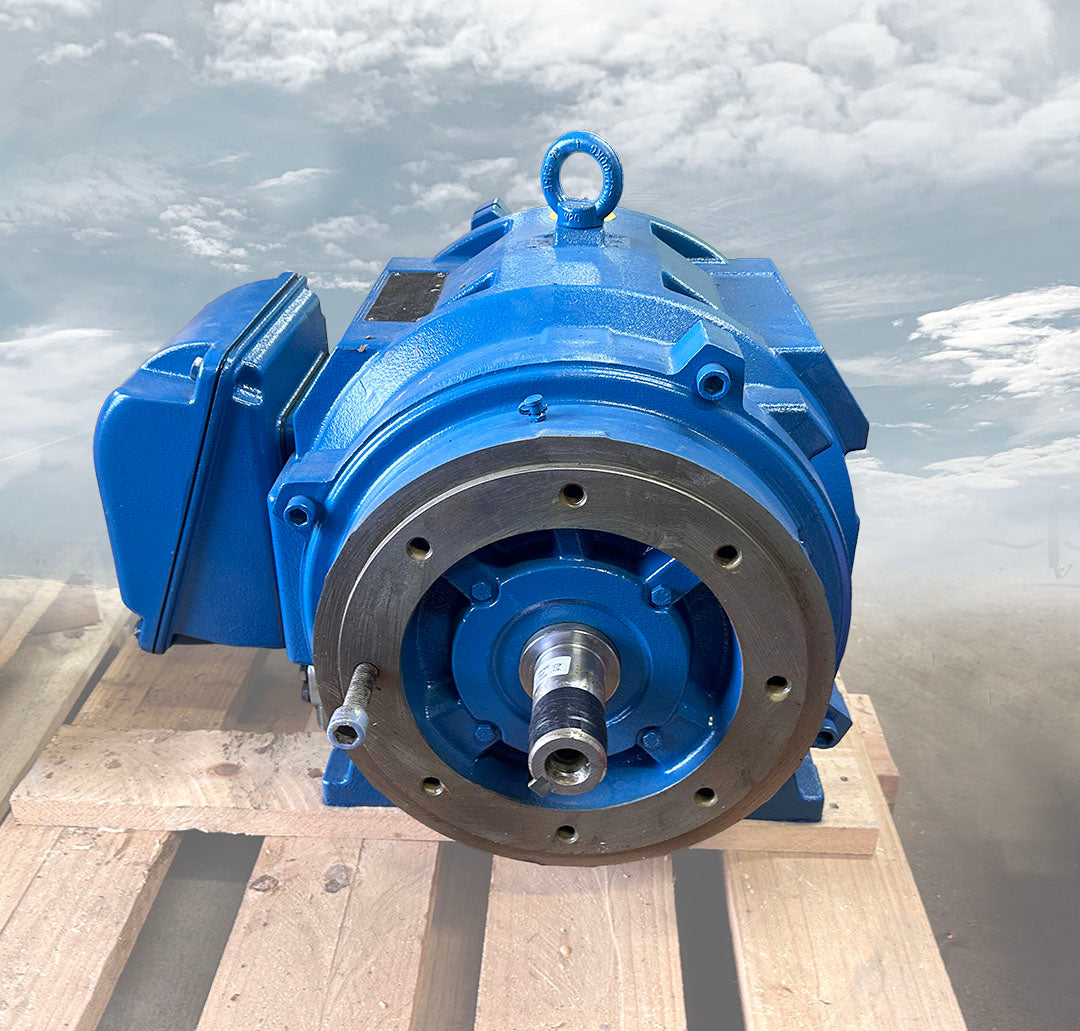

• Mounting: Foot mount, C-Face with base, F1/F2 convertible
• Output kW: 55 kW
• Insulation Class: F (inverter rated), Class H resin/wire
• Service Factor: 1.25
• Efficiency: NEMA Premium

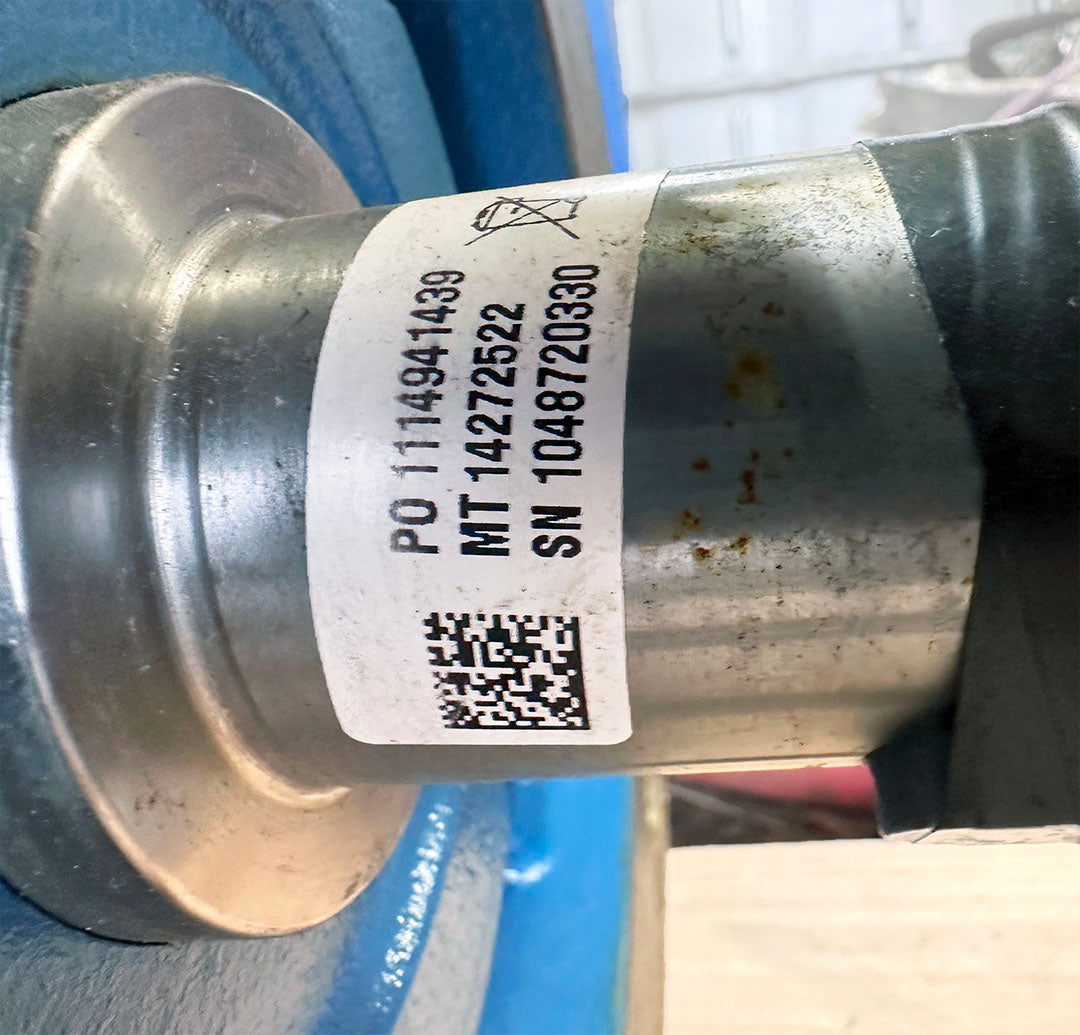

• Shaft: 1 7/8" keyed
• Frame Material: Cast iron FC 200
• Bearings: Double shielded ball bearings
• Weight: 772 lbs
• Applications: General purpose, pumps, compressors, chillers

Local Pick-Up or Freight Shipping Only
