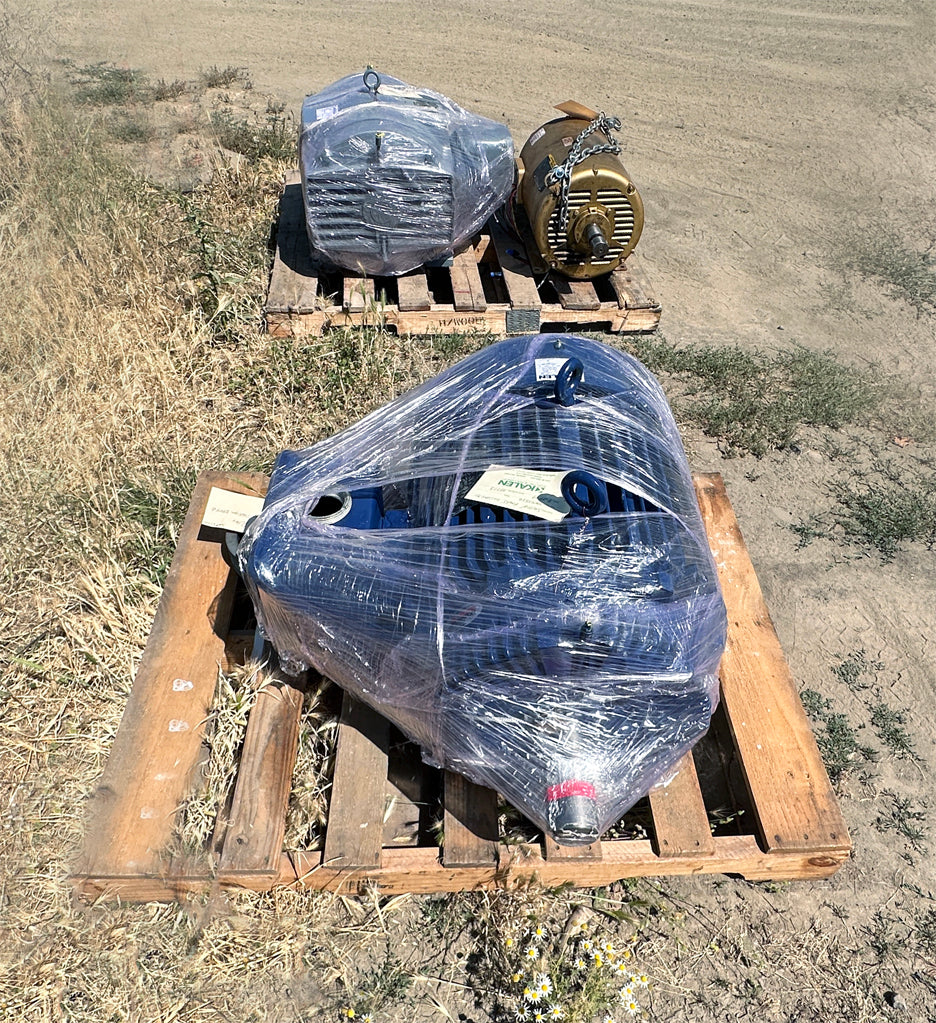

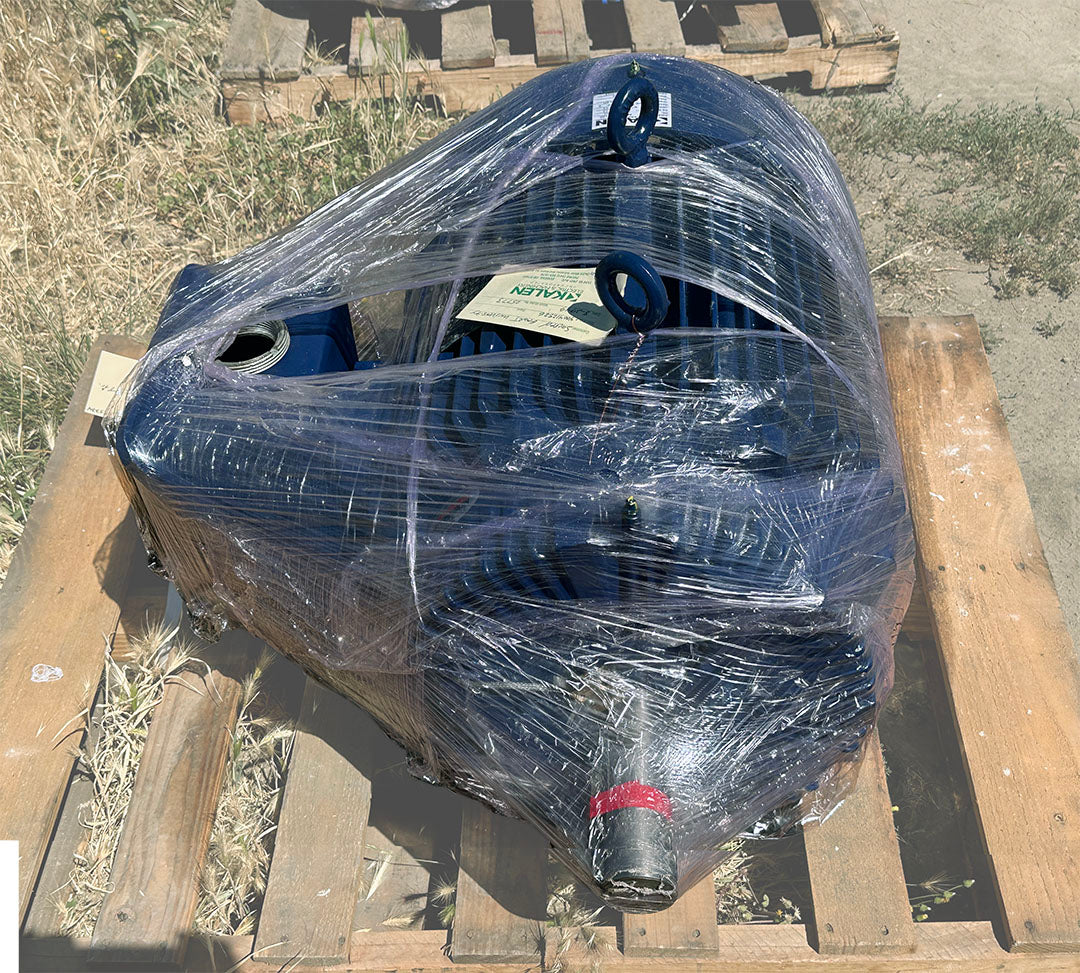

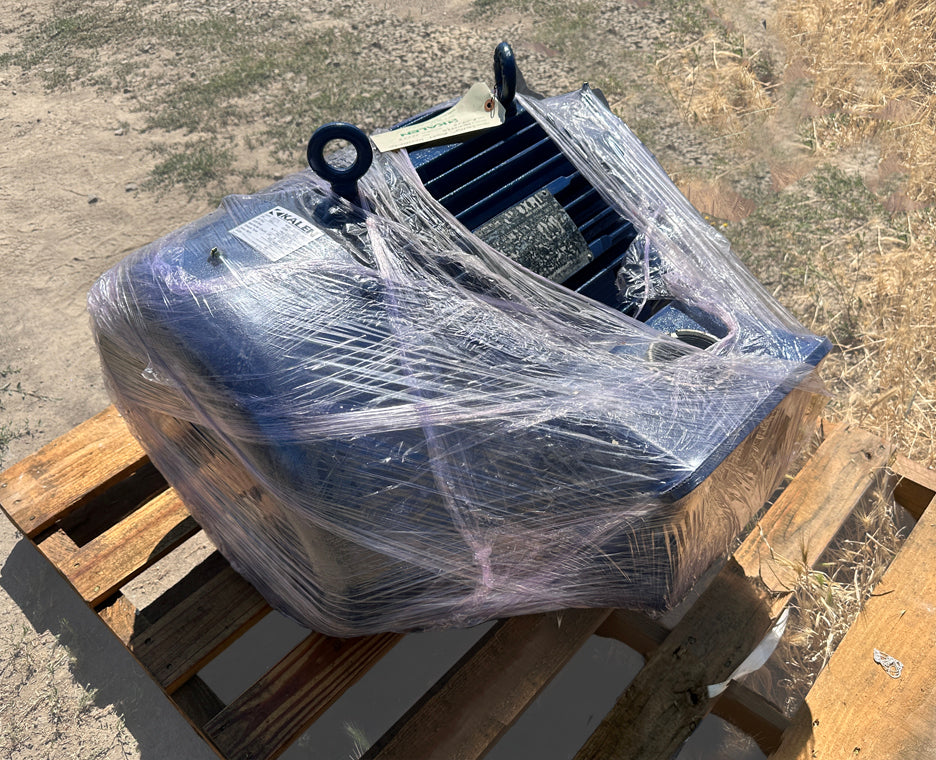

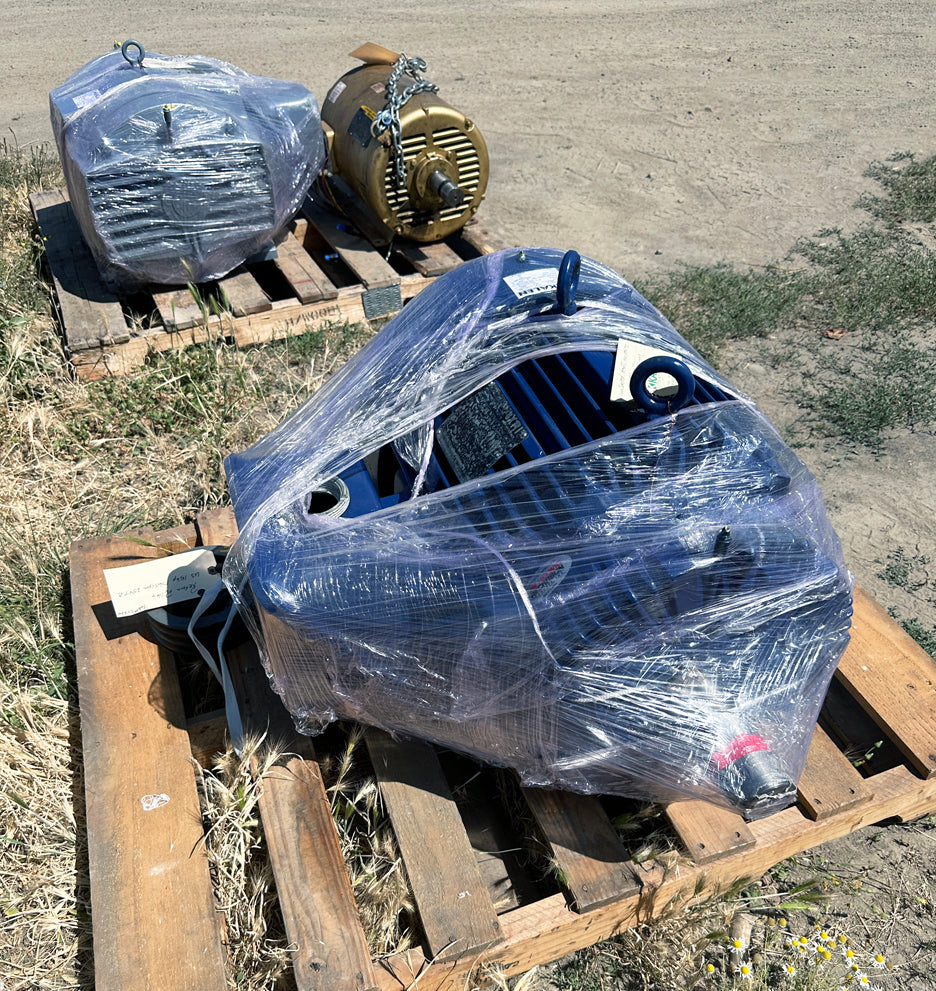

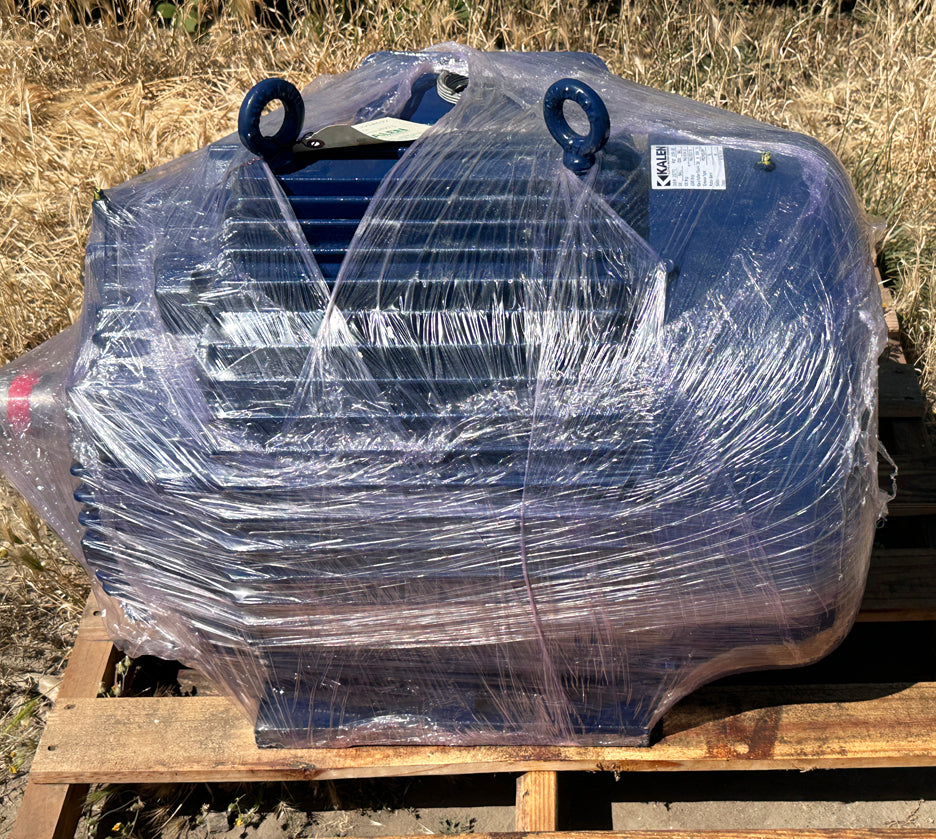

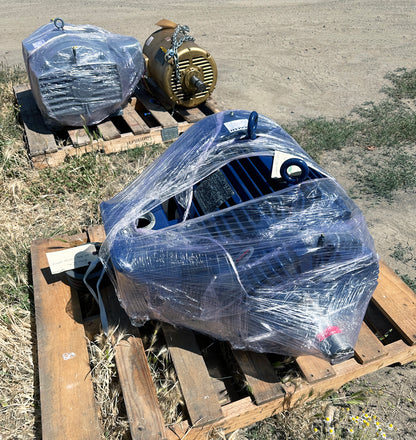

NEW ~ Marathon 365TTF 75HP Motor

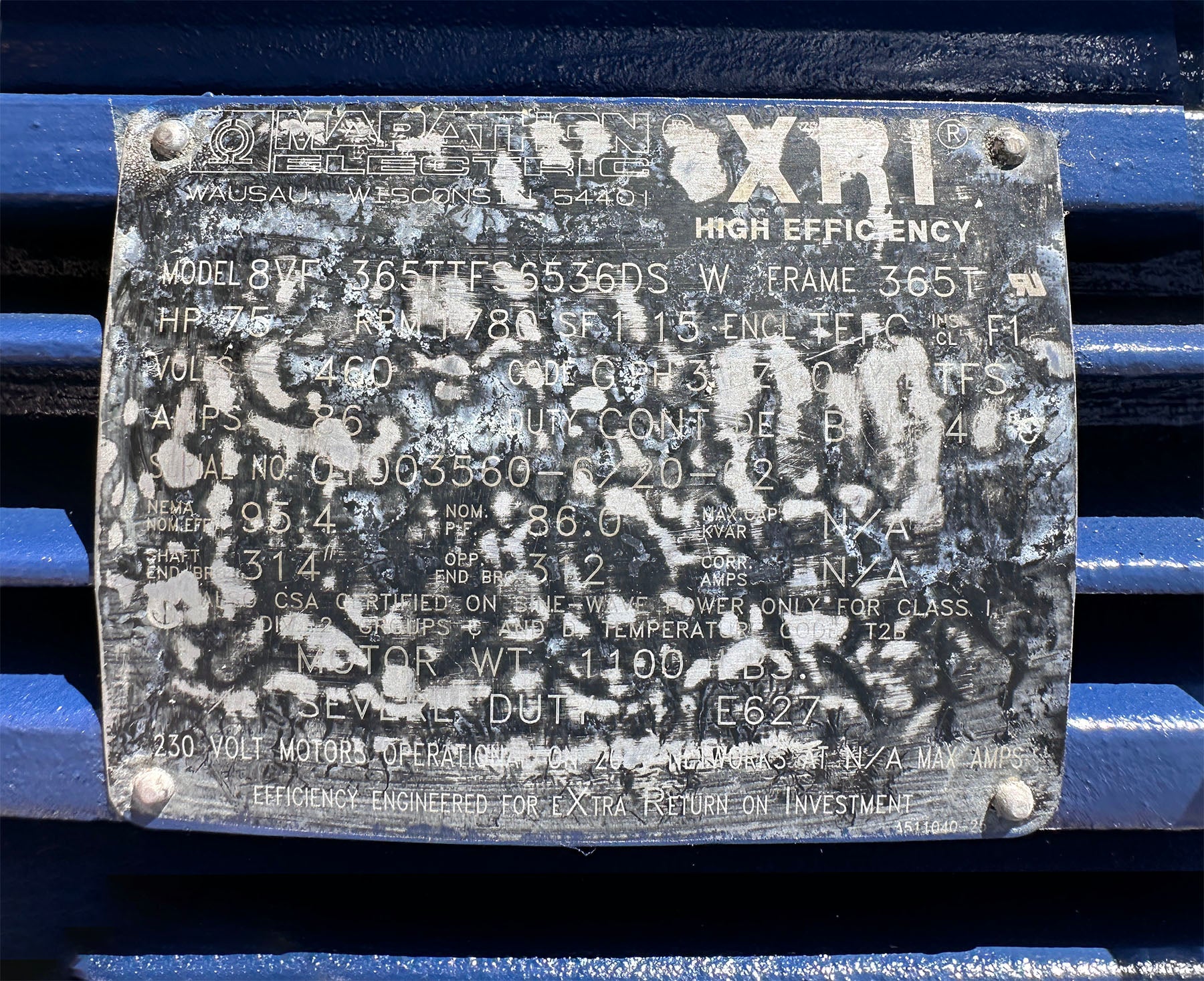

• Brand: Marathon Electric, XRI Severe Duty series
• Model / Catalog: 365TTFS6536DS W (E627)
• Horsepower: 75 HP (56 kW)
• Voltage: 460 V AC, three phase
• Frequency: 60 Hz
• Full-load speed: 1780 RPM (4-pole)
• Frame: NEMA 365T, rigid base mount
• Enclosure: TEFC (Totally Enclosed Fan Cooled), IP54
• Service factor: 1.15, continuous duty
• Full-load current: 86 amps at 460 V
• NEMA design: Code B, KVA code G
• Efficiency: NEMA Premium, approx. 95.4% at full load
• Power factor: approx. 86% at full load
• Insulation class: F, 40 °C ambient
• Electrical type: Squirrel cage, inverter rated; suitable for VFD use
• Rotation: Reversible
• Construction: Cast-iron frame, severe-duty design
• Mounting position: Horizontal

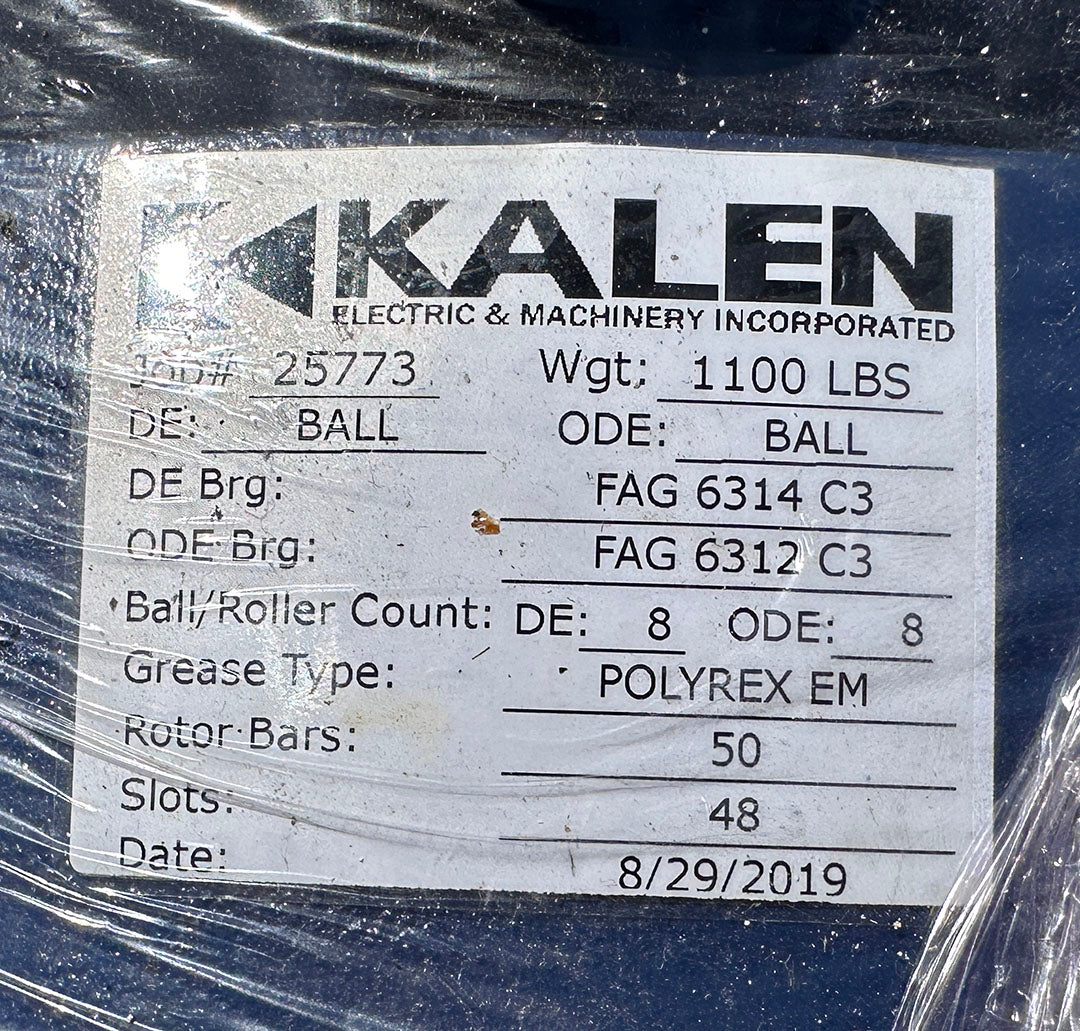

Kalen Bearings tag:

• Manufacturer/shop: Kalen Electric & Machinery Incorporated; likely the rebuilder, modifier, or packager that handled this motor
• Weight: 1100 lbs total unit weight
• Bearing type: Ball bearings on both drive end (DE) and opposite drive end (ODE)
• Bearing models: DE bearing FAG 6314 C3, ODE bearing FAG 6312 C3
• Ball/roller count: 8 on the DE, 8 on the ODE
• Grease type: Polyrex EM
• Rotor bars: 50; stator slots: 48
