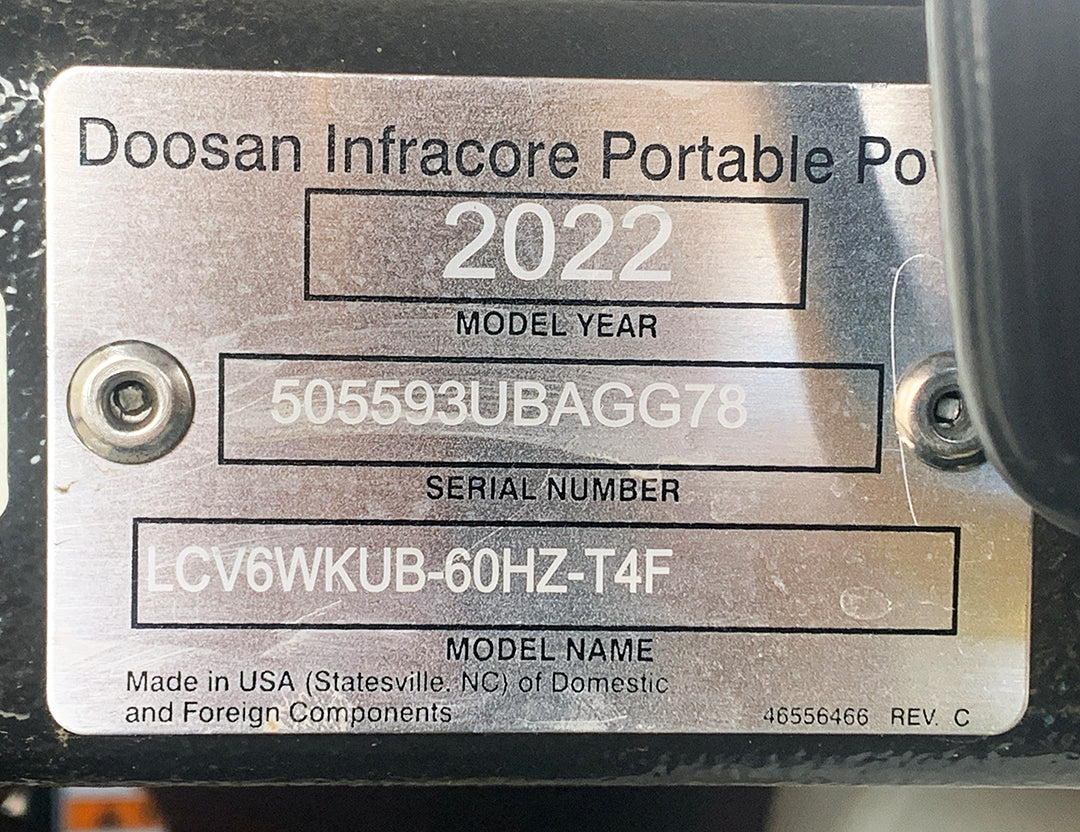

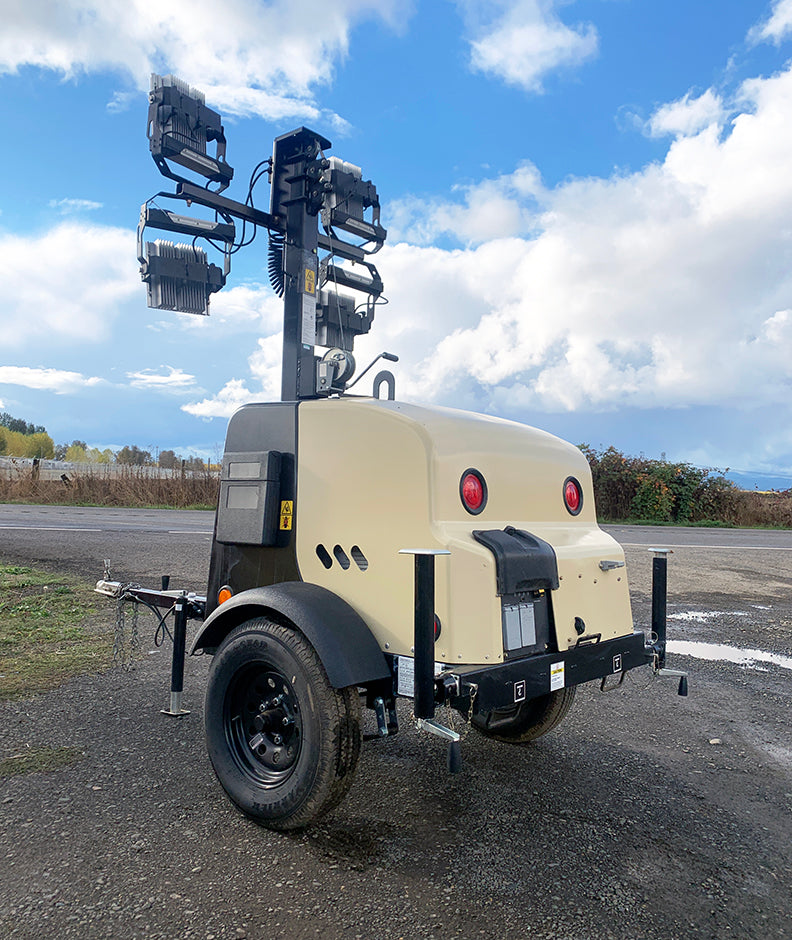

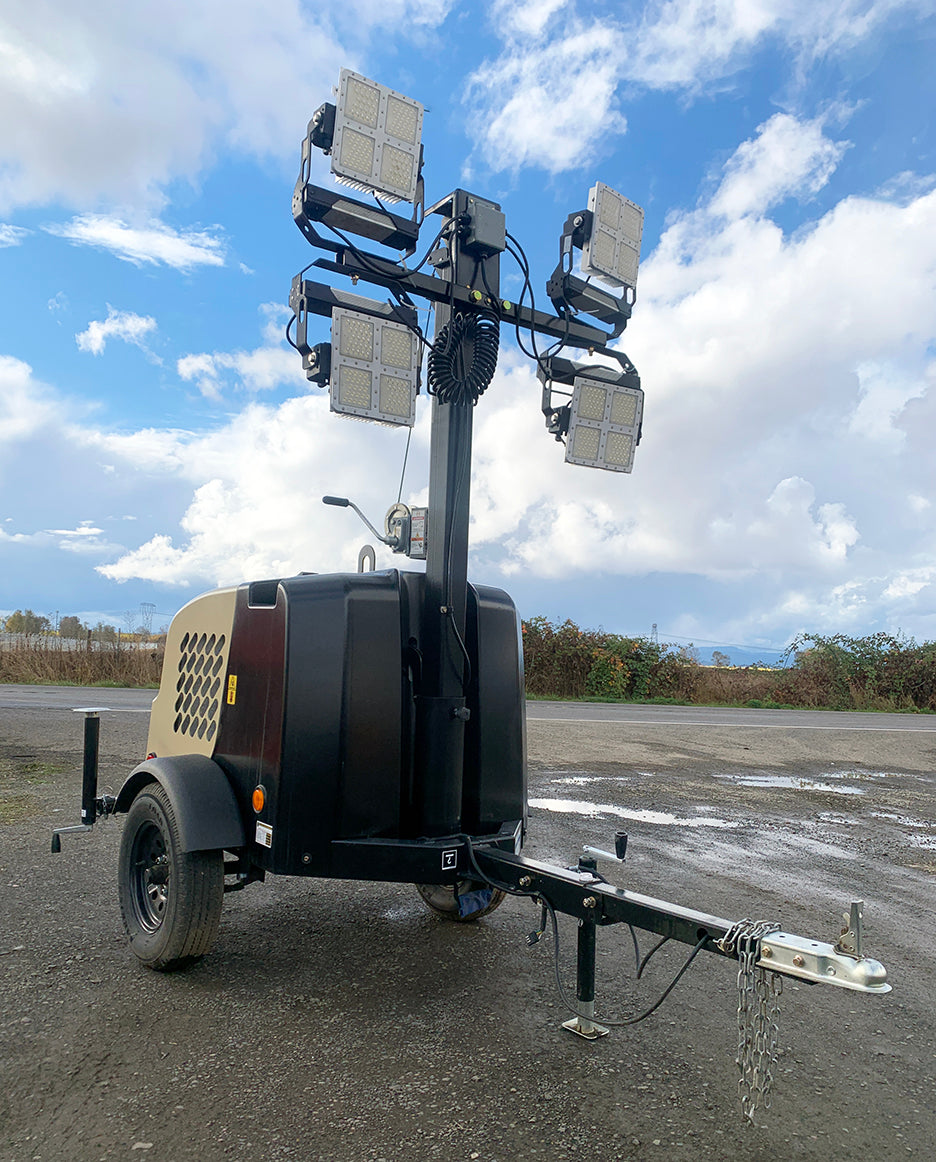

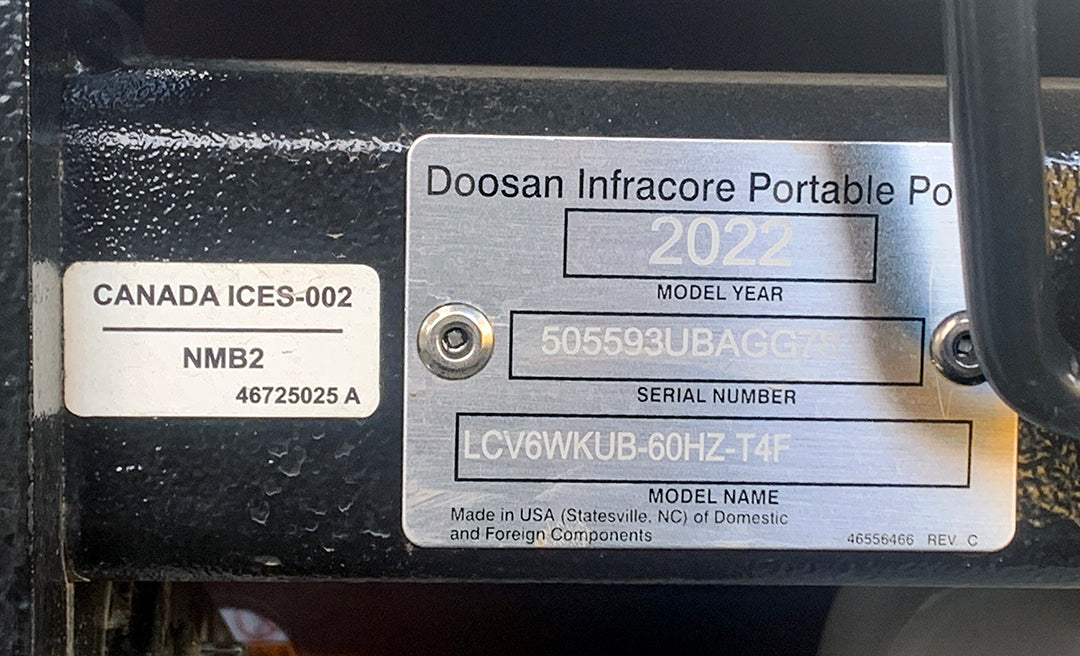

New ~ Doosan LCV6WKUB-60HZ-T4F Portable Lighting & Power

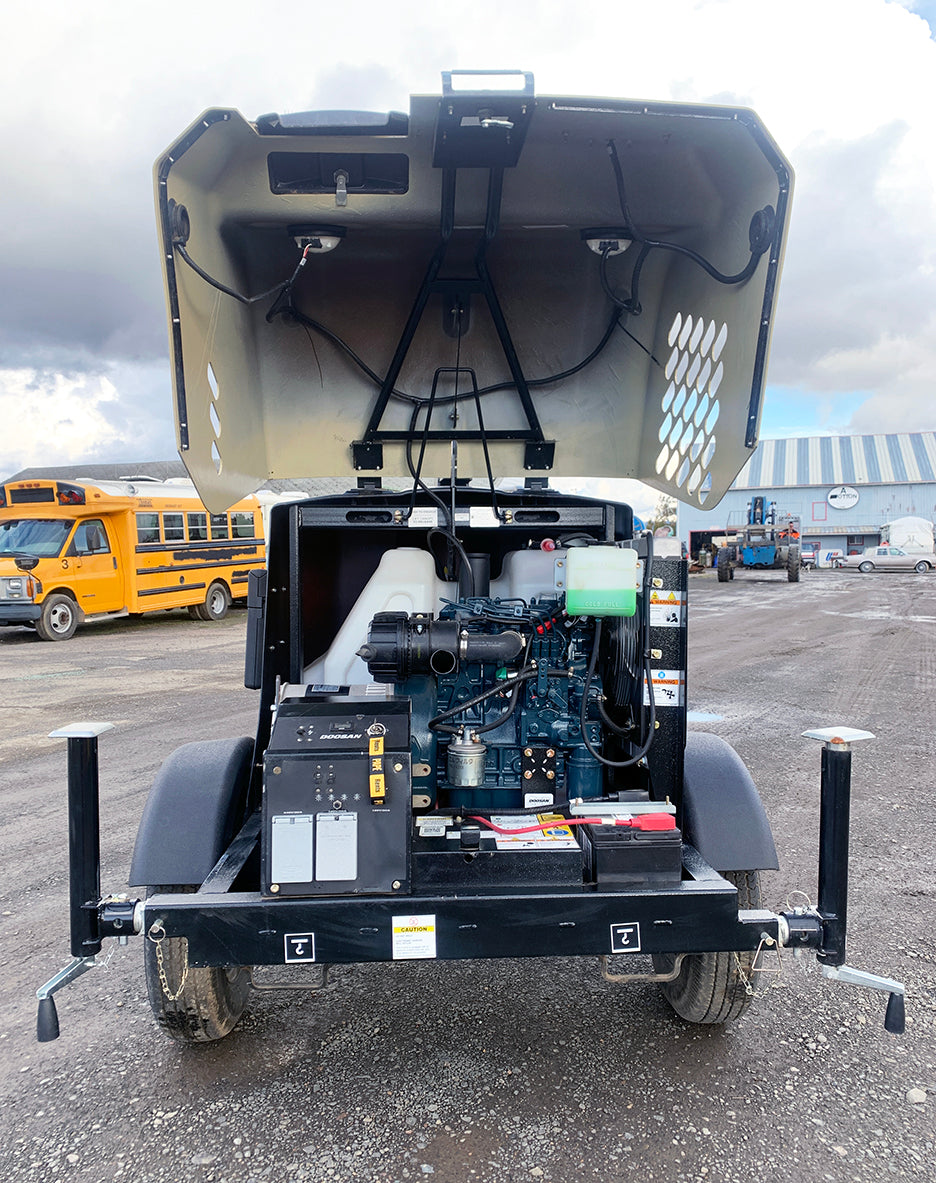

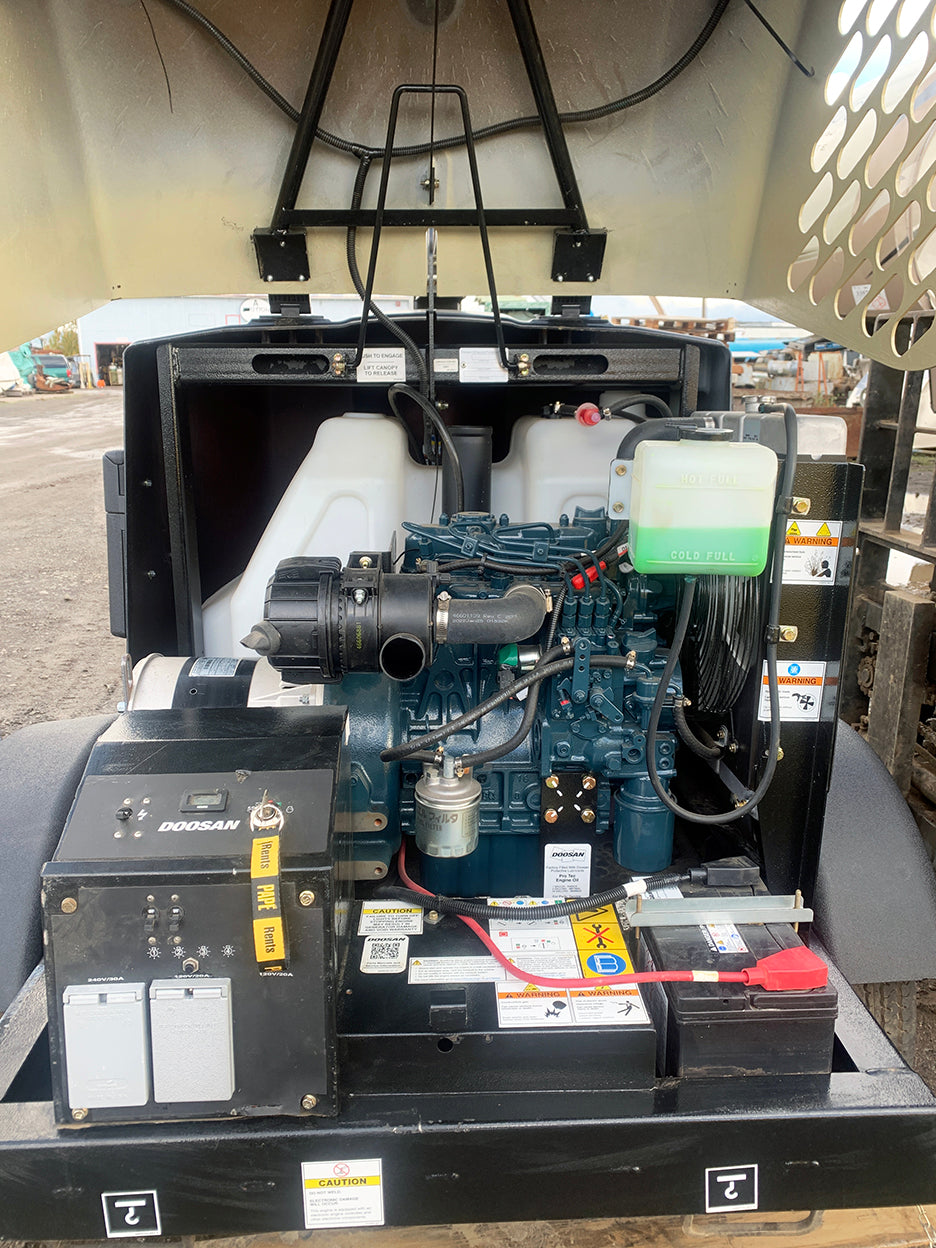

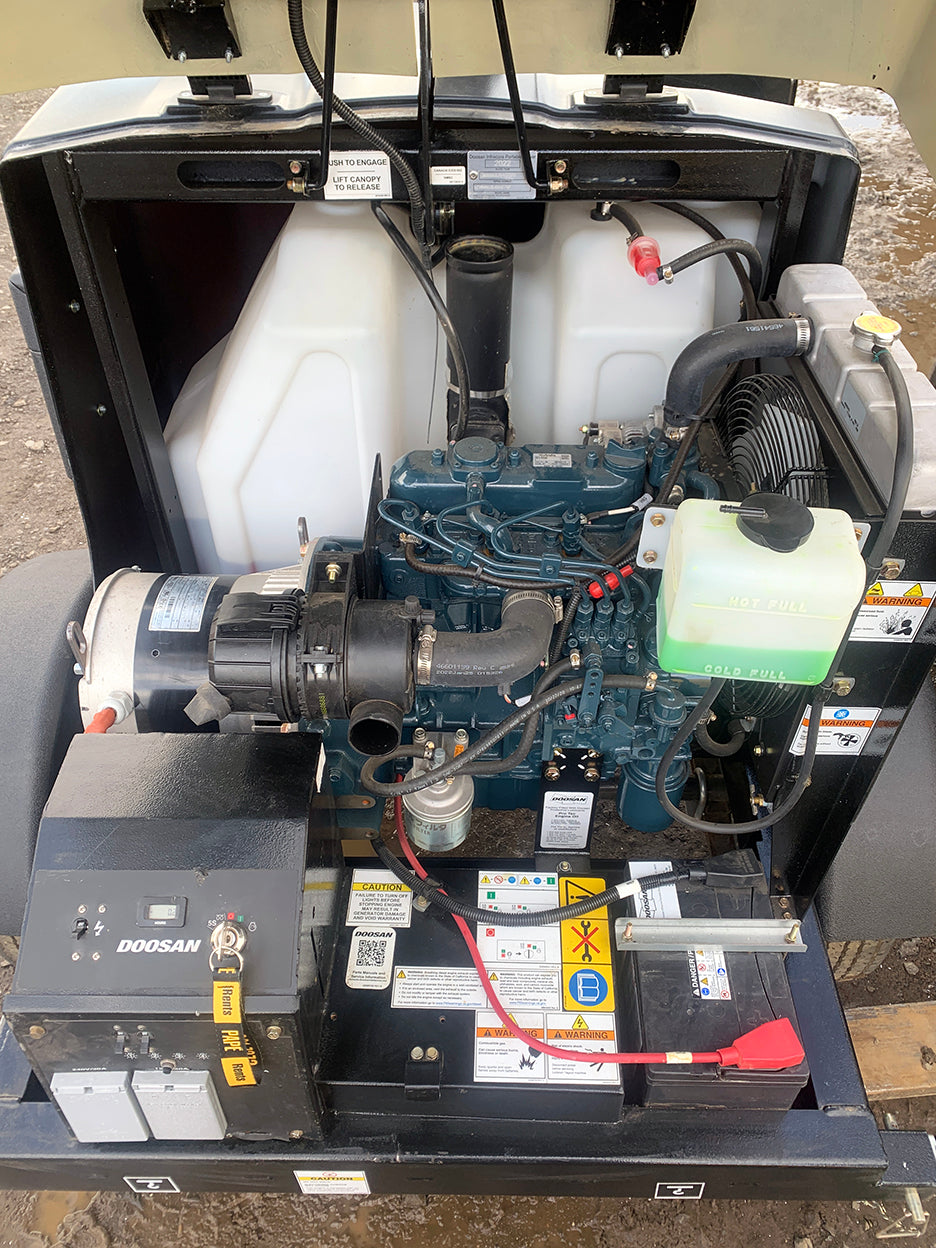

ENGINE:

• Make/Model: Kubota D1005
• Emissions Tier Level: Tier 4 Final
• Number of Cylinders / Displacement – cu in (L): 3 / 61.1 (1.001)
• Power @ Rated Speed - bhp (kW) : 1 (9.76) @ 1800 RPM
• Cooling System: Water / Glycol
• DC System Voltage / Battery Capacity: 12 VDC / 520 CCA
• Fuel Type: #2 Ultra-Low Sulfur Diesel
• Usable Fuel Capacity – gal (L) : 4 (198.4)
• Runtime Full Load - hrs: 105
• Runtime with 4 Metal Halide Lights - hrs: 119

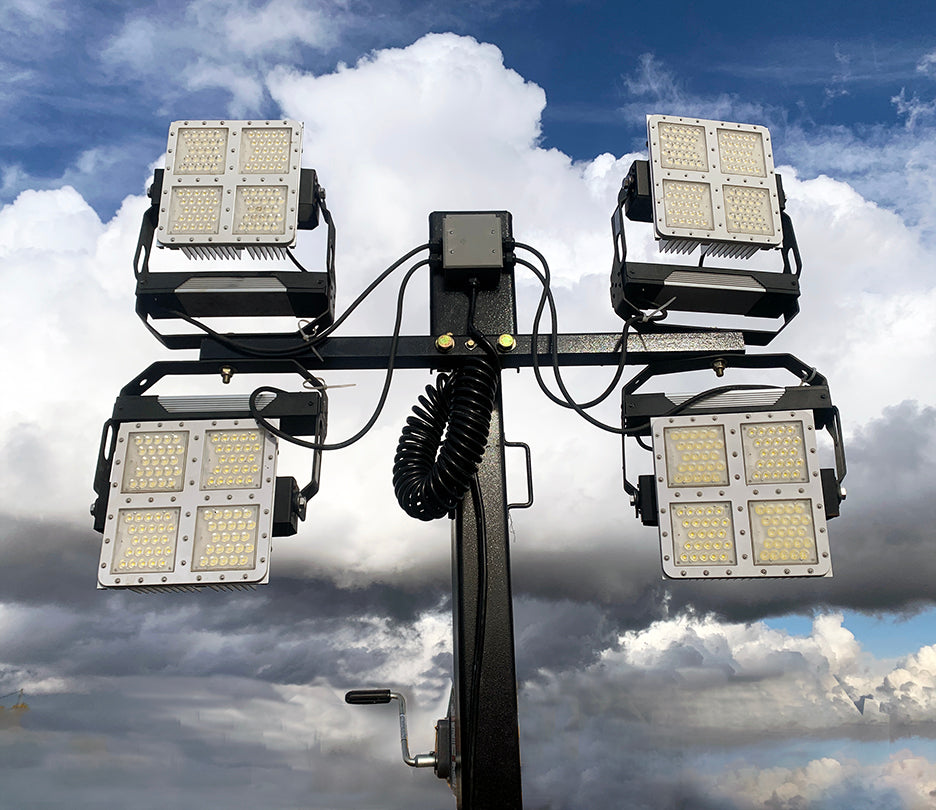

• Runtime with 4 LED Lights - hrs: 210

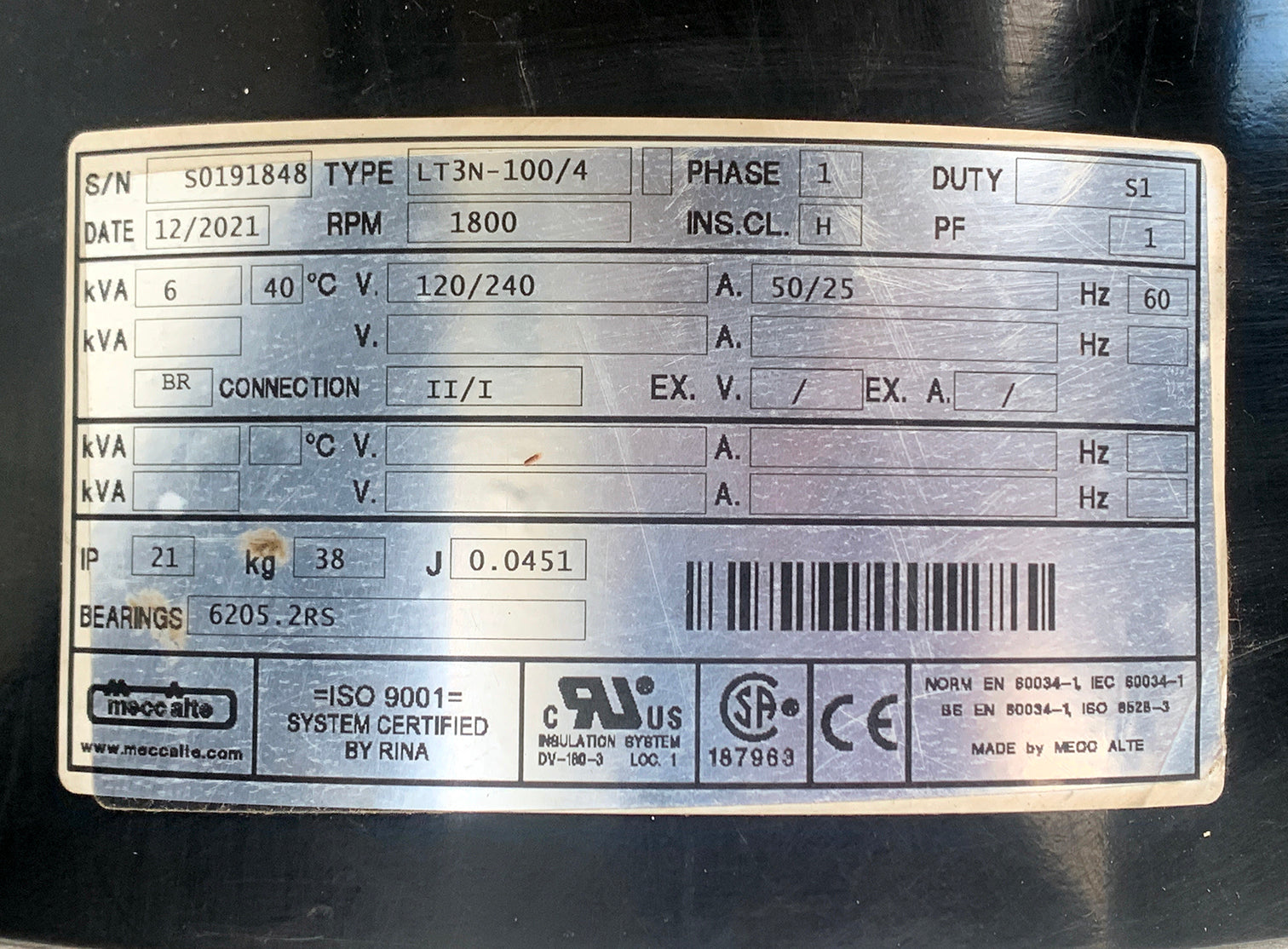

GENERATOR

• Prime Power Rating, 1.0 PF - kW: 6
• Available AC Voltage - Single Phase - V: 120/240
• Available Frequency - Hz: 60

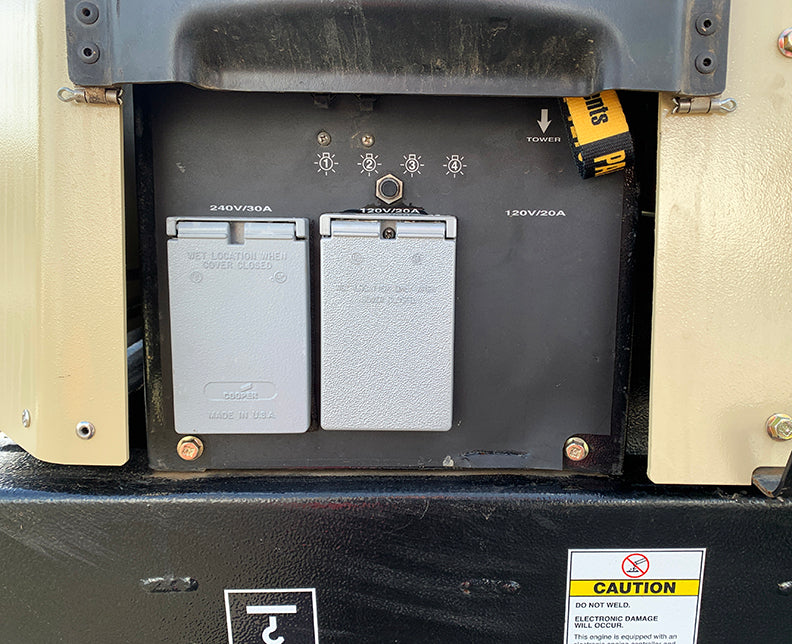

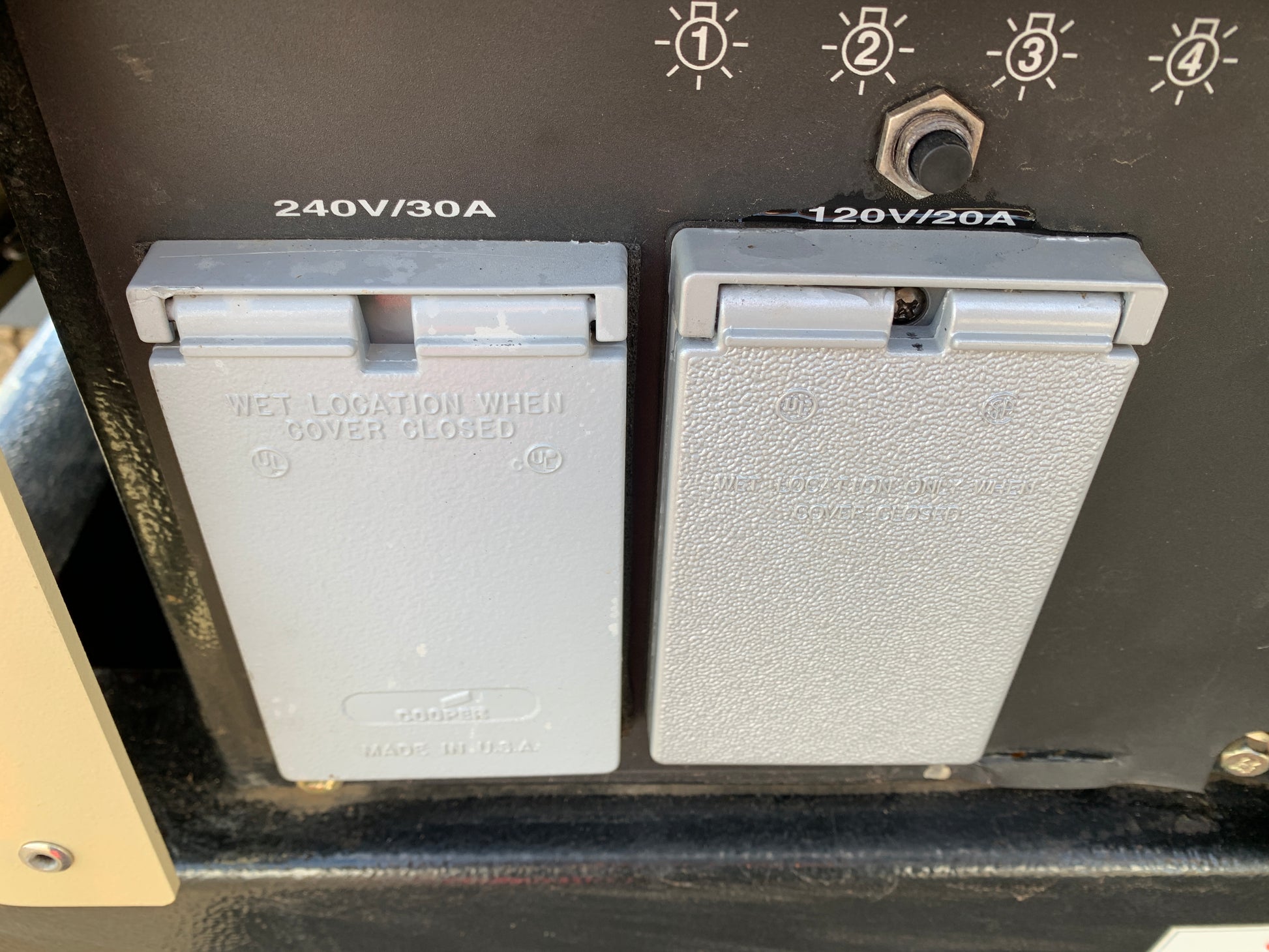

RECEPTACLES (with Individual Circuit Breaker Protection)

• 120V GFCI Duplex (NEMA 5-20R): 1 × 20A
• 240V Twist lock (NEMA L6-30R): 1 × 25A*

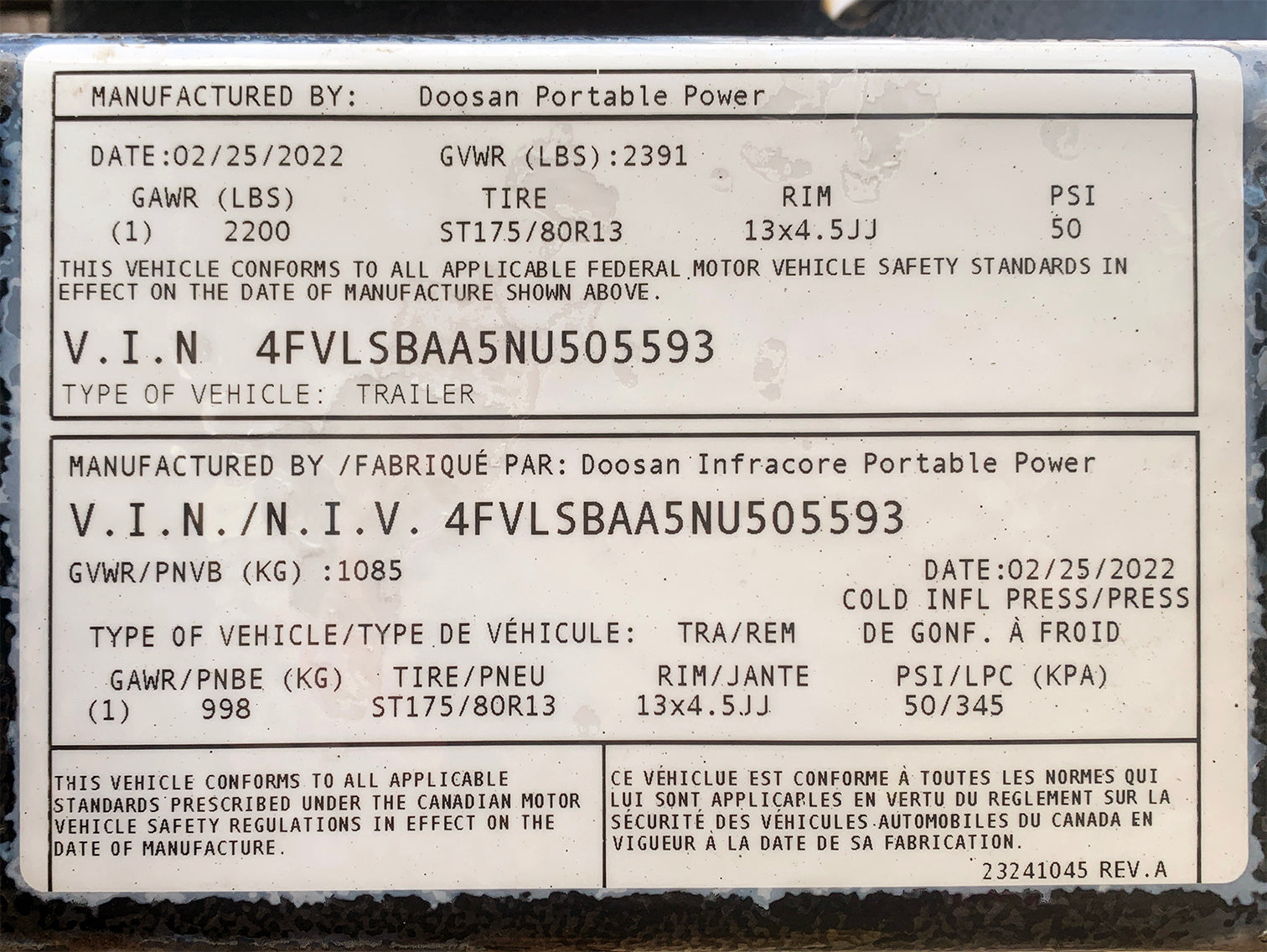

WEIGHT

• Shipping Weight - lb (kg): 1309 (595)
• Operating Weight - lb (kg): 1669 (758)

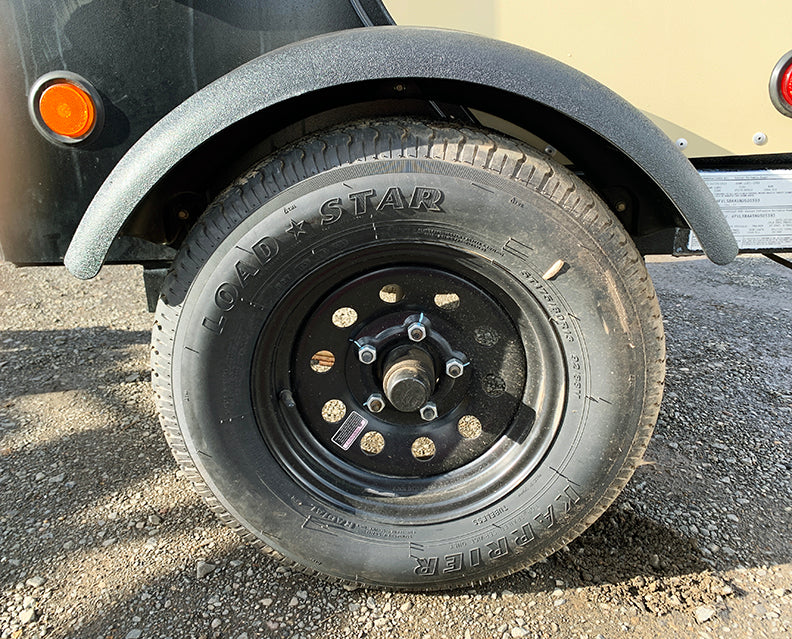

DIMENSIONS with RUNNING GEAR

• Length (Drawbar Down) - in (mm): 109 (2768)
• Length (Drawbar Up) - in (mm): 82 (2083)
• Width (Standard) - in (mm): 55 (1397)
• Width (w/ Outriggers Deployed) - in (mm): 121 (3084)
• Track Width - in (mm): 4 (1206)
• Height (w/ Tower in Transport Position) - ft (m): 4 (2.6)

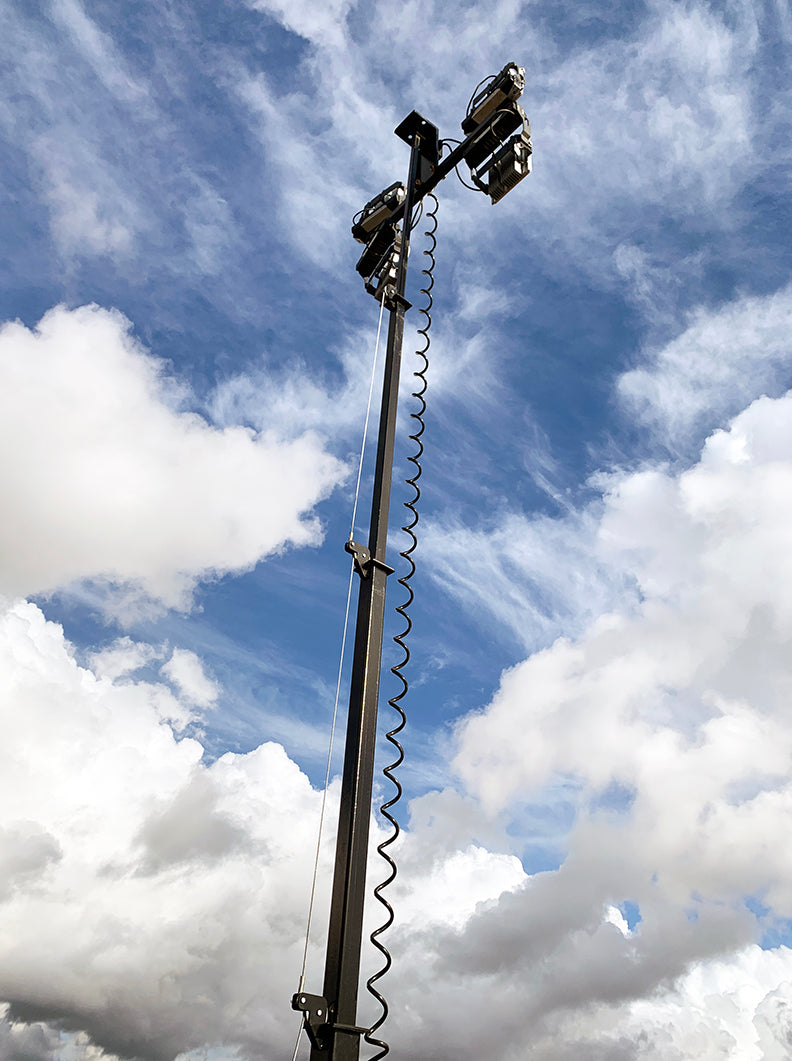

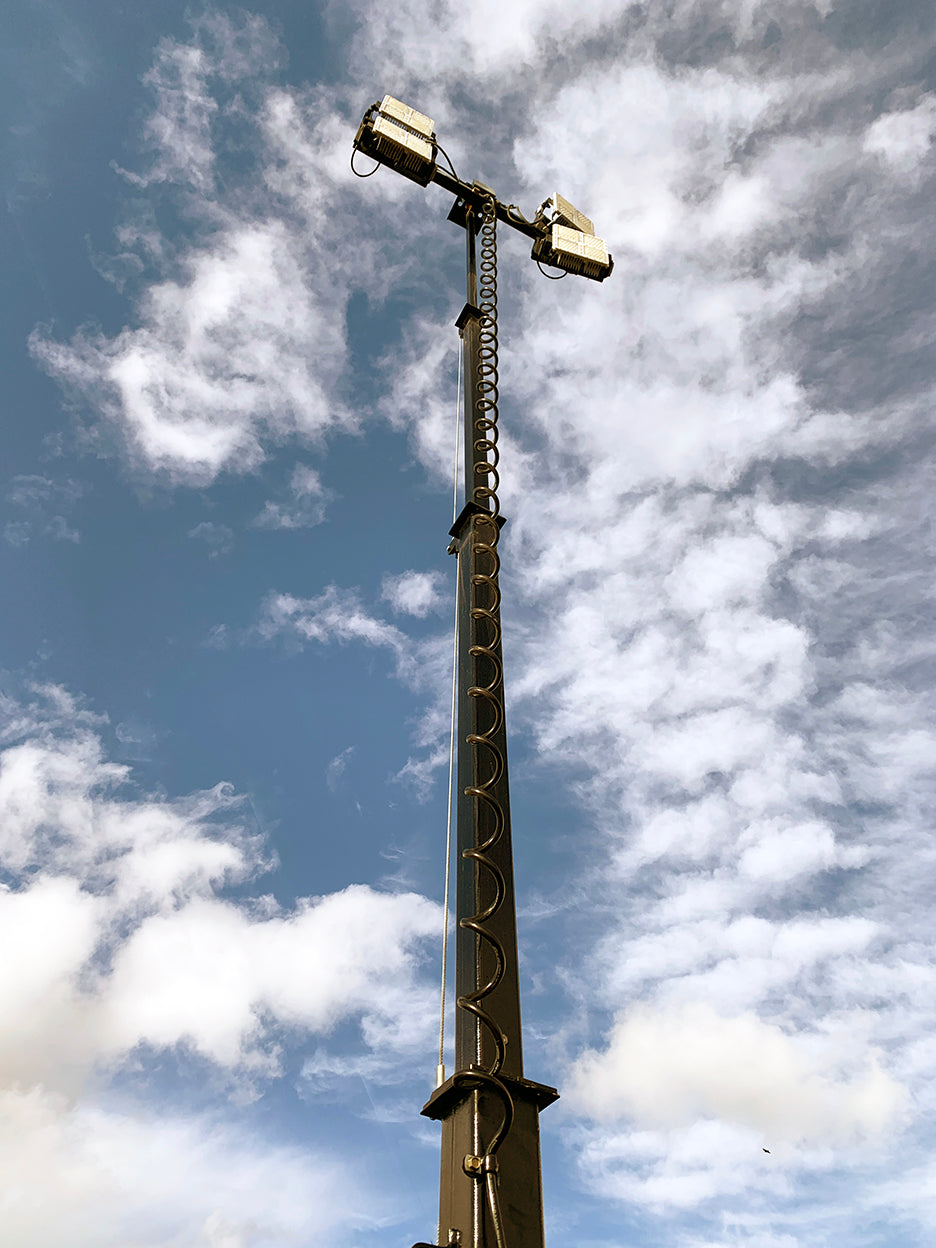

• Height (w/ Tower Deployed) - ft (m): 23 (7)

*~ Local Pick-Up or Freight Shipping Only ~*
