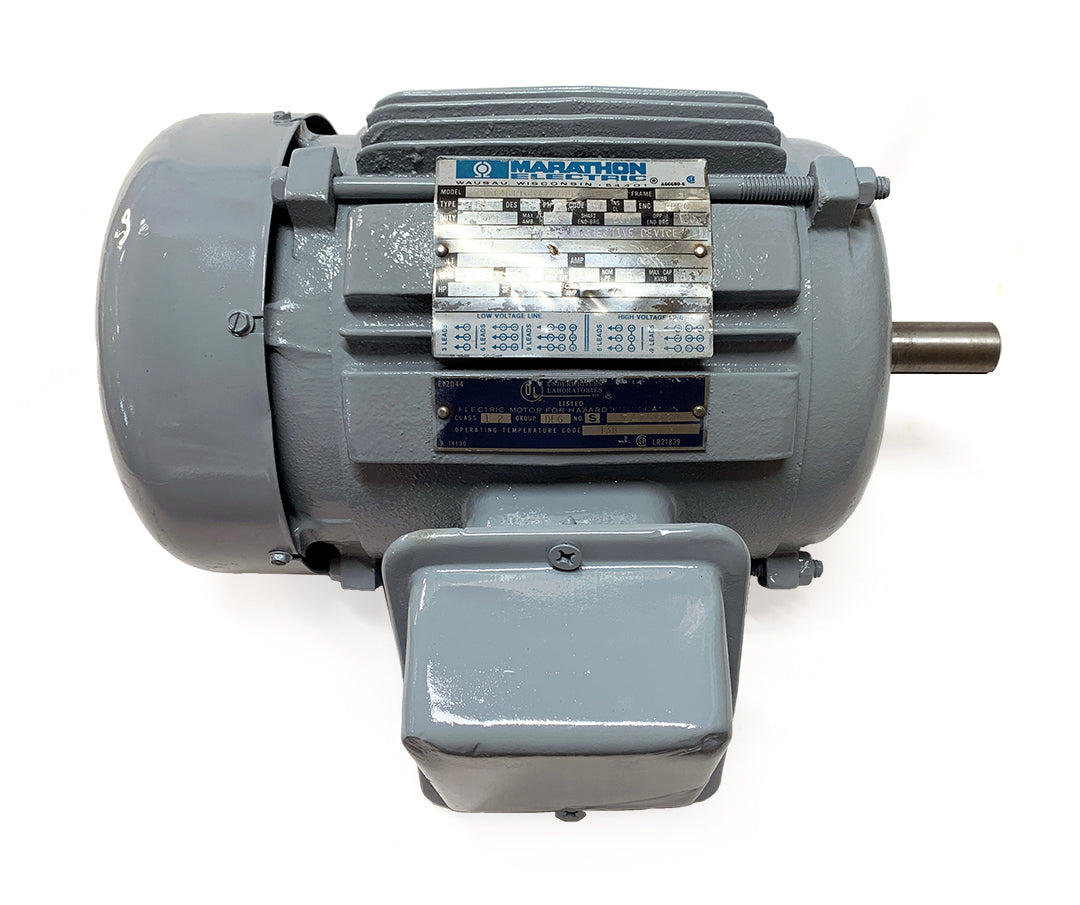

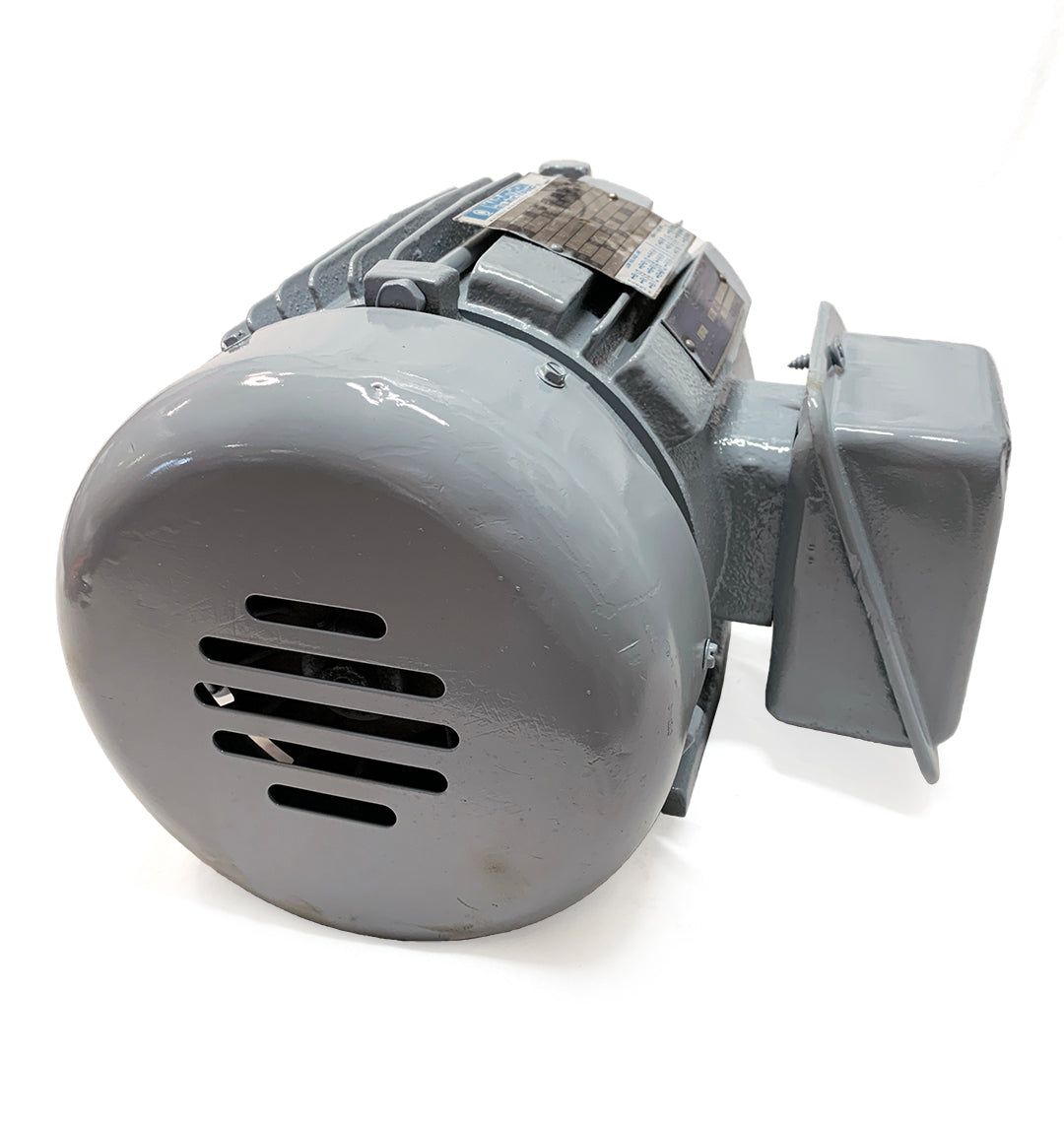

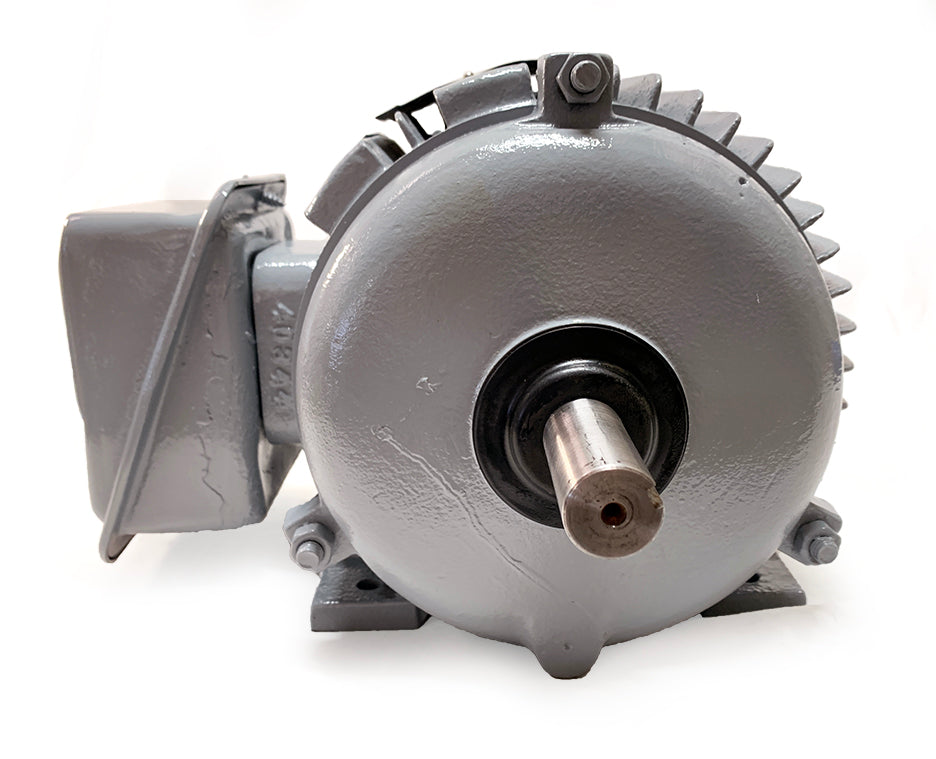

Marathon Motor w/ Explosion-Proof Frame

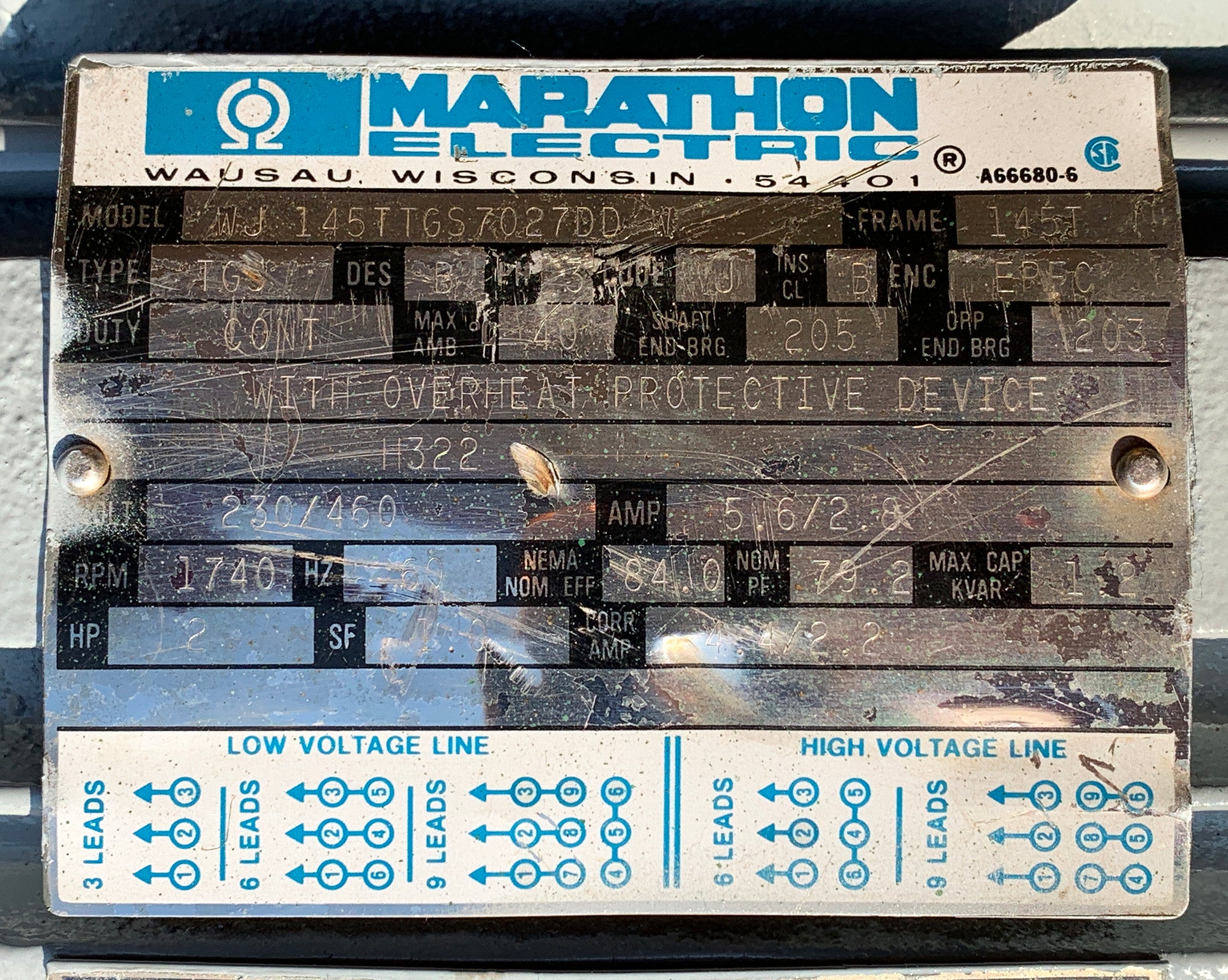

- Model: WJ 145TTGS7027DD W
- Frame: 145T
- Type: TGS
- Des.: B
- Phase: 3
- Code: J
- Ins. Cl.: B
- Enc: EPFC
- Duty: CONT
- Max. Amb.: 40˚C
- Shaft End Brg.: 205
- Opp. End Brg.: 203
- Volts: 230/460
- Amps: 5.6/2.8
- RPM: 1740
- Hz: 60
- NEMA Nom. Eff.: 84.0
- Nom. PF: 79.2
- Max Cap. KVAR: 1.2
- HP: 2
- SF: 1.0
- Corr. Amp: 4.4/2.2
- NOTE: "Overheat Protective Device" is missing

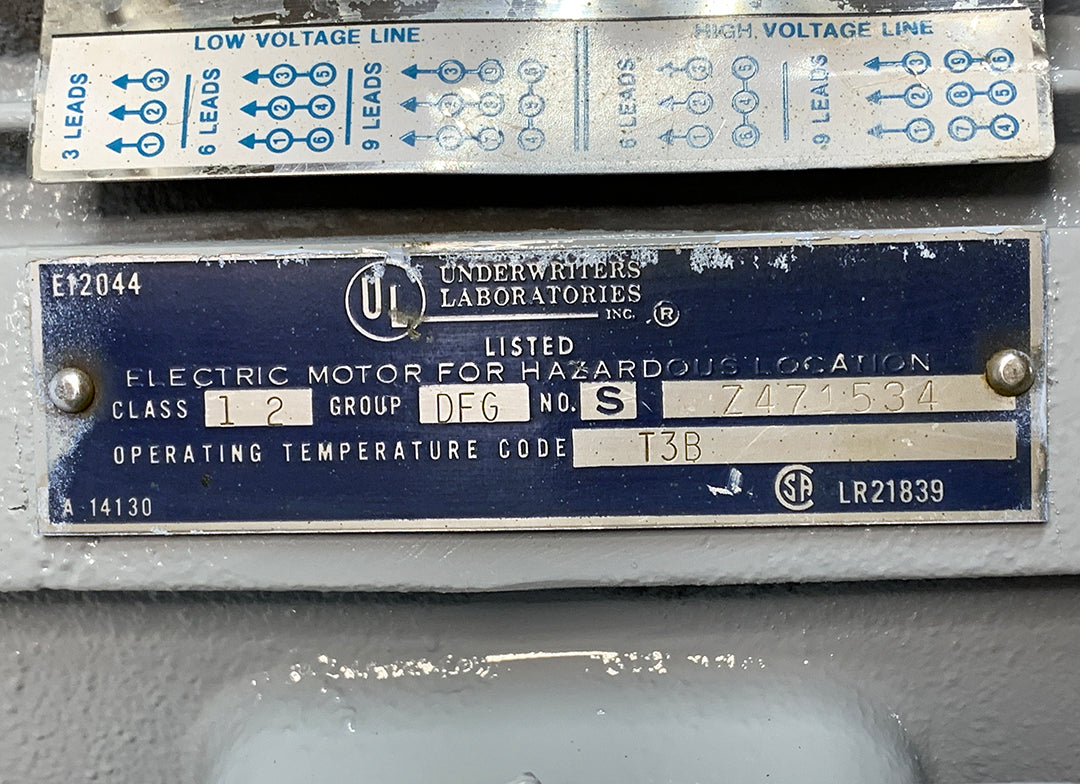

"Electric Motor for Hazardous Location"
- Class 12
- Group: DFG
