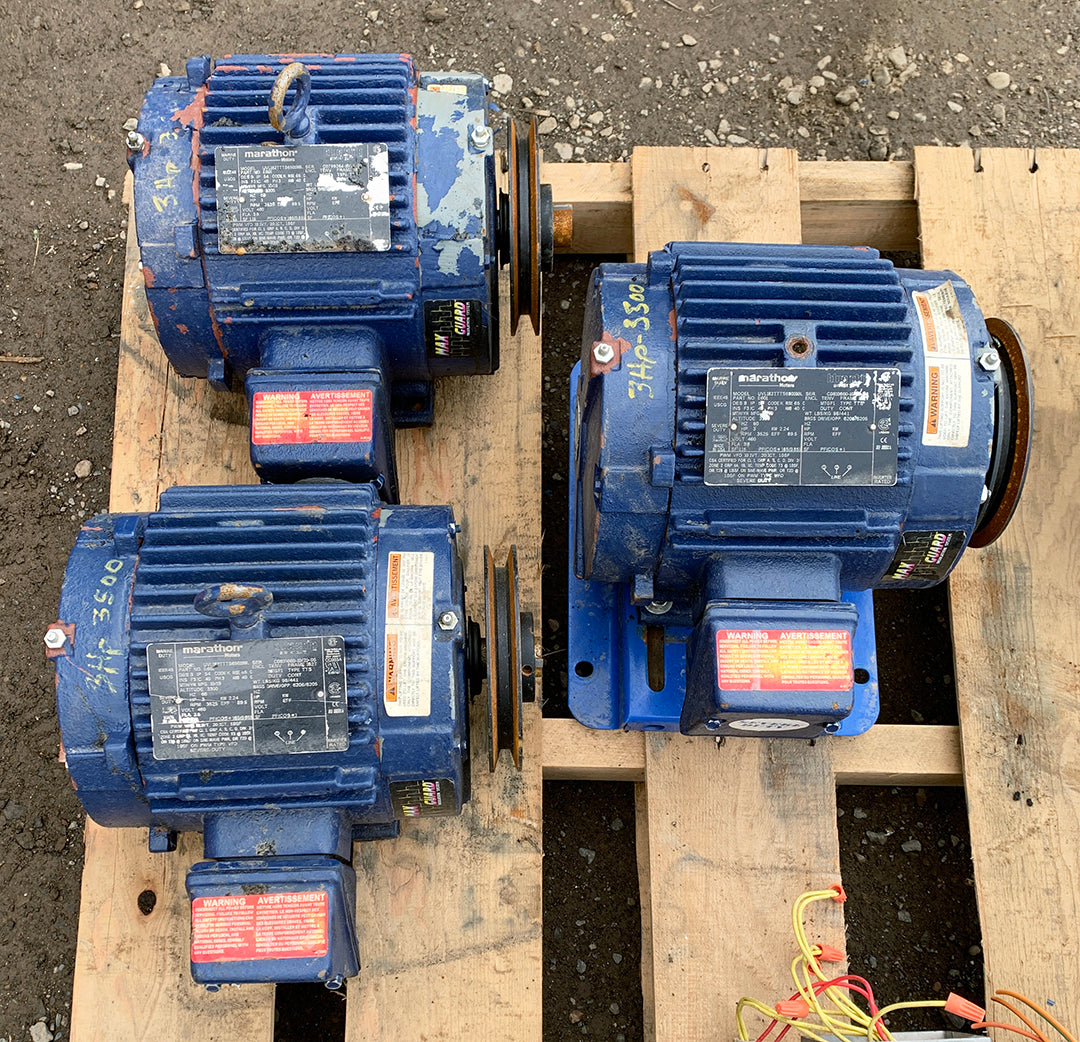

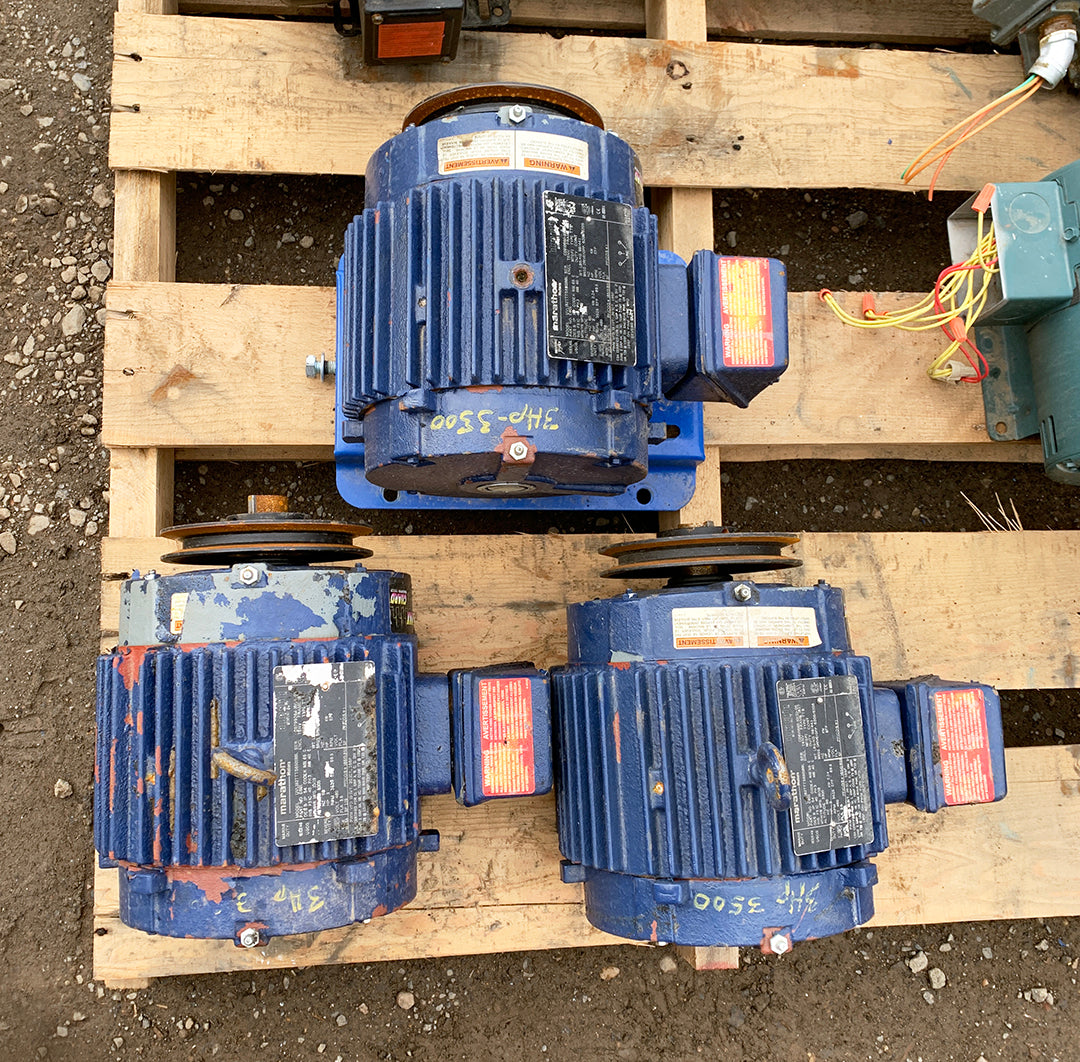

Marathon Severe Duty UVL 182TTTS6501 BBL Motor
Marathon Severe Duty UVL 182TTTS6501 BBL Motor
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Unit price
/
per
Couldn't load pickup availability
Good, working motors!

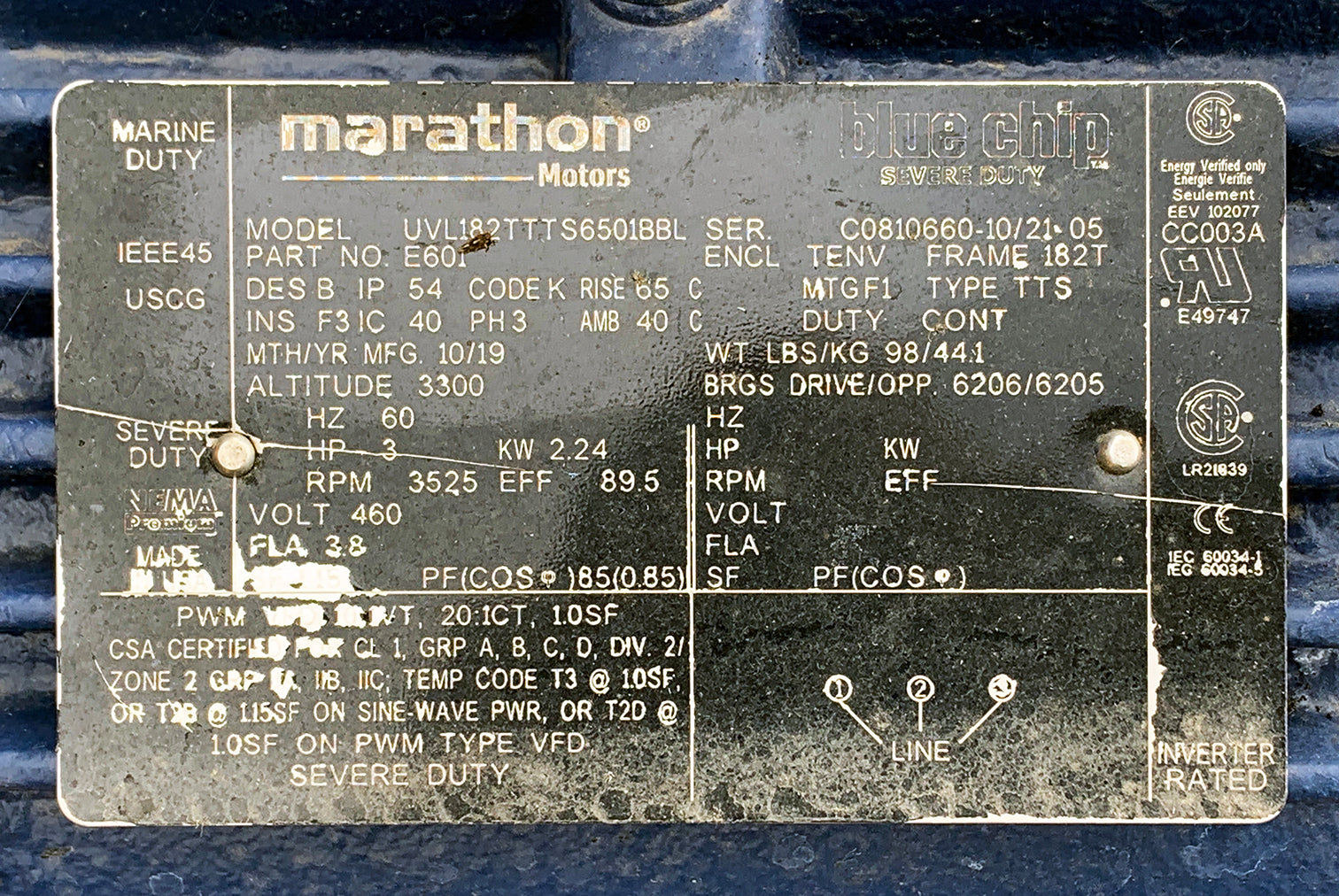

Specs:
- Make: Marathon
- Model: UVL 182TTTS6501 BBL
- Motor Design: 3-Phase
- Phase: Three
- HP: 3
- RPM Range: 3,001-3,600
- Voltage: 460V AC
- Frame: 182T
- Hazardous Location Class: 1 C,D / 2 F,G
- Motor Thermal Protection: None
- Motor Enclosure Design: Totally Enclosed Nonventilated
- Motor Mounting Type: Rigid Base
- Overall Length: 12 13/16 in
- Nameplate RPM: 3,525
- Shaft Dia.: 1 1/8 in
- Full Load Amps: 3.5
- Item: Severe Duty Motor
- Hz: 60
- Motor Bearings: Ball
- Shaft Length: 2 3/4 in
- Includes: Max Guard Insulation
- CC Number: CC003A
- Motor Shaft Rotation: CW/CCW
- Motor Efficiency Group: NEMA Premium Efficient
- Motor Frame Material: Cast Iron
- Duty: Continuous
- Length Less Shaft: 10 1/16 in
- Motor Shaft Design: Keyed
- Ins. Class: F
- Nominal Efficiency: 89.5 %
- Frame Material: Cast Iron
- Max. Ambient Temp.: 40 Degrees C
- Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
- Standards: CSA (LR2025), UL (E49747)
- RPM Group: 3001-3600
- No. of Speeds: 1
- Motor Service Factor: 1.15
- Motor Application: General Application
- Green Certification or Other Recognition: NEMA Premium(R) Rated
- NEMA Design: B
- Weight: 103 lb
- Inverter Rated: Yes
- Motor Mounting Position: Horizontal
- Usable @ 208V: No
- Usable @ 200V: No
- Duty Cycle: Continuous
