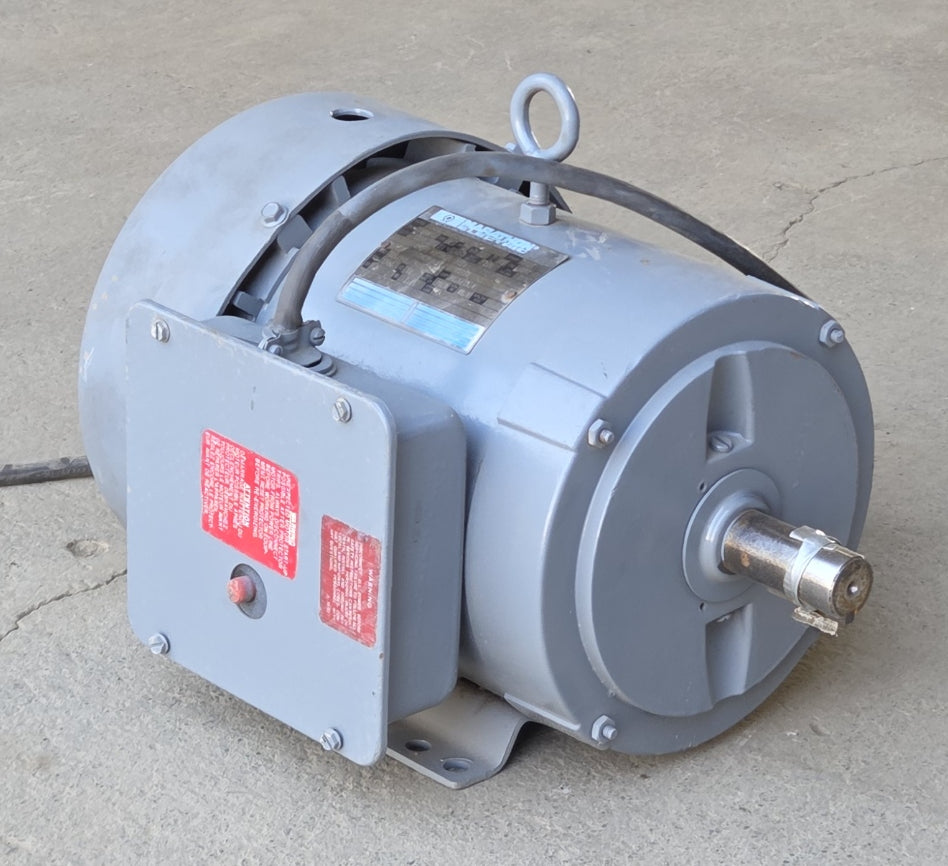

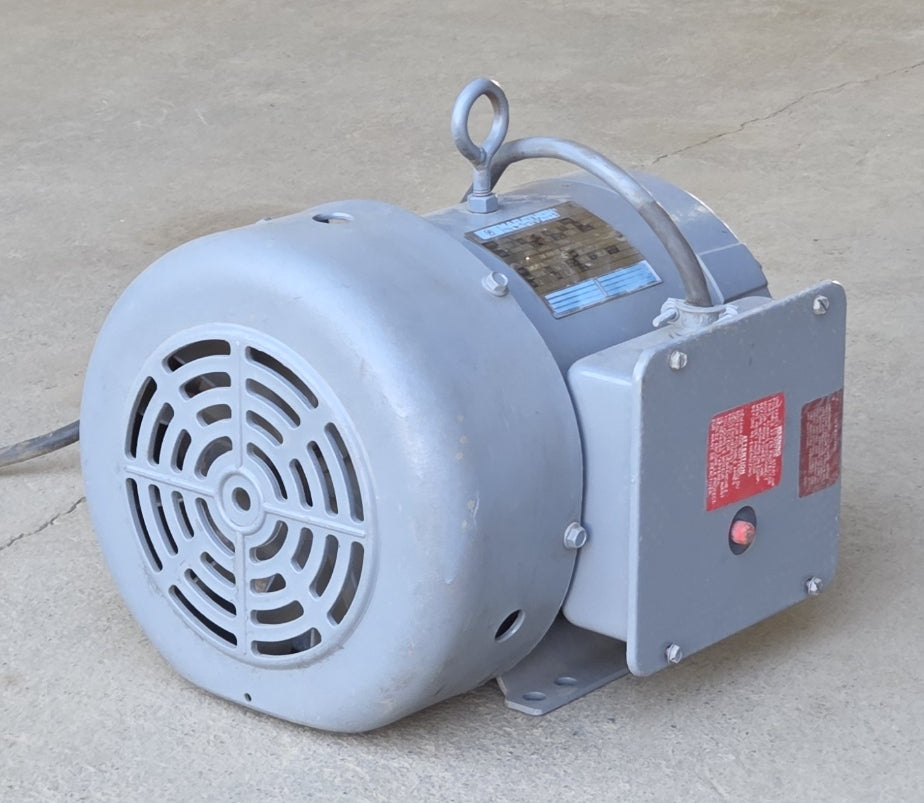

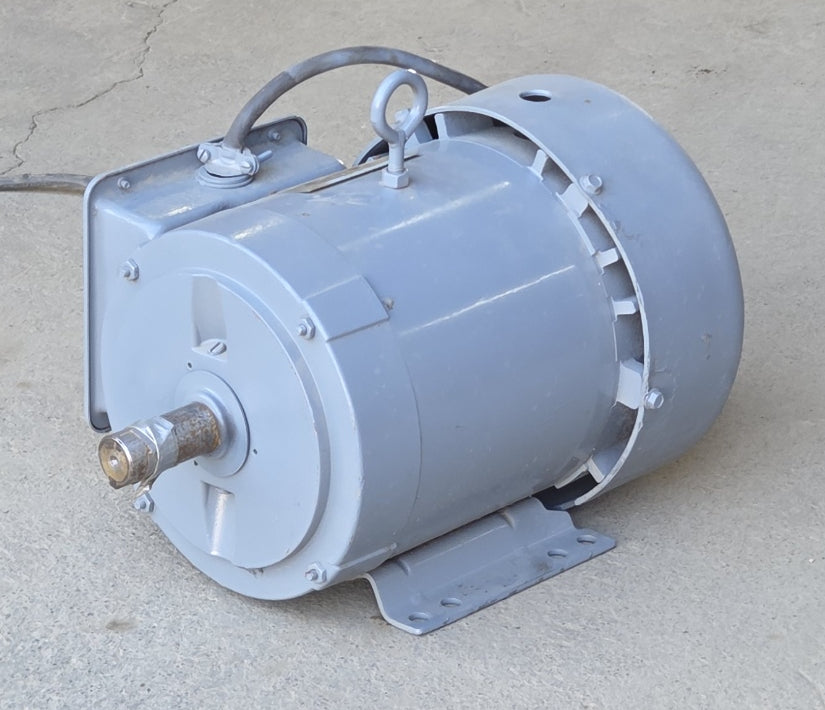

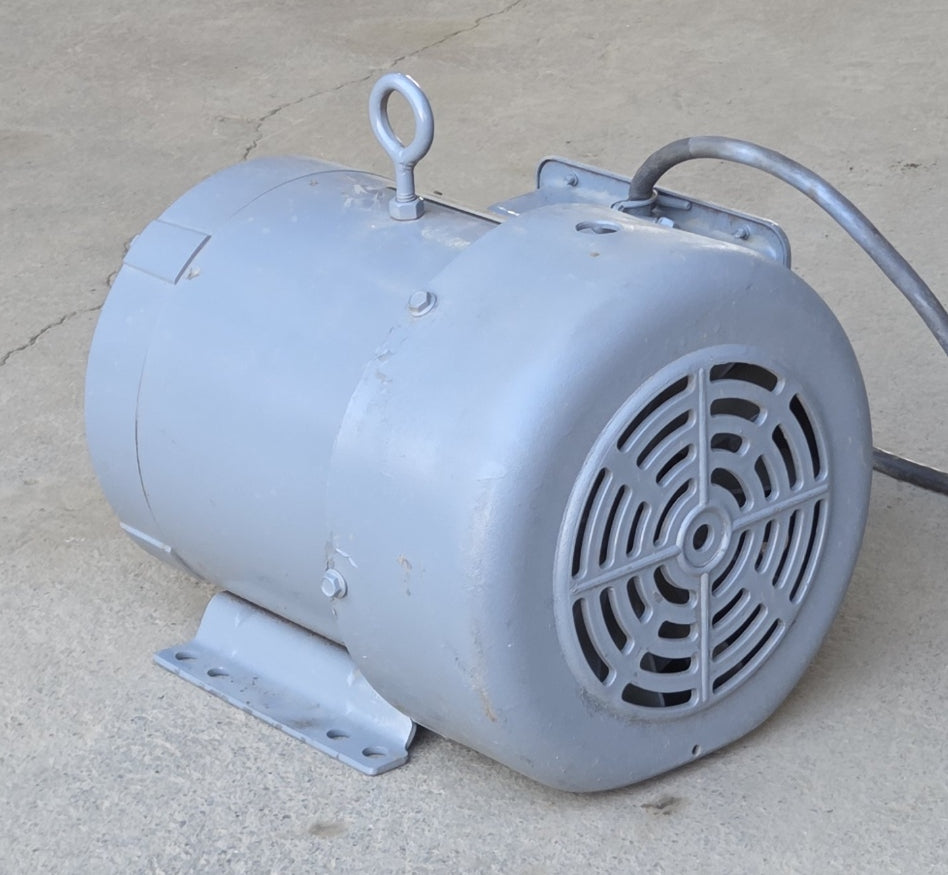

Marathon Electric 2 HP Single Phase Motor 115/230V 1720 RPM

Removed in working condition

• Brand: Marathon Electric

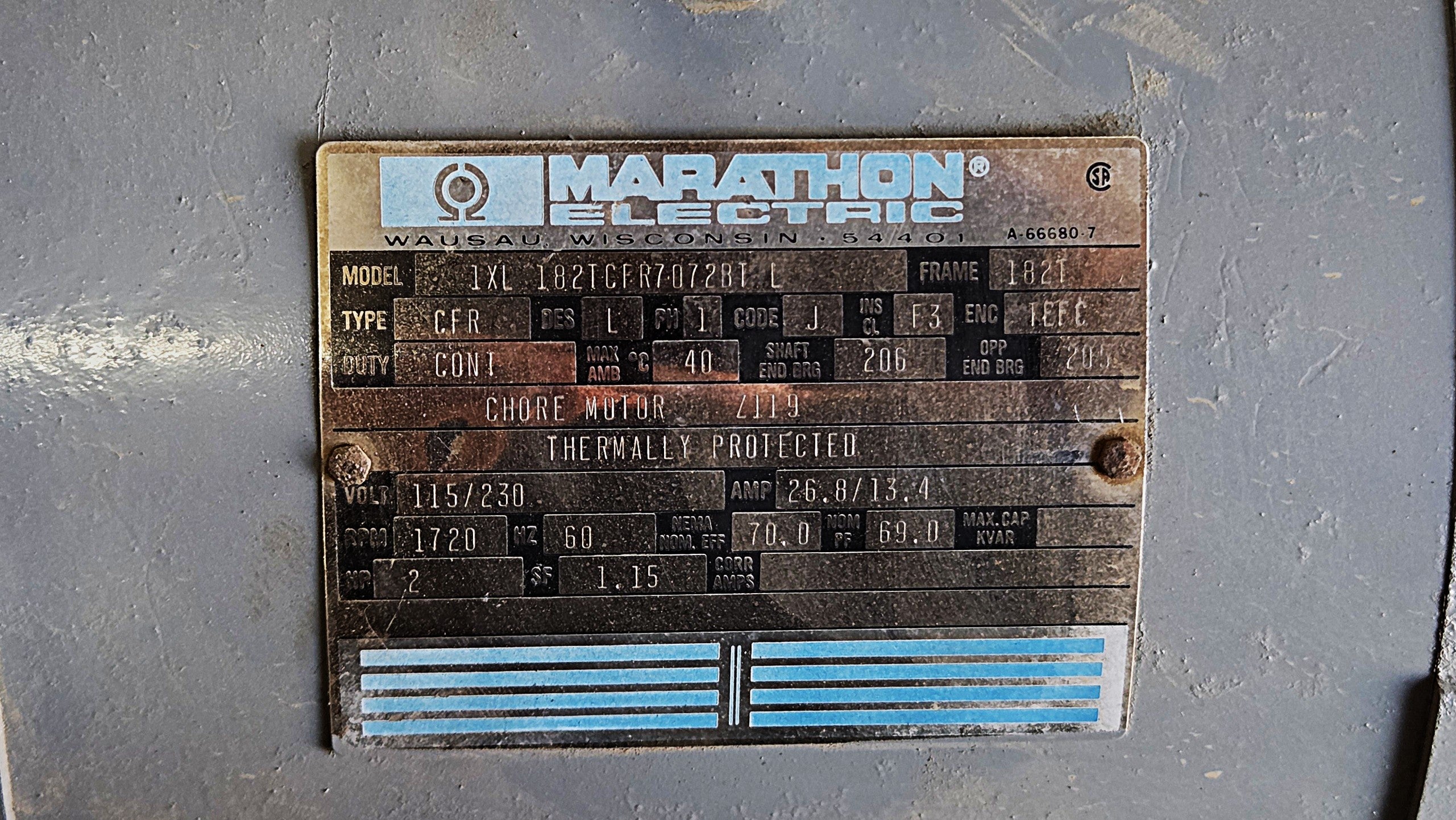

• Model Number: 1XL 182TCFR7072BT L

• Designation: Chore Motor Z119

• Horsepower: 2 HP

• Frame Size: 182T (C-face compatible)

• Voltage: 115 / 230 V

• Phase: 1-Phase (PH 1)

• Full Load Amps: 26.8 / 13.4 A

• Speed: 1720 RPM

• Frequency: 60 Hz

• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

• Duty Cycle: Continuous (CONT)

• Service Factor: 1.15

• Thermal Protection: Thermally Protected (Manual Reset)

• Type / Design: CFR / Design L

• Code / Insulation Class: Code J / Class F3

• Nominal Efficiency: 70.0%

• Power Factor: 69.0%

• Housing Material: Cast iron and heavy steel housing painted industrial gray

• Shaft: Standard keyed drive shaft (taped for shaft protection)

• Mounting: Rigid base with slotted mounting holes and C-face flange pattern

• Junction Box: Side-mounted conduit box with red manual thermal reset button

• Lifting Eye: Top-mounted eye bolt
