New / 2022 Stock - Never Installed! - Lincoln Prism 8 Electric Weld Fume Control System {CDA}

New / 2022 Stock - Never Installed! - Lincoln Prism 8 Electric Weld Fume Control System {CDA}

Regular price $80,000.00 USD
Regular price Sale price $80,000.00 USD
Sale Sold out

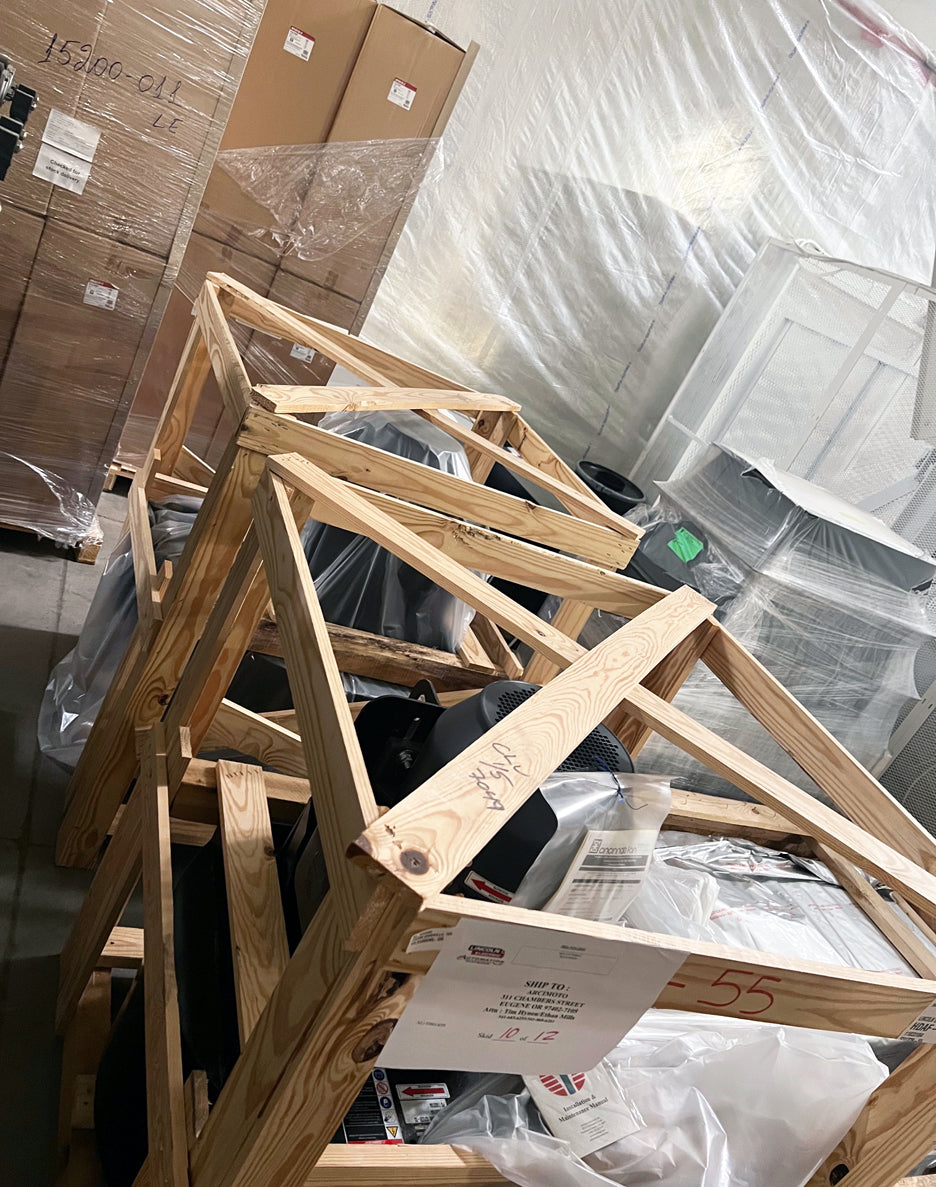

  • New / 2022 Stock (never installed)
  • Serial #: U6220600022
  • (11) Welding Stations Including:

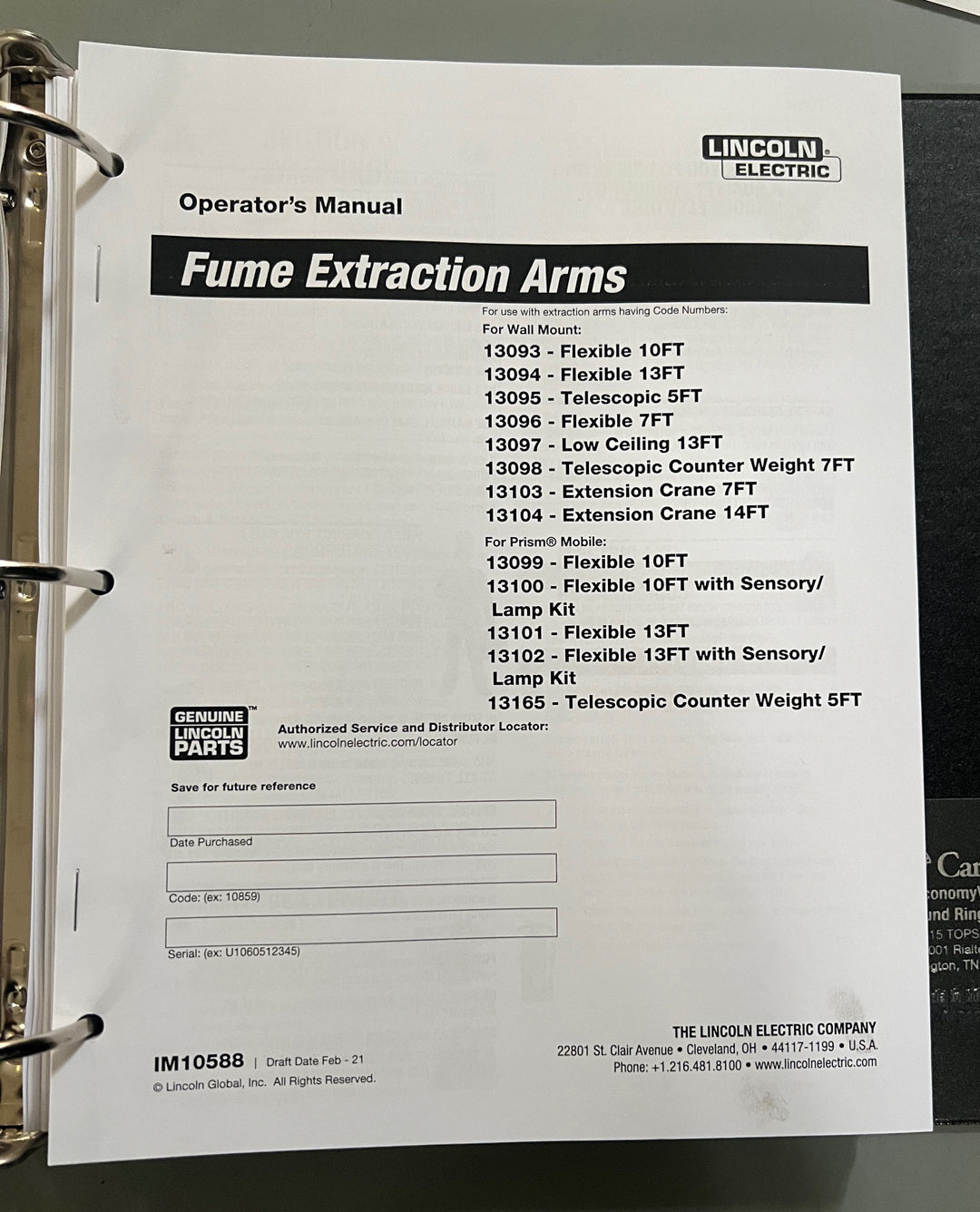

    • (6) Prism Wall Mount Fume Arms,
    • (4) Auto Control Kits for 7.5' x 16' Hoods
    • (1) Auto Control for 13' x 16' Hood

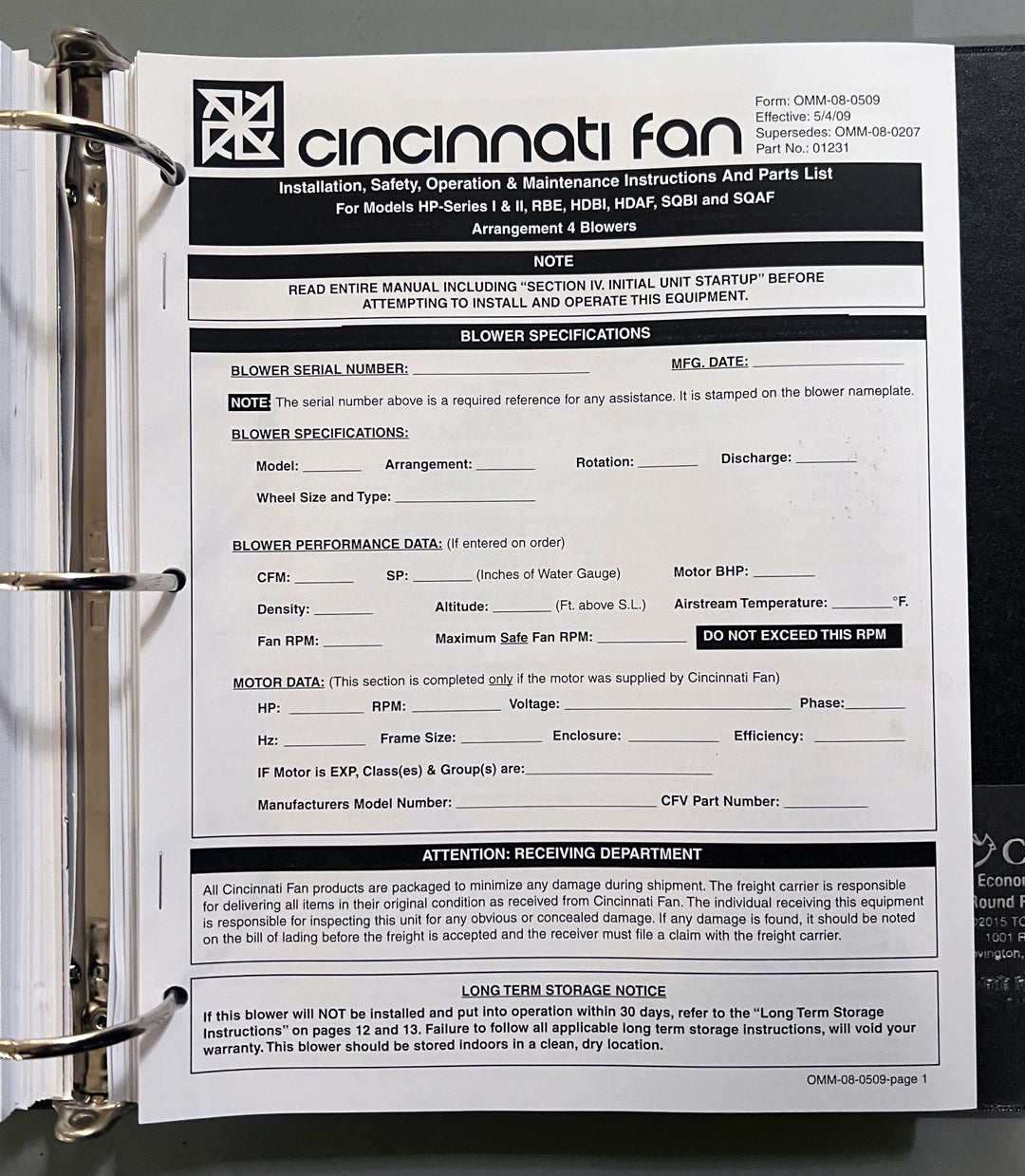

    • (2) Cincinnati Fan HDAF-200 30-HP Blowers

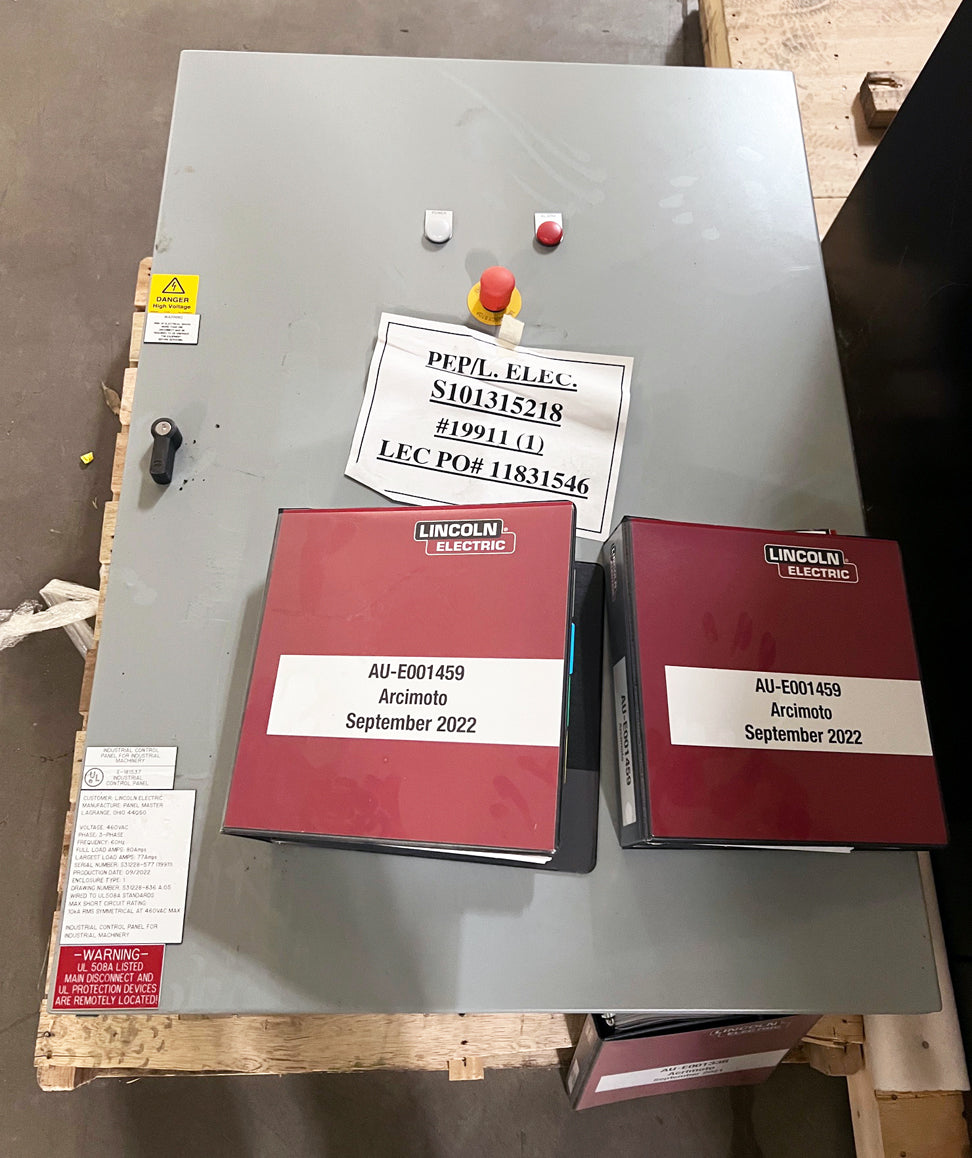

    • HMI/PLC Controller
    • Interface Control

From Lincoln Electric:

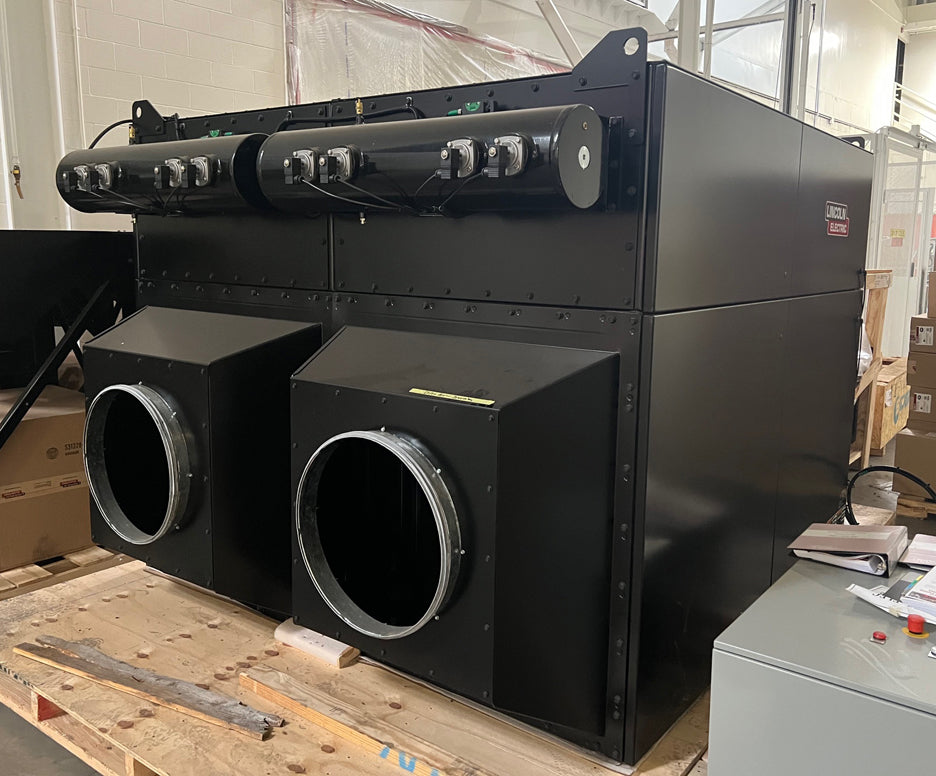

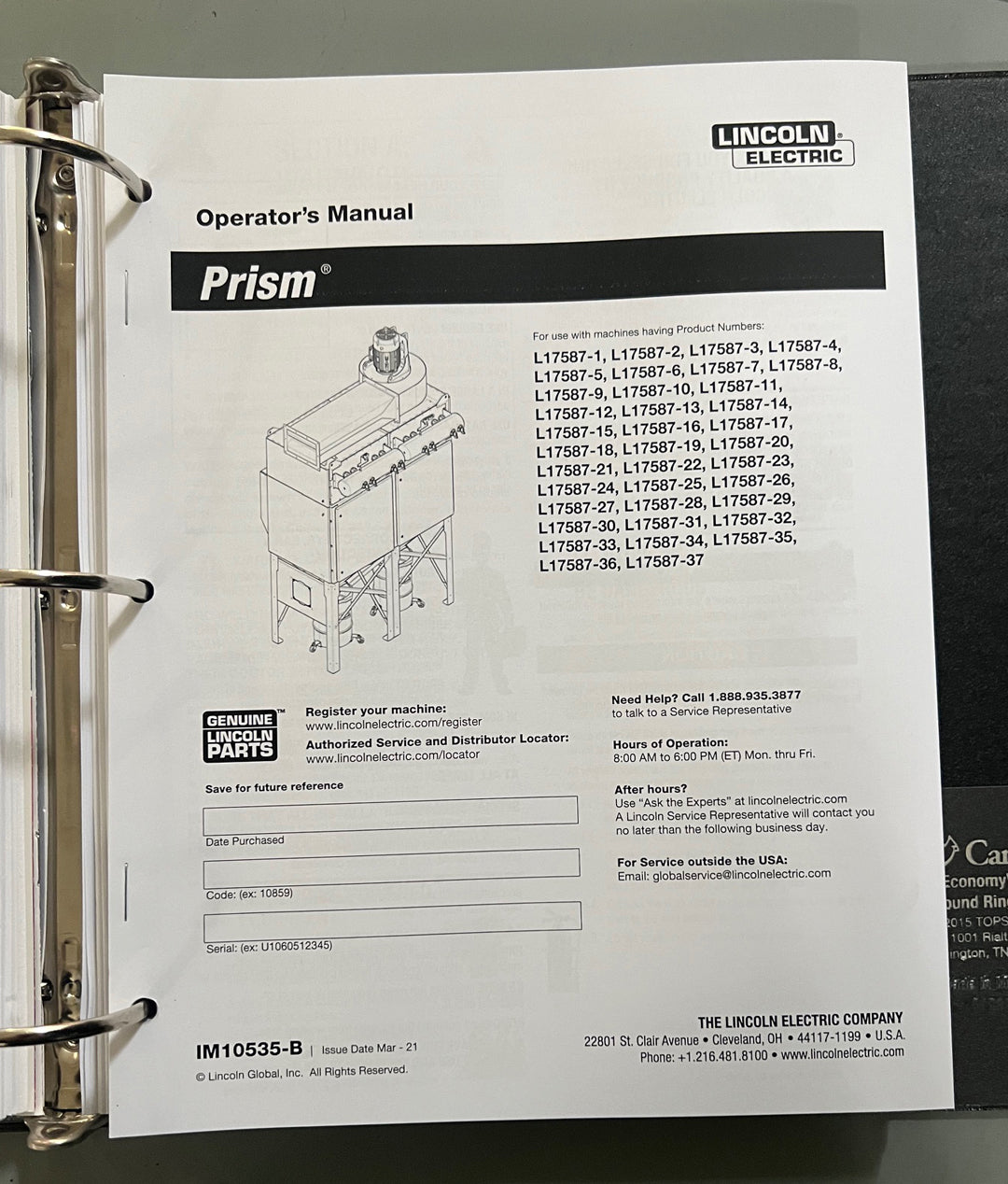

The Prism fume extraction system is a reduced-footprint fan/filtration unit combination designed with robotic welding and plasma cutting systems in mind. The 4-bank vertically positioned filter configuration can provide extraction capacity for any automated system equipped with a hood or can connect easily to plasma cutting tables.

Small Footprint

  • The small footprint takes up less floor space than competitive units

Automatic Cleaning

  • System will automatically start cleaning process once pre-set pressure differential is reached
  • Vertical filter orientation allows for more efficient cleaning
  • Particulates will be collected into the 30 gallon dust bin

Quick and Simple Installation

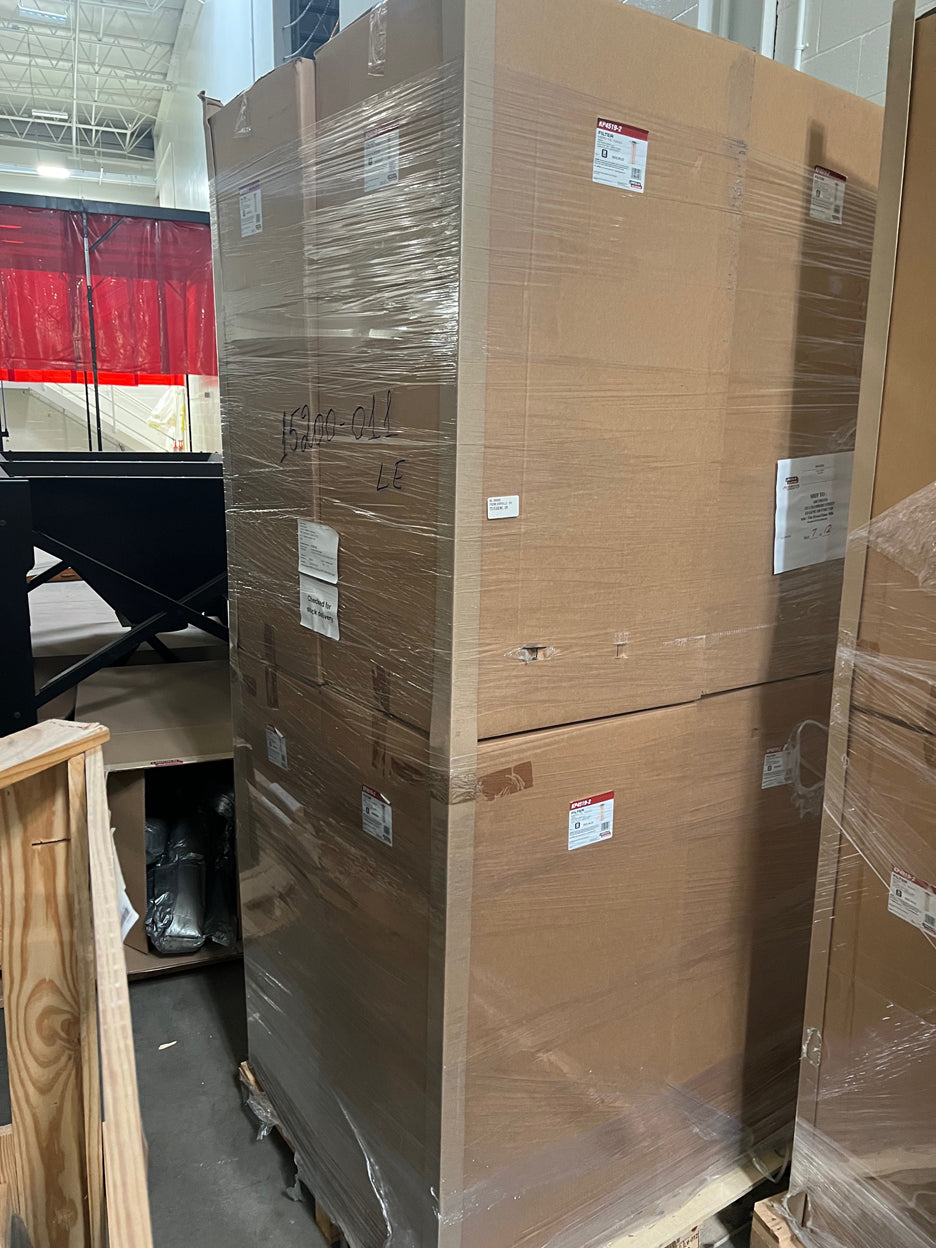

  • Shipped in three pieces over two pallets

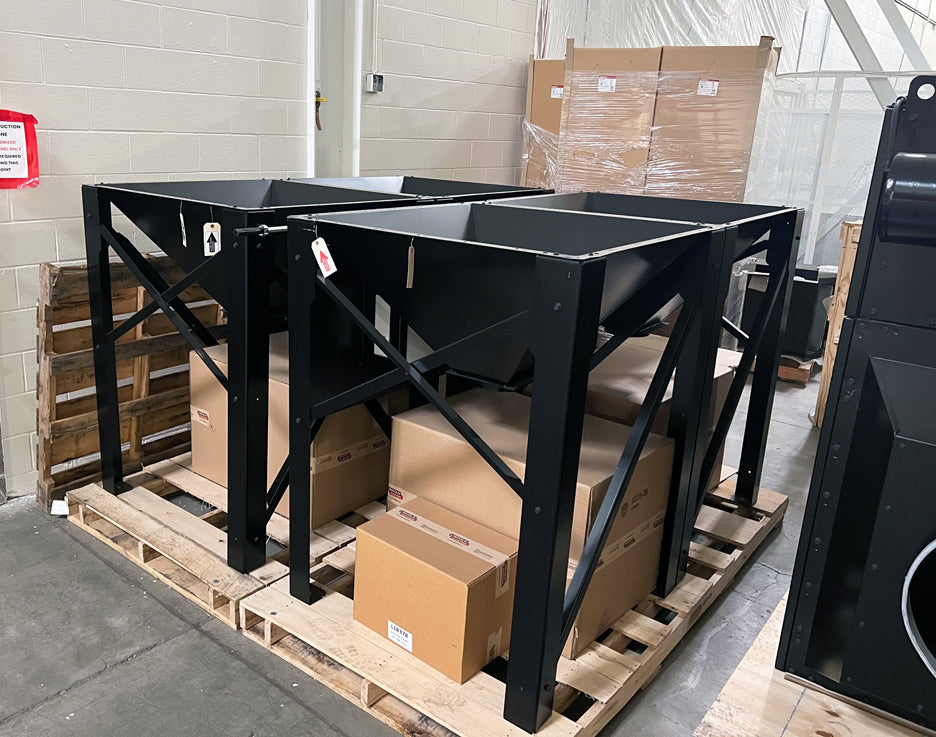

  • Locate and secure base module to floor
  • Fasten upper filter module with pre-installed fan on leg base assembly and secure
  • Lincoln Smart Connect™ technology allows for quick and seamless wire connectivity
  • Position silencer and dust bin
  • Connect power, compressed air and duct sensor for fan speed control

Quiet Operation

  • Silencer on exhaust fan drastically reduces airflow noise

Intelligent Fan Control Technology

  • Equipped with variable speed drive that adjusts extraction airflow to application
  • Variable speed drive regulates fan speed based on filter loading to maximize fume extraction, conserve energy and extend equipment life

*Initial purchase price of system over $110,000

*~ Local Pick-Up or Freight Shipping Only ~*
