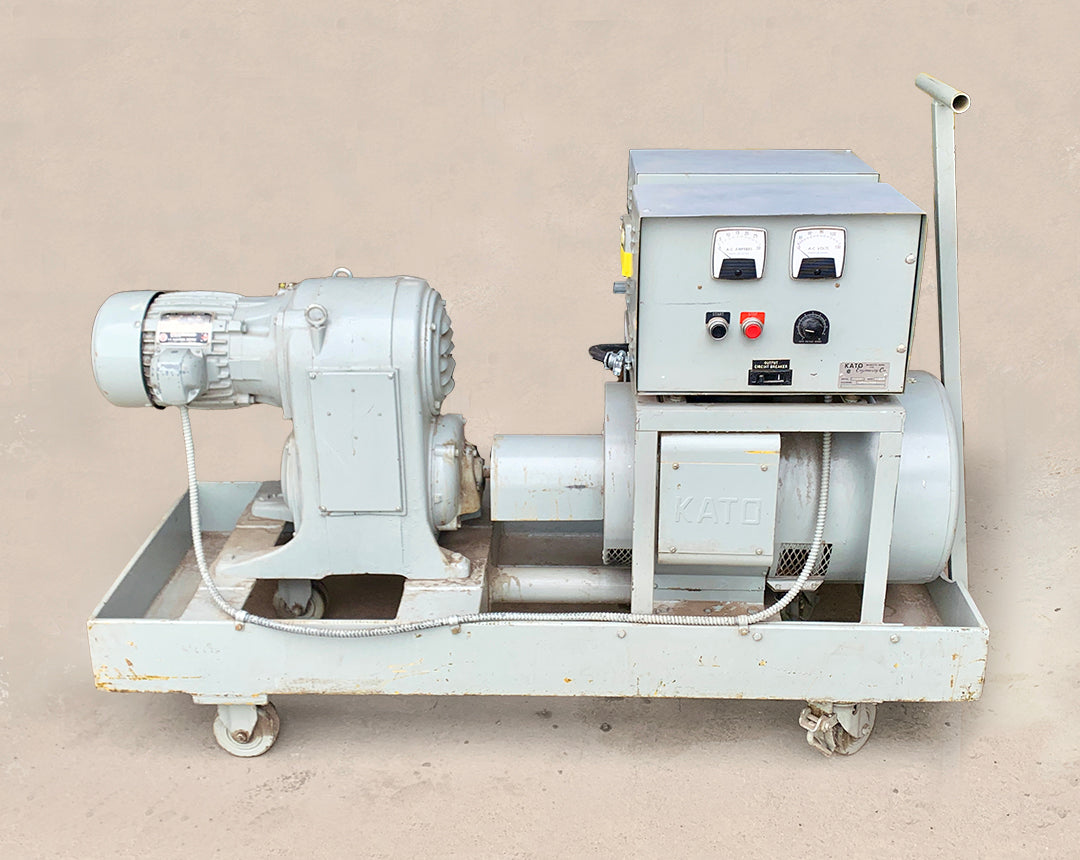

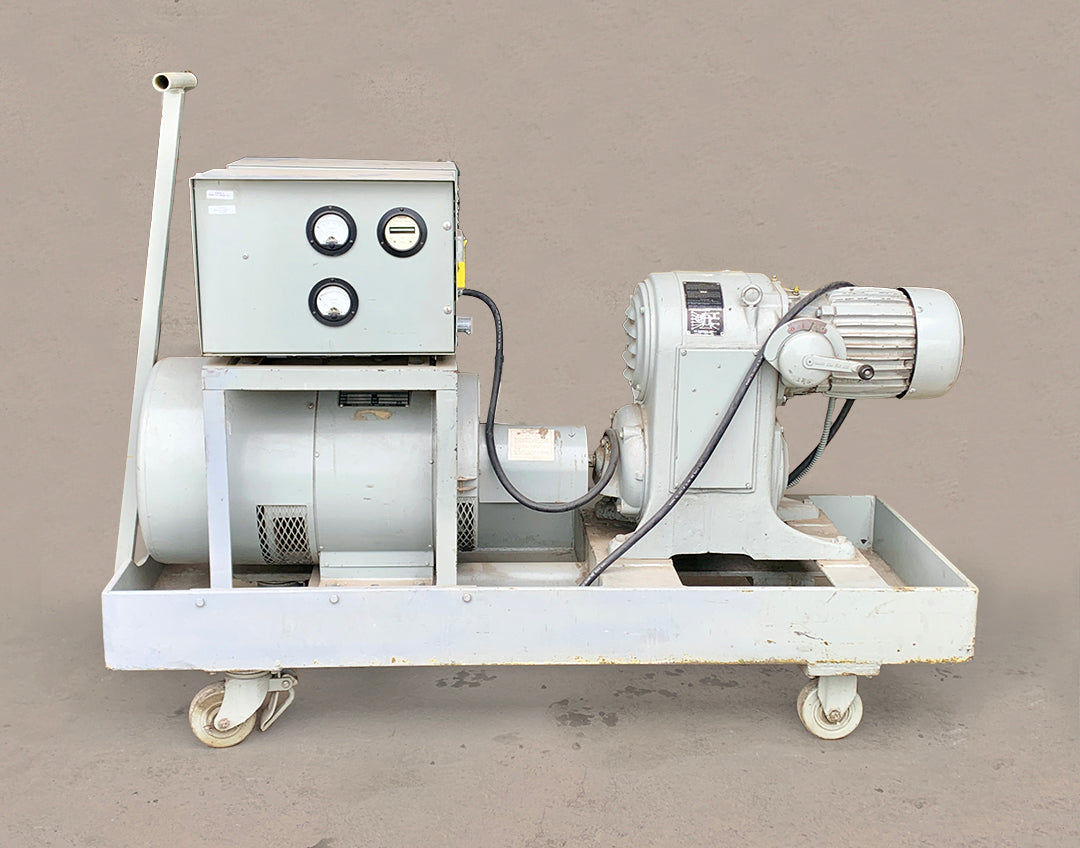

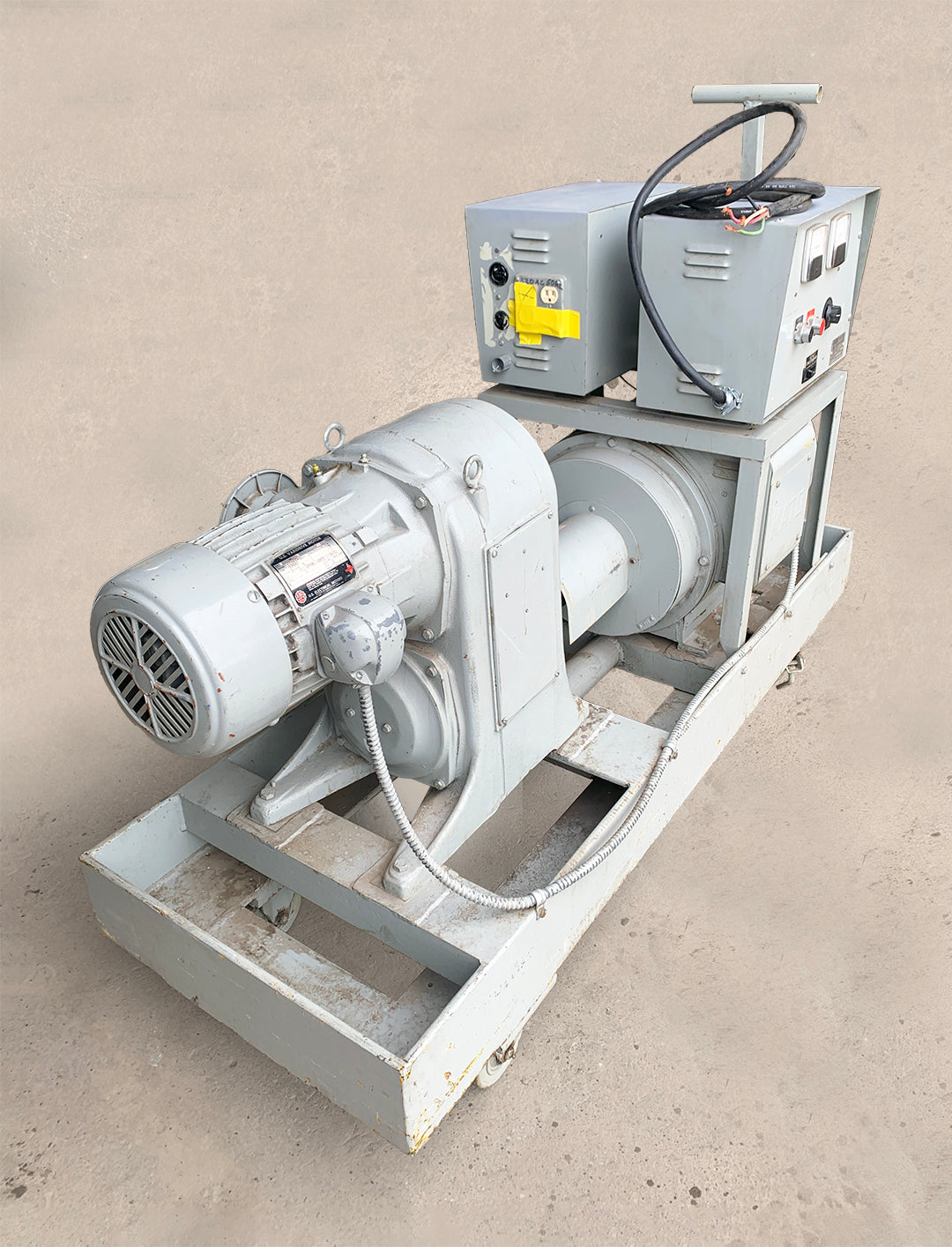

Industrial motor-generator set for converting 60HZ, 3-phase, 208VAC to 50HZ. The Varidrive generator Motor spans 1730 to 1075 rpm which allows fine tuning the 50HZ setting. Motor-Generator unit is on casters with a handle for positioning.
• Measures 50" L X 48" W X 69" H
• Weighs approx. 500 lbs

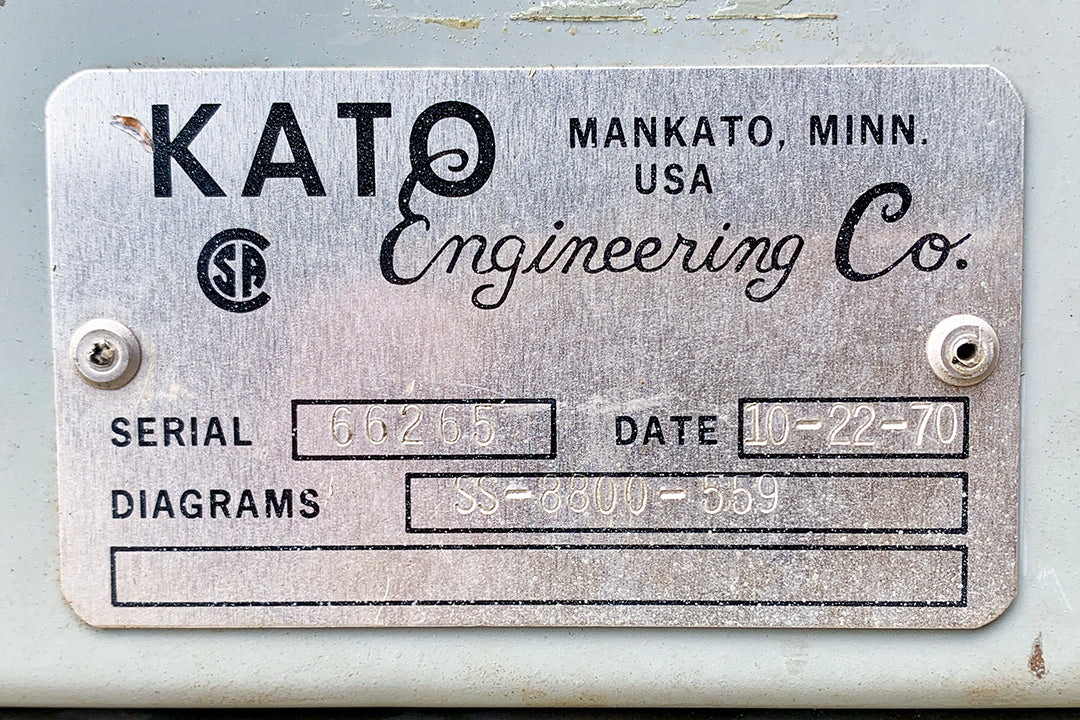

Kato Tag:
• Serial #: 66265
• Date: 10/22/70
• Diagrams: SS-8800-559

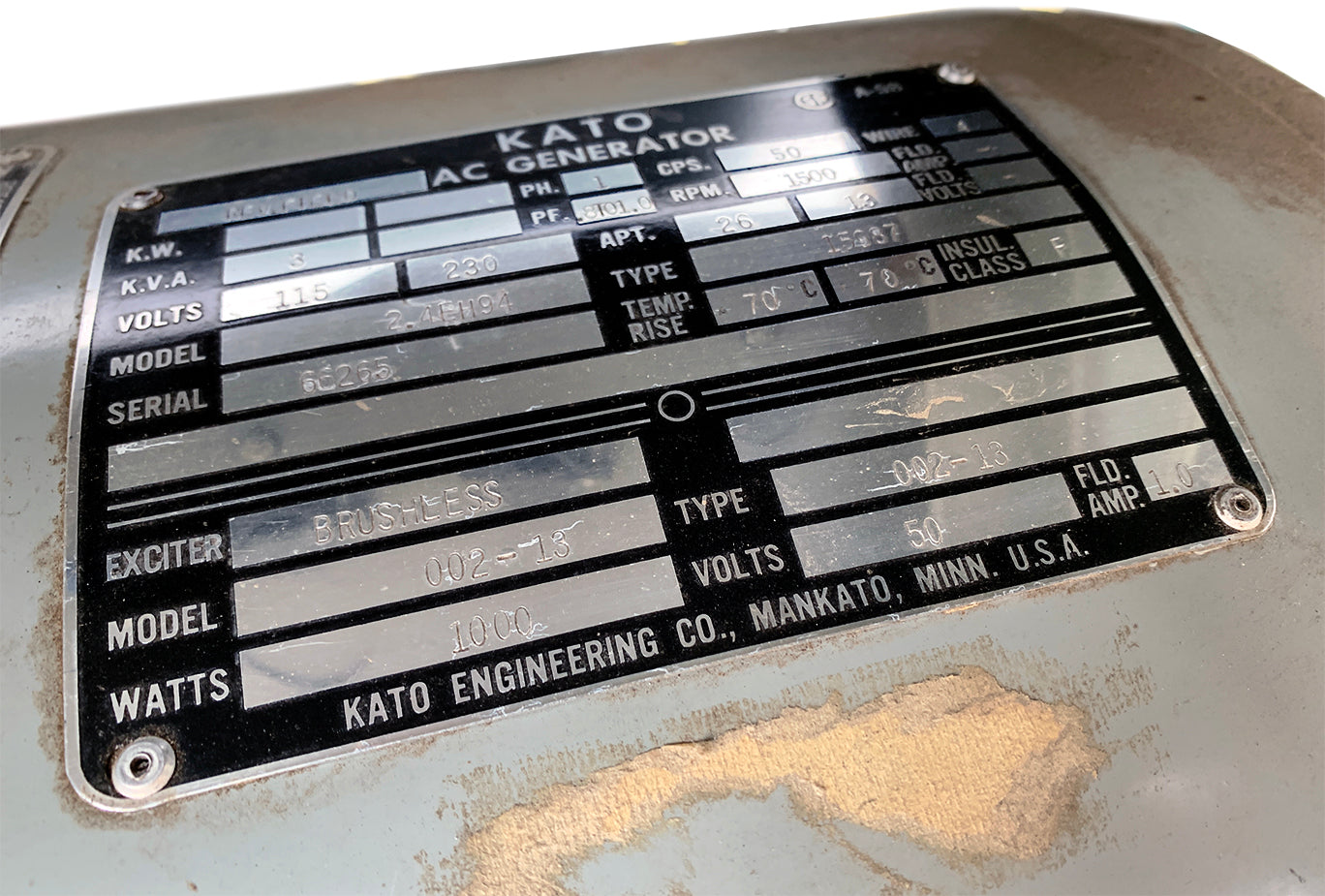

Kato AC Generator Tag:
• REV. FIELD
• Phase: 1
• CPS.: 50
• Wire: 4
• K.V.A.: 3
• PF.: .8T01.0
• RPM: 1500
• Volts: 115 / 230
• APT.: 26 / 13
• Model: 2.4EH94
• Type: 15987
• Serial: 66265
• Temp. Rise: A) 70° C F) 70° C
• Insul. Class: F
• Exciter: Brushless
• Model: 002-13
• Type: 002-13
• Watts: 1000
• Volts: 50
• FLD. AMP.: 1.0

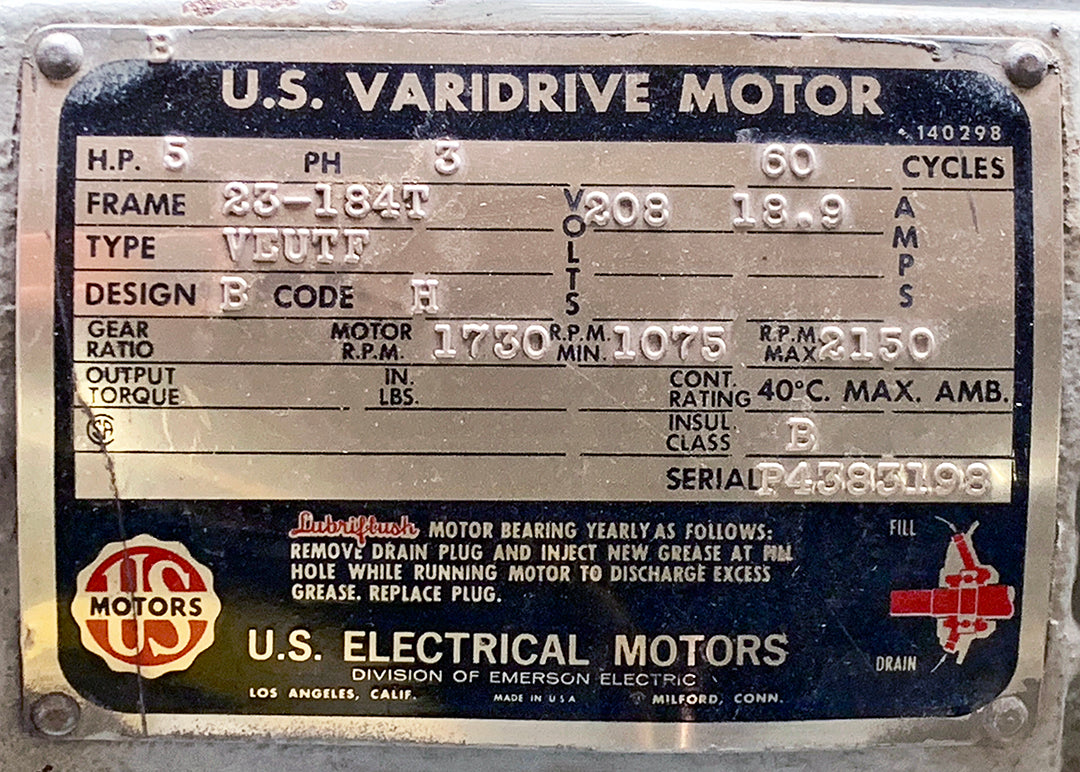

US Varidrive Motor Tag:
• US Electrical Motors / Emerson Electric
• HP: 5
• PH: 3
• Cycles: 60
• Frame: 23-184T
• Volts: 208
• Amps: 18.9
• Type: VEUTF
• Design: B
• Code: H
• Motor RPM: 1730
• RPM Min.: 1075
• PRM Max.: 2150
• Insul. Class: B
• Serial #: P4383198
