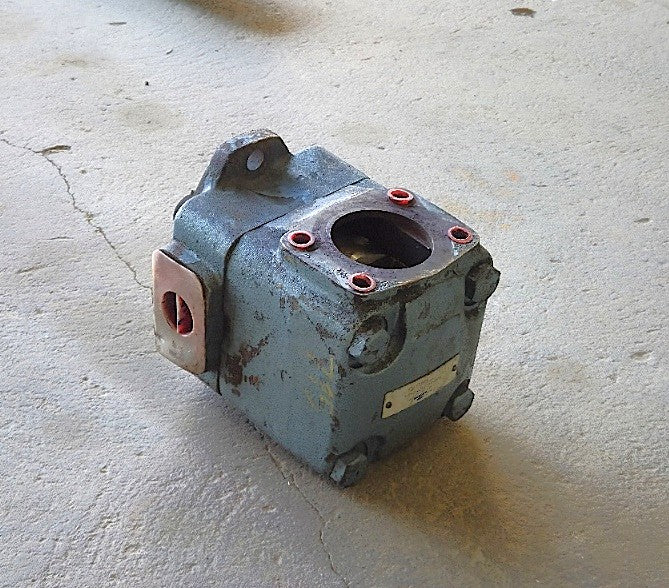

• Angled view of the blue cast iron Metaris hydraulic vane pump showing the SAE 4-bolt port with red seal rings and heavy-duty housing

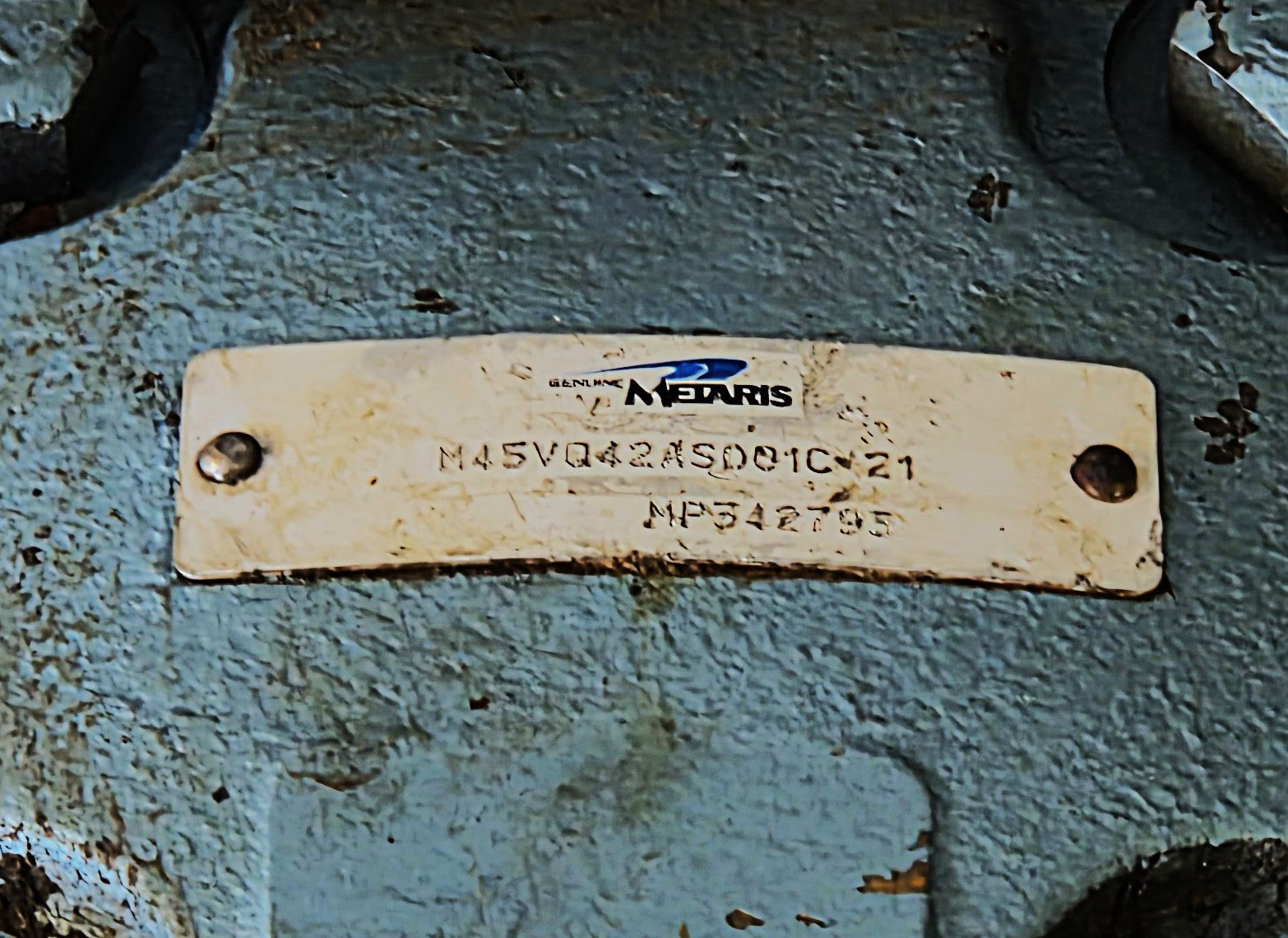

  • Manufacturer data plate secured to the blue casing reading Genuine Metaris, M45VQ42ASD01C-21, and MP342795.
1 7

Genuine Metaris

Genuine Metaris M45VQ Series Cast Iron Hydraulic Pump SAE 4-Bolt

Genuine Metaris M45VQ Series Cast Iron Hydraulic Pump SAE 4-Bolt

$500.00 USD
$500.00 USD
Sale Sold out

Removed in working condition

  • Brand: Genuine Metaris
  • Model Number: M45VQ42ASD01C-21 (M45VQ42A Series)
  • Secondary Number: MP342795
  • Pump Type: Single Fixed Displacement Vane Pump
  • Displacement / Flow Rate: 42 GPM (nominal)
  • Interchangeability: Direct drop-in for Vickers 45VQ series
  • Housing Material: Cast iron (painted blue)
  • Mounting Flange: SAE C 2-bolt

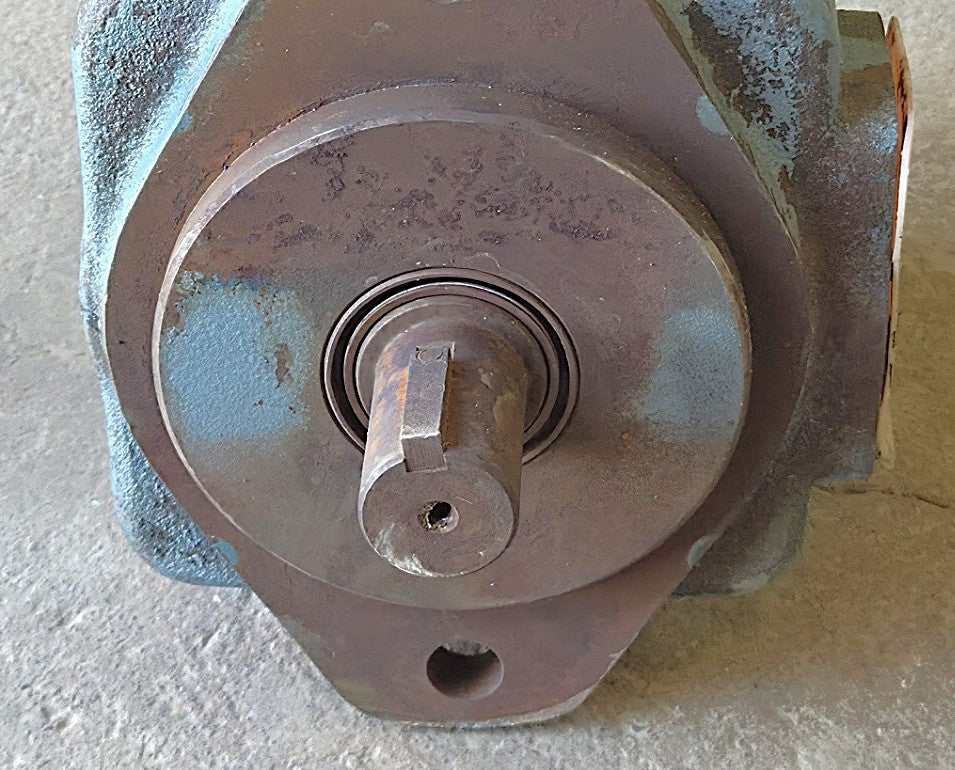

  • Drive Shaft: Straight keyed shaft

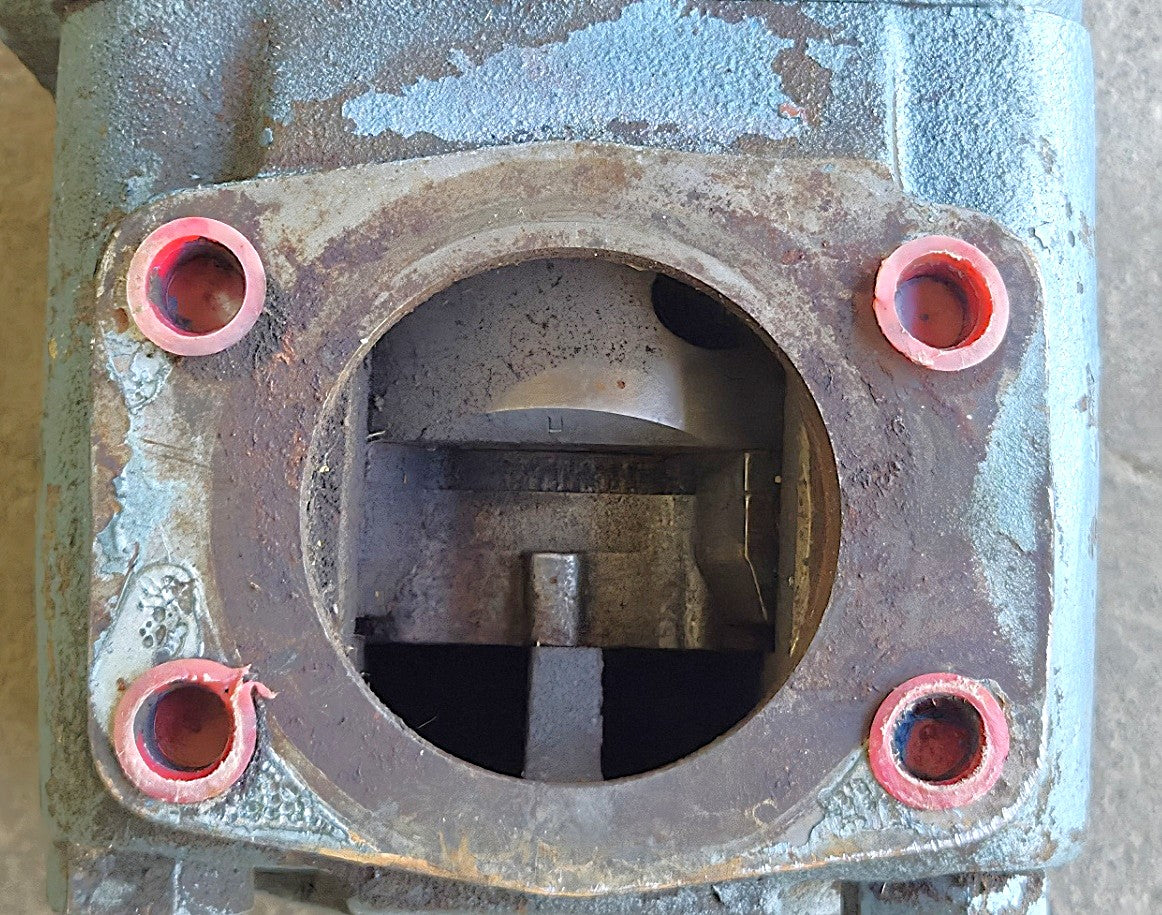

  • Port Connections: SAE 4-bolt flange (inlet and outlet) with red protective seal rings
