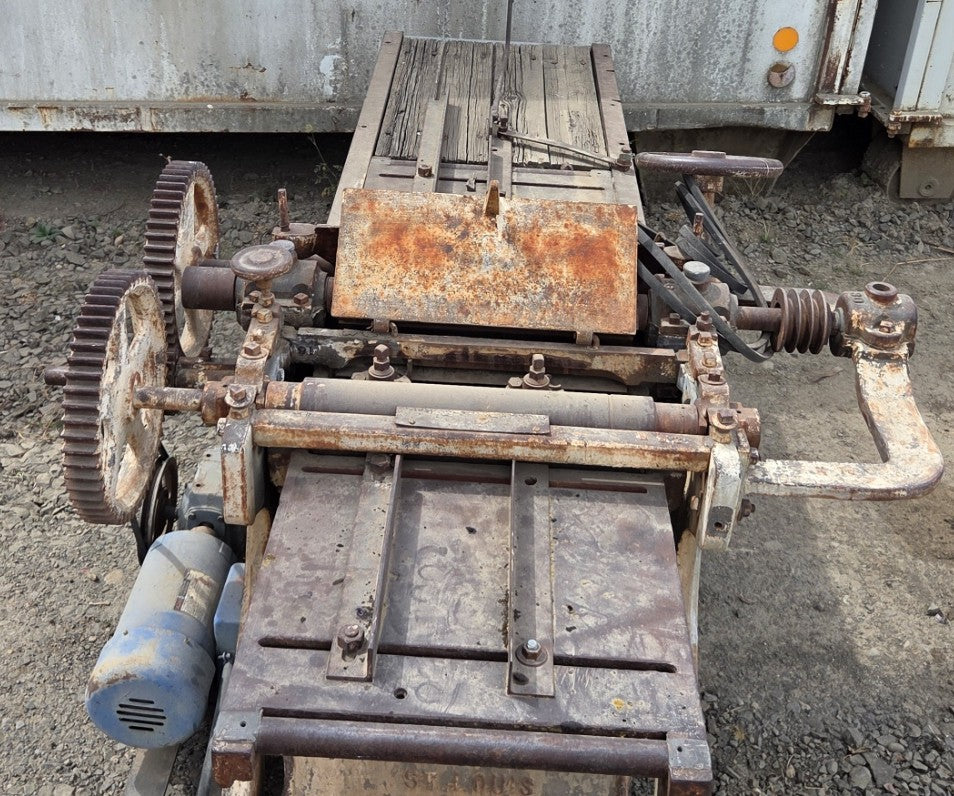

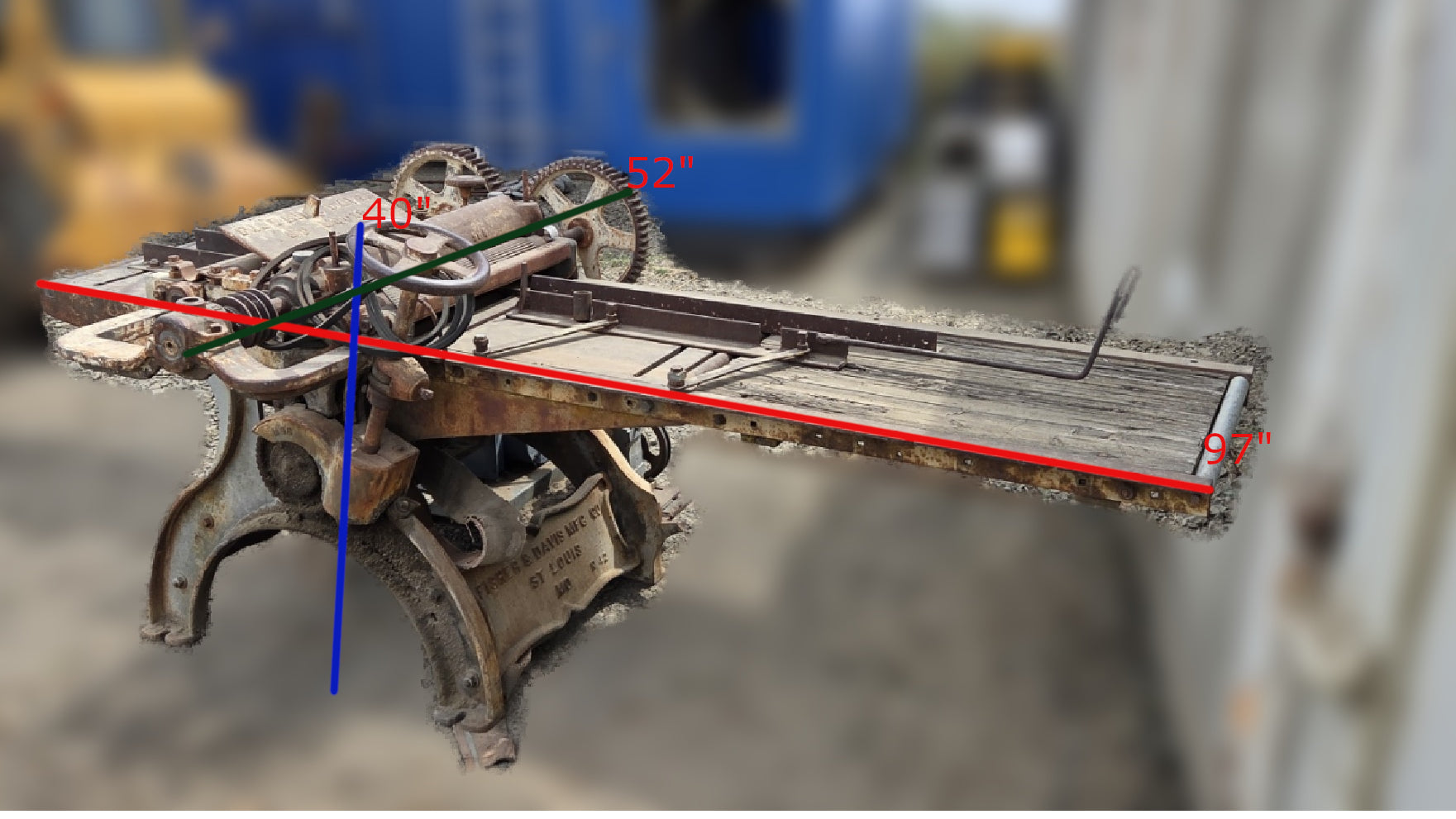

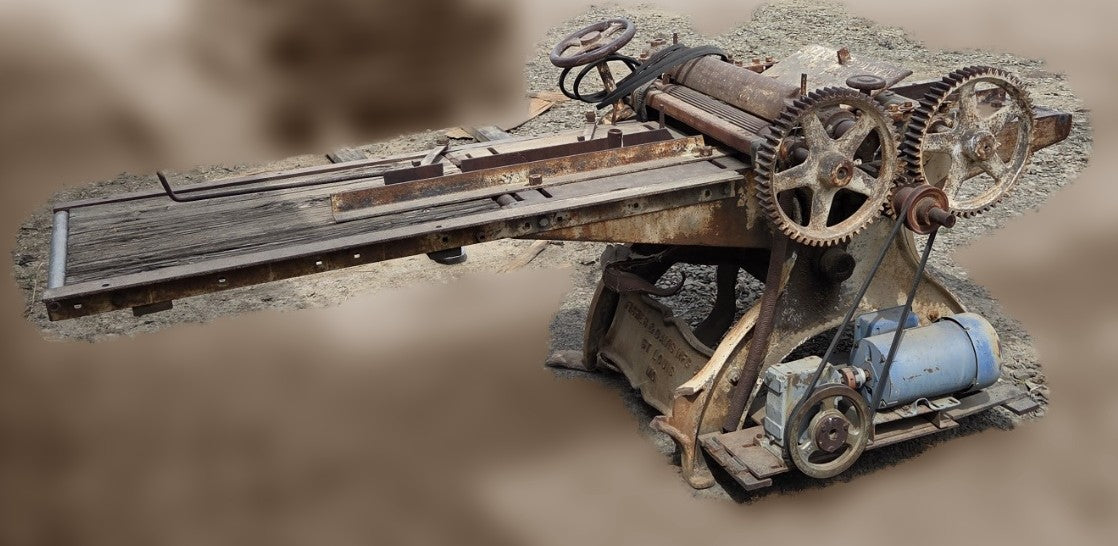

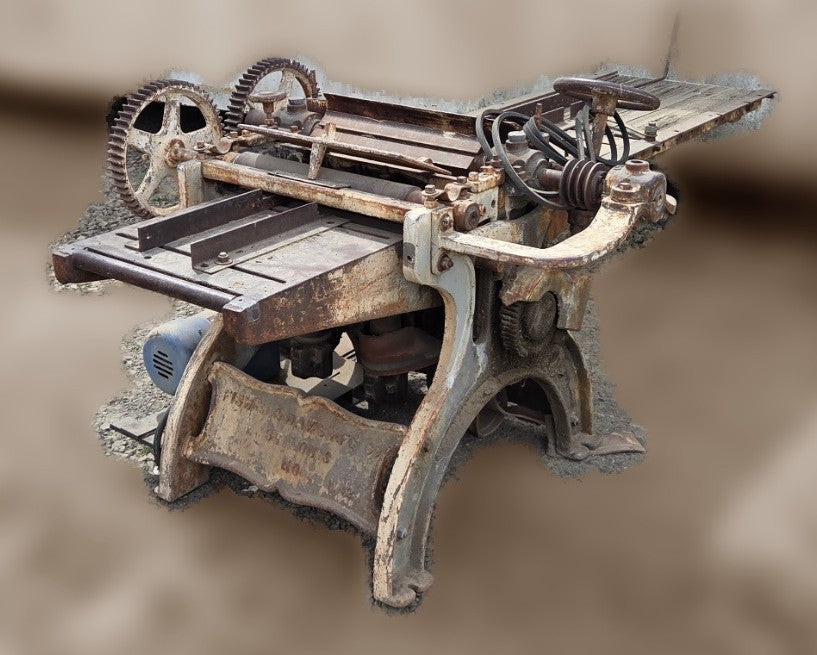

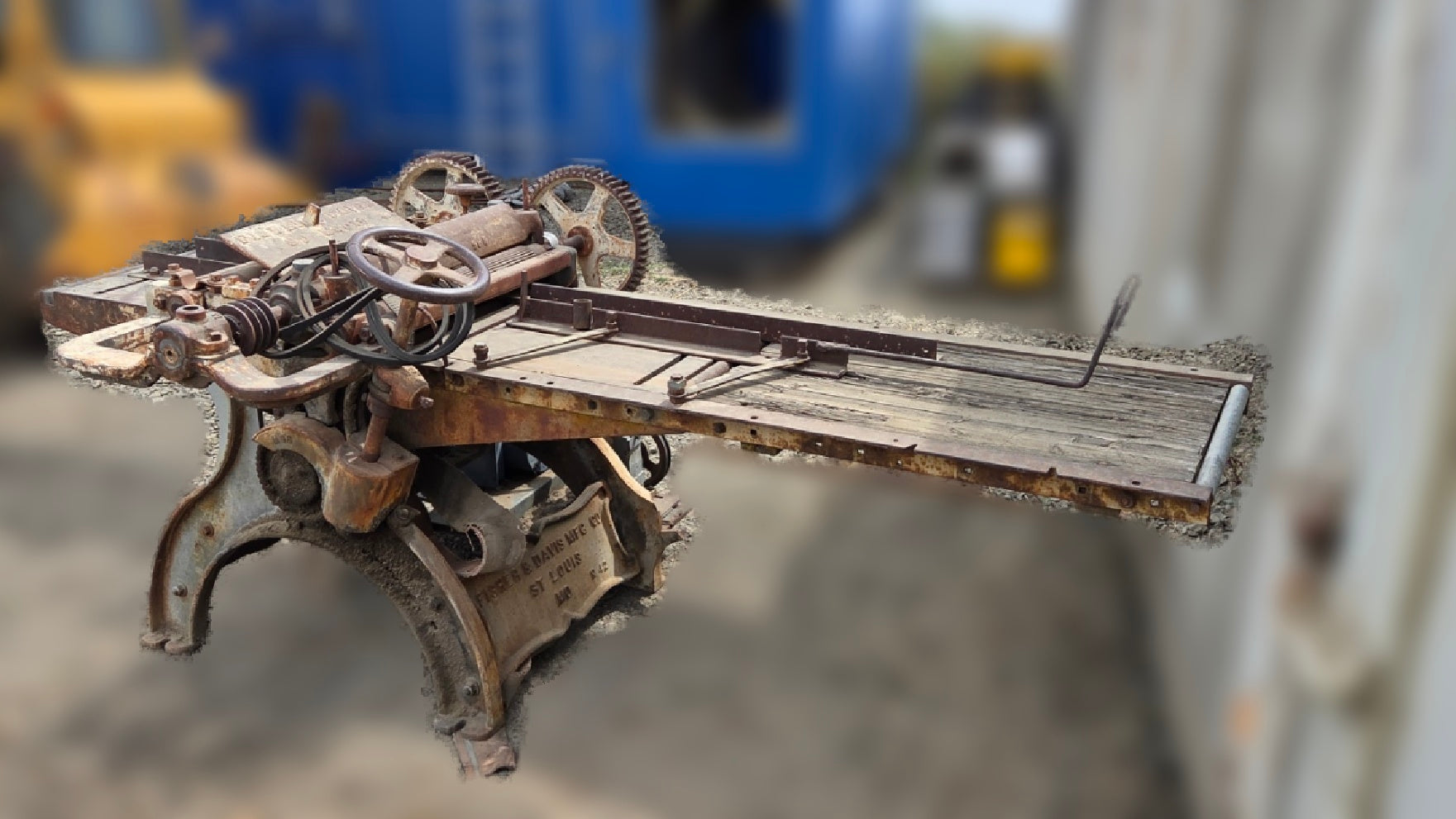

Fisher & Davis No 42 Industrial Power Feed Table Dodge 30:1 Reducer

Removed in working condition

• Brand: Fisher & Davis Mfg. Co. (St. Louis, MO)

• Casting Model / Part Number: N 42

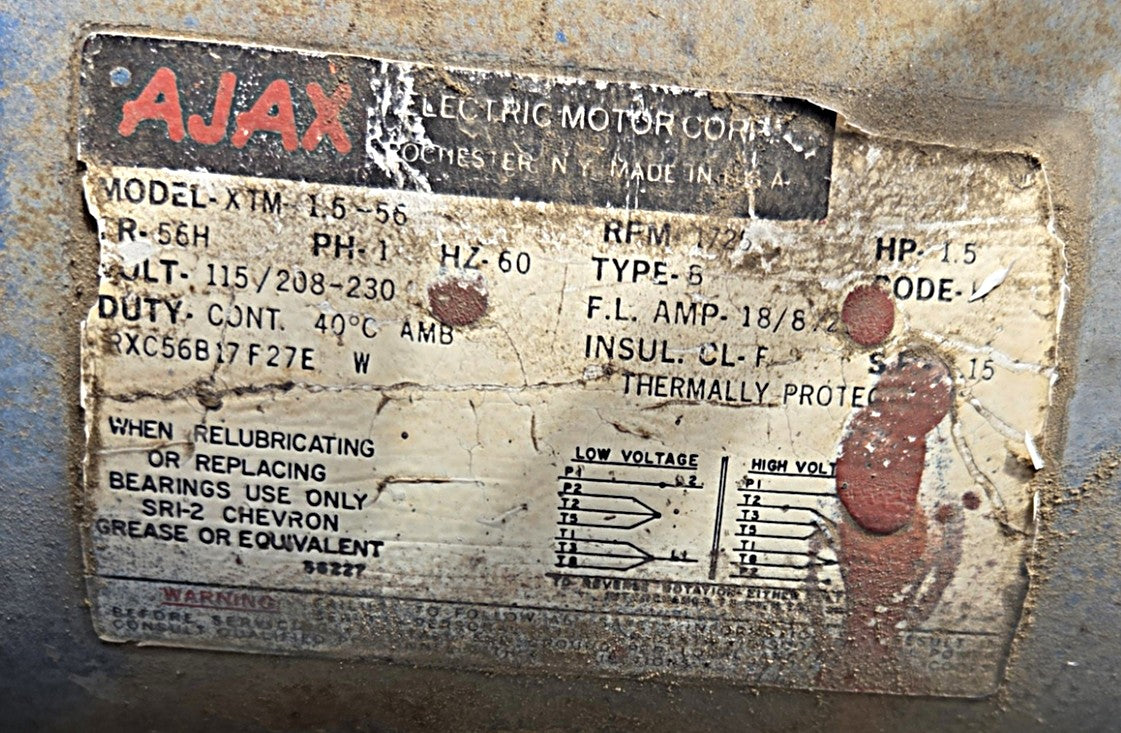

• Electric Motor Brand: Ajax Electric Motor Corp. (Rochester, NY)

• Motor Model: XTM 1.5-56 / RXC56B17F27EW

• Motor Horsepower: 1.5 HP

• Motor Voltage: 115 / 208-230 Volts AC

• Motor Phase / Frequency: 1 Phase / 60 Hz

• Motor Speed: 1725 RPM

• Motor Frame: 56H

• Motor Full Load Amps: 18 / 8.7-9.0 Amps

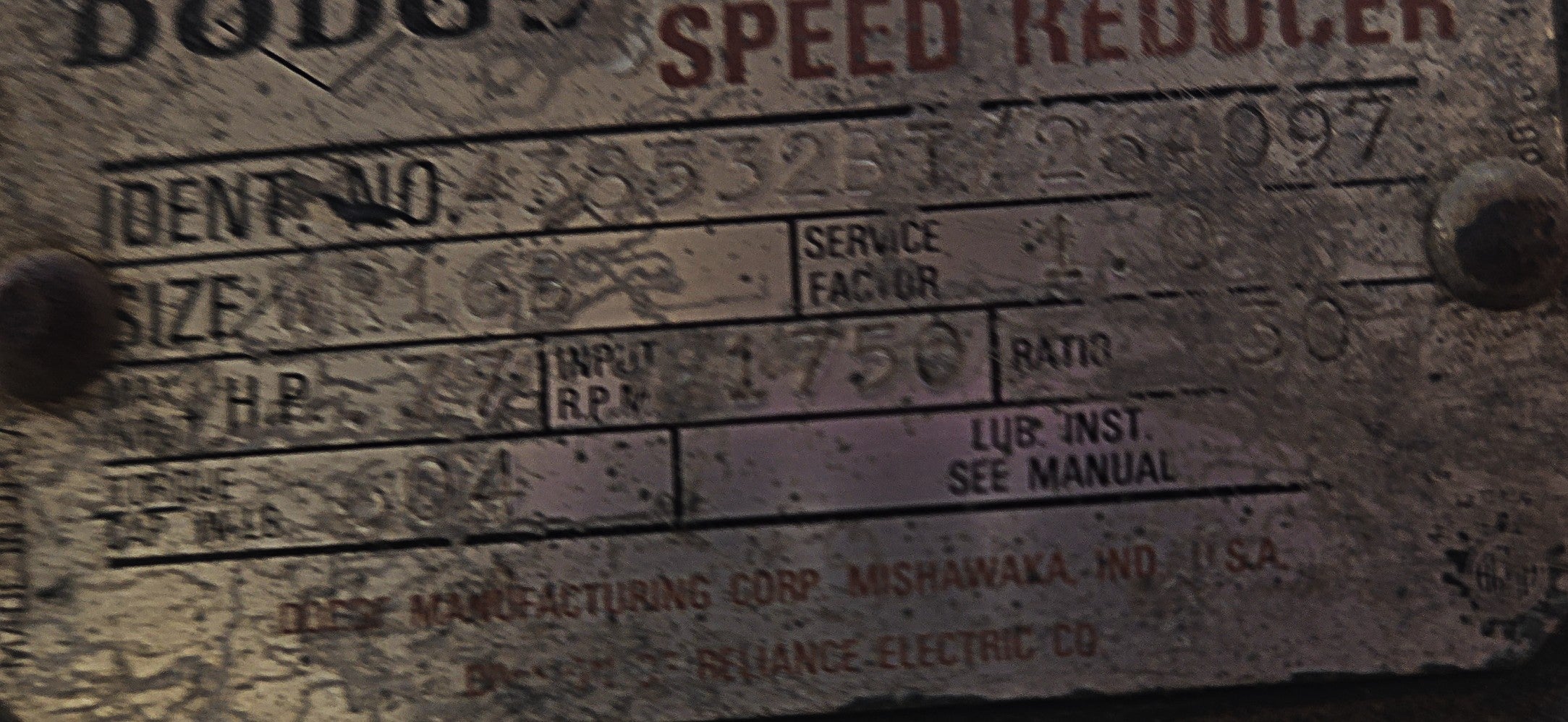

• Speed Reducer Brand: Dodge Manufacturing Corp. / Reliance Electric Co.
• (Mishawaka, IN)

• Speed Reducer Ratio: 30:1

• Speed Reducer Max HP / Input RPM: 0.77 HP / 1750 RPM

• Speed Reducer Torque Capacity: 604 in-lb

• Drive Type: Dual Spur Gear Feed Roller Drive with V-Belt Motor Pulley

• Frame Construction: Heavy-Duty Ornate Cast Iron Legs and Machine Bed

• Table Construction: Steel Plate Bed with Extended Slatted Timber Infeed Deck

• Feed Rollers: Heavy-Duty Steel Top Power Feed Rollers

• Table Adjustments: Overhead Handwheel Feed Height Adjustment and Steel Guide Fences

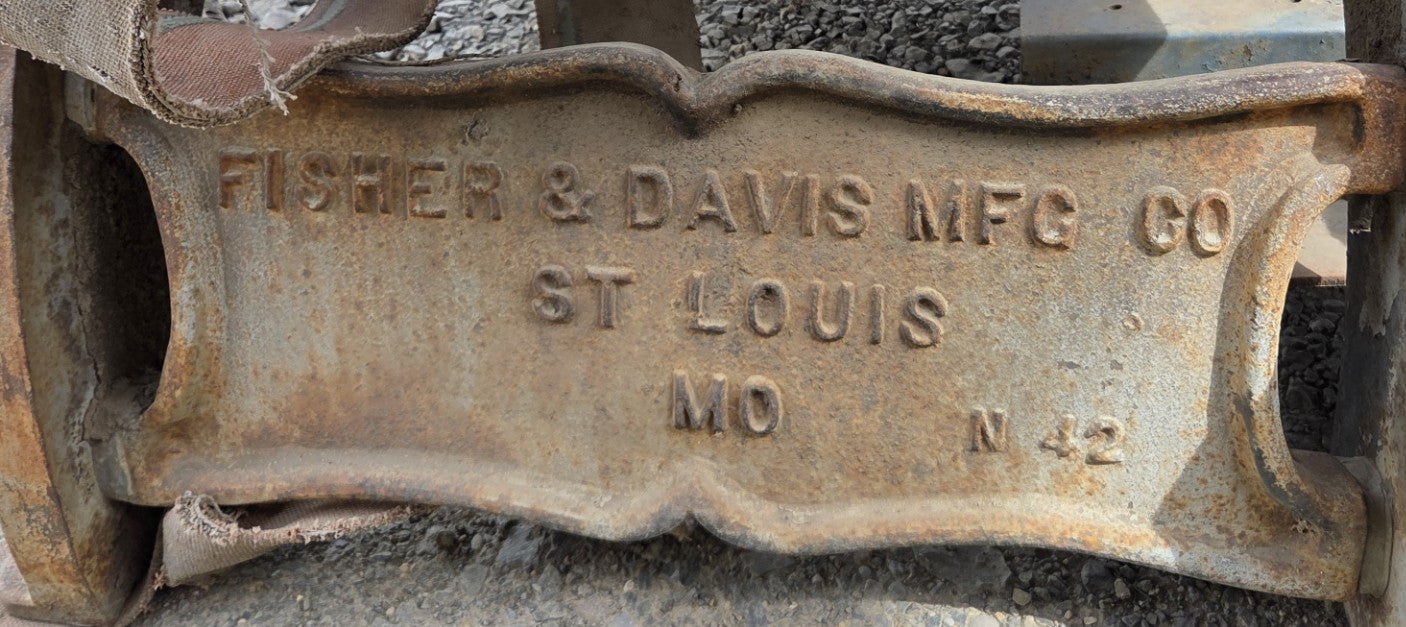

• Base Casting Markings: FISHER & DAVIS MFG CO ST LOUIS MO N 42

• Finish: Raw Cast Iron with Heavy Vintage Patina, Surface Oxidation, and Industrial Paint Remnants

*~ Local Pick-Up or Freight Shipping Only ~*
