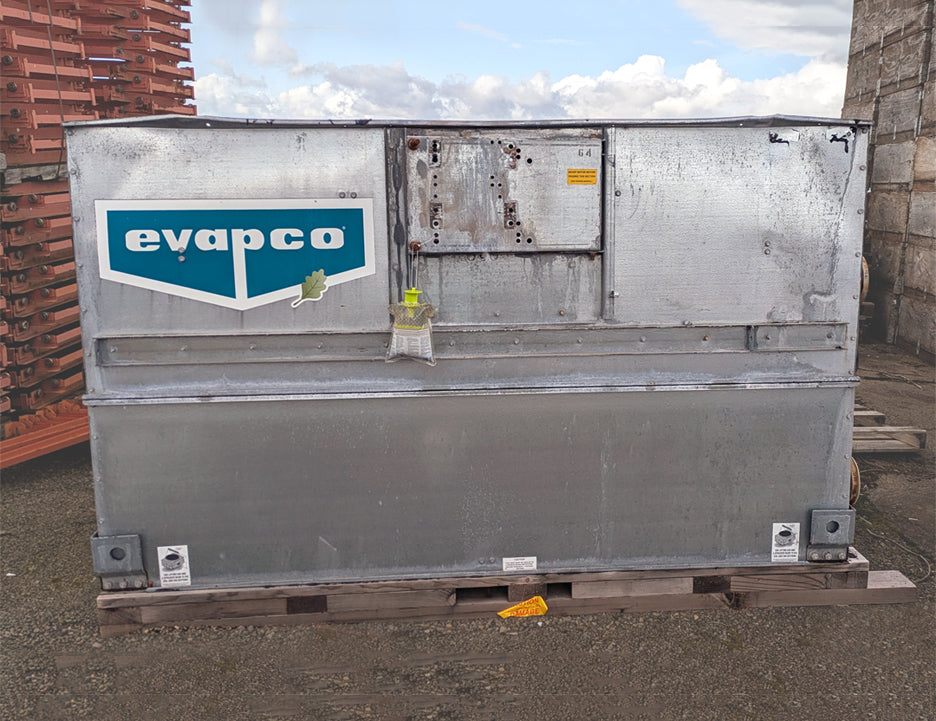

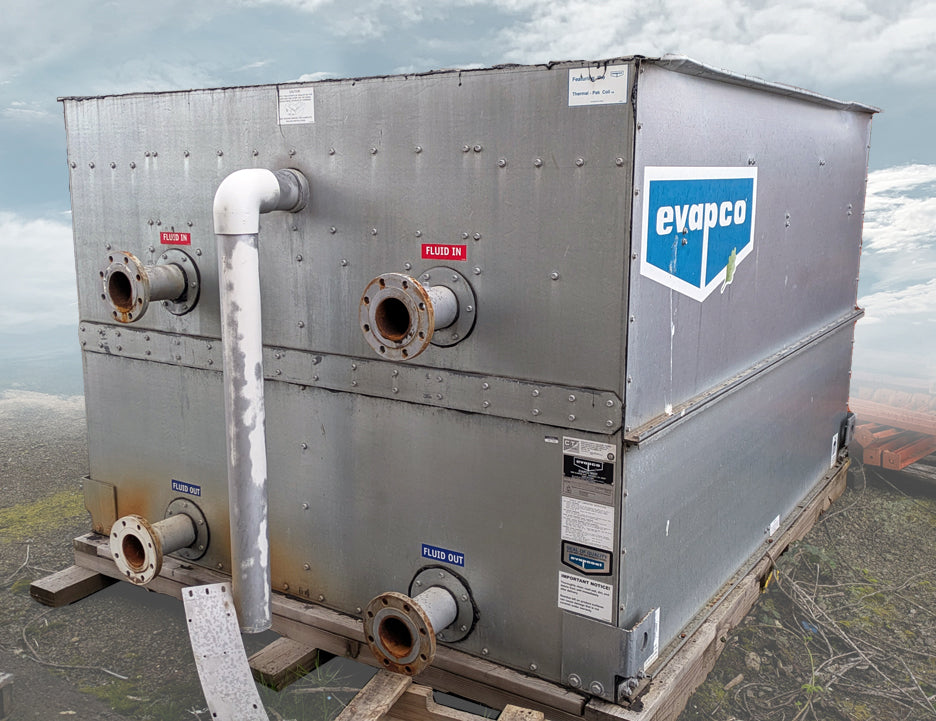

EVAPCO ATWB 7-5J9-Z Closed Circuit Cooler

Working when removed

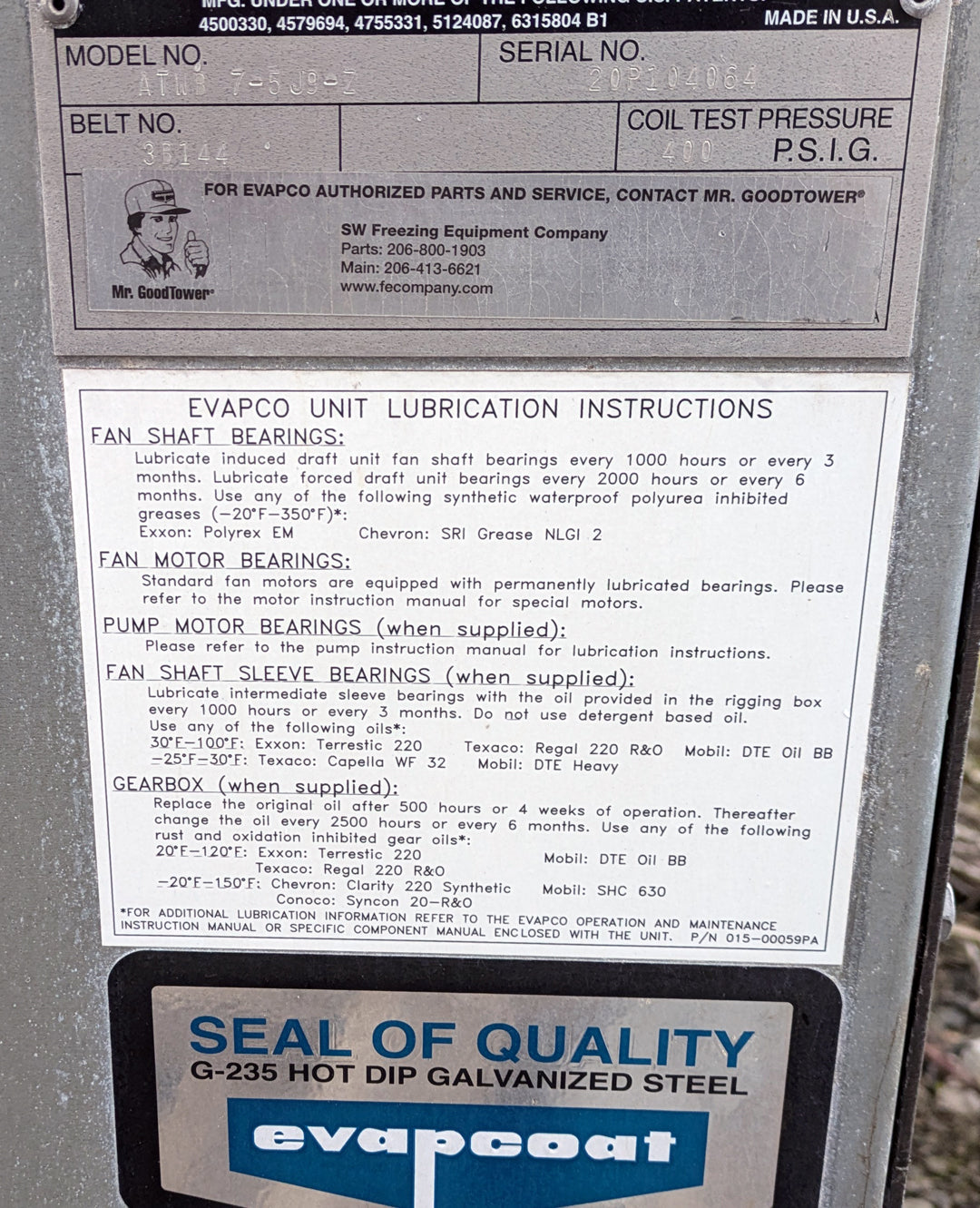

Specifications:

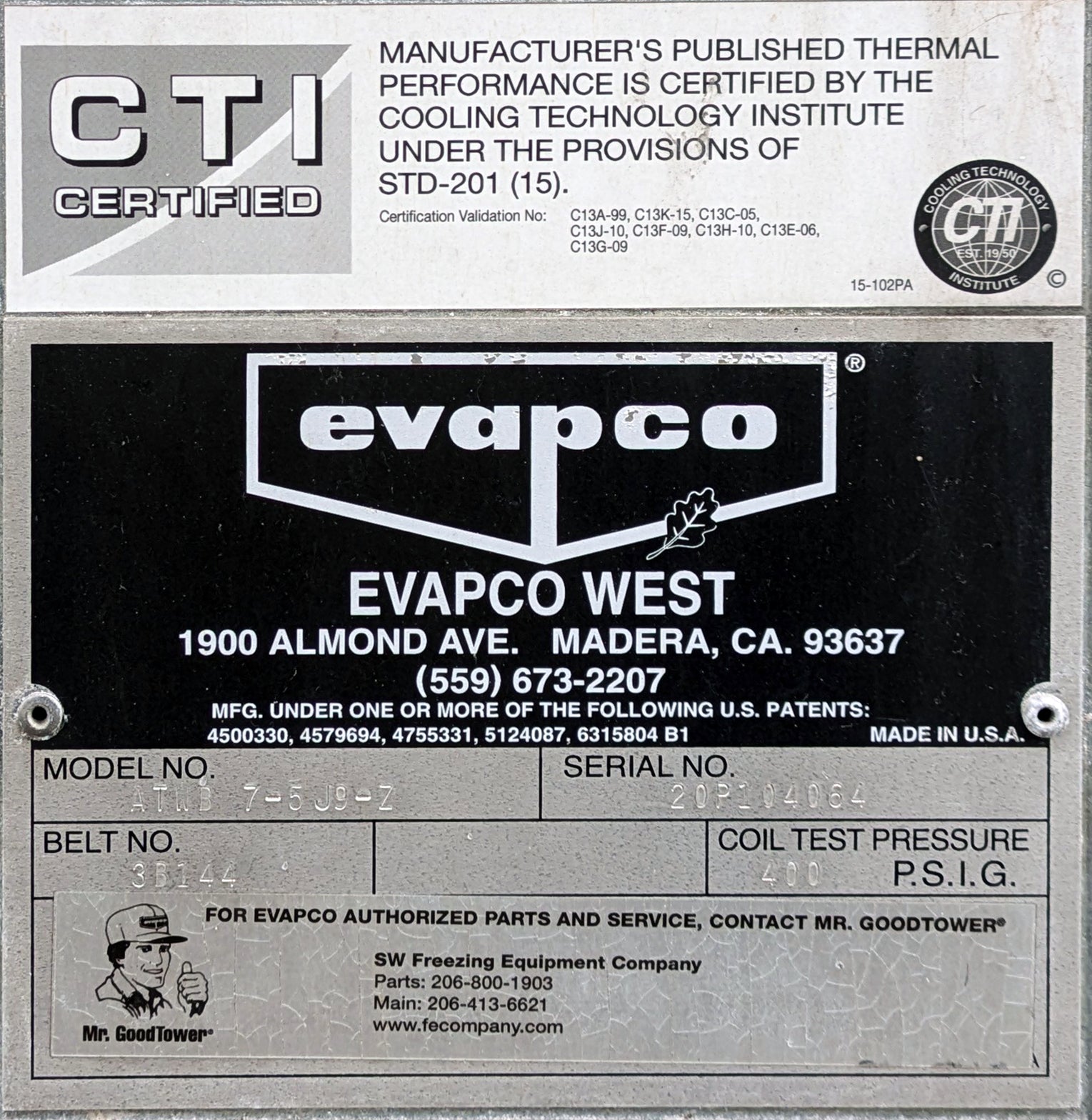

General

• Model: ATWB 7-5J9-Z
• Type: Closed Circuit Cooler
• Series Flow Configuration: Yes (Z Suffix)
• CTI Certified Thermal Performance

Capacities

• Coil Volume: 231.5 gallons (876 liters)
• Coil Design Pressure: 250 psi

Dimensions

• 7’ 4” x 12’ 7 ⅛” x 8’ 11 ½” H

Performance

• Air Flow: 39,470 CFM
• Coil Flow Rate: 410 GPM
• Pressure Drop Through Coil: 4.7 psi
• Evaporated Water Rate: 1.50 GPM
• Required Capacity: 935.2 MBH (62.35 Tons)
• Selected Capacity: 988.1 MBH (105.7% of requirement)

Motors & Fans

• Number of Fans: 1
• Fan Type: High-efficiency aluminum axial propeller
• Fan Motor: 15 HP, 460V / 3Ph / 60Hz, Premium Efficient, Inverter Capable
• Typical Fan Motor FLA: 18 Amps

Pump

• Number of Pumps: 1
• Pump Motor: 2 HP, 460V / 3Ph / 60Hz, TEFC, vertical mount

Connections

• Fluid Inlet/Outlet: (2) 4" [100 mm] Flanged
• Makeup Water: 2" MPT
• Overflow: 3" MPT
• Drain: 2" MPT

*~Local Pick-Up or Freight Shipping Only~*
