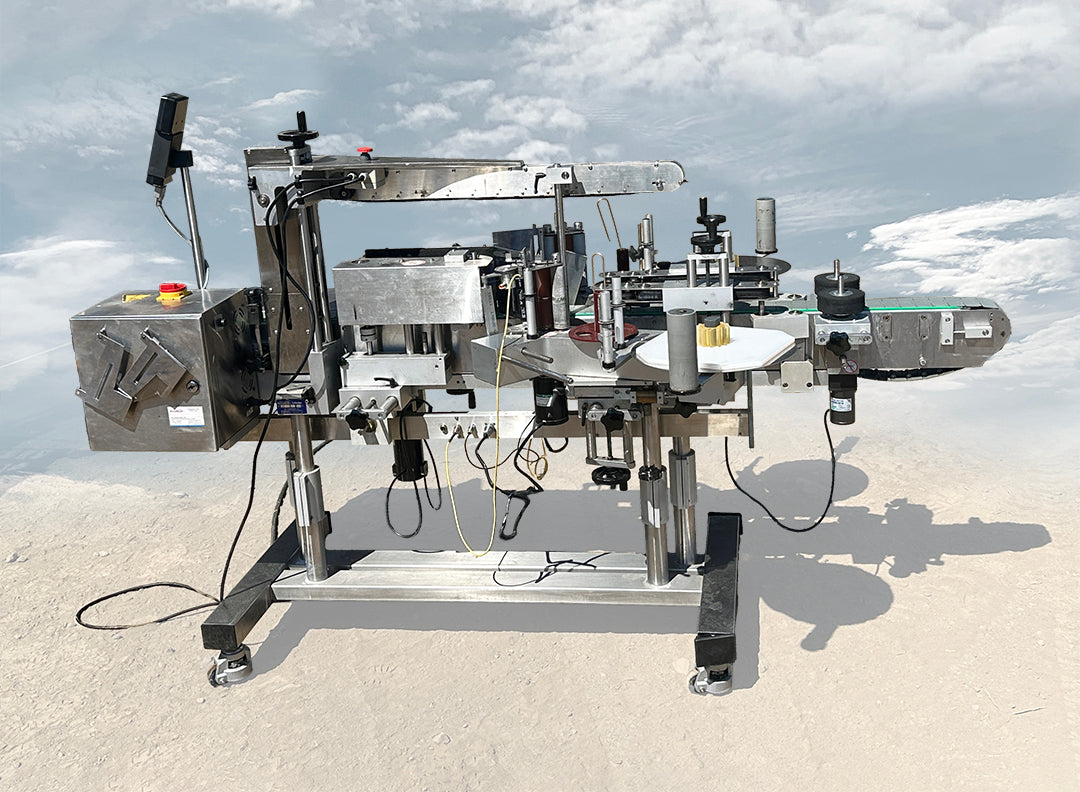

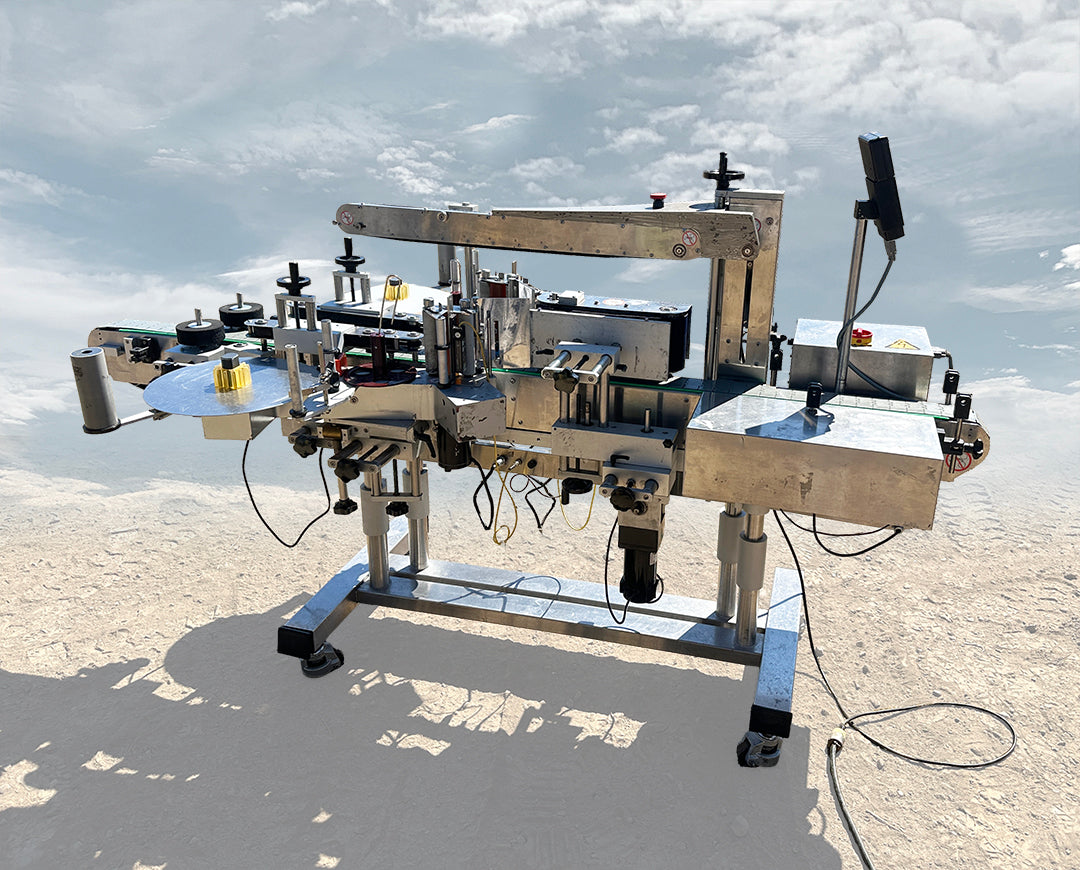

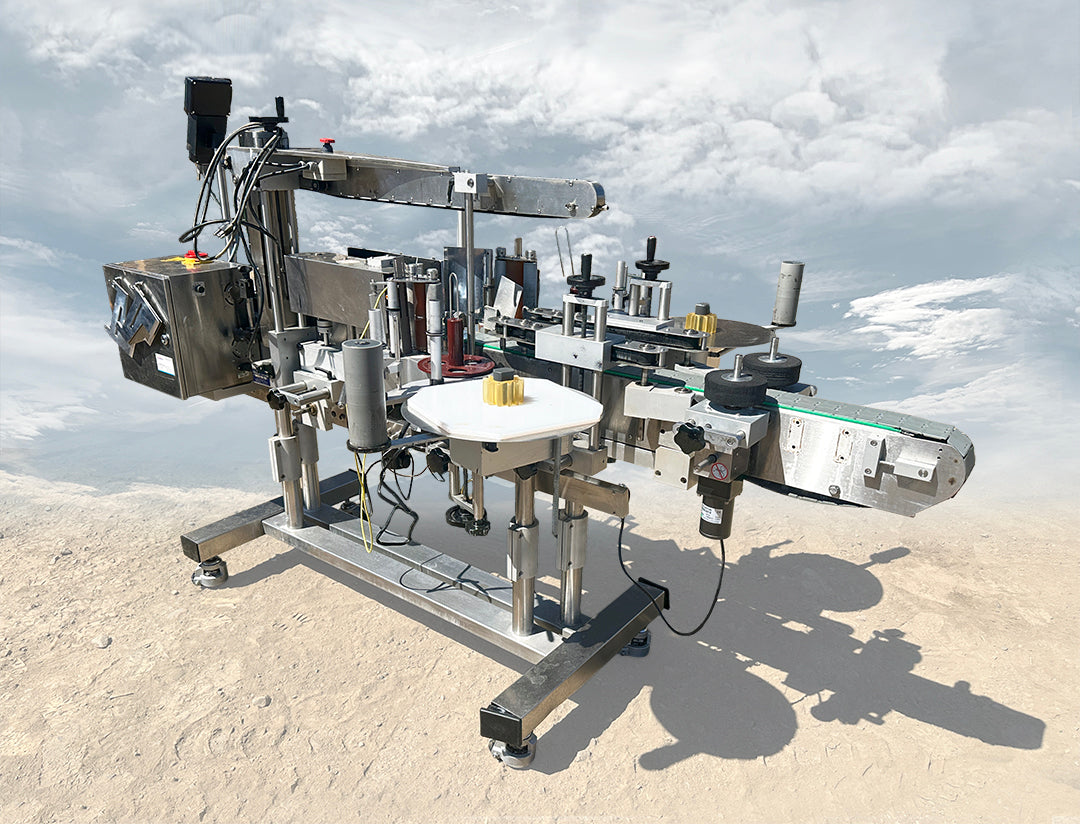

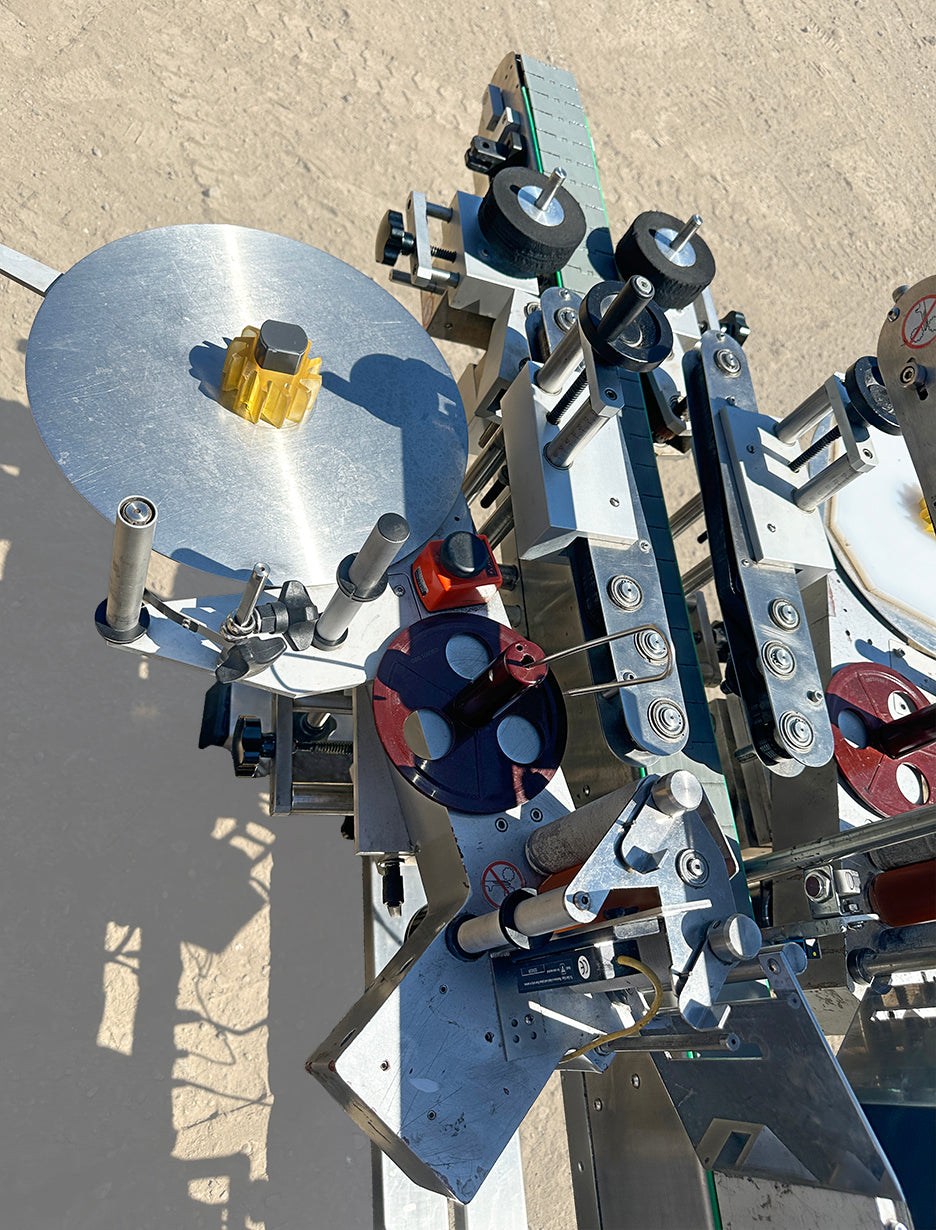

CVC 430 Labeler

See photos for video - only the conveyor and the controller were tested as we do not know how the machine functions otherwise.

General Specs for CVC Model 430 Labeler (found online)

Performance & Speed

• Maximum Throughput: Up to 175–220 containers per minute (dependent on bottle and label size).
• Dispense Speed: Max 23 meters per minute (75 feet/min).
• Labeling Accuracy: ± 1/32" (± 1 mm).

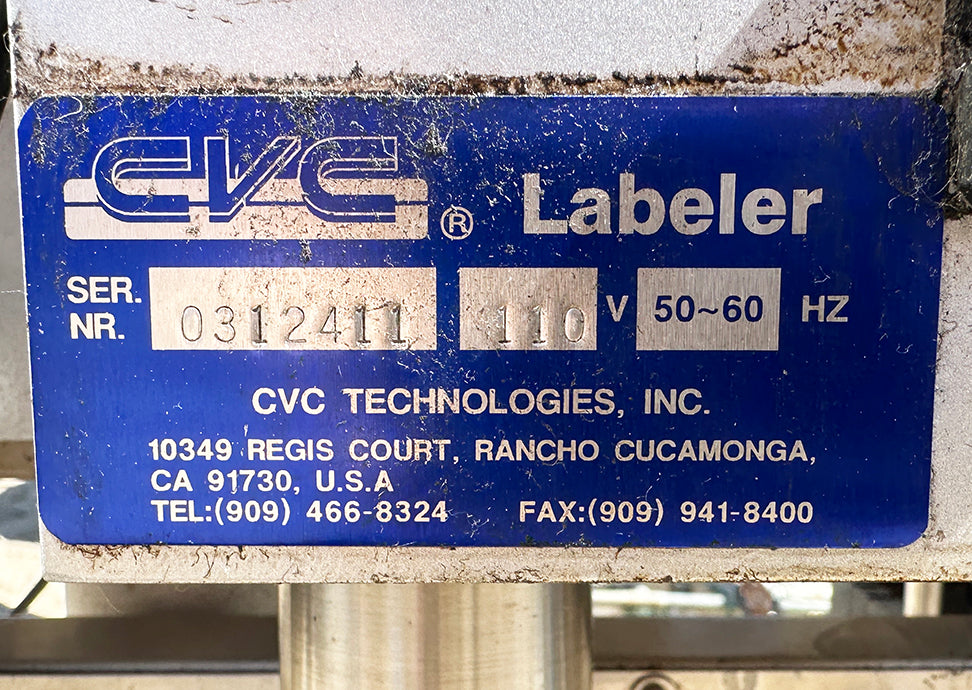

Electrical & Utility Requirements

• Voltage/Power: 110V AC, 50/60 Hz, Single Phase.
• Current Draw: 5 Amps.
• Air Requirement: None required for baseline operation (Air is only necessary if integrating an optional hot-stamp date coder or pneumatic reject arm).

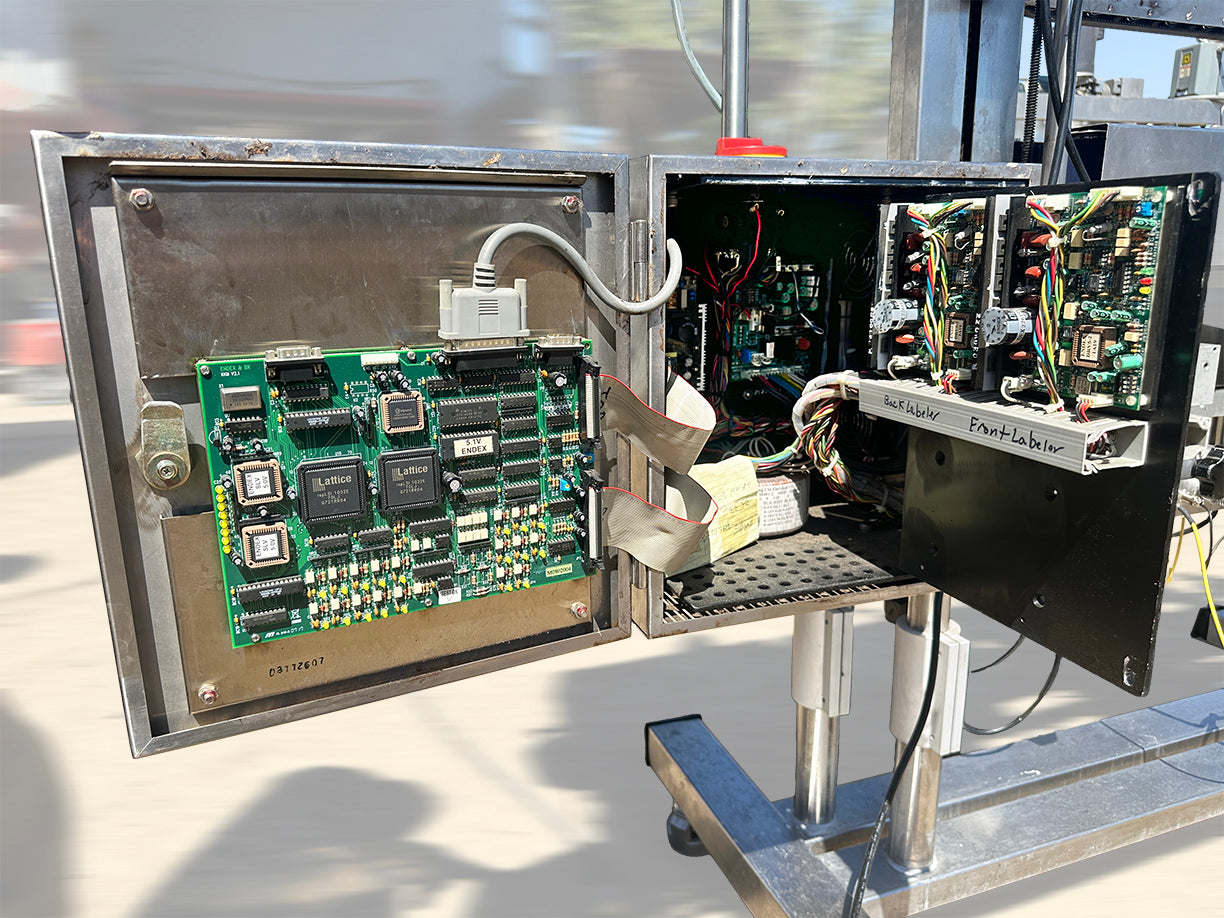

System Controls & Drive Electronics

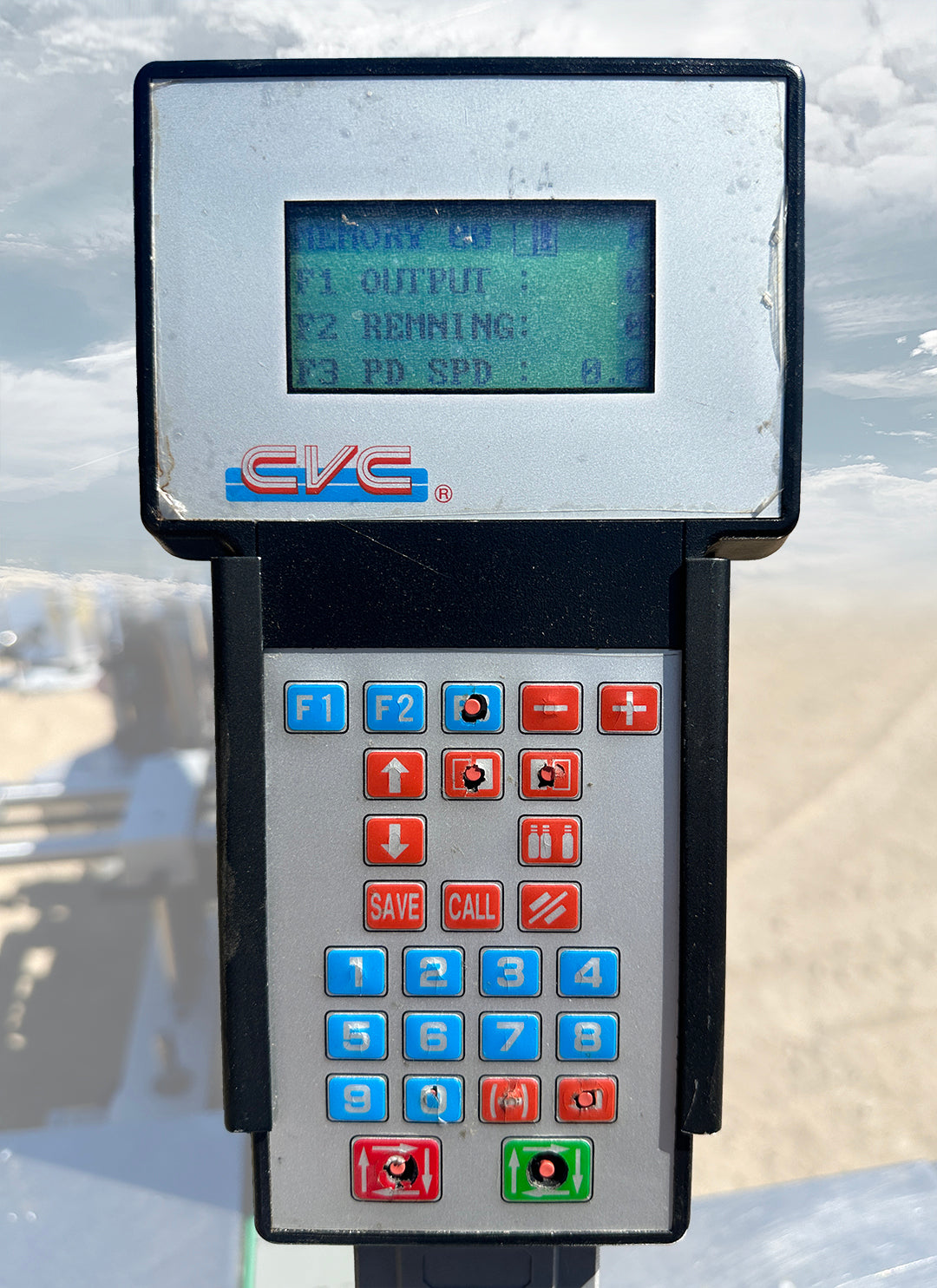

• HMI Terminal: CVC 25-key handheld SelfSet™ microprocessor control panel with backlit monochrome LCD matrix.
• Drive Type: Dual Sanyo Denki stepper-motor driven labeling heads.
• Memory Profiles: Built-in storage matrix supporting up to 50 unique product/run profiles for quick changeover.

Machine Layout & Configured Options

1. Infeed Separation System

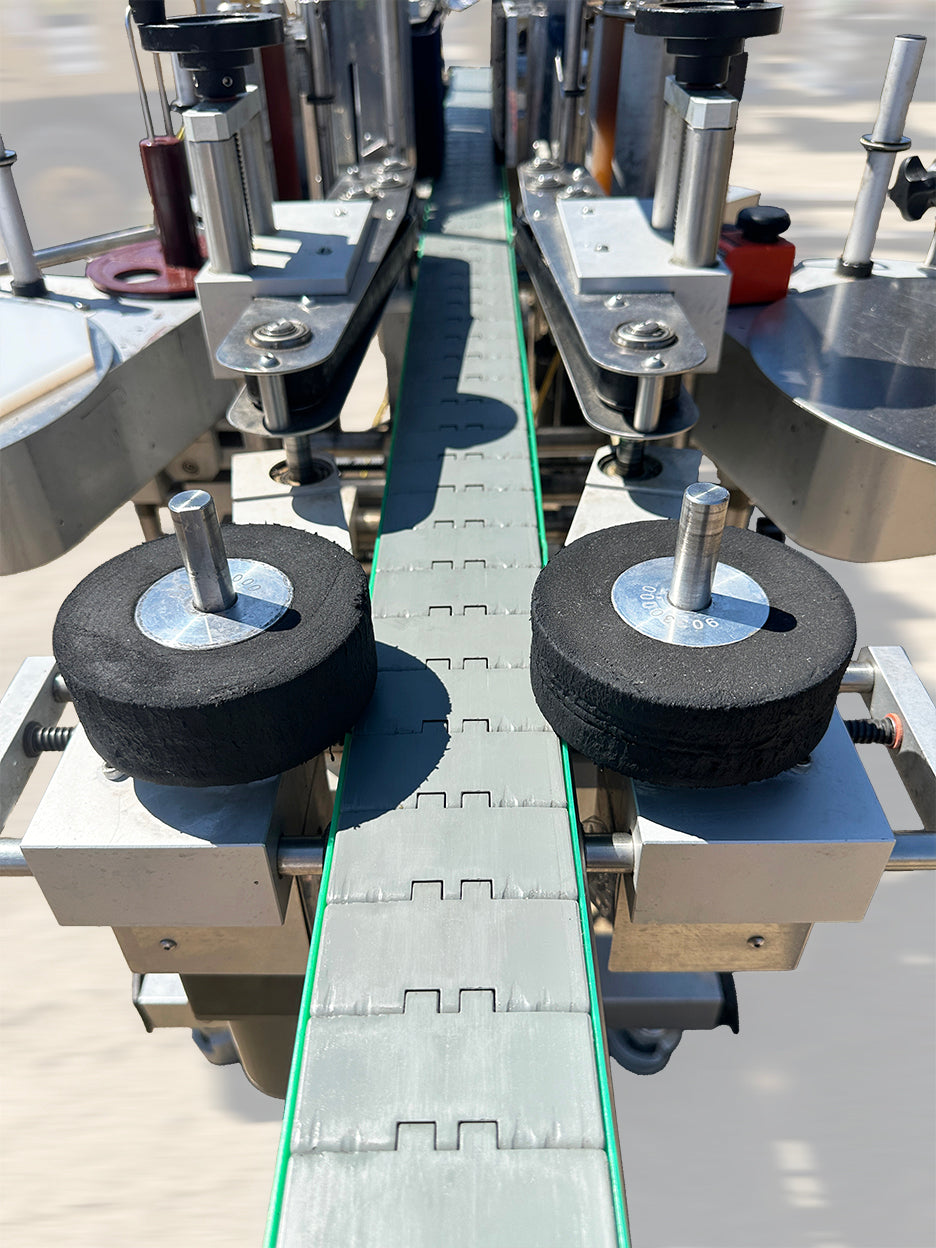

• Gating Setup: Dual horizontal rubber spacing wheels.
• Function: Mechanically isolates and spaces out incoming square, rectangular, or round bottles sequentially before they trigger the label sensors.

2. Premium Clear Label Detection

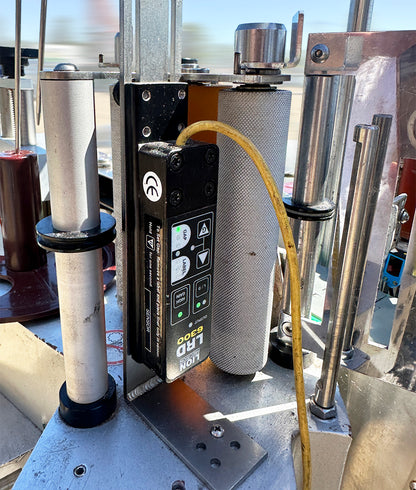

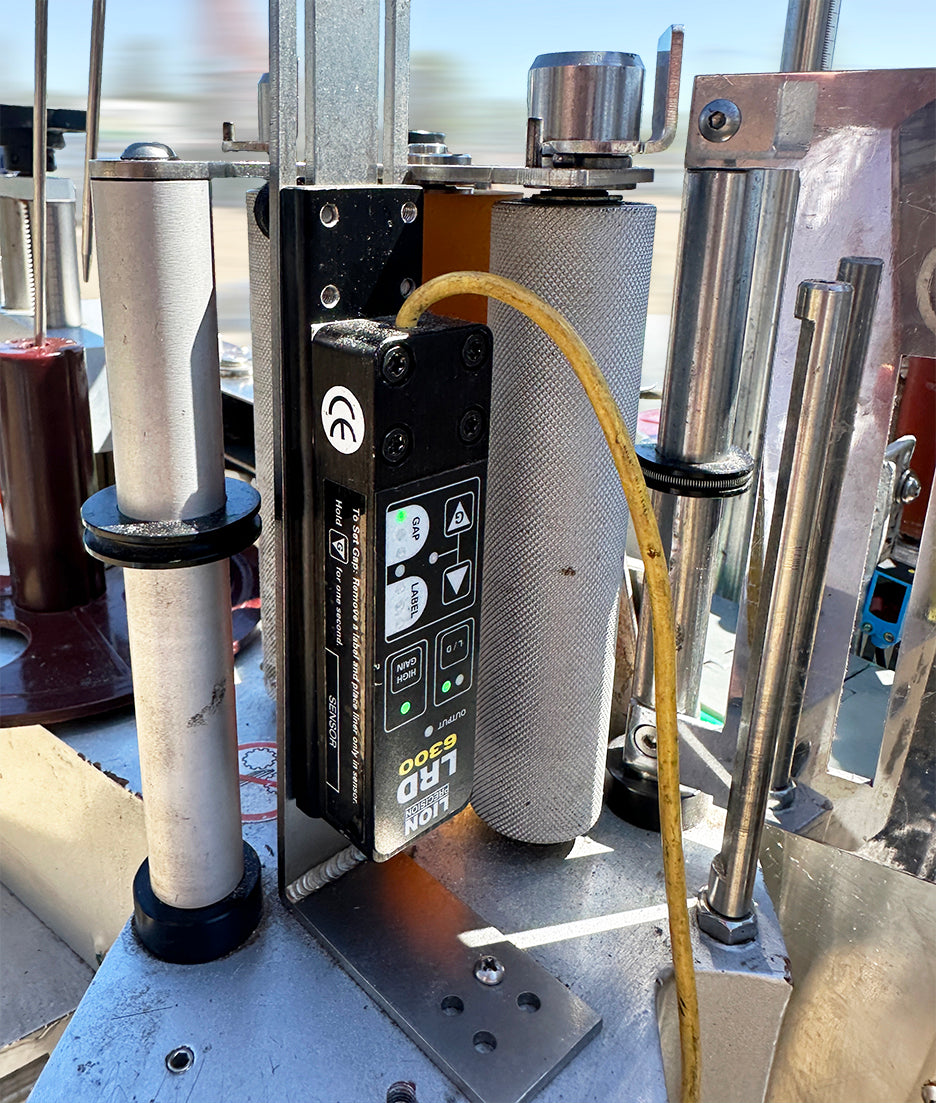

• Sensor Model: Lion Precision LRD6300 Capacitive Label Sensor.
• Material Capability: Optimized for clear-on-clear, translucent, metallic foil, film, and traditional paper labels. (Eliminates the need to swap sensors when switching label types).
• Product Detection: Standard photoelectric clear-body product eyes.

3. Container Stabilization & Wrap Modules

• Top Hold-Down Belt: Motorized overhead stabilizer belt. Syncs directly with conveyor speed to secure tall, narrow, or unstable containers during application.

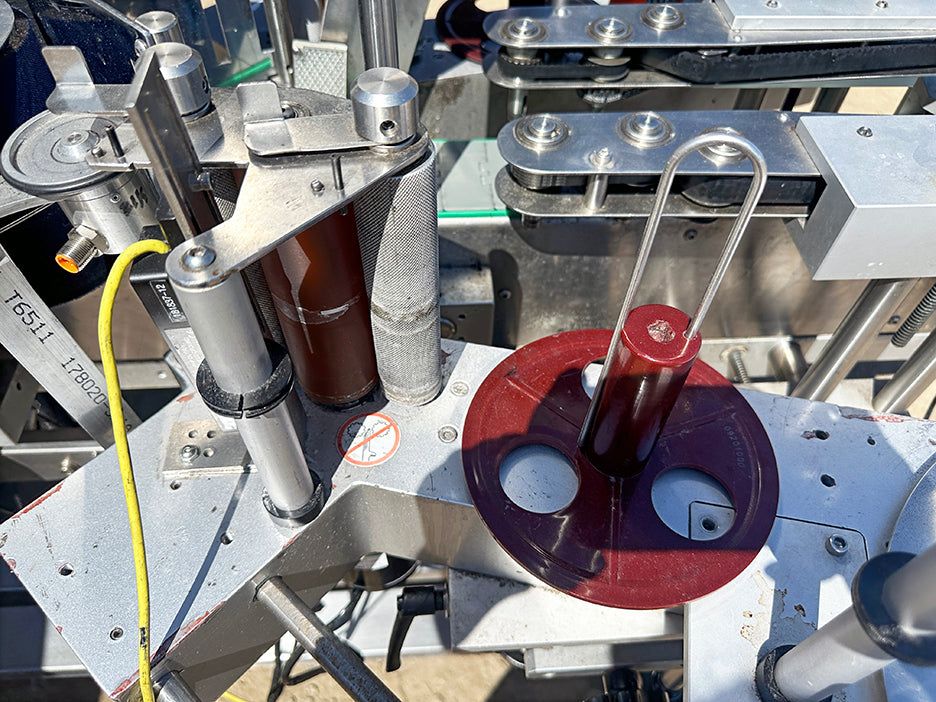

• Wrap Station: Continuous motorized wrap-around belt interacting against a high-density backing plate to spin and wipe-down labels on cylindrical products.

4. Conveyor Specifications

• Chain Width: 3-1/2" wide green segmented tabletop chain (Acetal/Plastic construction).
• Conveyor Length: 94-1/2" total bed length.
• Working Bed Height: Standard 36" (adjustable up/down ± 2" via legs).

Material & Dimension Constraints

Label Roll Capacities

• Maximum Web Width (Label Height): 7" (Standard head clearance).
• Minimum Web Width: 1/2" (15 mm).
• Max Label Roll Outer Diameter (OD): 14" (356 mm).
• Core Inner Diameter (ID): 3" (76 mm).

Container Capacities

• Bottle Width/Diameter Range: 1/2" minimum up to 6" maximum (limited by the distance between opposite peel plates).
• Bottle Height Range: 2" minimum up to 16" maximum.
