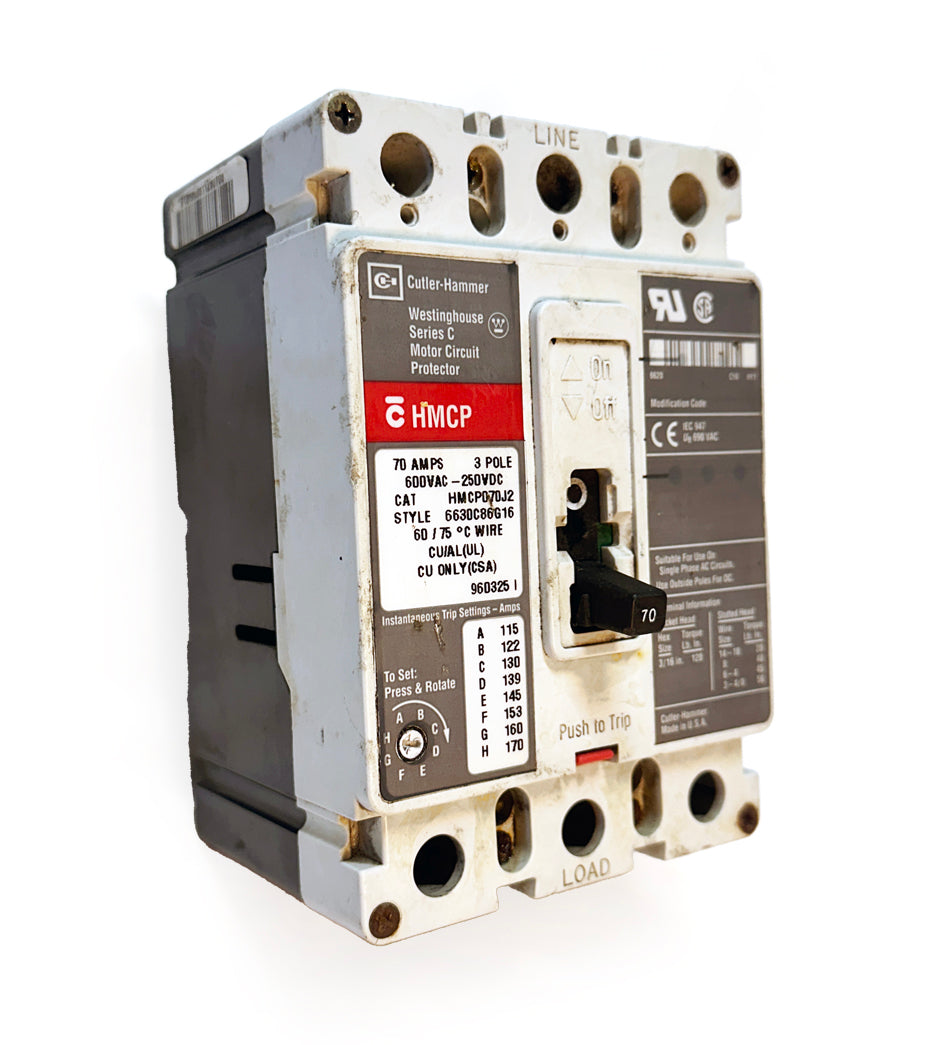

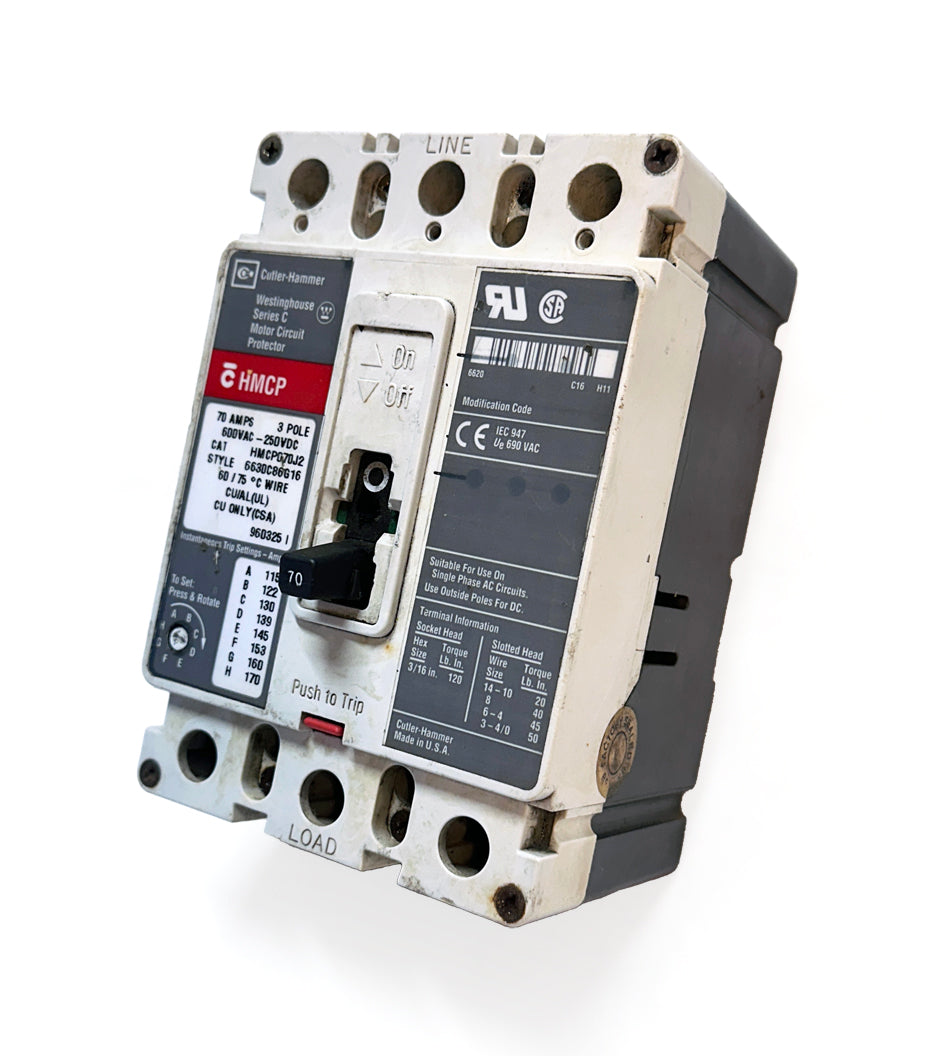

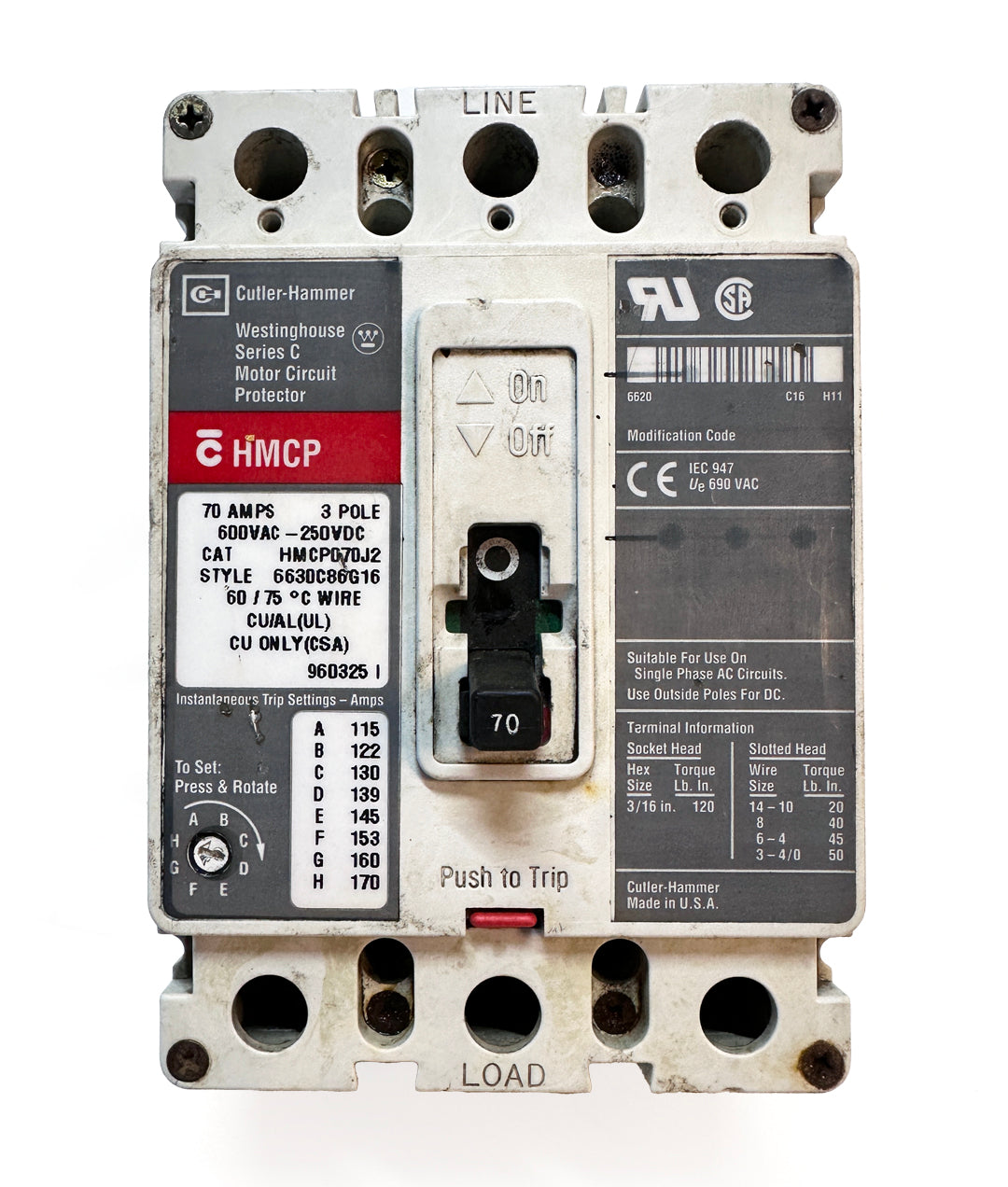

• Amperage Rating: 70A • Voltage Rating: Up to 600 volts AC and 250 volts DC • Poles: 3-pole configuration • Trip Function: Magnetic-only trip with a range of 115–170 Amps • Frame Type: F-frame • Dimensions: Approximately 4.9" (H) x 5" (W) x 7.5" (D) • Weight: Approximately 4.15 lbs • Interrupting Capacity: 65,000A at 480 volts • Connection Type: Feed-thru with non-interchangeable line and load side lug terminals
