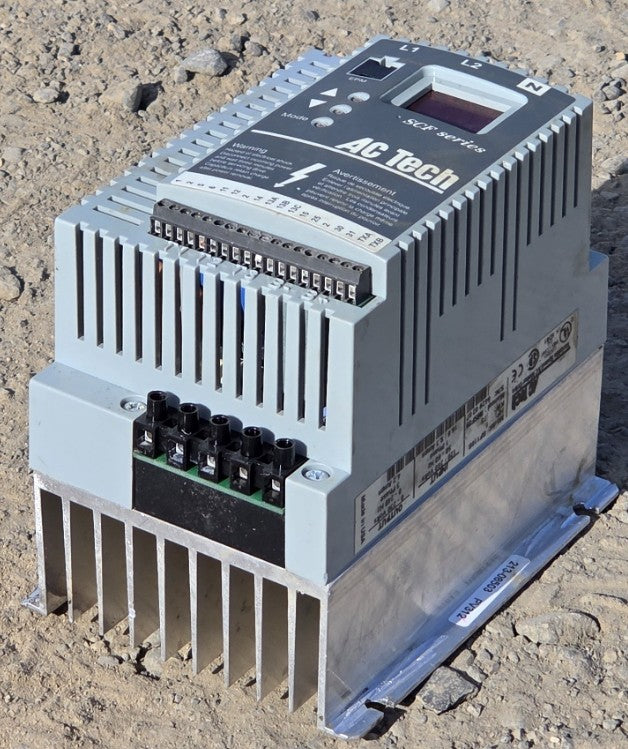

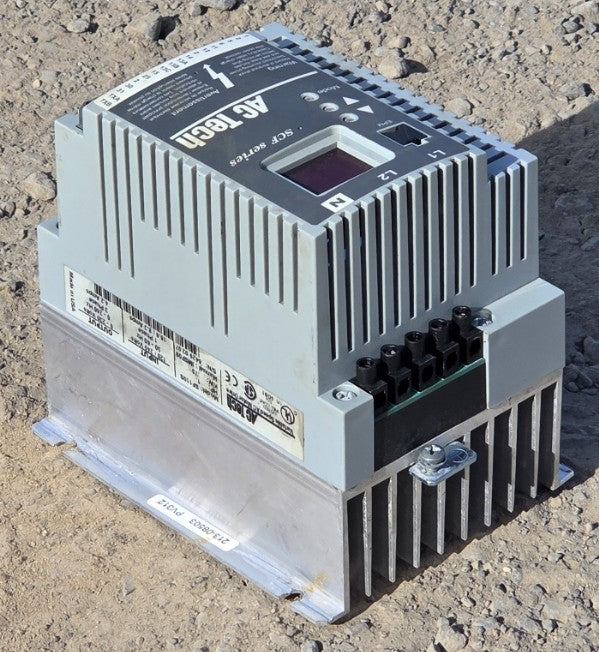

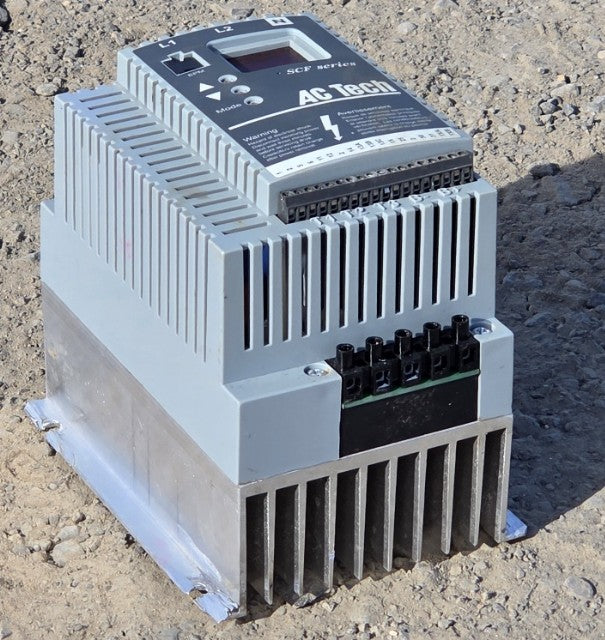

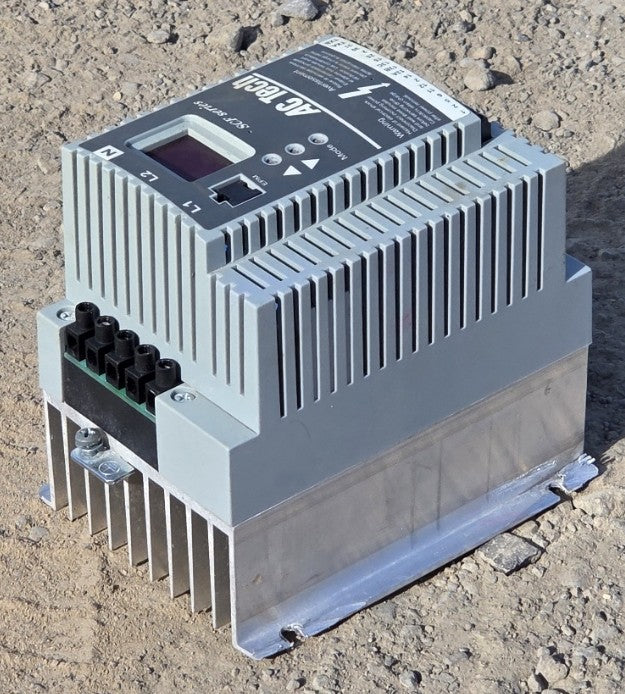

C Tech Model SF110S 1 HP 0.75 kW Variable Speed AC Motor Drive

Used; removed in good working condition

• Brand: AC Tech (Advanced Control Technology / Lenze)

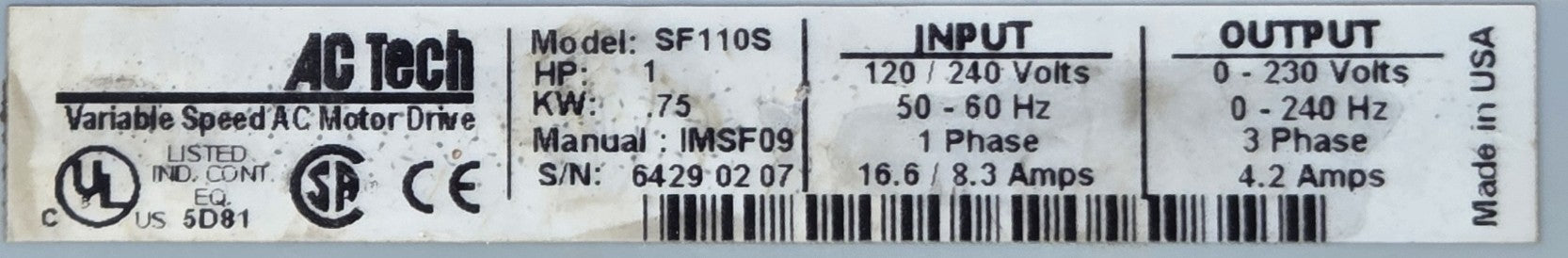

• Model Number: SF110S

• Series: SCF Series

• Horsepower: 1 HP

• Power: 0.75 kW

• Input Voltage: 120 / 240 Volts AC (1 Phase, 50 - 60 Hz)

• Input Current: 16.6 / 8.3 Amps

• Output Voltage: 0 - 230 Volts AC (3 Phase, 0 - 240 Hz)

• Output Current: 4.2 Amps

• Serial Number: 6429 02 07

• Manual Reference: IMSF09

• Standards / Certifications: UL Listed (IND. CONT. EQ. 5D81), CSA, CE

• Housing Material: Molded Gray Thermoplastic with Aluminum Extruded Heatsink
• Base

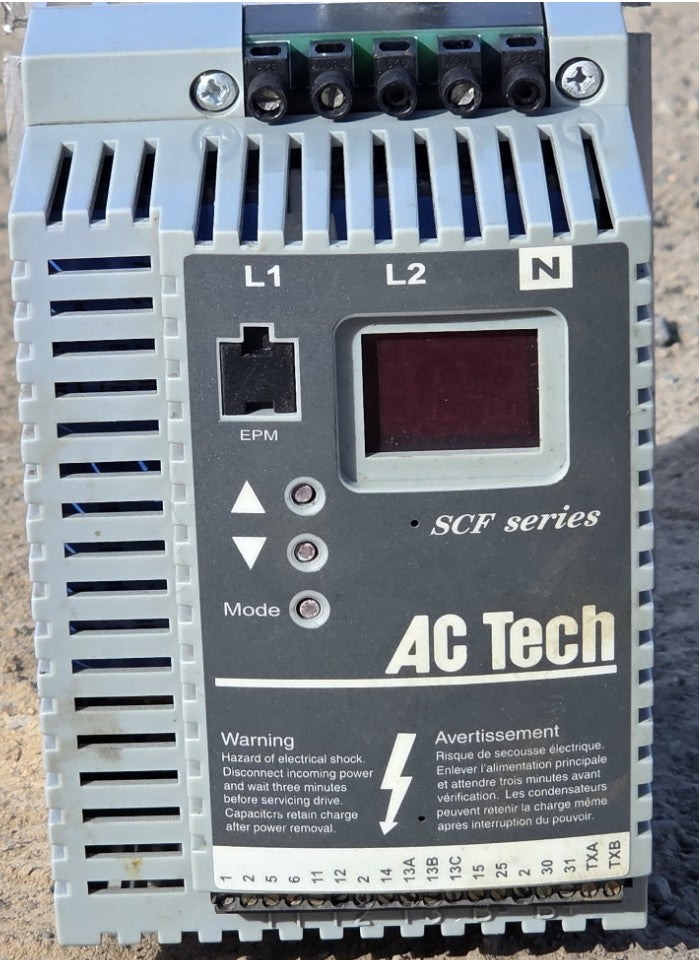

• Keypad Interface: Digital LED Display with Mode and Up/Down Arrow Buttons

• Programming Interface: Integrated EPM (Electronic Programming Module) Port

• Control Terminals: Top Screw Terminal Strip (Pins 1 through 31, TXA, TXB)

• Power Terminals: Front Lower 5-Position Screw Terminal Block

• Mounting: Base Flange Slotted Bolt Mount with Ground Lug Tab

• Heatsink Tag: 213-08503 PV312
