Bosch 0 124 625 068 Alternator Assembly

Included Components:

• Complete alternator assembly

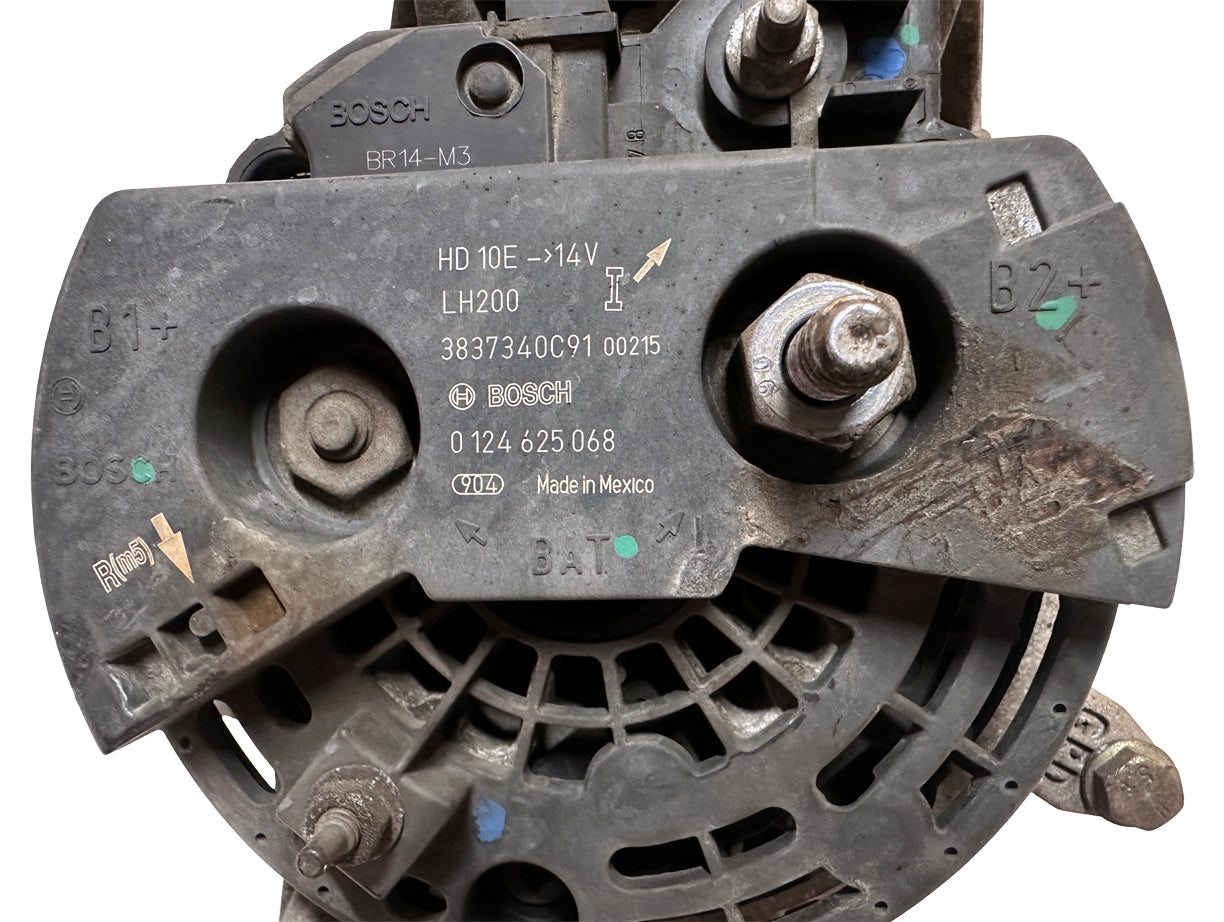

• Terminal block/end cover (stamped 0 124 625 068)
• Internal voltage regulator (Bosch BR14-M3)

Bosch Alternator Assembly – 0 124 625 068

• Manufacturer: Bosch
• Bosch Part Number: 0 124 625 068
• OEM Cross Reference: International/Navistar 3837340C91, 3837344C91
• Voltage: 12V
• Amperage: 200A
• Regulator Type: Internal, Bosch BR14-M3
• Fan Type: Internal
• Mounting Type: Pad mount
• Shaft Diameter: 17mm (0.669 in)
• Shaft Threads: M16-1.5
• Mounting Ear Holes: 2 x 10.5mm unthreaded, 2 x 12.5mm unthreaded
• Mounting Ear Thickness: 80mm (3.15 in)
• B+ Terminal: M8-1.25
• I Terminal: M5-0.8
• R Terminal: M5-0.8 / Pin Combo
• Weight: Approx. 17–18 lbs (7.7–8.2 kg)
• Made in: Mexico
• Applications: 2009+ school buses, Navistar, Case, Caterpillar, Cummins (verify with your mechanic by part number)
• Unique Features: Dual B+ outputs (B1+ and B2+), robust internal cooling, Long Haul® bearings and brushes for extended life, temperature protection

Notes:

• This alternator is a direct fit for select Navistar and other heavy-duty applications—always confirm with your mechanic by part number.
• Features high output (200A) for demanding electrical systems.
• Designed for durability and long service life in commercial vehicles.
