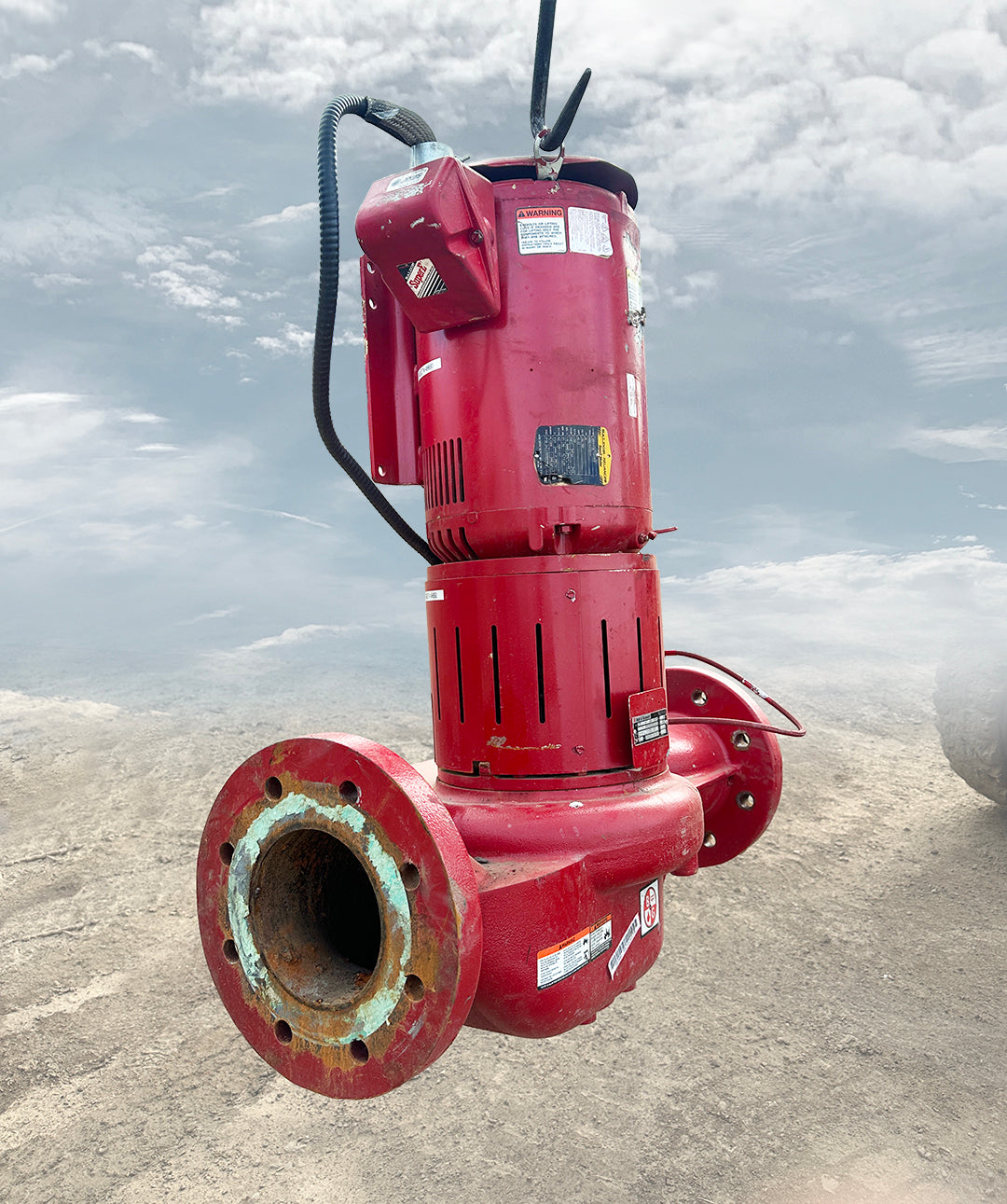

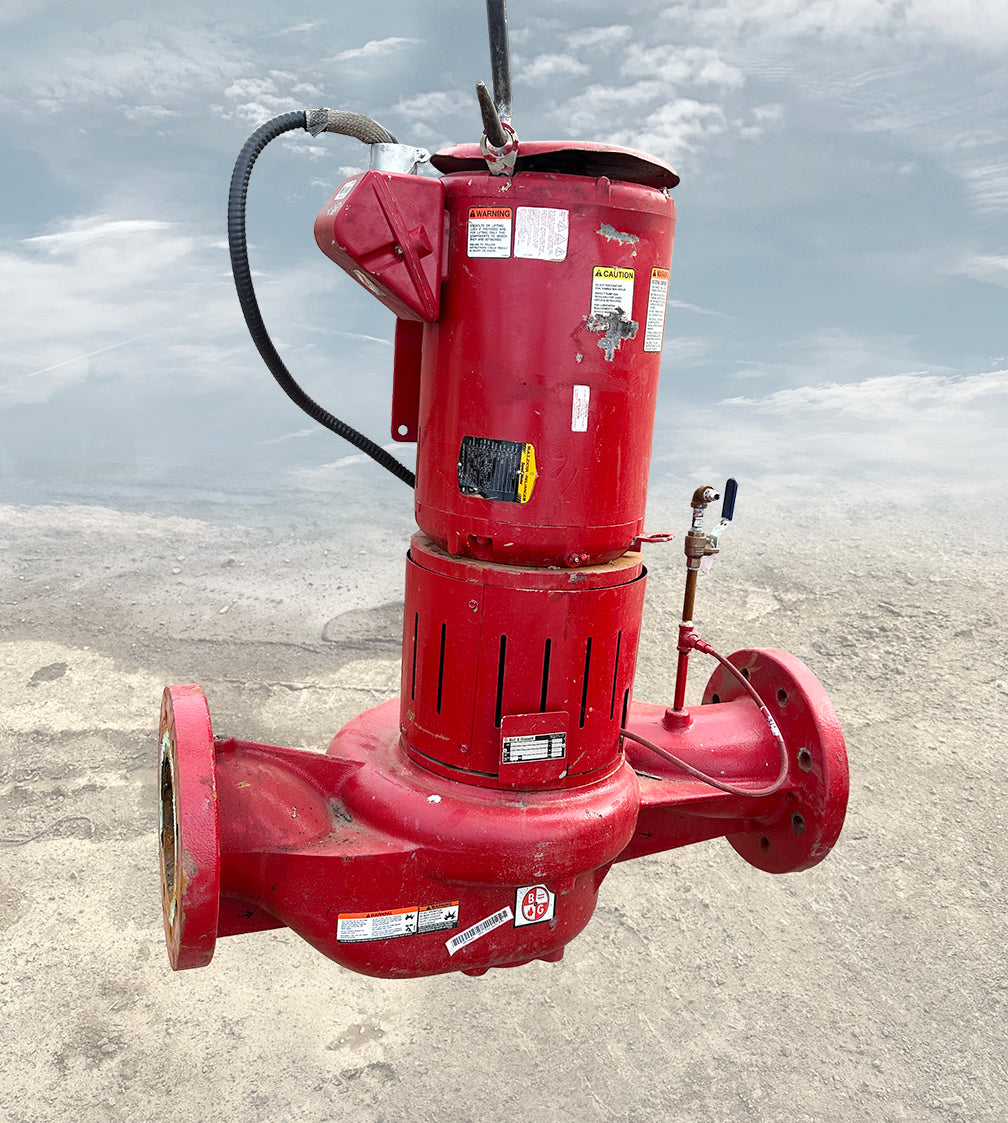

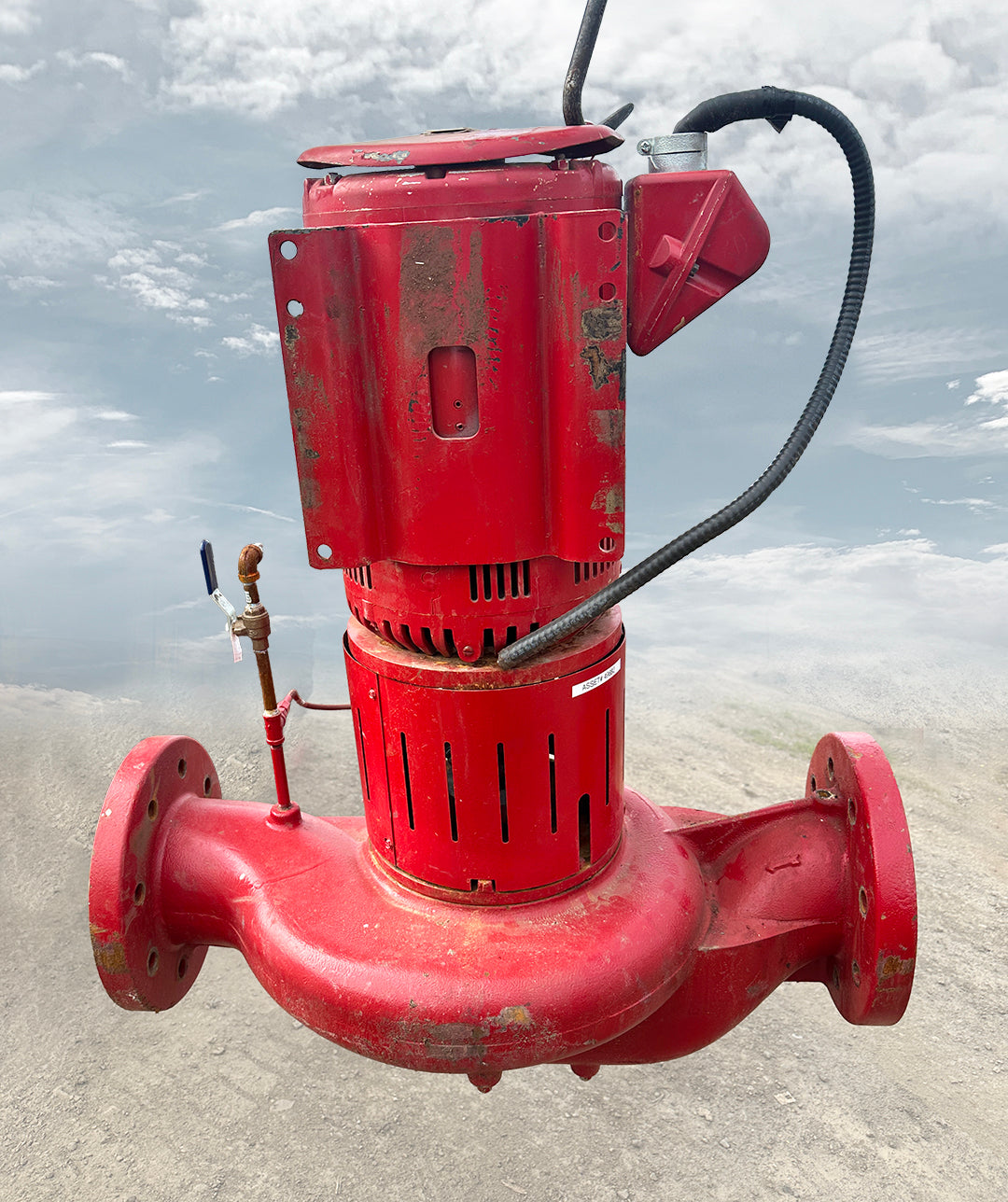

Bell & Gossett e-80SC SSF 9 Centrifugal Pump w/ 20 HP Baldor Motor

Used; removed in good working condition

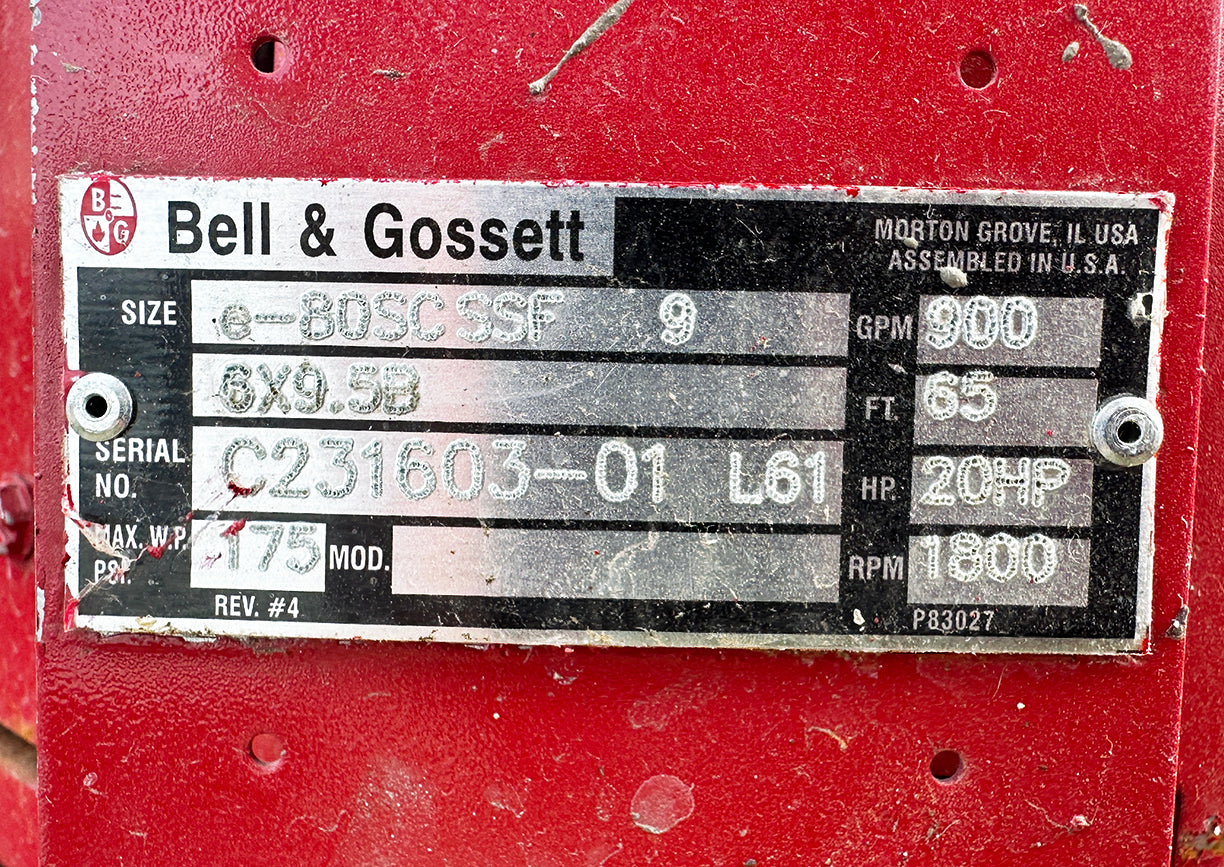

• Manufacturer: Bell & Gossett (Xylem)
• Model / Series: Series e-80SC SSF 9

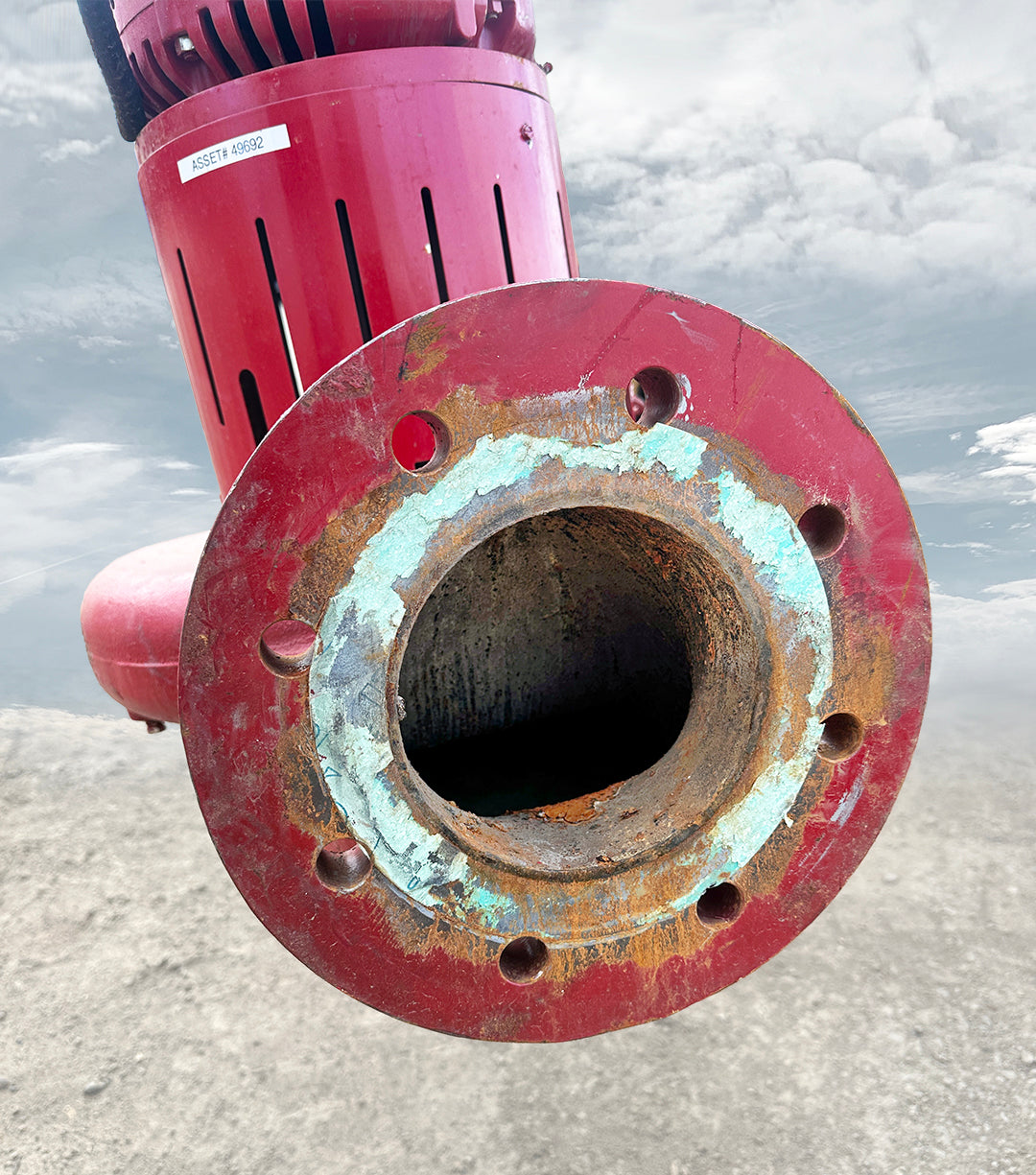

• Pump size: 6x9.5B (6 in suction x 6 in discharge, 9.5 in impeller nominal)
• Configuration: Vertical in-line mounted centrifugal pump
• Serial number: C231603-01 L61
• Flow rating: 900 GPM
• Head rating: 65 ft
• Horsepower: 20 HP
• Pump RPM: 1800 RPM (pump plate) / 1765 RPM (motor plate)
• Maximum working pressure: 175 psi

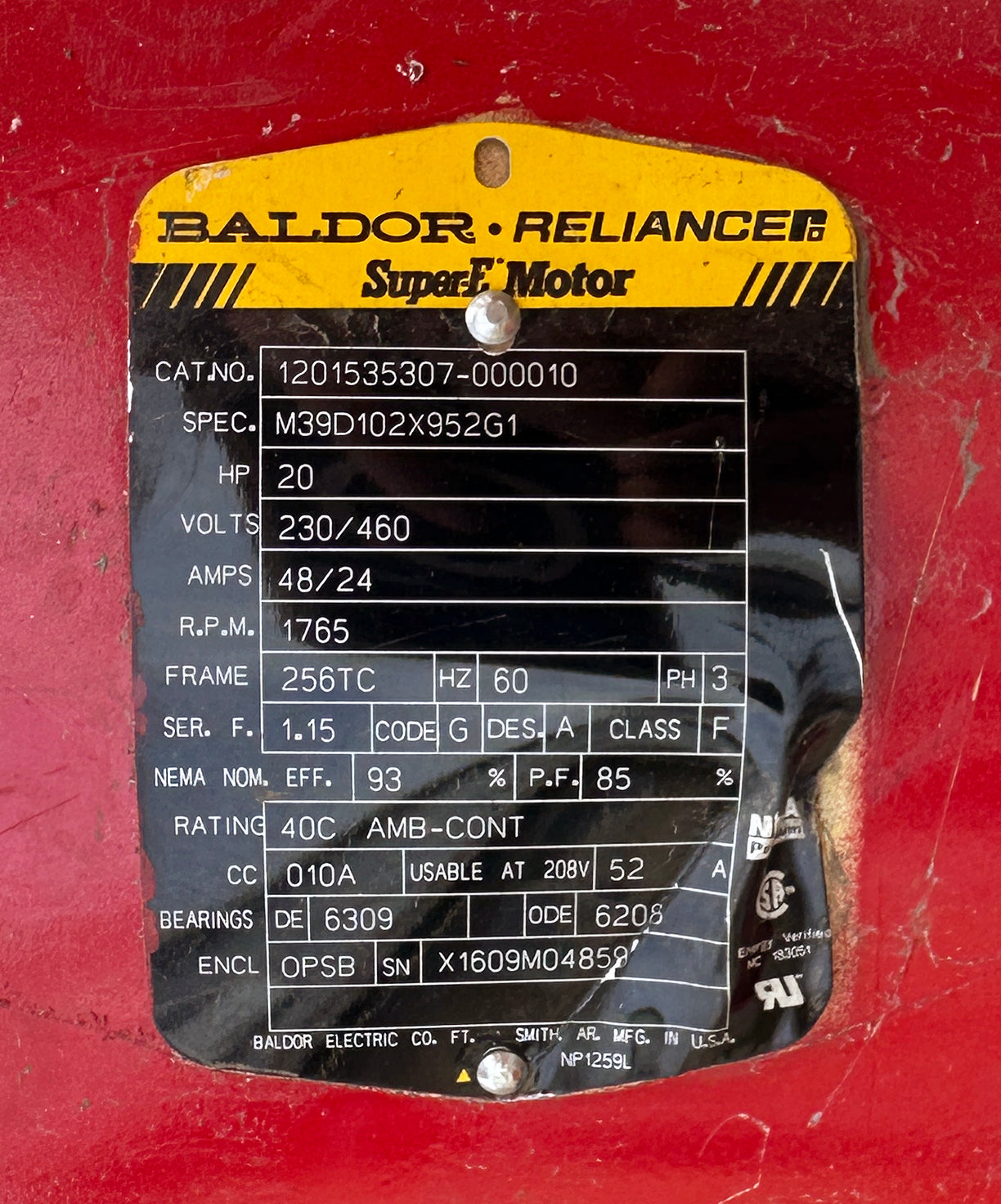

• Motor manufacturer: Baldor Reliance Super E
• Motor catalog no.: 1201535307-000010
• Motor spec: M39D102X952G1
• Motor horsepower: 20 HP
• Phase: 3
• Motor voltage: 230/460 V, 60 Hz
• Motor full-load amps: 48/24 A
• Motor frame: 256TC
• Service factor: 1.15
• NEMA nominal efficiency: 93%
• Power factor: 85%
• Insulation class: F
• Enclosure: OPSB (open, protected, splash-proof)
• Bearings: DE 6309, ODE 6208
• Ambient rating: 40°C, continuous duty
• Application: HVAC, hydronic heating, chilled water, general commercial water circulation
