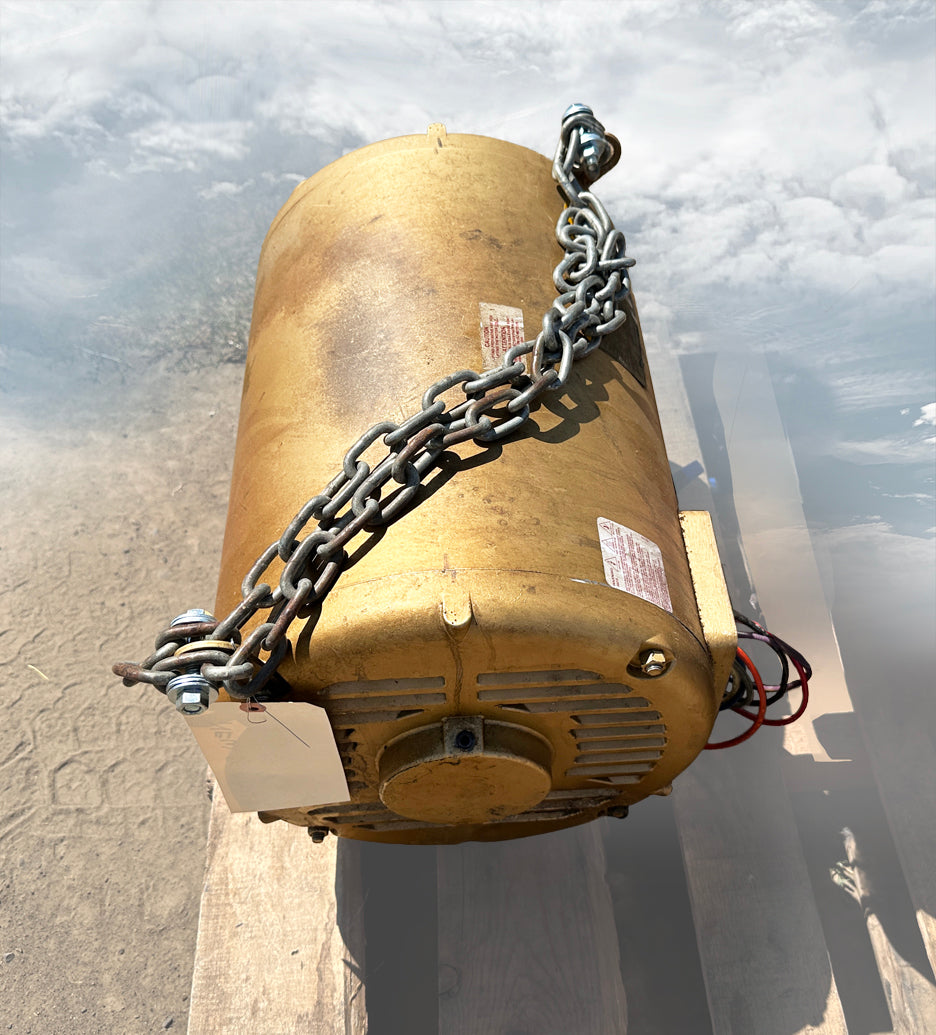

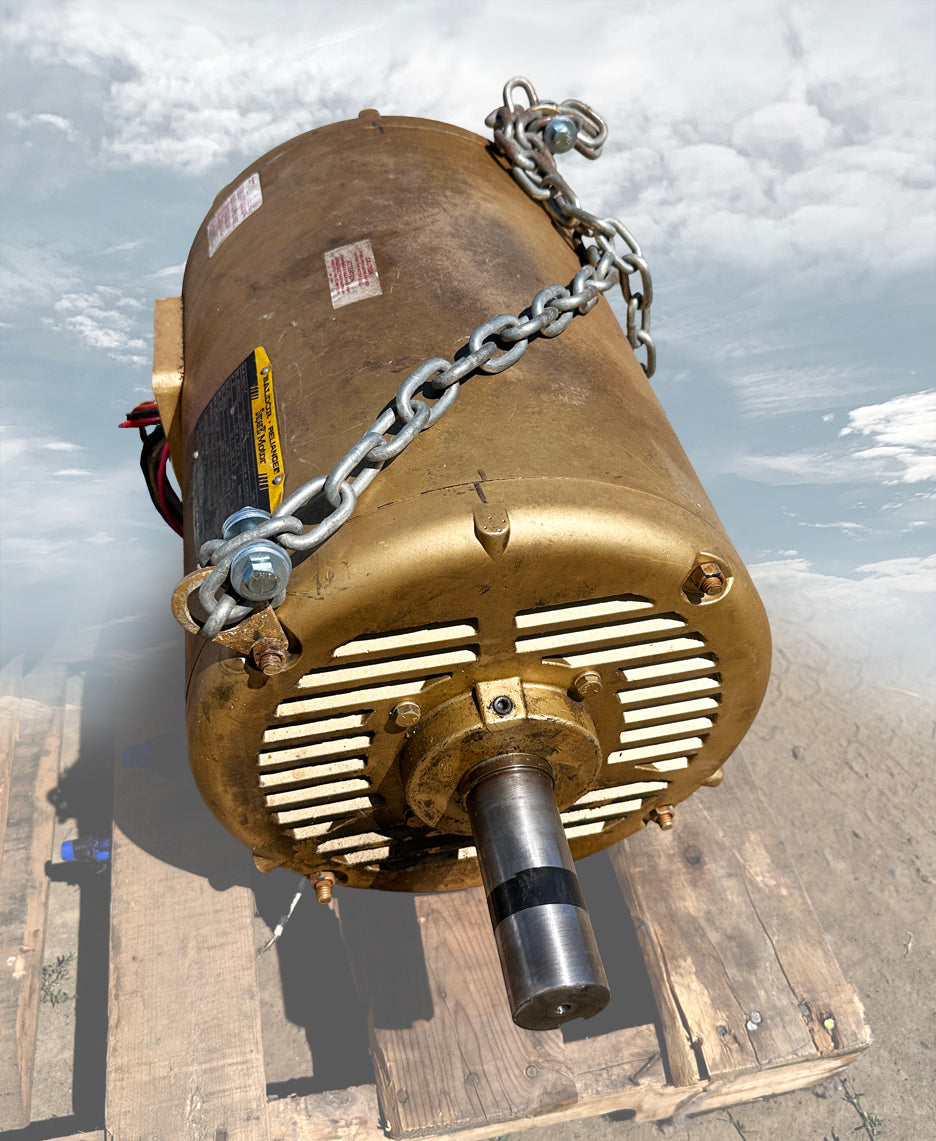

Baldor EM2531T-G 25HP Motor

Used, new bearings 2023—sitting since.

• Brand: Baldor Reliance Super-E premium efficiency motor
• Catalog number: EM2531T-G
• Spec number: 40E246X793G1
• Horsepower: 25 HP
• Phase: 3-phase AC
• Voltage: 230/460 V
• Full-load amps: 60/30 A at 230/460 V
• Frequency: 60 Hz
• Speed: 1770–1775 RPM nominal (synchronous 1800 RPM)
• Frame: 284T
• Enclosure: OPSB (open, slotted band / open drip-proof)
• NEMA design: Design A, Code G
• Insulation class: H
• Service factor: 1.15
• NEMA nominal efficiency: 93.6% premium efficiency
• Power factor: 82% at full load
• Bearings: Drive end 6311, opposite end 6309, Polyrex EM grease

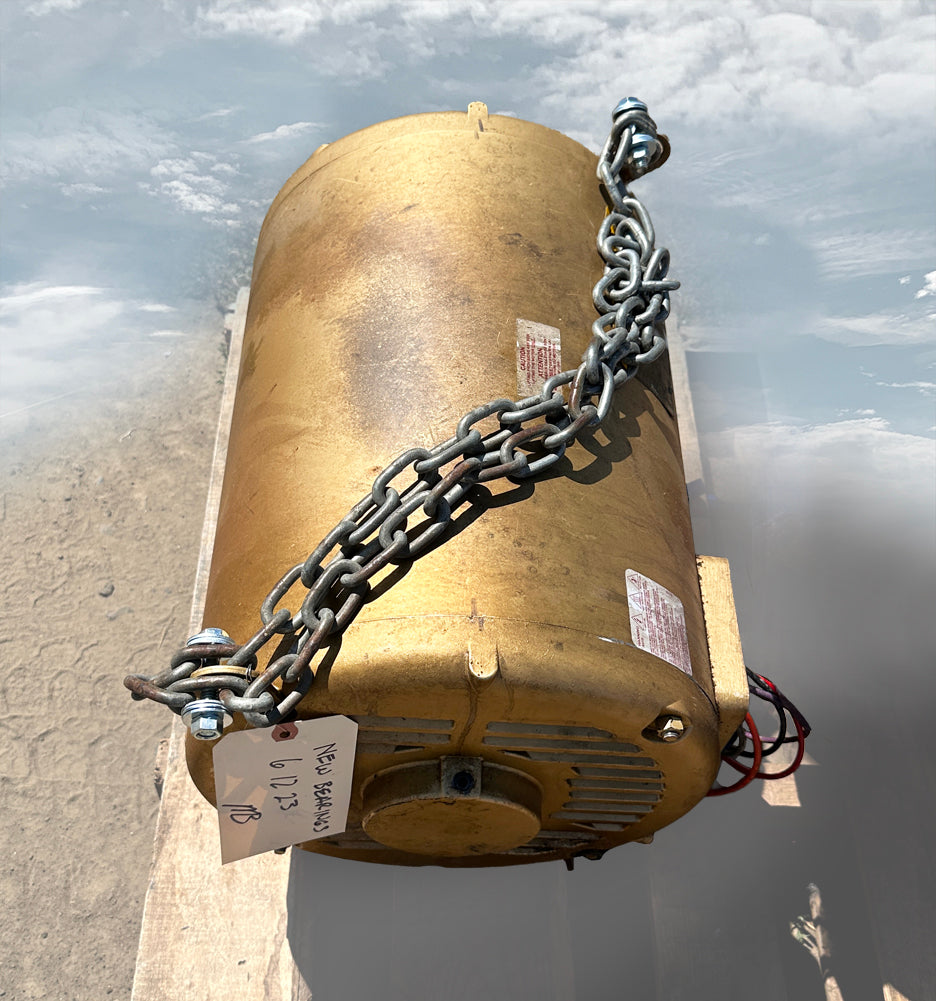

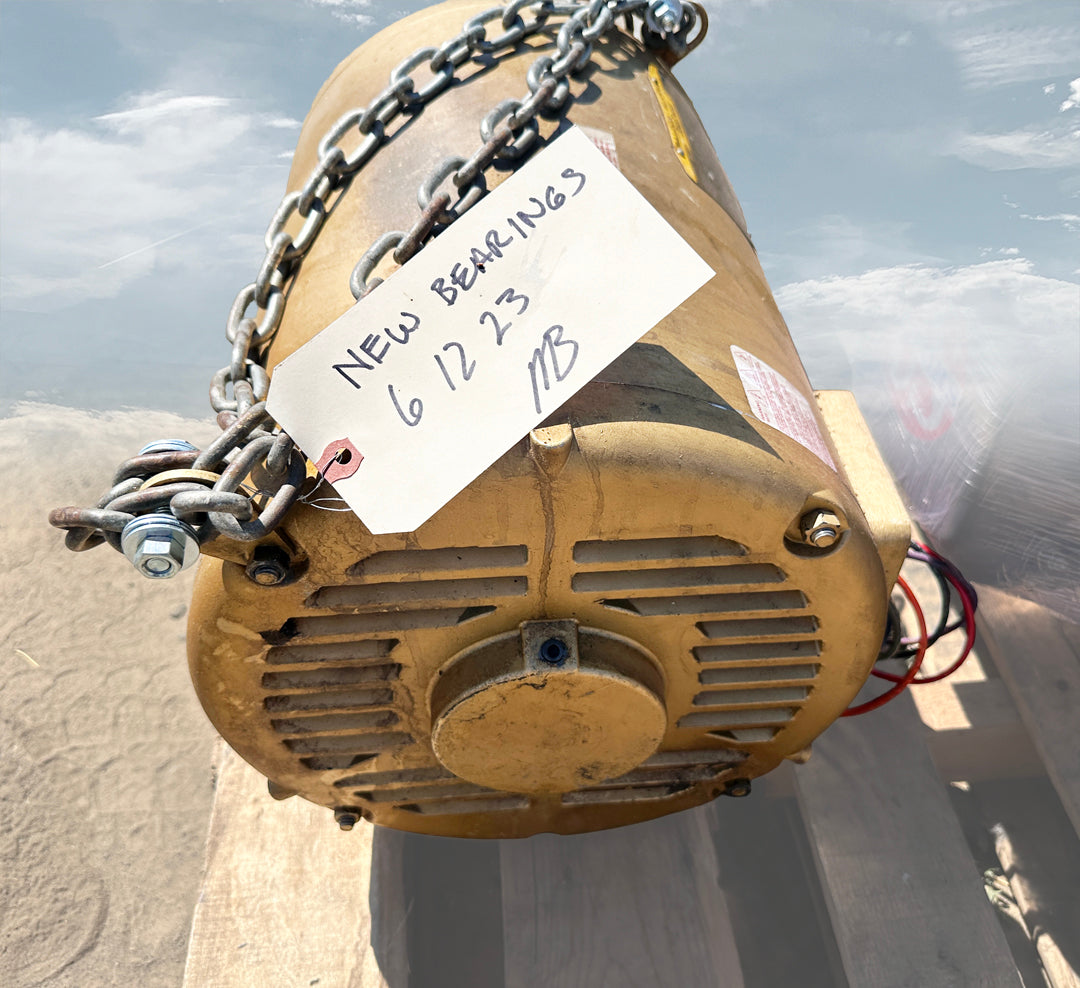

• Bearings noted new as of 6/12/23 (tag on motor)
• Mounting: Rigid base, F1 configuration, 284T bolt pattern
• Housing material: Steel frame
• Approximate weight: 410 lb ship weight
