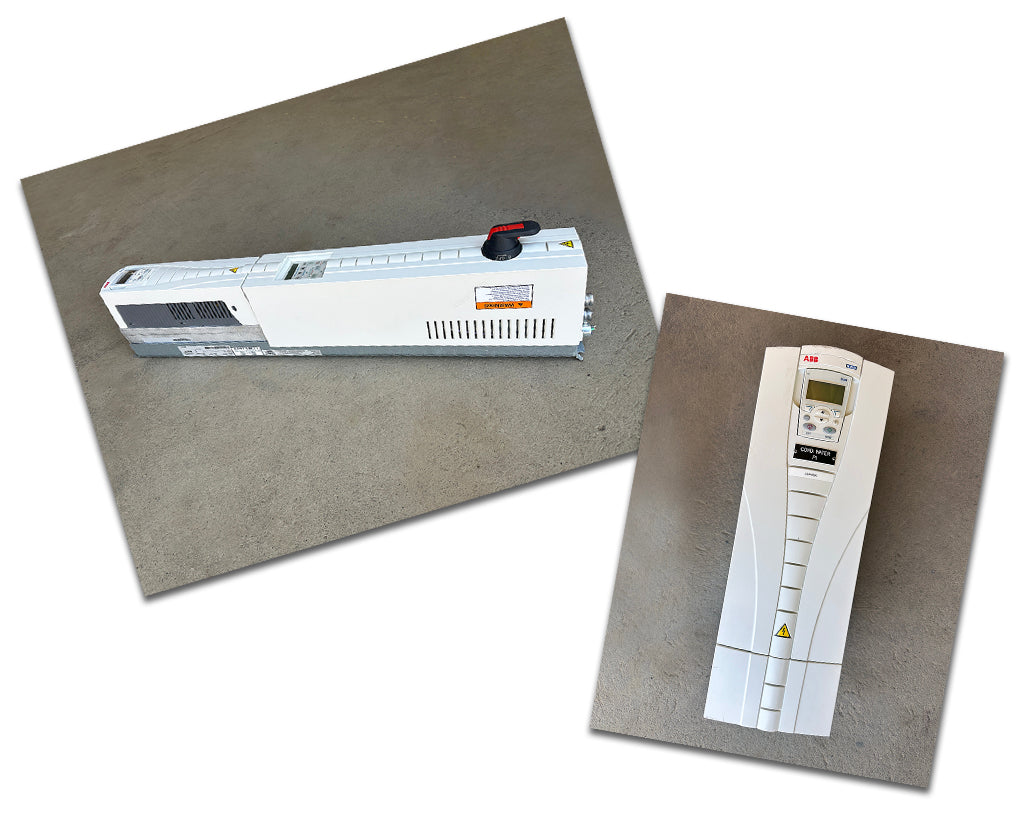

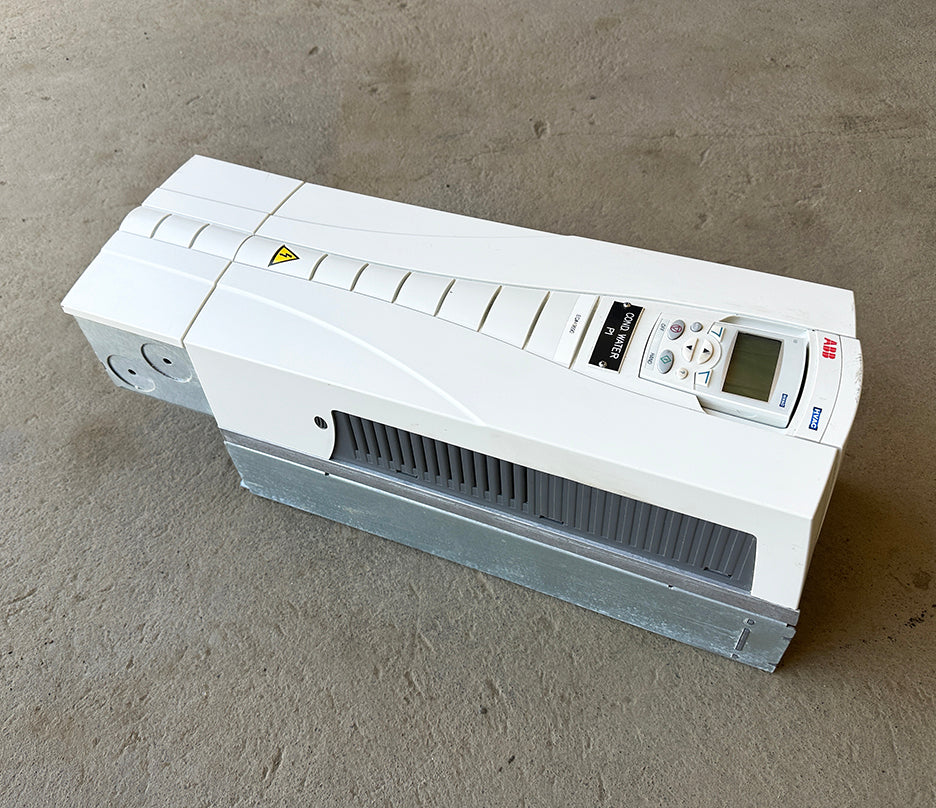

ABB ACH550 10HP 480V 3-Phase VFD (With or Without Bypass)

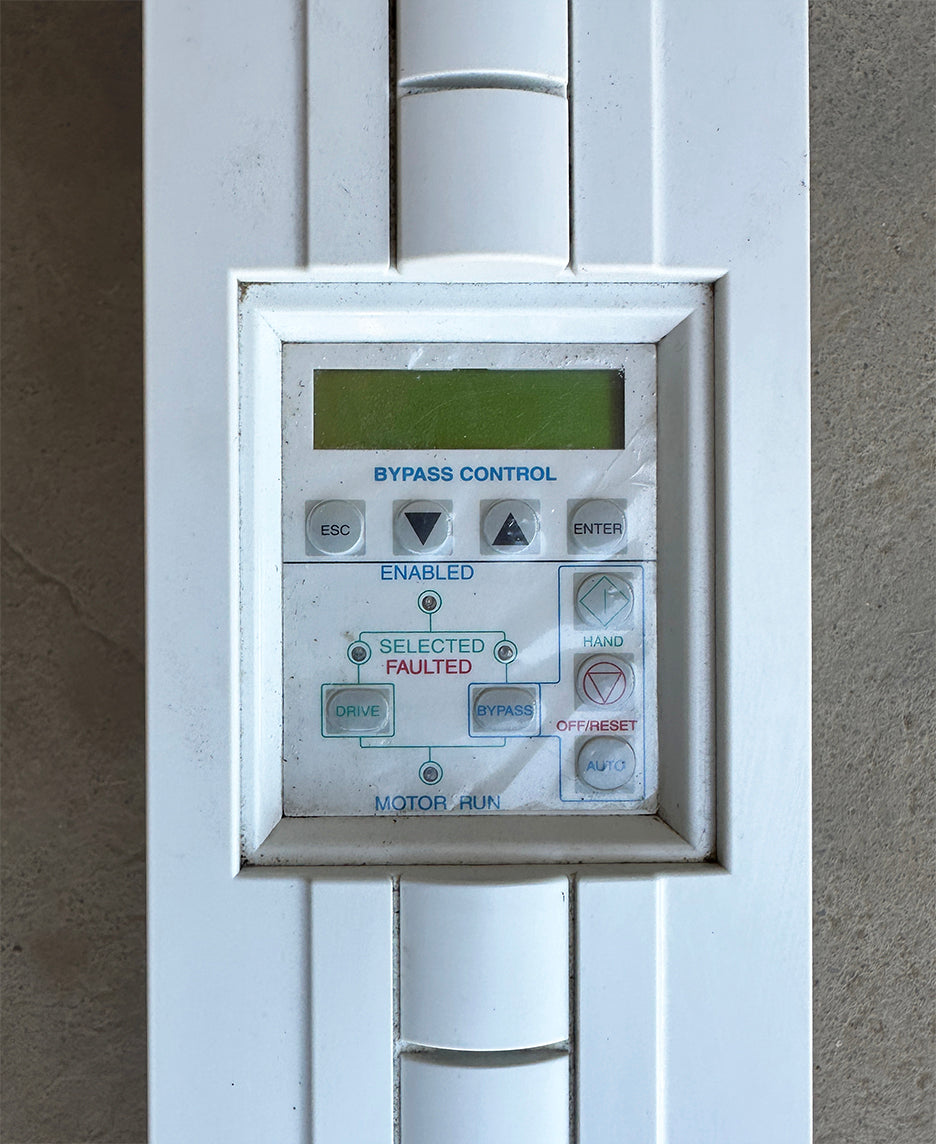

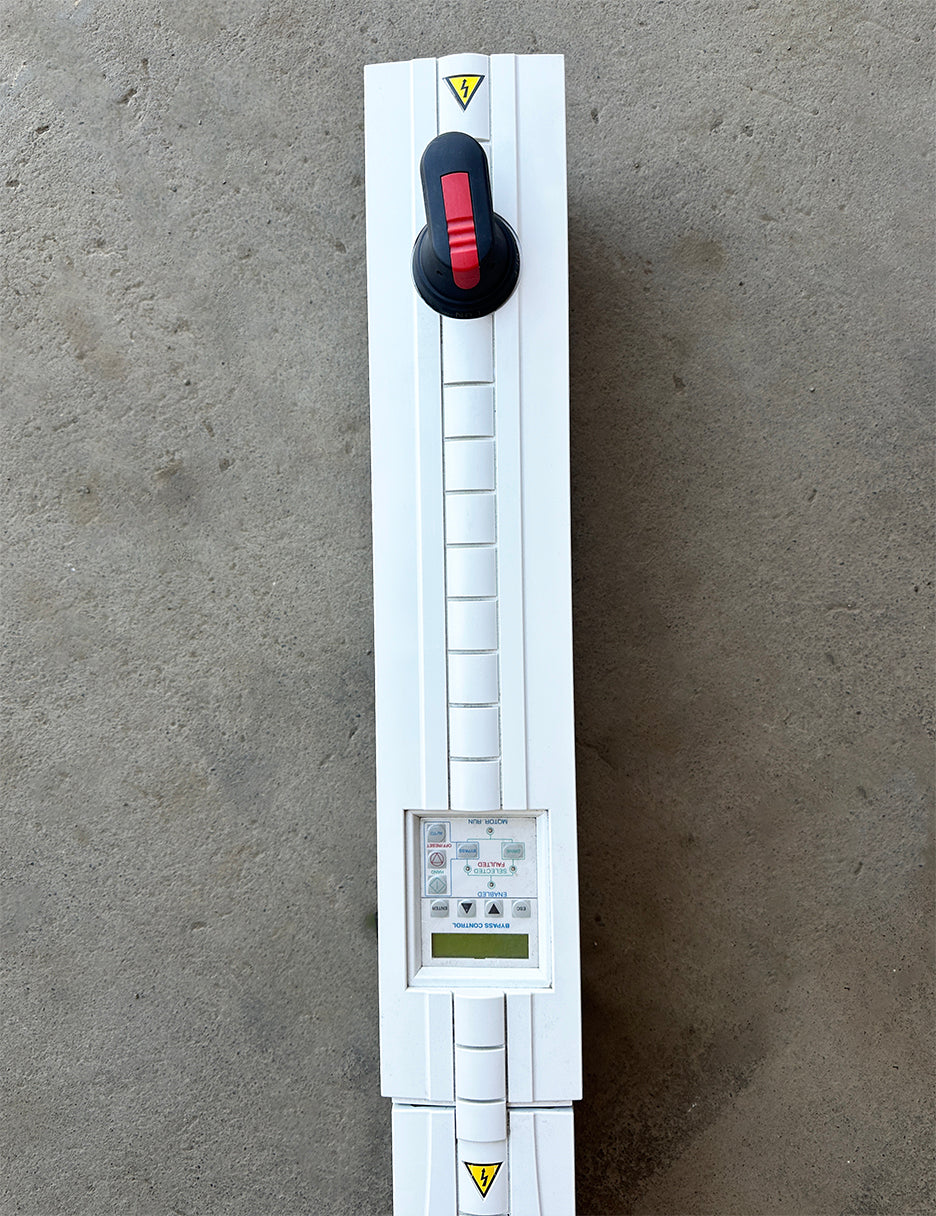

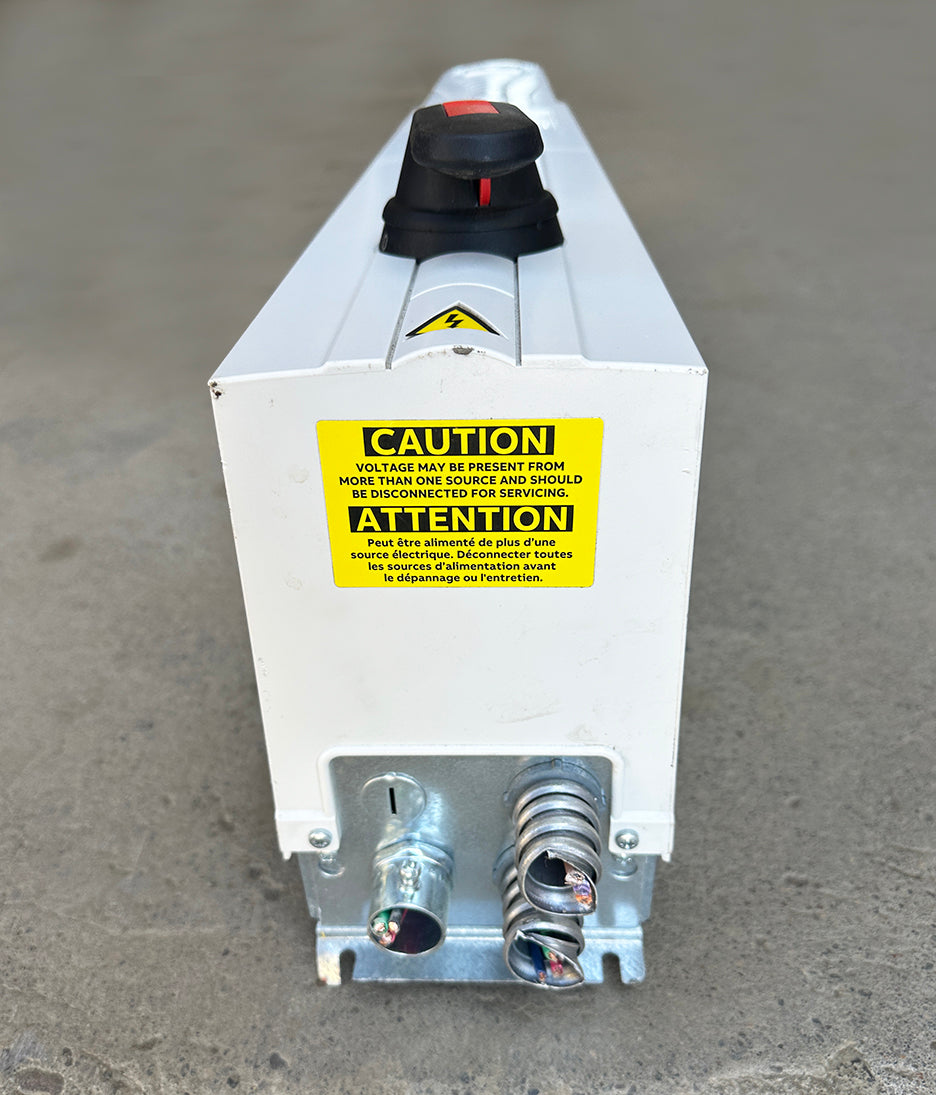

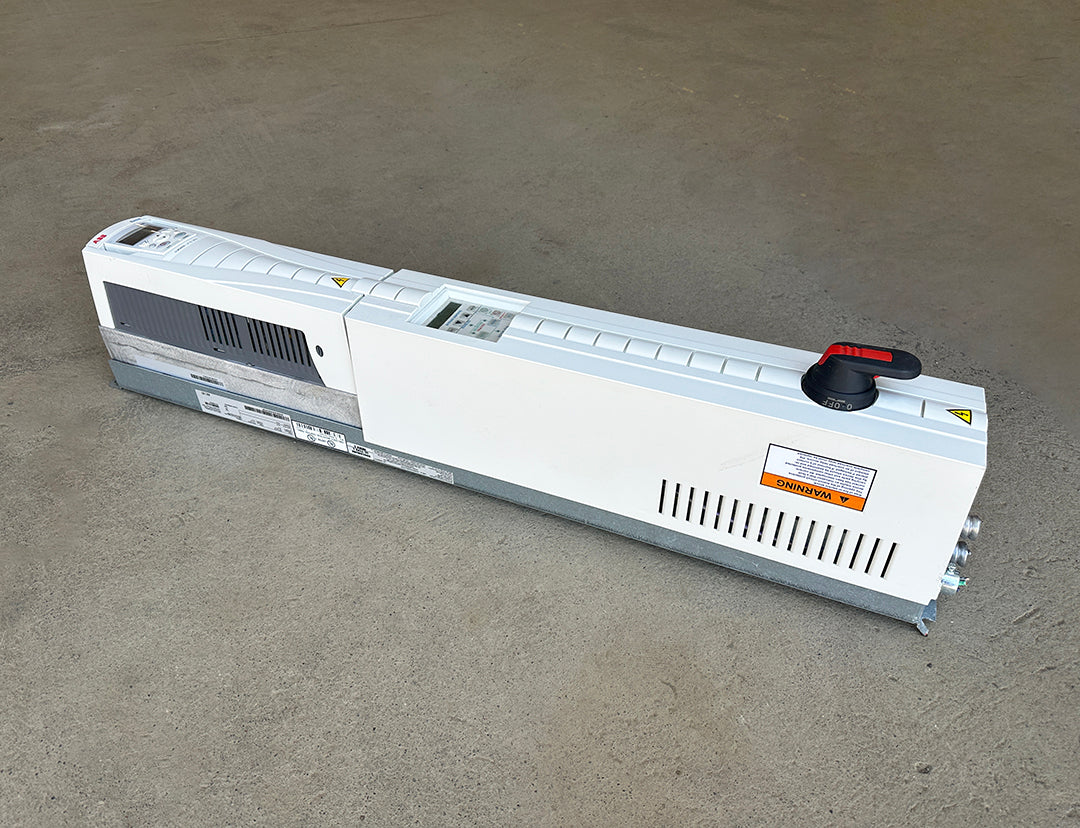

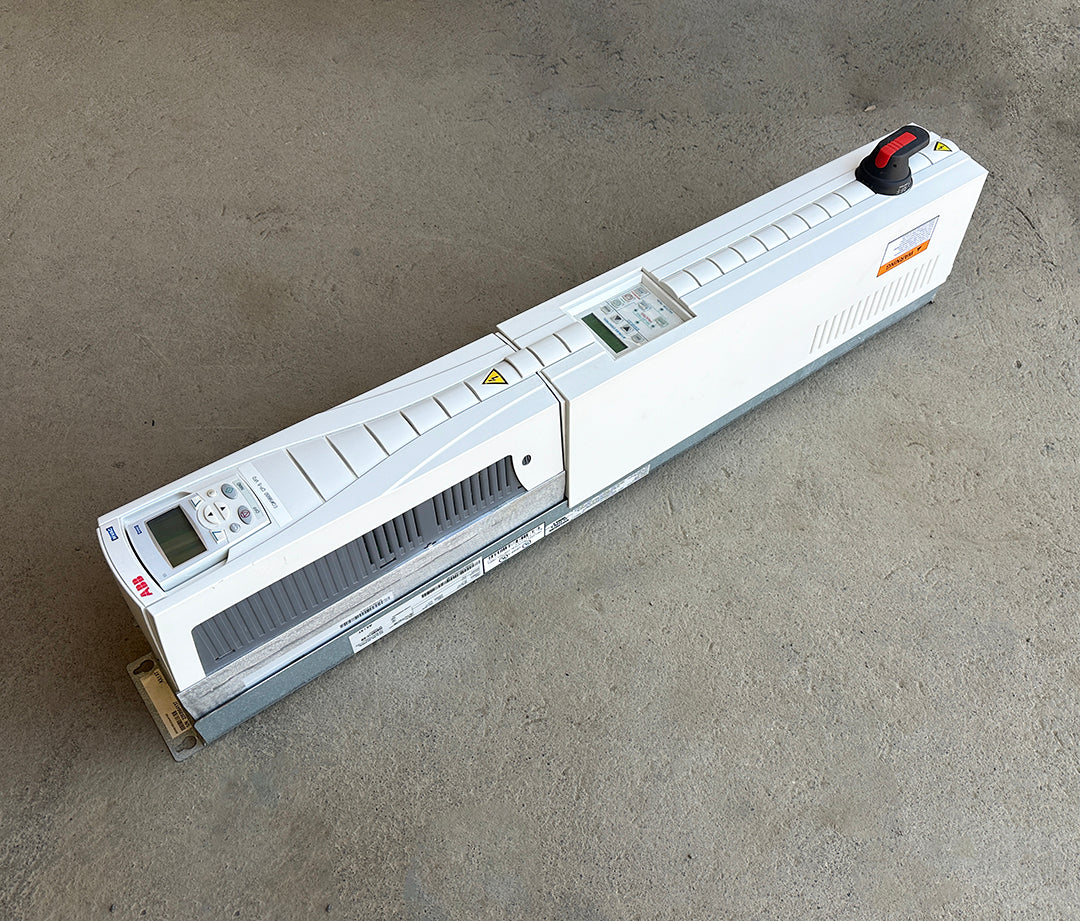

Available as a Standalone Base Drive OR Packaged Unit with VCR Bypass Cabinet

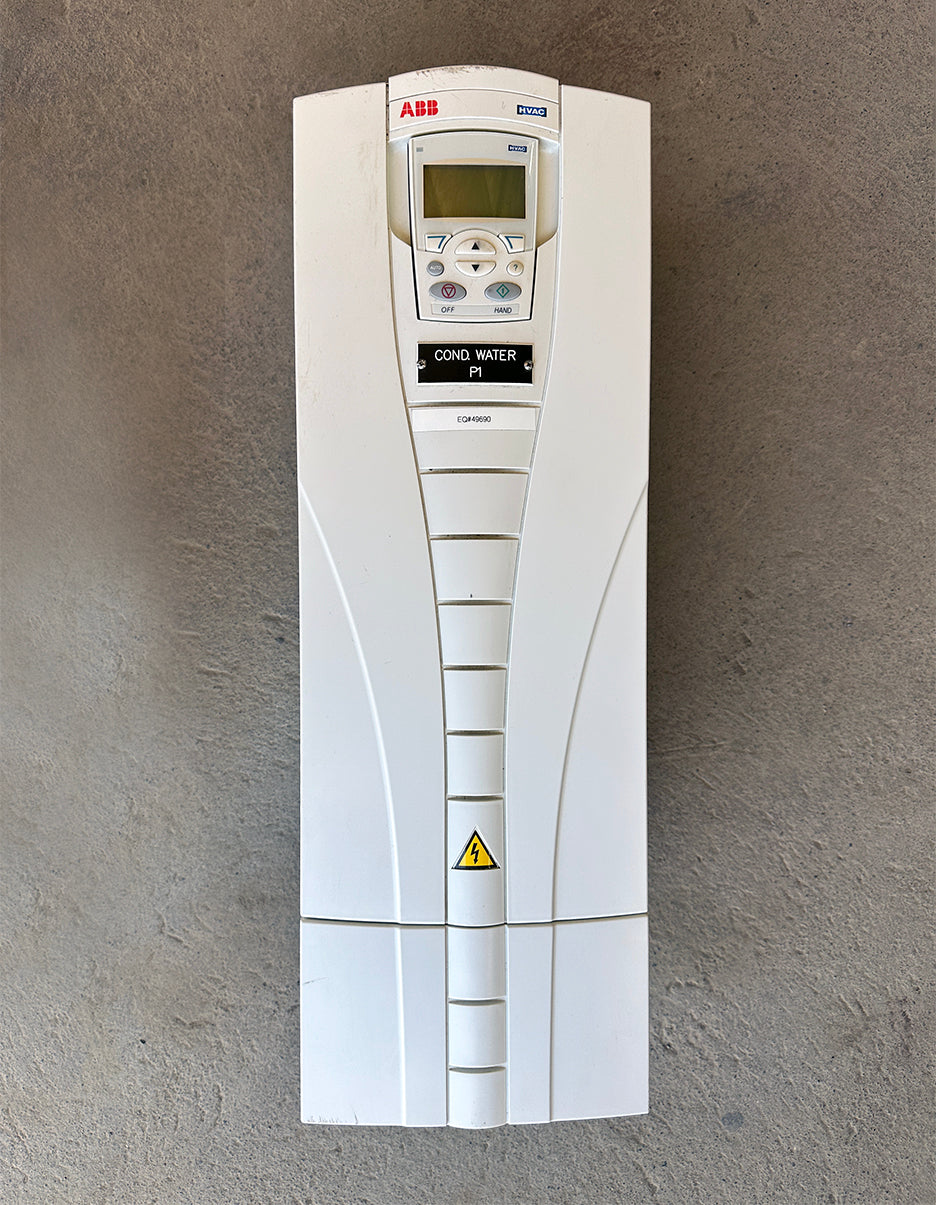

These VFD's were removed in good working order; they powered these pumps

• Brand: ABB
• Product Series: ACH550 HVAC Drive

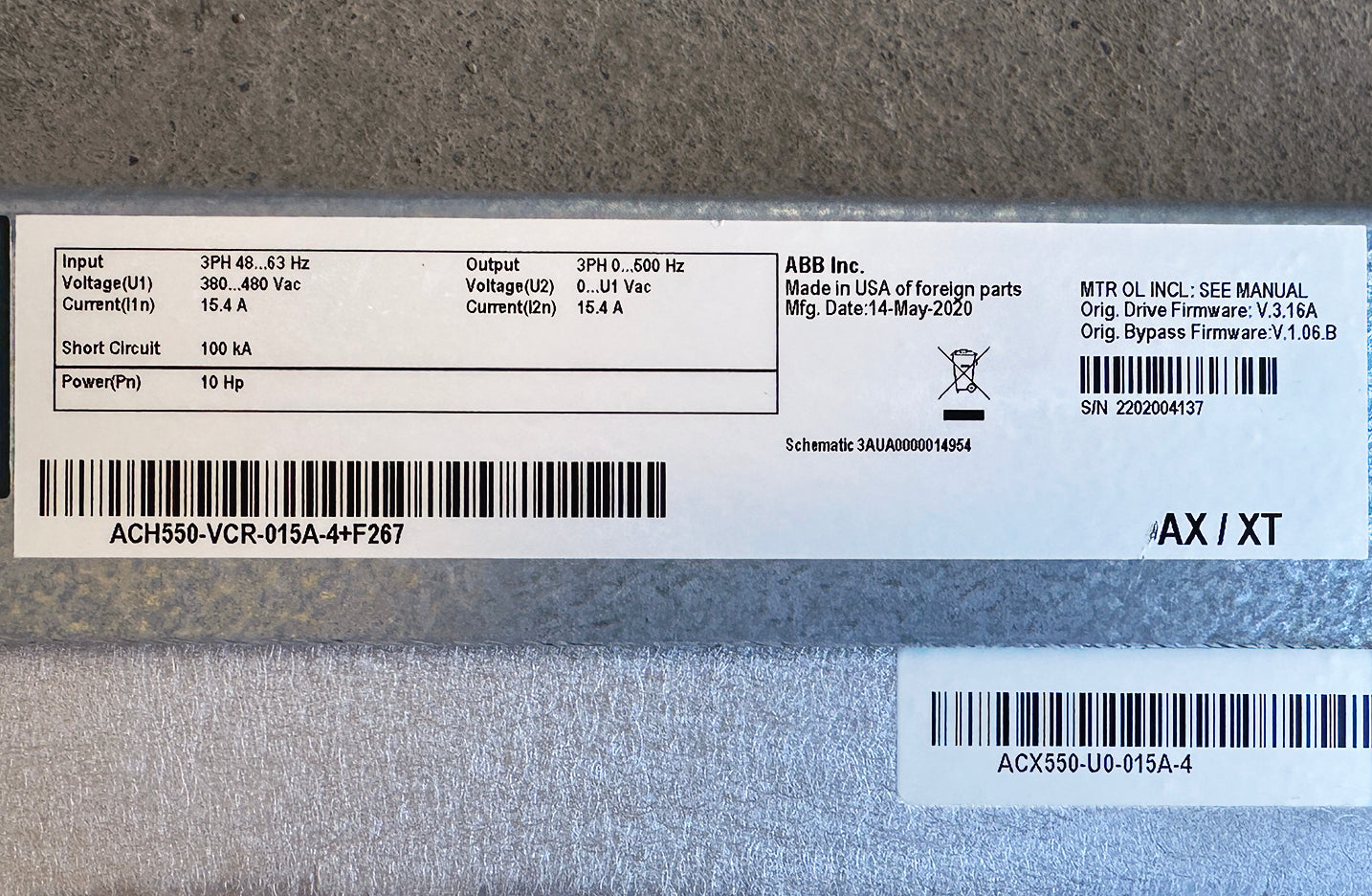

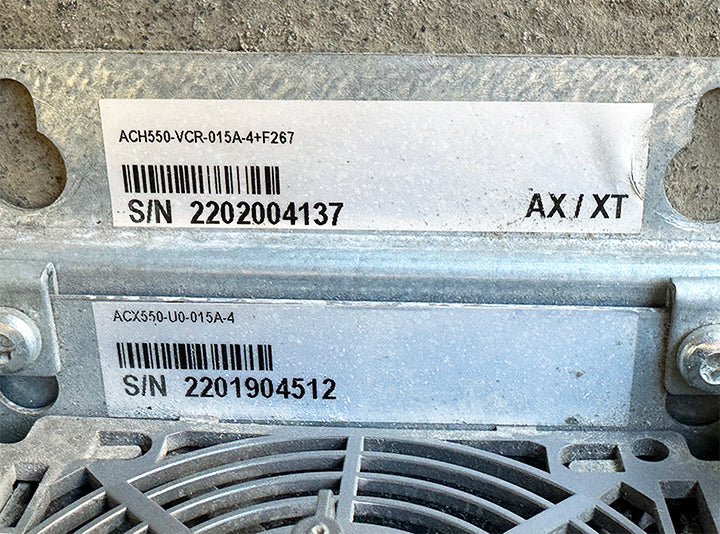

• Model Number (Packaged Unit w/ Bypass): ACH550-VCR-015A-4+F267

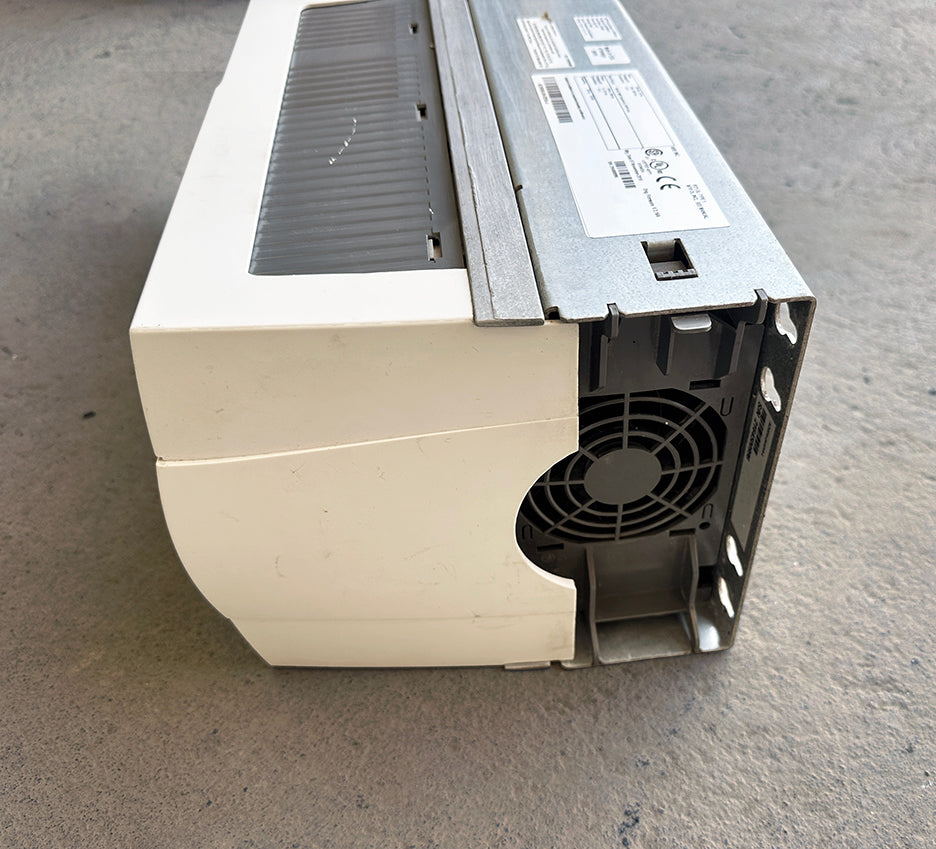

• Model Number (Standalone Drive): ACH550 Series (Internal hardware designation: ACX550-U0-015A-4)
• Power: 10 Hp
• Input Voltage (U1): 380...480 VAC, 3-Phase
• Input Frequency: 48...63 Hz
• Input Current (I1n): 15.4 A
• Output Voltage (U2): 0...U1 VAC, 3-Phase
• Output Frequency: 0...500 Hz
• Output Current (I2n): 15.4 A
• Short Circuit Rating: 100 kA
• Manufacture Date: 14-May-2020
• Firmware: Drive V.3.16A / Bypass V.1.06.B
• Enclosure Rating: NEMA 1 / UL Type 1
