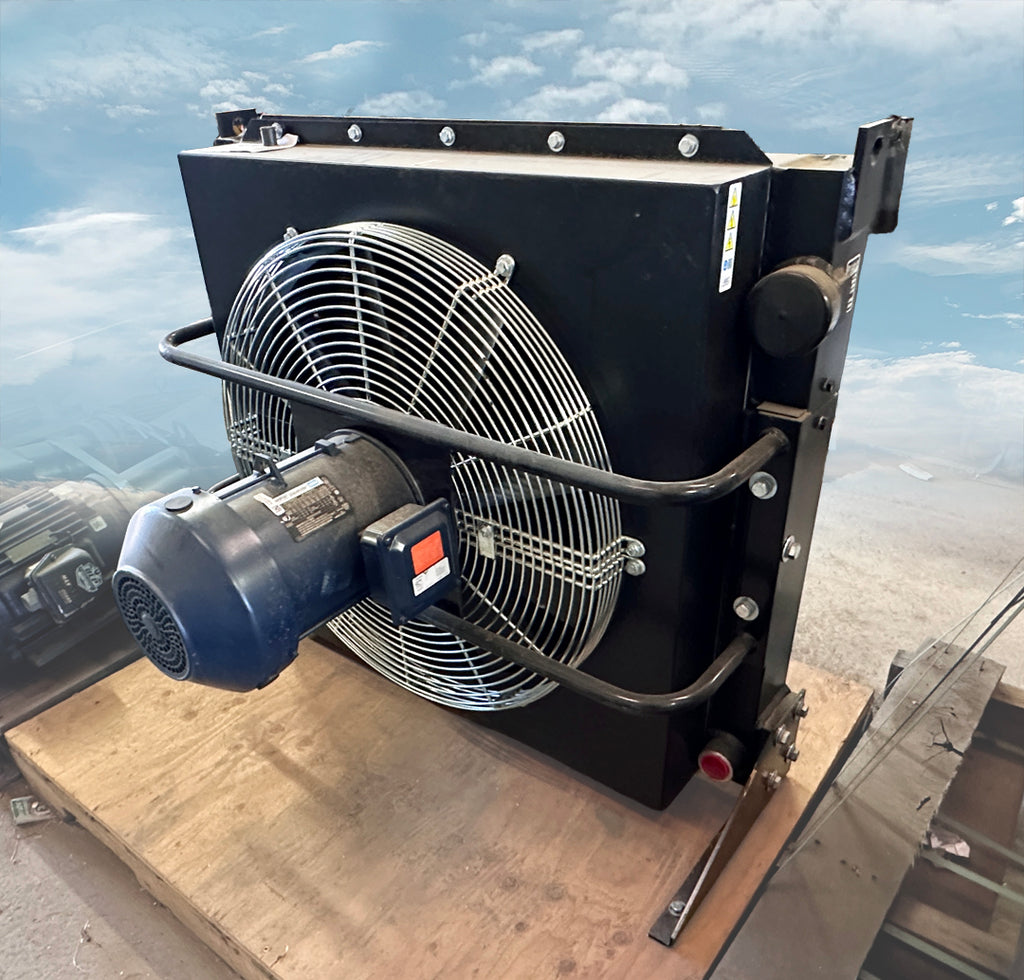

2023 AKG AOC125-3 Aftercooler / Oil Cooler

Cooler Unit

• Model: AKG AOC125-3
• Part Number: 11.03664800
• Manufacturer: AKG Thermal Systems, Mebane, NC
• Manufacture Date: 09/19/2023
• Maximum Working Pressure:
  • Oil: 250 PSI
  • Air: 358 PSI
• Maximum Working Temperature: 250°F (Oil)
• Type: Combination aftercooler/oil cooler for rotary screw compressors

Fan Motor

• Brand: Marathon (Leeson) Globetrotter
• Model: XM184TTFBD6029CB
• Horsepower: 5 HP
• Voltage: 230/460V (60 Hz, 3-phase); 190/380V (50 Hz, 3-phase)
• Full Load Amps: 13.2/6.6 (230/460V)
• RPM: 1765 (60 Hz), 1462 (50 Hz)
• Frame: 184TC
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Insulation Class: F3
• NEMA Premium Efficiency: Yes
• Hazardous Location Rated: Yes (Division 2)

Construction: Aluminum bar and plate, heavy-duty industrial build

Configuration: Remote-mountable, includes large axial fan and protective guards

This unit is a heavy-duty, high-capacity combination aftercooler and oil cooler, suitable for 100–125 HP rotary screw air compressors, with robust construction and a premium, hazardous-location-rated 5 HP motor.
